The AV-L8000FCEK and AV-L8200FCEK 3 piece full bore heavy duty actuated ball valves offer a more cost effective option to that of the stainless steel valve for use in less corrosive environments. Valve sizes range from 1/4” to 2”. Ball and seat options inlcude but are not limited to 50% stainless steel filled seats and V-Ball modulation. Silcone seats for oil based paint applications and inspection testing is to MSS SP-110. Additional options included FOC are (Certificate Of Conformity) and a two page full build assembly and Calibration Certificate. Every unit is assembled and tested in house prior to despatch. The Actuator's rugged construction of high quality Die-Cast Aluminium Body encased with a grey stove enamel finish provides protection up to IP65/NEMA4X offering increased durability in harsh condition industries and applications.

Shop Help Me

Key features and benefits of AV-L8000FCEK & AV-L8200FCEK Actuated Ball Valves.

Key Features

Koei UNIC electric actuators are compact and lightweight which makes them easy to install almost anywhere without sacrificing performance or durability. These lightweight units offer all the features and benefits found in our standard models with none of the bulkiness.

Key Features

The versatile Koei UNIC electric Actuator is an ideal choice for all your electrical actuating needs and site standardisation with more than 8 individual sizes available we're sure there's one that will fit all of your electric requirements perfectly.

Key Features

The three piece design helps prevent damage caused by improper disassembly when removing and replacing seals or other components in the valve body. Our innovative design also allows users to replace any single component without having to replace the entire valve assembly.

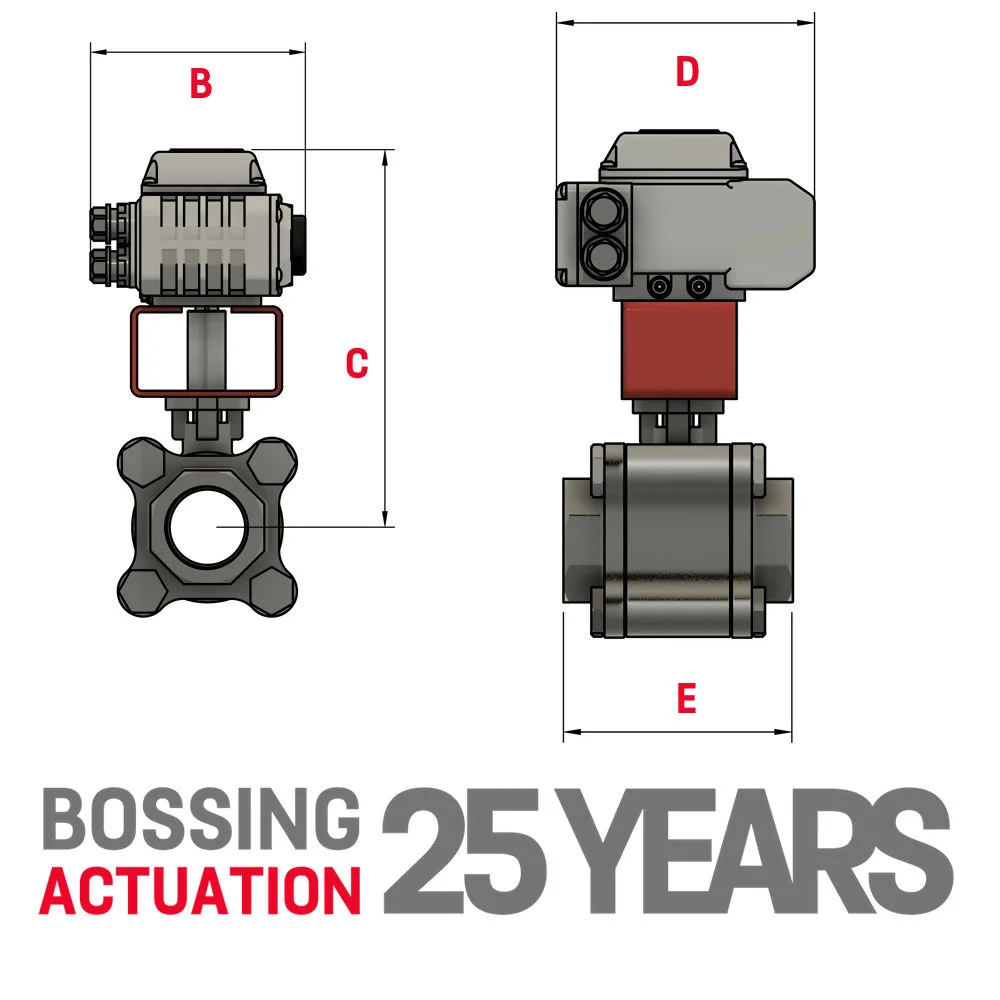

	B	C	D	E	Model

1/4"	145.00	219.00	159.00	75.00	UNIC 05
3/8"	145.00	219.00	159.00	75.00	UNIC 05
1/2"	145.00	219.00	159.00	75.00	UNIC 05
3/4"	145.00	227.00	159.00	80.00	UNIC 05
1"	145.00	234.00	159.00	90.00	UNIC 05
1 1/4"	145.00	239.00	159.00	110.00	UNIC 05
1 1/2"	145.00	251.00	159.00	120.00	UNIC 05
2"	155.00	288.00	208.00	140.00	UNIC 10
2.5"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material:	TFM 4215® (25% Carbon Filled TFM)
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 228/1
Socket Weld Ends:	ASME B16.11
Silicone Free:	Suitable For Oil Based Paints
Anti Static Device:	Ball, Shaft & Valve Body

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, position feedback is included as standard on the AV-L8000FCEK and AV-L8200FCEK. The Koei UNIC electric actuator has built-in limit switches that indicate the open and closed valve position, so you can monitor status without adding a separate switch box.

Yes, discounts are usually available on multi-unit or bulk orders of the AV-L8000FCEK and AV-L8200FCEK range. Get in touch with your required quantity and specification and our sales team will confirm the best pricing for your order.

Yes, the AV-L8000FCEK and AV-L8200FCEK range can be supplied Firesafe API 607 5th Edition certified. Please confirm this requirement when ordering so the correct documentation is issued with your valve.

Yes, we can advise on larger sizes outside the standard AV-L8000FCEK and AV-L8200FCEK range. Send us your line size and process details by email or give us a call and we will confirm availability and lead time.

Yes, we can deliver directly to your customer on a plain, unbranded label. Send us a copy of your delivery note and we will include it with the shipment so your customer receives it under your company name.

Yes, we offer credit accounts for trade and repeat customers, subject to a credit check. Apply on the product page at checkout or contact our sales team directly and we will guide you through the application process.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
