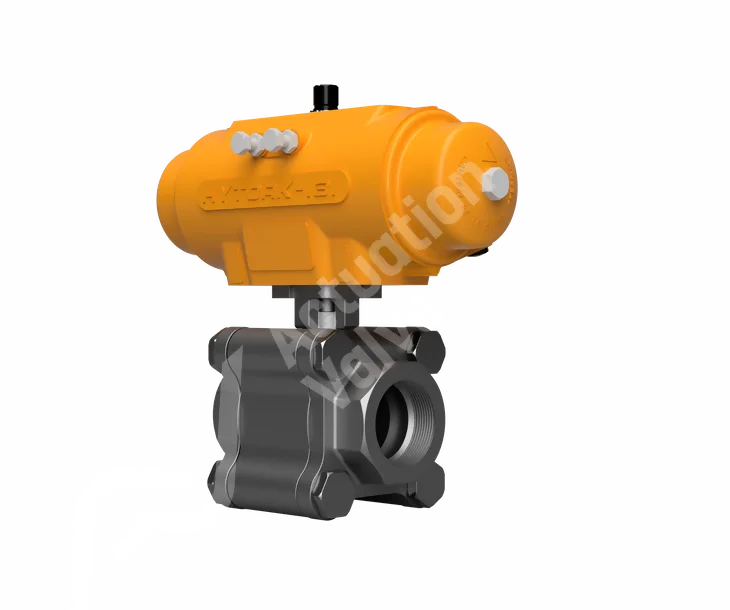

Heavy Duty Stainless Steel Hytork Actuated Ball Valves

The AV-L8000XL, AV-L8100XL & AV-L8200XL 3 piece full bore heavy duty actuated ball valves consist of a ASTM A351 CF8M 316 stainless steel body & trim with TFM 4215 25% carbon filled seats. Valve sizes range from 1/4” to 2” nominal bore. The isolation ball valve is fully maintainable and reliable with a firesafe and ATEX design. Options include 50% stainless steel filled seats and V-Ball modulation.

Key Features

Key features and benefits of AV-L8000XL, AV-L8100XL & AV-L8200XL Actuated Ball Valves.
1

Key Features

Our pneumatically actuated rack and pinion system provides you with more precision than conventional designs while extending the life of your components by protecting against excessive wear. Contact us today for more information about how we can help improve your application!
2

Key Features

Designed to provide the highest quality at the best price in the market today. The Hytork XL product is easy to install and use with no special tools required during installation or operation. Competitive warranties offered for standard use operation.
3

Key Features

The AV-L8000FS heavy duty ball valves is suitable for use on heavy duty industrial applications where higher pressure ranges or temperatures may be required. The Valve features PTFE TFM 4215 ball seats with grafoil stem sealing.

Screwed/Socket Weld Technical Stuff

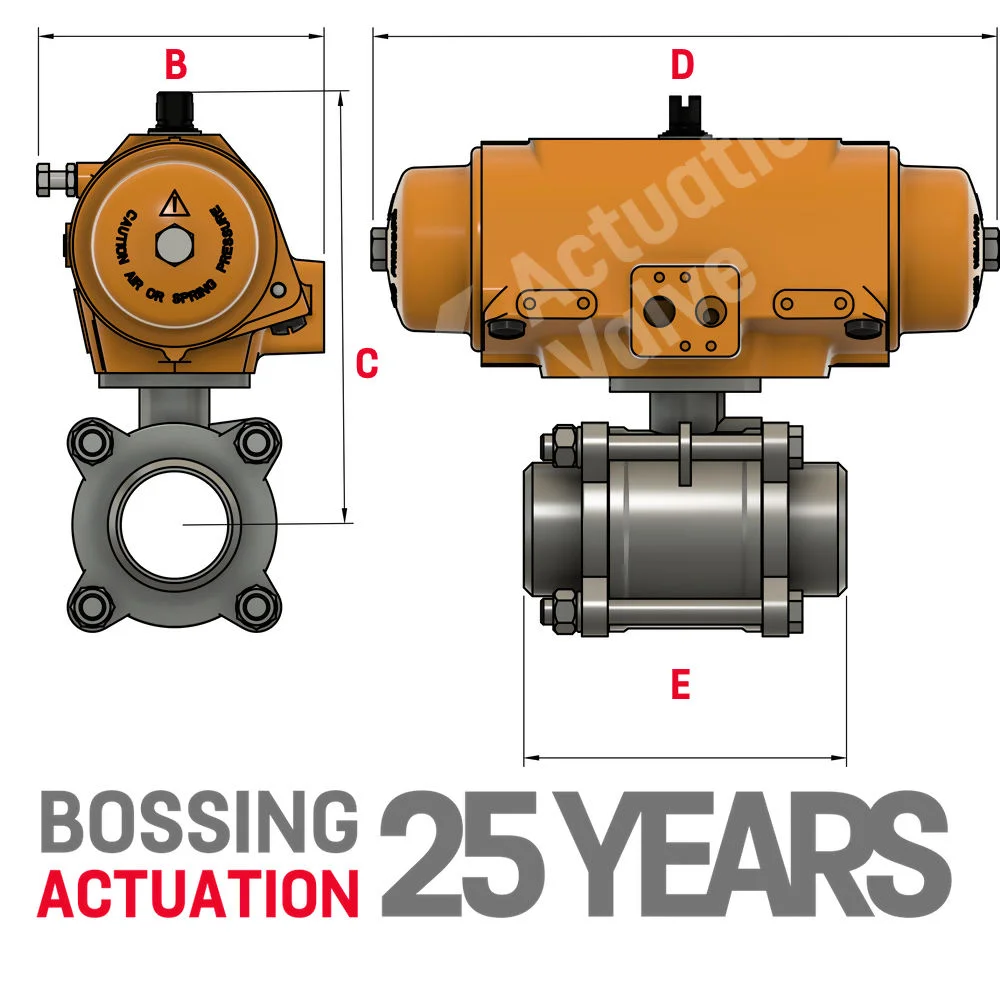

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
3/8" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
1/2" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
3/4" 97.00 155.50 165.00 80.00 97.00 155.50 165.00 80.00
1" 116.50 180.40 221.80 90.00 97.00 162.50 165.00 90.00
1 1/4" 116.50 185.40 221.80 110.00 116.50 185.40 221.80 110.00
1 1/2" 116.50 197.40 221.80 120.00 116.50 197.40 221.80 120.00
2" 133.50 224.40 292.00 140.00 133.50 224.40 292.00 140.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Technical Stuff

Butt Weld Valve 3D Stuff

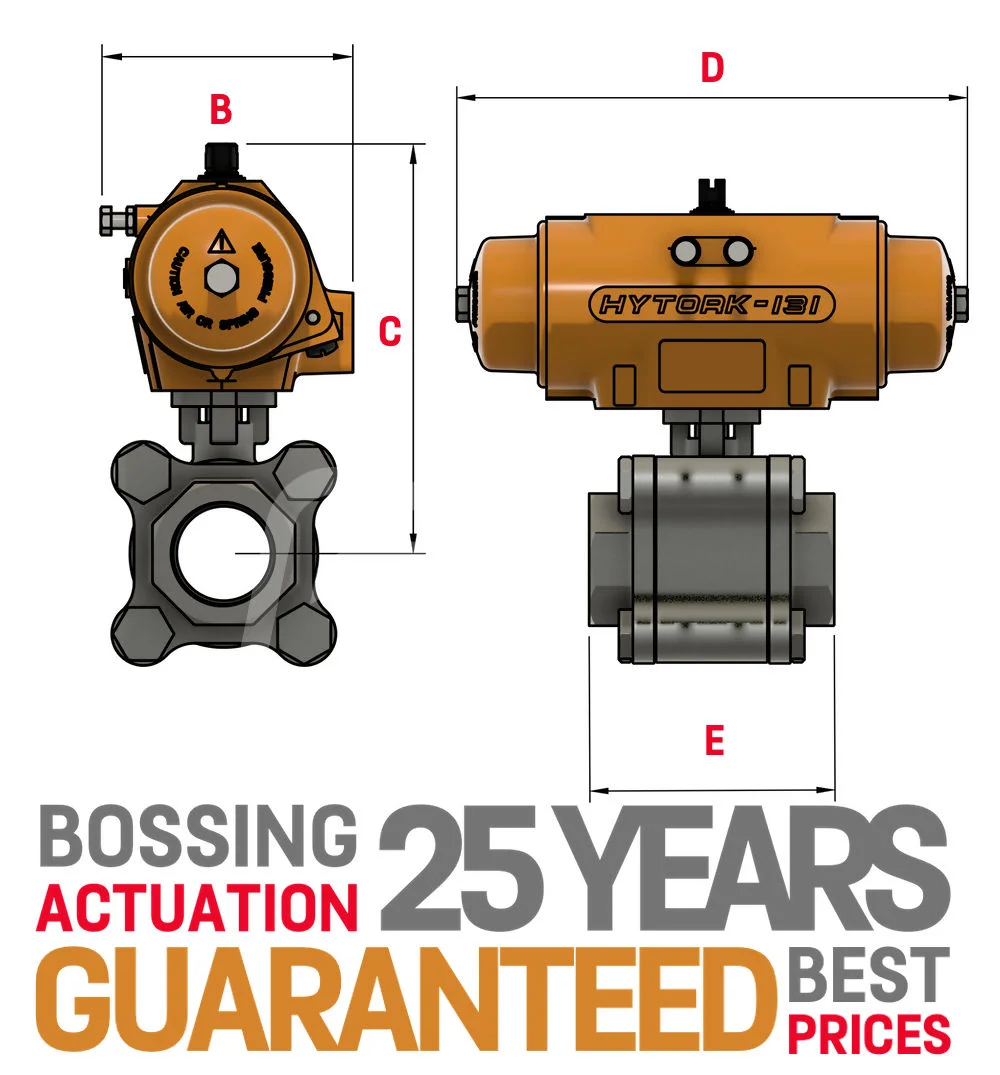

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 97.00 147.50 165.00 70.00 97.00 147.50 165.00 70.00
3/8" 97.00 147.50 165.00 70.00 97.00 147.50 165.00 70.00
1/2" 97.00 147.50 165.00 75.00 97.00 147.50 165.00 75.00
3/4" 97.00 155.50 165.00 90.00 97.00 155.50 165.00 90.00
1" 116.50 180.40 221.80 100.00 97.00 162.50 165.00 100.00
1 1/4" 116.50 185.40 221.80 110.00 97.00 167.50 165.00 110.00
1 1/2" 116.50 197.40 221.80 125.00 116.50 197.40 221.80 125.00
2" 133.50 133.50 292.00 150.00 133.50 224.40 292.00 150.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
