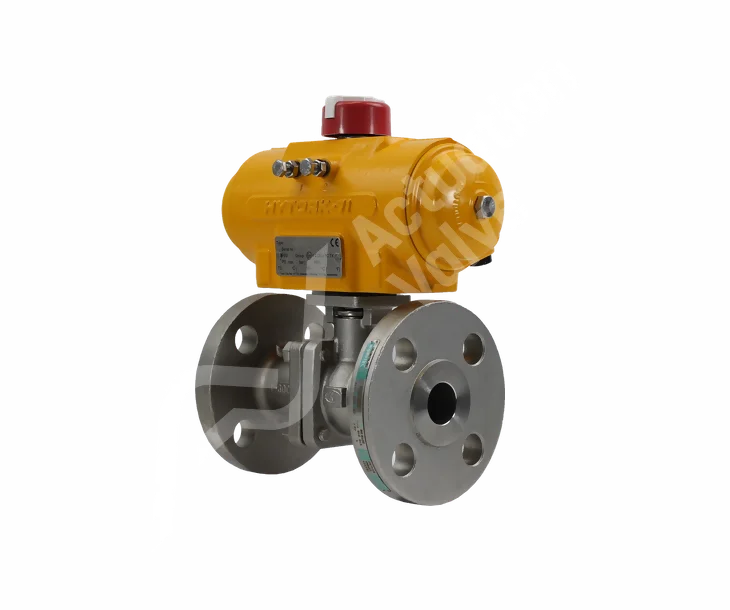

Stainless Steel Flanged PN16 Hytork Actuator Ball Valves

The AV-L6K00XL flanged PN16 actuation valves offer a basic quarter turn actuated solution for low to medium pressure requirements with DIN flanged connections (Maximum 16 bar). A range of pneumatic actuator sizes in the S00 or DAG models allow setups inlcuding fail in position, return to set position and open or closed fail safe. Both spring return and double acting actuation valves can be offered with a range of feedback options for remote position monitoring. A greater detail of control can also be offered with 4-20mA electric or electro-pneumatic positioners.

Key Features

Key features and benefits of AV-L6K00XL Actuated Ball Valves.
1

Key Features

The AV-L6K00 Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and disc made from high quality stainless steel, these valves can withstand even the most demanding conditions.
2

Key Features

Ideal for applications where frequent On/Off cycles are required such as material handling equipment (MHE) due to its high cycle life expectancy. Hytork actuators are SIL rated to several million cycles with a proven track record.
3

Key Features

NAMUR mounting (VDE/VDI 3845) allows standardisation of mounting hardware for a wide range of accessories. This eliminates the need to purchase specific mounting kits or adapters which can increase costs and waste time during installation.

Flanged PN16 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 97.00 152.50 165.00 115.00 97.00 152.50 165.00 115.00
3/4" 97.00 157.50 165.00 120.00 97.00 157.50 165.00 120.00
1" 116.50 181.40 221.80 125.00 97.00 163.50 165.00 125.00
1 1/4" 116.50 193.40 221.80 130.00 116.50 193.40 221.80 130.00
1 1/2" 116.50 198.40 221.80 140.00 116.50 198.40 221.80 140.00
2" 133.50 223.40 292.00 150.00 116.50 207.40 221.80 150.00
2 1/2" 143.10 246.05 331.60 170.00 133.50 240.40 292.00 170.00
3" 158.50 271.09 349.80 180.00 143.10 256.05 331.60 180.00
4" 174.00 309.00 462.00 190.00 158.50 299.90 349.80 190.00
5" 174.00 352.00 462.00 325.00 158.50 342.90 349.80 325.00
6" 240.00 438.00 647.00 350.00 190.00 408.00 324.00 350.00
8" 246.00 502.00 696.00 400.00 240.00 487.00 396.00 400.00

Flanged PN16 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Rating: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Hytork Actuator Videos

TopWorx Limit Switch Box

TopWorx Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.
