Actuated Ductile Iron Wafer Type TTV Butterfly Valves

The TTV 20W3040 Actuated Wafer Pattern Butterfly Valve is a Rilsan Coated Ductile Iron Bodied Valve with a CF8M Stainless Steel Disc & 304 Stainless Steel Shaft. A one piece body concentric design features four entering lugs which allows for easy installation between two flanges at intermediate points within the process pipeline. Suitable for General Purpose applications for a range of industries the 20W3040 is both economical and versatile.

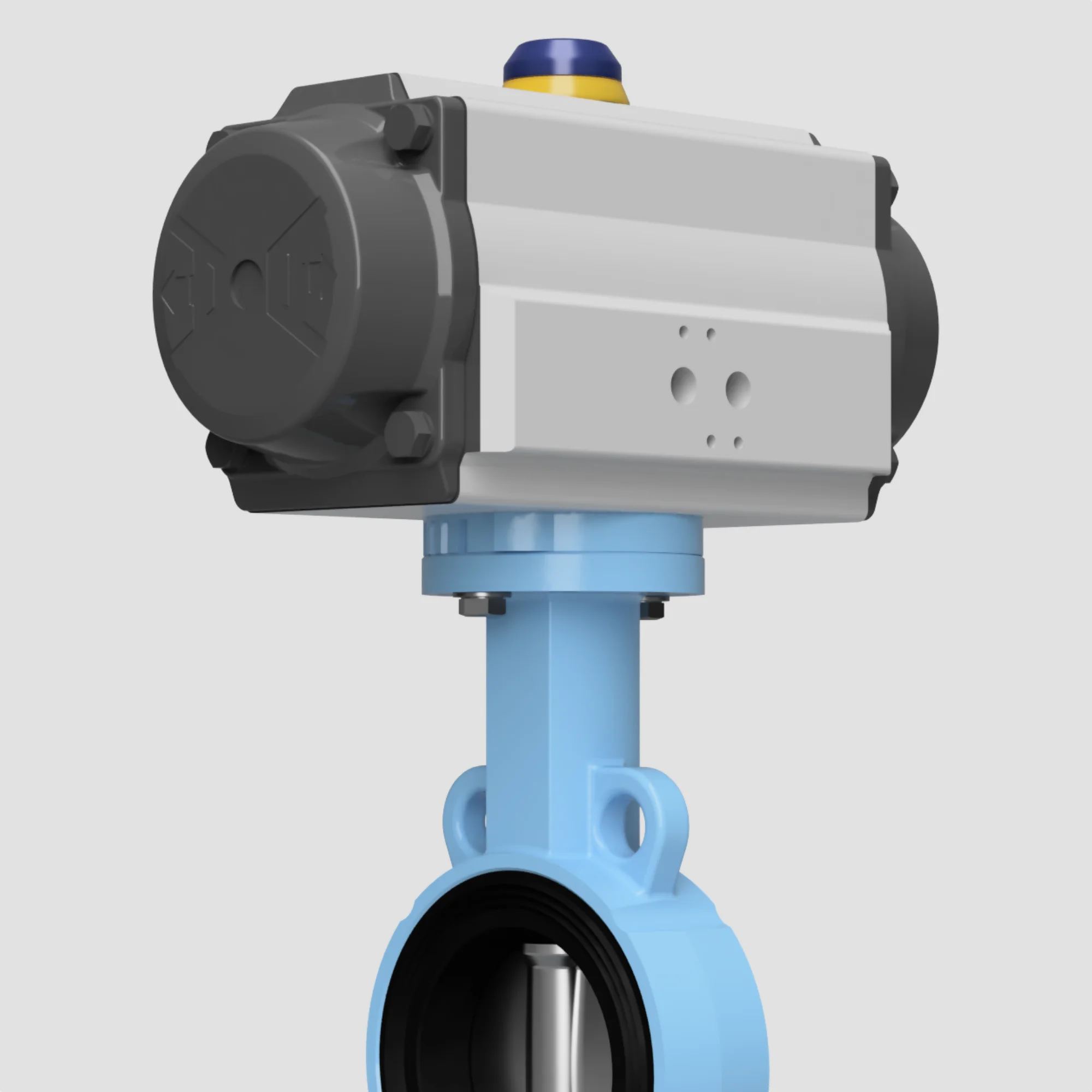

20W3040AT - Wafer Pattern Air Torque Actuated Butterfly Valves

A combination of the TTV 20W3040 and Air Torque actuator. Currently our most popular actuated butterfly valve assembly that outperforms most others on the market. A rilsan coated body butterfly valve and anodised aluminium actuator provide external protection for most non aggressive external application factors. A replaceable valve seat and actuator rated to SIL3 complete a robust general purpose package that will go the distance and provide maximum life capacity. The Air Torque actuator is in field convertible should you ever require a change from the spring return and double acting functionalities.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

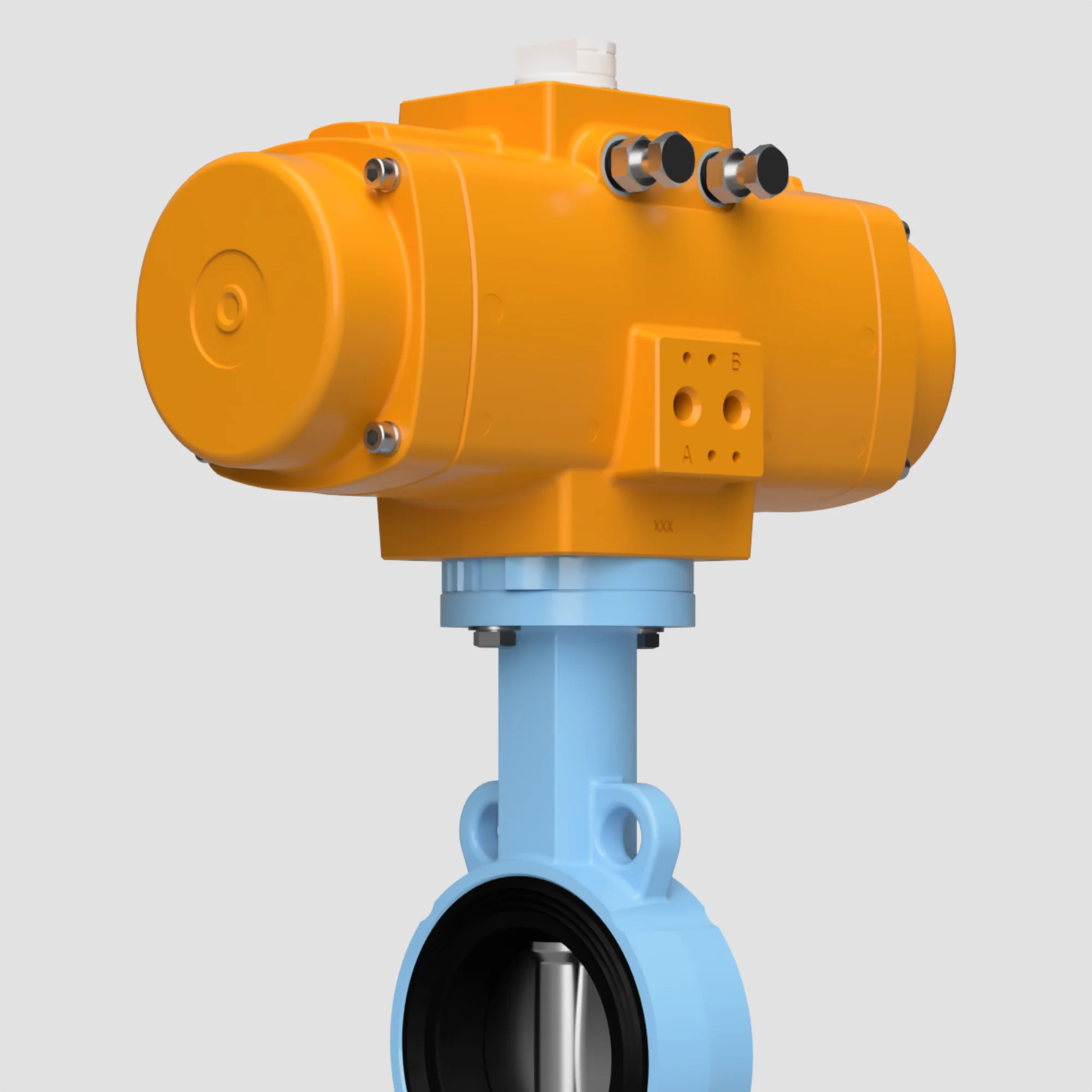

20W3040EL - Wafer Pattern Elomatic Actuated Butterfly Valves

The El-O-Matic range of actuators and TTV actuated butterfly valves offer a premium branded package for the 20W3040 concentric design. With over 3 million units sold worldwide El-O-Matic has quite quickly established itself amongst the leading global manufacturers. Their fit and forget principle ensures the total cost of ownership is reduced to a minimum. A hard anodized, high grade aluminium housing make this the choice of many for heavy duty applications. Dual stroke adjustments prevent premature failure and allows for easy on site calibration.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

20W3040FE - Wafer Pattern Festo Actuated Butterfly Valves

The DFPD quarter turn pneumatic actuator provides an extremely cost effective actuation option for the TTV 20W3040 butterfly valves. Covering actuated sizes up to 18" in the concentric design, the SIL2 rated actuator is a new benchmark for other manufacturers looking to throw their hat into the ring of mid to premium range rack and pinion actuators. Both the TTV butterfly valves and Festo DFPD actuator are available from stock for same day assembly and despatch. Additional options include the popular Festo CMSX electro-pneumatic positioners and VSNC pilot operated solenoid valves.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

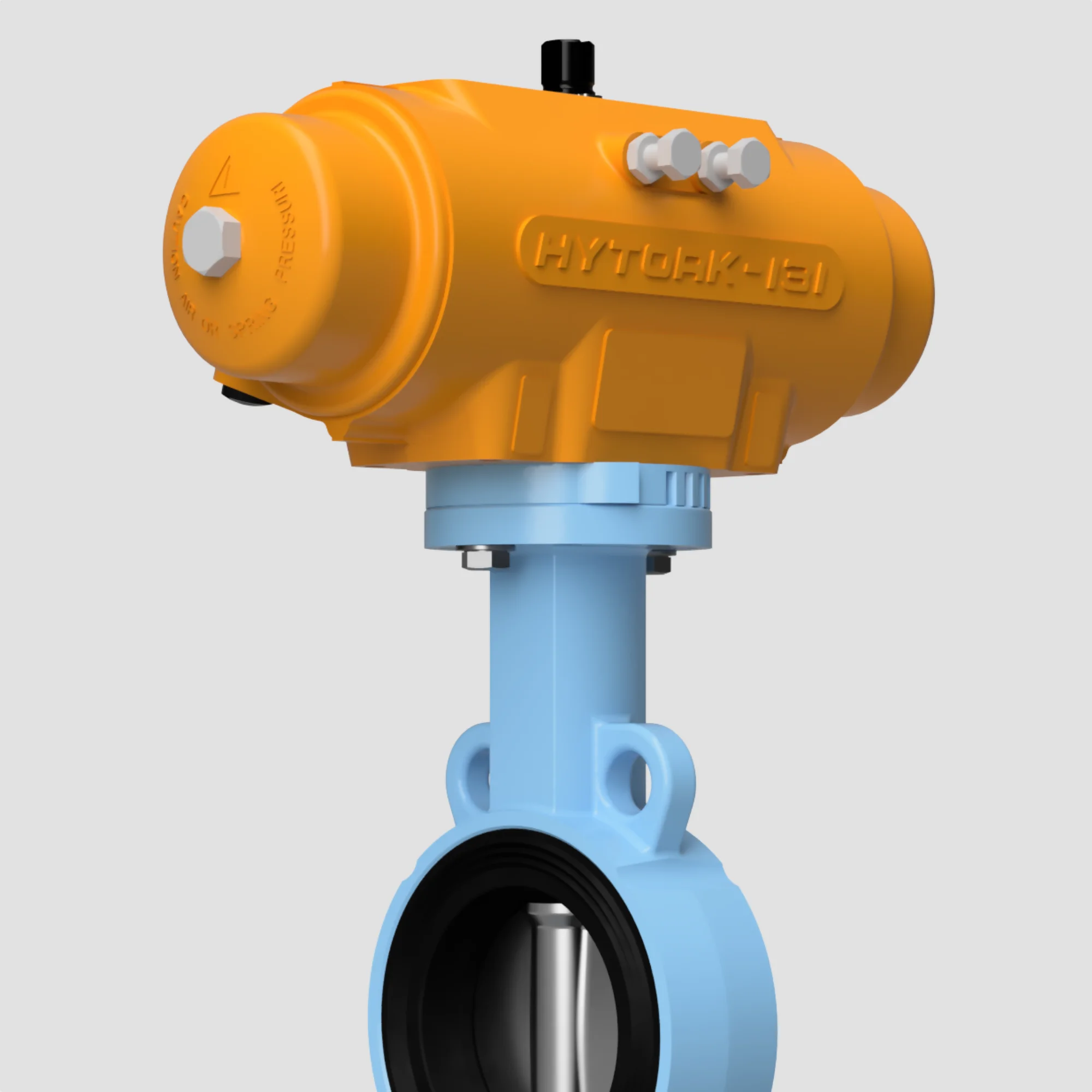

20W3040XL - Wafer Pattern Hytork Actuated Butterfly Valves

The Hytork XL series of pneumatic actuators combines quality, reliability and economy into a single actuated butterfly valve pacakage. Suitable for On/Off and modulating applications the TTV/Hytork combination is assembled with Atex compliant components. As part of the Emerson portfolio (Hytork) we can also offer the Asco range of Pilot Solenoid Valves & TopWorx Valve Limit Switch Box, keeping all actuation components under the one brand. This includes Ex d, Ex-ia and Safe Area. All moving actuator parts are protected by a long lasting DURASTRIP lubrication which significantly reduces friction.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

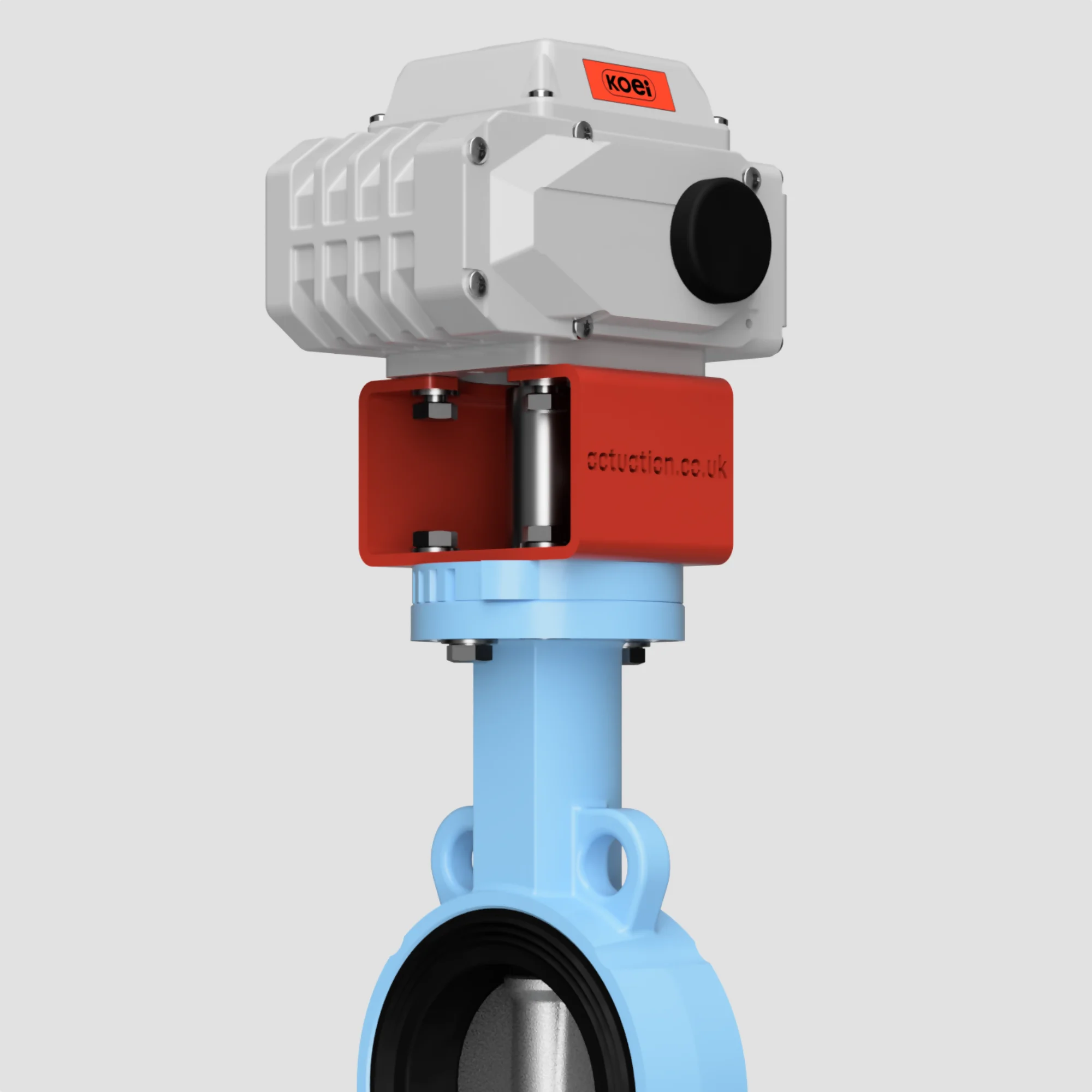

20W3040EK - Wafer Pattern Koei UNIC Electric Butterfly Valves

Although generally requiring a higher purchase cost to that of pneumatic actuation, the combination of TTV & Koei Unic Actuated Butterfly Valve assemblies can provide significant total life cost savings for new installations. The Koei UNIC Electric Actuator is manufactured in Japan and comes as standard with a reliable manual override and stove enamel finish offering protection for external use with temperatures of -25 to 55 Deg C. Typically over specced to that of a standard on-off electric actuator valve this robust, reliable unit provides unrivalled levels of performance in its class with long life precision control.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

20W3040MC - Wafer Pattern Asahi Motorised Butterfly Valves

The Asahi electric actuator features a thermally bonded powder coated corrosion resistant housing (Series 92) rated to Nema 4X with stainless steel trim. ABS Product Type Approved for use in Marine and Offshore Applications. Asahi electric actuators are provided with gear trains pre-lubricated at the factory prior to despatch. The specially formulated lubricant offers extended life cycles whilst also covering a wide range of temperature options for various ambient and operating requirements, as well as reducing wear. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility to modulate high operation/cycle requirements, while providing sturdiness needed in harsh environments.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

20W3040MA - Wafer Pattern Max Air Actuated Butterfly Valves

Combining the MT range of actuators from Max Air Technologies and TTV's 20W3040 butterfly valve provides an extremely cost effective automated shut off solution. The Max Air actuator utilizes the same body design and end caps for both double acting and spring return applications allowing customizable stock profiles. This allows us to offer large quantities on short lead times with all assmebly and testing performed in house. Attention to detail features special epoxy coated internal springs to increase corrosion resistance. Your perfect choice for pneumatic butterfly valves on a restricted budget.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

Be Happy. Best Prices Guaranteed

Best pricing or we will donate some cash to a local dog charity. We like dogs, sorry cats. Loads of terms apply. Ask us for details. No fake rubbish Valves considered.

20W3040ROM - Wafer Pattern Rotork Actuated Butterfly Valves

A quality package from both Rotork (ROM) and TTV's conectric butterfly valves. Reliability when it matters for frequent or infrequent use the Rotork ROM electric actuator is there when you need it and offers worldwide customer service and support with an extremely low cost of ownership. The compact and lightweight valve package has a non clucth manual override design and can be operatred without any lever upon power failure. Corrosion protection offered to C5-M (Actuator) as standard. Additional options include Profibus, Modbus & Fieldbus from the ROMpak range of actuated butterfly valves.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, 1-Phase, 3-Phase, Profibus/Modbus/Fieldbus (ROMpak)
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

20W3040RPX - Wafer Pattern Bettis Actuated Butterfly Valves

The 20W3040RPX combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality concentric rubber lined butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

20W3040VA - Wafer Pattern Valpes Actuated Butterfly Valves

A combination of the TTV 20W3040 and Valpes Electric Valve Actuator. Currently our most flexible and modular design offering in an Electric Actuated Butterfly Valves. A rilsan coated body butterfly valve and high durability coated aluminium actuator provide external protection for most  external application factors with specific marine coating application coatings on request. A replaceable valve seat and actuator rated to IP68 complete a robust offering that will go the distance and provide maximum life capacity. The Valpes Electric Actuator offers fail in position as well as battery backup failsafe return for critical applications. Modbus-RTU & bluetooth versions are also available on a short lead time with CE, DNV-GL, CSA/UL & EAC Approvals.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 12VDC, 24VDC/AC, 110V/230VAC, Modbus-RTU, Bluetooth
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
