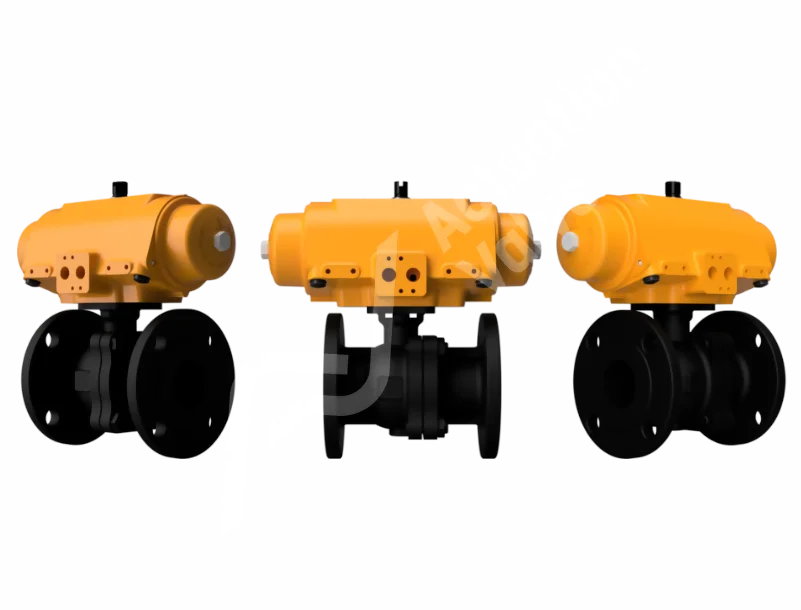

The AV-L6N00XL DIN PN40 electrically actuated ball valves offer robust, high-pressure, full-flow operation with an impressive up to 6-inch bore. These versatile valves, designed for easy installation between different flanges in your pipeline, hold prestigious approvals from DNV, SIL 2, Lloyds Register, and Nace MR-0175, ensuring top-notch quality and reliability. Choose from various ball valve configurations, including options for an upstream and cavity relief hole drilled into the ball and a high-temperature spindle extension for insulation and steam actuation. Need swift delivery? We provide express shipping for stock components, ensuring your product arrives within 24-48 hours. Trust in AV-L6N00XL DIN PN40 actuated ball valves for outstanding performance and convenience in fluid control systems.

Shop Help Me

Key features and benefits of the AV-L6NC0-XL Actuated Ball Valves.

Key Features

NAMUR mounting (VDE/VDI 3845) allows standardisation of mounting hardware for a wide range of accessories. This eliminates the need to purchase specific mounting kits or adapters which can increase costs and waste time during installation.

Key Features

AV-L6NC0XL Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their carbon steel body, these valves can withstand even the most demanding conditions.

Key Features

3D CAD and Step files readily available for new product line and system designs allowing integration within minutes. We also offer various mounting options including direct and bespoke box section kits so you can get the right fit for your project needs.

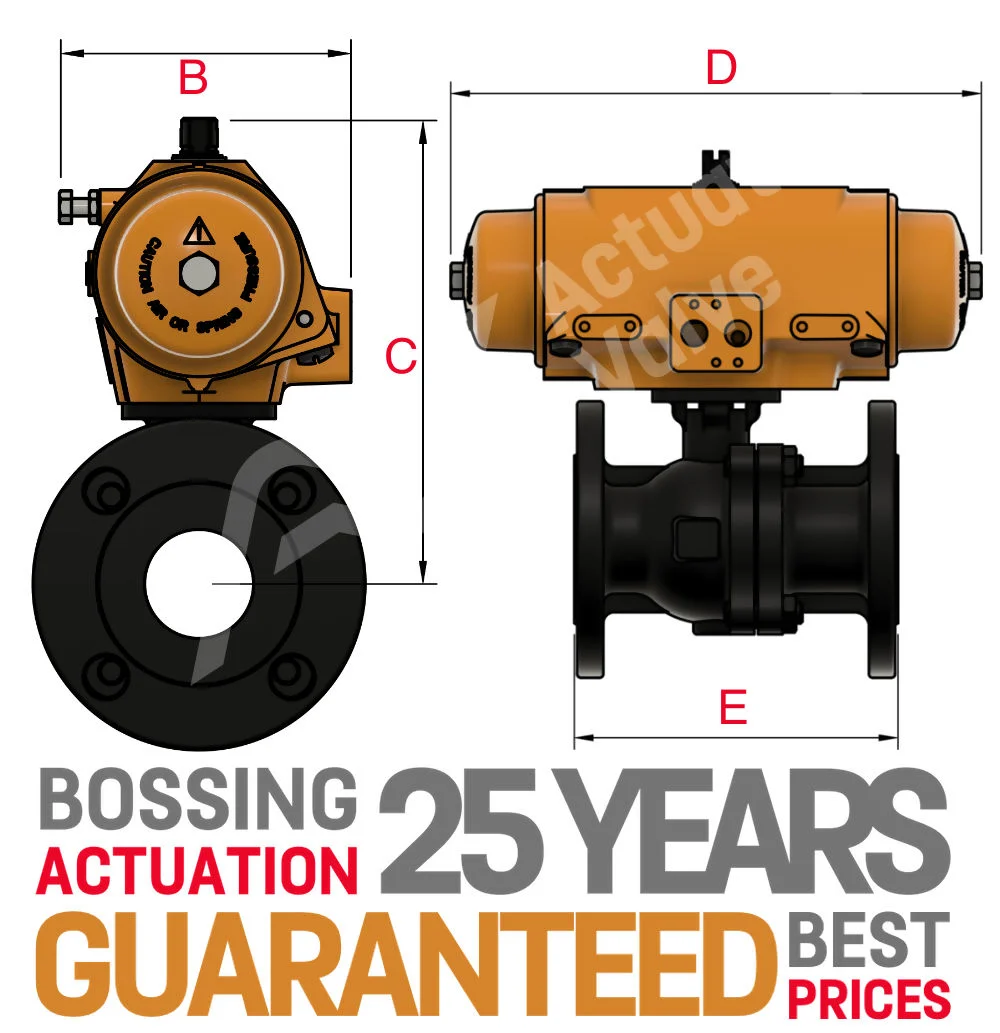

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	72.00	120.00	137.00	72.00	120.00	137.00	59.00
3/4"	72.00	126.00	137.00	72.00	126.00	137.00	69.00
1"	72.00	130.00	137.00	72.00	130.00	137.00	83.00
1 1/4"	93.00	168.50	203.50	72.00	135.50	137.00	94.00
1 1/2"	93.00	180.00	203.50	84.50	163.00	153.50	102.00
2"	106.00	200.50	153.50	84.50	170.50	153.50	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Body Seal
Stem Packing Material:	Grafoil
Design Standard:	EN 12516-1
Wall Thickness:	EN 12516-1
Inspection & Testing:	EN 12266-1
Face 2 Face:	DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes. This valve can be fitted with position feedback switches giving remote indication of open and closed valve position.

Yes, in many cases. Please contact us with the valve size, actuator type and quantity required and we will provide a competitive quotation, including any volume discount available for larger orders.

These valves are manufactured to EN 12516-1 design standard with EN 12266-1 inspection and testing as standard. Depending on the specification required, certification options including PED 2014/34/EU, ATEX, Firesafe API 607 5th Edition, SIL 2, NACE MR-0175 and Lloyd's Register approval can be provided - please confirm your requirements when ordering.

Yes. This carbon steel actuated ball valve range is available across a wide range of actuator sizes, and larger valve and actuator combinations can also be supplied to order. Please contact us with the valve size and pressure rating you require and we will confirm availability and lead time.

Yes. We can deliver directly to your customer on a plain-labelled or unbranded delivery note if required. Please let us know at the time of order and send a copy of your delivery note so we can ensure it is attached to the shipment.

Yes, subject to status. We offer credit accounts to qualifying business customers, allowing you to order now and settle on agreed terms. Please contact our sales team to apply, or complete a credit account application form and we will confirm your terms.
