The J&J Electric Actuators uses a patented technology to help you save energy and eliminate costly downtime. It offers excellent performance with an extremely wide range of applications including dampers and valves. The AV-L8000FC Heavy Duty Carbon Steel Ball Valve is designed for use on heavy duty industrial applications where higher pressure ranges or temperatures may be required. This ball valve features PTFE TFM 4215 ball seats with grafoil stem sealing and carbon steel body. The J&J J4CS electric valve actuators are designed for 75% duty rating and has been proven reliable by thousands of customers around the world. The actuator comes with a 3 year 60000 cycle warranty as a result of continuous research and development.

Shop Help Me

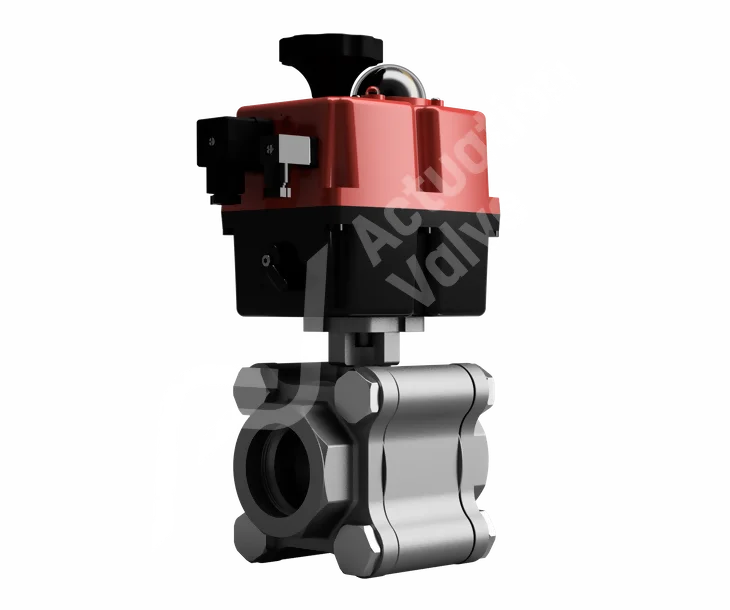

Key features and benefits of AV-L8000FCJJ & AV-L8200FCJJ Actuated Ball Valves.

Key Features

The AV-L8000FC is an affordable line of high-quality carbon steel heavy duty ball valves that won't break your budget. These durable products will give you years of trouble-free service at a fraction of the price that other companies charge for similar products.

Key Features

The AV-L8000FC full bore ball valves are an excellent choice for use in environments that aren't suitable for standard brass ball valves. The body is made from high quality A216 WCB carbon steel and stainless steel ball that can withstand demanding applications.

Key Features

The J4S product line features an affordable electric actuator that works seamlessly with any IOS or Android device without the need for additional hardware or software. This makes it easy to connect your application directly to your smart phone, tablet or computer.

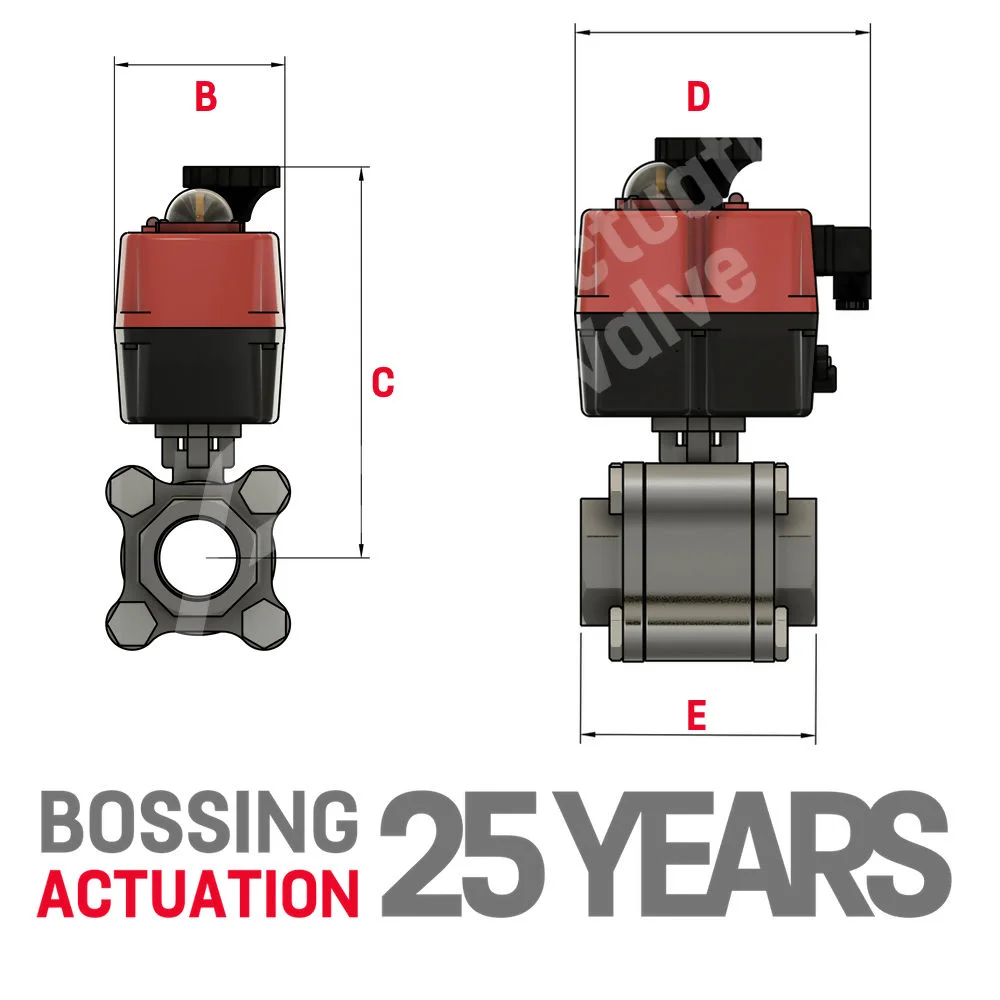

	B	C	D	E	Model

1/4"	TBA	TBA	TBA	75.00	TBA
3/8"	TBA	TBA	TBA	75.00	TBA
1/2"	110.00	171.00	179.00	75.00	J4CS20
3/4"	110.00	171.00	179.00	90.00	J4CS20
1"	110.00	171.00	179.00	100.00	J4CS20
1 1/4"	110.00	171.00	179.00	110.00	J4CS20
1 1/2"	110.00	171.00	179.00	125.00	J4CS35
2"	110.00	196.00	181.00	150.00	J4CS55
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material:	TFM 4215® (25% Carbon Filled TFM)
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 228/1
Socket Weld Ends:	ASME B16.11
Silicone Free:	Suitable For Oil Based Paints
Anti Static Device:	Ball, Shaft & Valve Body

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes. Position feedback switch boxes are available for this valve, giving remote indication of the open and closed positions. Please confirm your control and signal requirements when ordering so we can specify the correct switch box for your application.

Yes, in many cases. Please contact us with the valve size, actuator type and quantity required and we will provide a competitive quotation, including any volume discount available for larger orders.

These valves are manufactured to MSS SP-110 design standard, with inspection and testing carried out to MSS SP-110 as standard. Depending on the specification required, certification options including PED 2014/34/EU, ATEX, Firesafe API 607 5th Edition, SIL 2, NACE MR-0175 and Lloyd's Register approval can be provided - please confirm your requirements when ordering.

Yes. This AV-L8000FC/AV-L8200FC heavy duty ball valve range is available across a range of valve and actuator sizes, and larger combinations can be supplied to order. Please contact us with the valve size, pressure rating and control signal required and we will confirm availability and lead time.

Yes. We can deliver directly to your customer on a plain-labelled or unbranded delivery note if required. Please let us know at the time of order and send a copy of your delivery note so we can ensure it is attached to the shipment.

Yes, subject to status. We offer credit accounts to qualifying business customers, allowing you to order now and settle on agreed terms. Please contact our sales team to apply, or complete a credit account application form and we will confirm your terms.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

DRAWINGS & SCHEMATICS
