Stainless Steel Actuated Butterfly Valves

Stainless Steel Actuated Butterfly Valves, such as the TTV 40W4040 and 40L4040 models, are designed for challenging environments. Their CF8M stainless steel body and 316 stainless steel shaft offer durability in corrosive conditions. The wafer and lugged designs simplify installation and maintenance, while reliable actuators like Actreg and Bettis ensure precise control. Suitable for potable, waste, and sea water, cooling systems, oil, gases, and air, these valves excel in demanding applications.

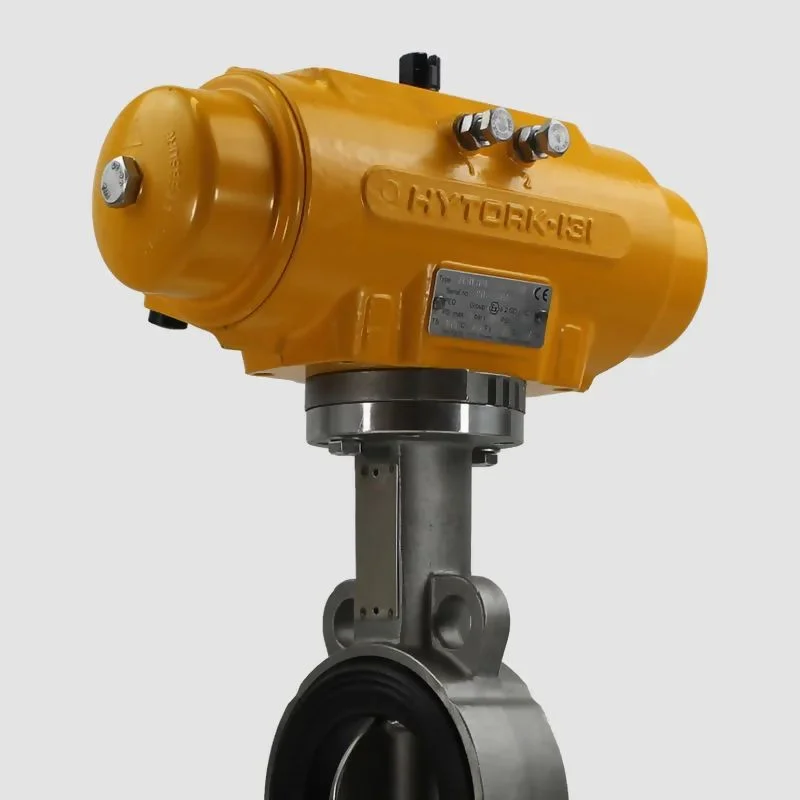

Stainless Steel Wafer Actuated Butterfly Valves

The TTV 40W4040 Stainless Steel Actuated Butterfly Valve is constructed with a CF8M Stainless Steel Body and Disc, along with a 316 Stainless Steel Shaft. This highly adaptable concentric design Butterfly Valve is ideal for challenging and corrosive environments where standard Ductile Iron options may be unsuitable. Its one-piece body with four-entry lugs ensures straightforward installation between two flanges at various points within the process pipeline.

Actuators: Actreg, Hytork, Air Torque, Elomatic, Koei UNIC, Bettis, Ventus, J-J, & Festo
Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: CF8M 316 Stainless Steel
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
Find Out More

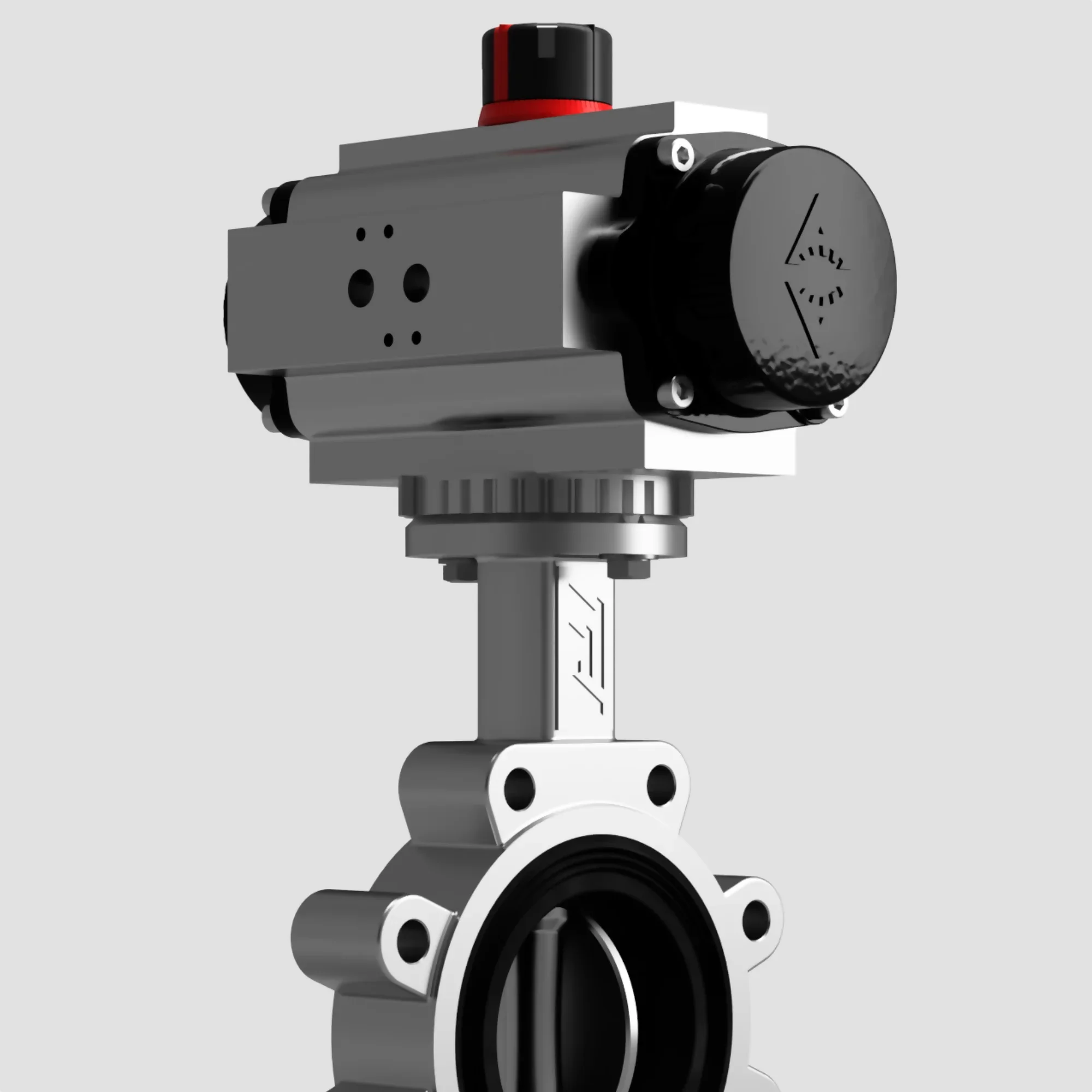

Stainless Steel Lugged Actuated Butterfly Valves

The TTV Stainless Steel Butterfly Valves are an excellent option for challenging environmental conditions. Their CF8M body, constructed from premium stainless steel, ensures resilience in harsh or corrosive environments unsuitable for standard valves. The lugged design provides a distinct advantage, allowing for the isolation of one side of the pipework during repairs by simply disconnecting the relevant section. The 40L4040 model is available with both pneumatic and electric actuation. Ideal for demanding applications, these valves offer reliable performance and ease of maintenance.

Actuators: Actreg, Hytork, Air Torque, Elomatic, Koei UNIC, Ventus, Bettis, J-J, & Festo
Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: CF8M 316 Stainless Steel
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Frequently Asked Questions

An actuated butterfly valve is a type of quarter-turn valve that uses an actuator to control the flow of fluids or gases. The actuator can be electric, pneumatic, or hydraulic and automates the operation of the butterfly valve, providing precise and consistent flow control.

A lugged actuated butterfly valve has threaded inserts (lugs) on both sides, allowing it to be used in systems where downstream piping can be removed without affecting the upstream side. This feature makes maintenance easier and allows for dead-end service.

A wafer-style actuated butterfly valve is designed to fit between two flanges and is held in place by bolts that surround the valve body. This design is compact and lightweight, making it ideal for systems where space is limited.

A double-flanged actuated butterfly valve features flanges on both ends, providing a secure connection to the pipeline. This design is especially beneficial in high-pressure applications or when frequent maintenance requires the valve to be removed easily.

Actuated butterfly valves are commonly used in industries such as water treatment, chemical processing, oil and gas, power generation, food and beverage, and HVAC due to their reliable flow control and automation capabilities.

Butterfly valves can be equipped with electric, pneumatic, or hydraulic actuators. Electric actuators are suitable for precise control, pneumatic actuators are ideal for fast operation, and hydraulic actuators are best for high-torque applications.

Key benefits include automated flow control, compact design, cost-effectiveness, and versatility in handling various fluids. Their low-pressure drop and quarter-turn operation make them ideal for on/off and throttling applications.

To select the right size, consider the flow rate, pressure rating, and pipeline diameter. Ensure the valve's Cv (flow coefficient) aligns with your system's flow requirements, and consult manufacturer guidelines for accurate sizing.

Yes, actuated butterfly valves can handle high temperatures with the appropriate choice of materials. For instance, valves with stainless steel bodies and high-temperature seals (like PTFE or Viton) can withstand temperatures up to 400°C.

Routine maintenance includes regular inspection for wear and tear, checking for leaks, lubricating moving parts, and ensuring the actuator functions properly. Replace worn-out seals and gaskets to maintain optimal performance.

Yes, actuated butterfly valves are suitable for throttling applications due to their ability to control the flow precisely. However, ensure that the valve is designed and rated for throttling to prevent damage to the disc or seat.

Actuated butterfly valves should comply with standards such as API 609, ISO 5752, ASME B16.34, and AWWA C504. Additionally, valves used in food, pharmaceutical, or chemical industries may need to meet FDA or specific industry standards.
