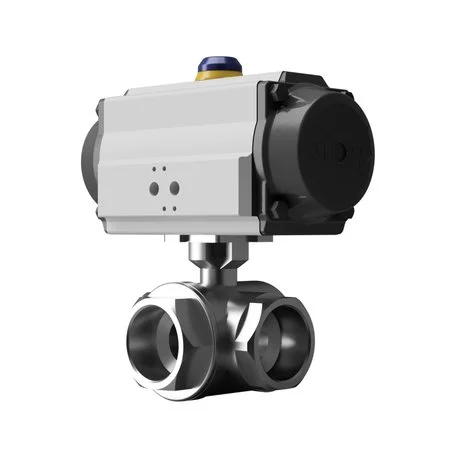

Air Torque Actuated 3-Way Full Bore SS Ball Valves

The AV-L5300AT & AV-L5400AT L & T port full bore actuated ball valves offer a full flow diverting solution for 90 and 180 degree operation. 1000 PSI of pressure enable this valve to be used in almost all process and industrial applications with a casting approved by TUV. Additional options include pilot operated solenoid valves and limit position feedback covering safe area and full ATEX zones. Air Torque SpA has been manufacturing air actuators since 1982 and their products can be found in diverse industrial sectors including automotive, energy production and pharmaceuticals. Their high quality products are easy to install and use. Gearbox manual overrides are also optional on all air actuated ball valves.

Key Features

Key features and benefits of AV-L5300AT & AV-L5400AT Actuated Ball Valves.
1

Key Features

The Stainless Steel 3-Way Ball Valve is affordable enough for residential use and durable enough for commercial applications. It's made from high quality materials that will last for many years without excessive wear seen in some other Manufacturers Valves.
2

Key Features

For safety or security reasons the Air Torque actuator can be provided as locked in a permanent position through the manufacturers Lock-Out Capability. This has proven popular for many actuated valve applications and utilises a bespoke design to prevent unwanted operation.
3

Key Features

Air Torque SpA has been manufacturing air actuators since 1982 and their products can be found in diverse industrial sectors including automotive, energy production and pharmaceuticals. Their high quality products are easy to install and use.

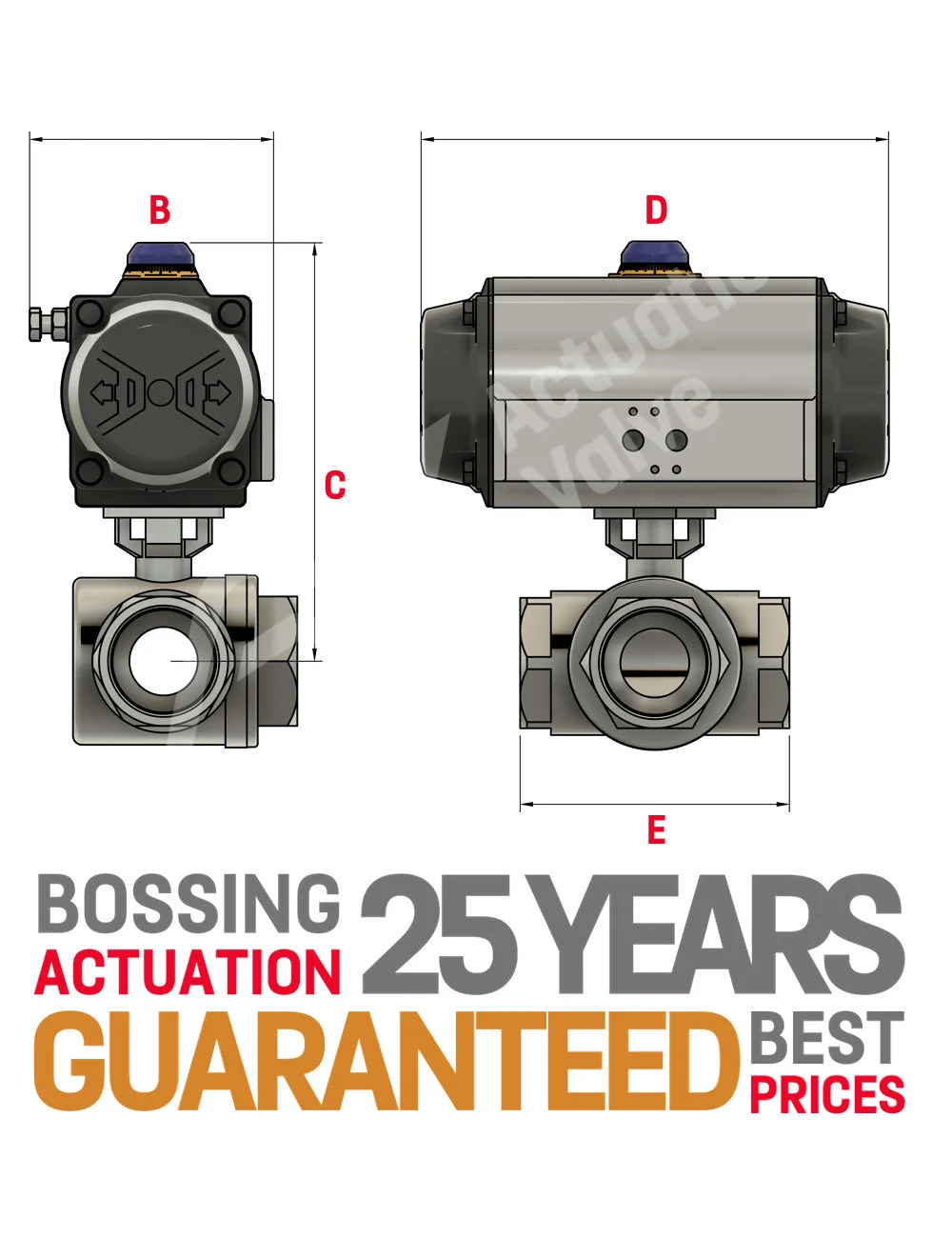

FB 3-Way Ball Valve Technical Stuff

B C D B C D E
SR SR DA DA DA DA SR/DA
1/4" 72.00 132.00 137.00 72.00 132.00 137.00 79.00
3/8" 72.00 132.00 137.00 72.00 132.00 137.00 79.00
1/2" 84.50 154.00 153.50 72.00 138.00 137.00 88.00
3/4" 93.00 181.50 203.50 72.00 148.50 137.00 108.00
1" 93.00 185.00 203.50 84.50 168.00 153.50 124.00
1 1/4" 106.00 208.50 241.00 84.50 178.50 153.50 135.00
1 1/2" 118.50 229.80 259.00 93.00 204.80 203.50 164.00
2" TBA TBA TBA TBA TBA TBA TBA
2.5" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA TBA TBA

FB 3-Way Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 7-1

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

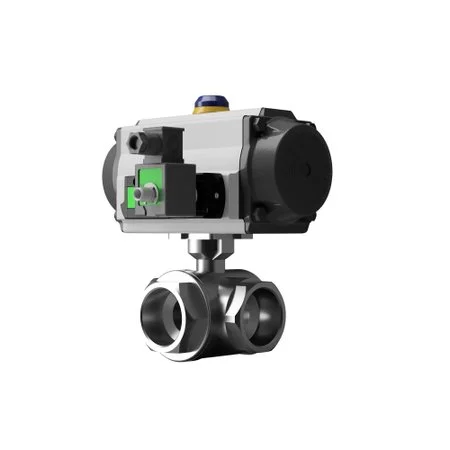

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Air Torque Actuator Videos

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
