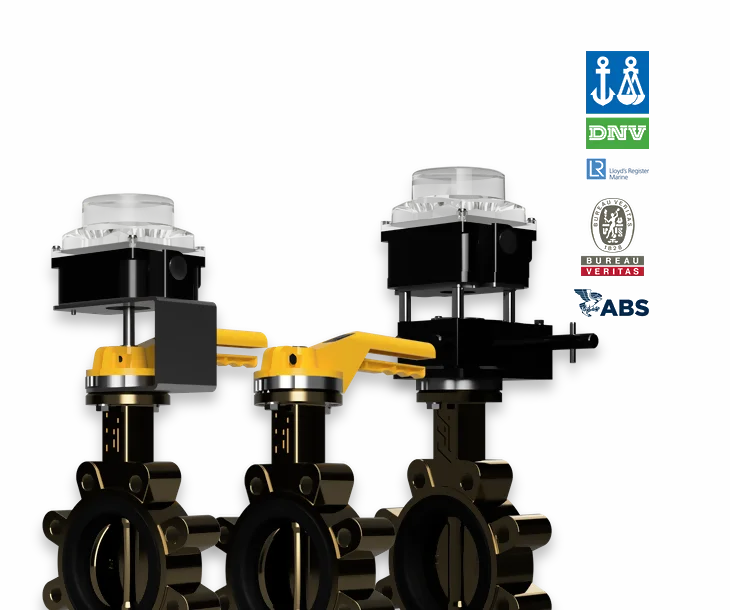

80LM580 Lugged Lever-Gear Ali Bronze Butterfly Valves

The TTV 80LM580 aluminium bronze fully lugged marine butterfly valves provide resistance to some the most extreme corrosive environments and applications. These may include operations for fire protection, desalination and ballast systems. Marine industry approvals include DNV, Bureau Veritas, ABS and an ISO 9001 Lloyds certified manufacturer. Actuation Valve can offer stock supply within the UK up to 12" NB DN300 for next day delivery to the majority of European countries. 3.1 material certification is available at no additional cost.

Key Features

Key features and benefits of the 80LM580 Fully Lugged Type Butterfly Valves.

Key Features

The single piece body with threaded lugs is installed using two sets of bolts (One set for each flange) and enables the installer precise self centering capabilities of the valve due to the body design between flanges.

Key Features

Our standard corrosive resistant Butterfly Valves are available in a wide range of sizes to suit all industry standards with 2" to 12" Butterfly Valves all available from stock in ANSI or DIN Flanged Connections.

Key Features

Our TTV range has been designed for easy installation in a variety of different environments including marine, offshore and other harsh conditions. They have been tested by independent third-party bodies against international standards to ensure that they meet your needs.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat

Stainless Steel Valve Gear Box

316 Stainless Steel Butterfly Valve Gear Box. Sealed to IP67 with single piece input shaft and worm gear with axial needle bearings. Additional options for RAL powder coatings and offshore paint specifications. Your perfect corrosive environment Butterfly Valve Gear Operator.

Valve Standards & Stuff

Body Material: Aluminium Bronze B148 C95800
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for sea water within the pressure and temperature limitations.

Yes. We have a number of options including chain wheel operators. They come as standard with a quick link chain connection and safety cable kit.

It certainly does. All of our TTV butterfly valves come complete with a full set of operations and maintenance manuals. We can also send this electronically in advance.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

YES! How hilarious would that be. For an extra cost obviously. Get in touch.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
