Electric Valve Actuators

Electric Valve Actuators suitable for operating quarter turn ball valves, butterfly valves and plug valves are becoming more and more common when compared to historically less expensive pneumatic actuators. As technology and motors improve our electric actuators are now becoming less expensive, smaller and more compact in size as well as offering additional features once seen as costly add ons now part of standard electric actuator builds. This can include options such as internal heaters, manual overrides, brushless motors, end of limit travel stops, visual position indicators and multi voltage inputs. New ranges include battery backup fail safe and spring return safety features.

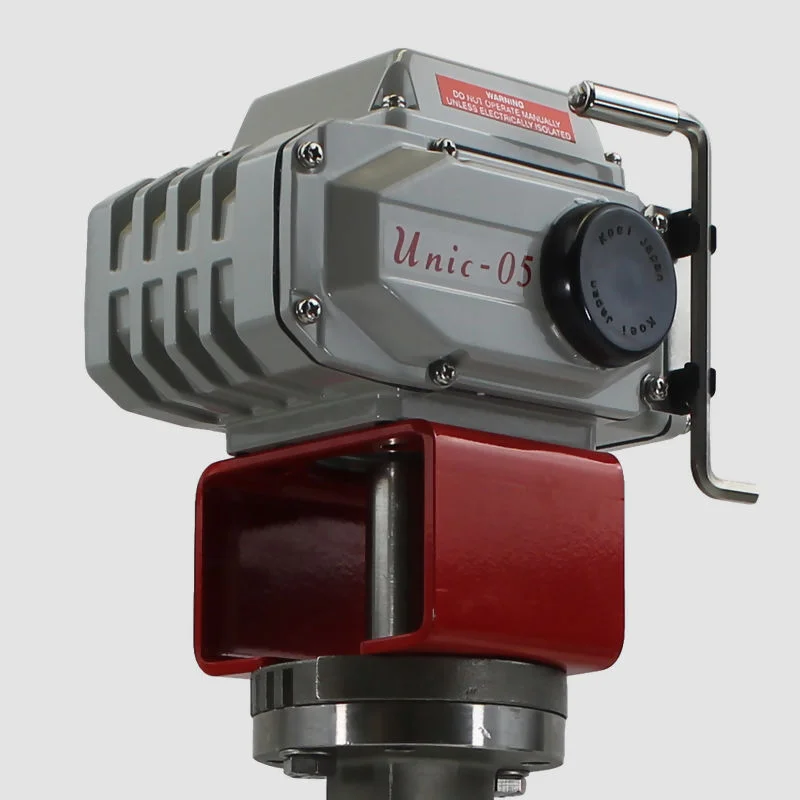

Koei UNIC Quarter Turn Electric Valve Actuators

The Koei UNIC electric actuator eliminates the need for expensive service contracts and costly equipment replacements by delivering reliable performance year after year with no downtime or interruption of production. The actuator can also be easily integrated into existing machinery. Koei UNIC customers demand the best and we deliver high quality, long lasting products that provide unrivalled levels of performance in their class. We have earned a reputation for delivering reliable solutions, superior customer service, technical support and product expertise. Thanks to its high-performance motor, this product is capable of operating at temperatures of -25 to 55 Deg C without sacrificing speed or power consumption. With its ability to operate in extreme environments this electric actuator is sure to deliver on all fronts when you need it most.

Function: On/Off, Fail Safe, Battery Backup, Modulating (Nucom)
Body Material: Die-Cast Aluminium Stove Enamel Finish
Rotation: 90°
Torque Levels: 20NM-1500NM
Temperature Rating: Min-25°C Max 55°C
Voltages: 110VAC/50-60Hz, 230VAC/50-60Hz, 24VAC/50-60Hz, 24VDC
Standard Options: Manual Override, Visual Position Indication, Feedback Switches
Find Out More

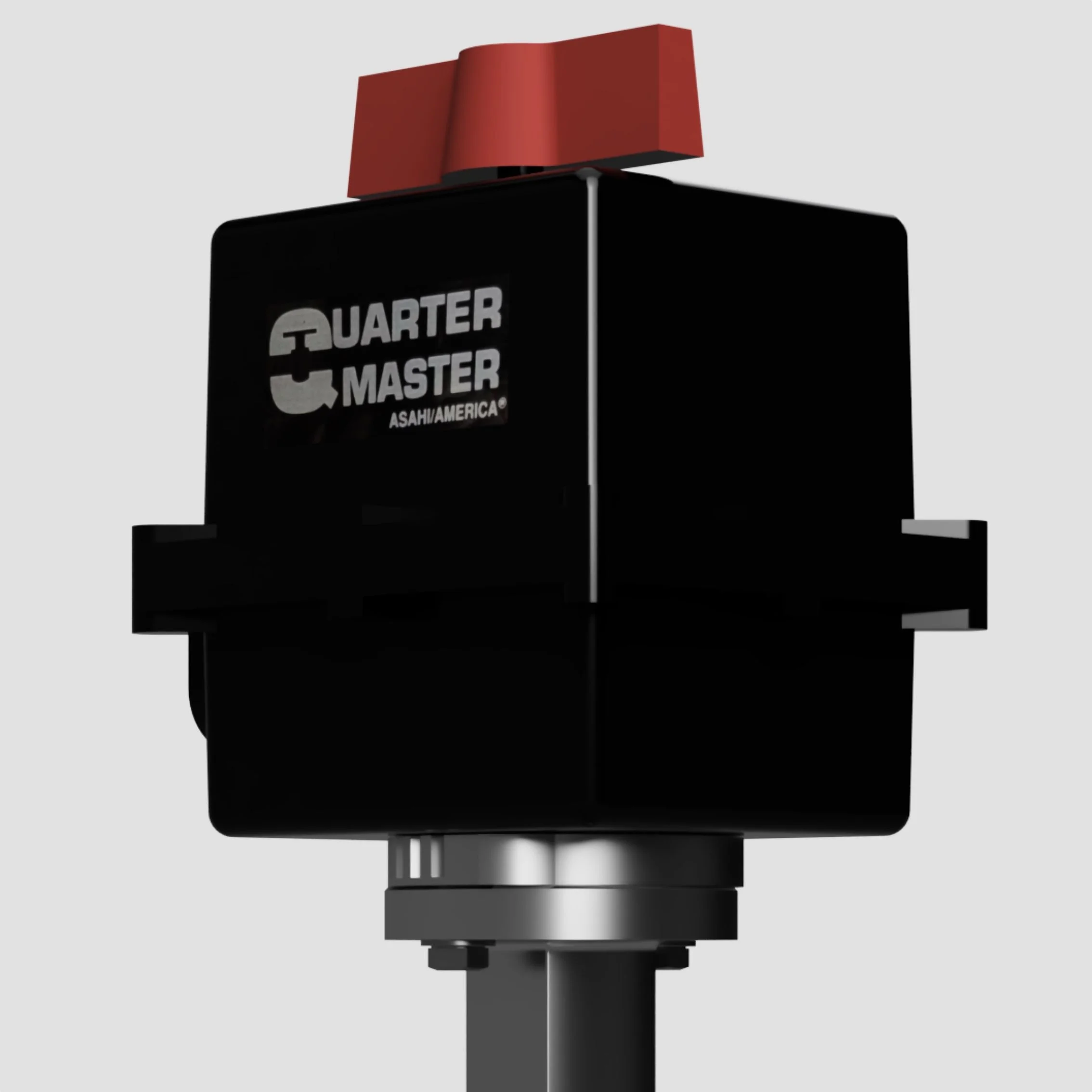

Asahi Quarter Master Zytel FR50 Electric Valve Actuators

All Asahi electric actuators come pre-lubricated to minimise wear and extend life cycles. The specially formulated lubricant covers a wide range of operating temperatures for the variety in ambient conditions we see across our customer base, ensuring reliable performance. Asahi Electric Actuator uses a highly visible position indicator that makes it easy to identify the position of your valves even from a distance. This allows you to quickly verify that your process is operating safely and effectively. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility for modulating and high operation/cycle requirements.

Function: On/Off, Battery Backup, Potentiometer, Modulating
Body Material: Zytel FR50 Engineered Resin
Rotation: 90°
Torque Levels: 15-34NM, (150 to 300 lbf.in)
Temperature Rating: 65ºC Maximum (150ºF)
Voltages: 110VAC, 230VAC, 12VDC, 24VDC, 24VAC
Standard Options: Manual Override, Visual Position Indication, Feedback Switches
Find Out More

Asahi Quarter Master Chief Electric Valve Actuators

The Asahi electric actuator features a thermally bonded powder coated corrosion resistant housing (Series 92) rated to Nema 4X with stainless steel trim. ABS Product Type Approved for use in Marine and Offshore Applications. Asahi electric actuators are provided with gear trains pre-lubricated at the factory prior to despatch. The specially formulated lubricant offers extended life cycles whilst also covering a wide range of temperature options for various ambient and operating requirements, as well as reducing wear. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility to modulate high operation/cycle requirements, while providing sturdiness needed in harsh environments.

Function: On/Off, Battery Backup, Potentiometer, Modulating
Body Material: Zytel FR50 Engineered Resin
Rotation: 90°
Torque Levels: 15-34NM, (150 to 300 lbf.in)
Temperature Rating: 65ºC Maximum (150ºF)
Voltages: 110VAC, 230VAC, 12VDC, 24VDC, 24VAC
Standard Options: Manual Override, Visual Position Indication, Feedback Switches

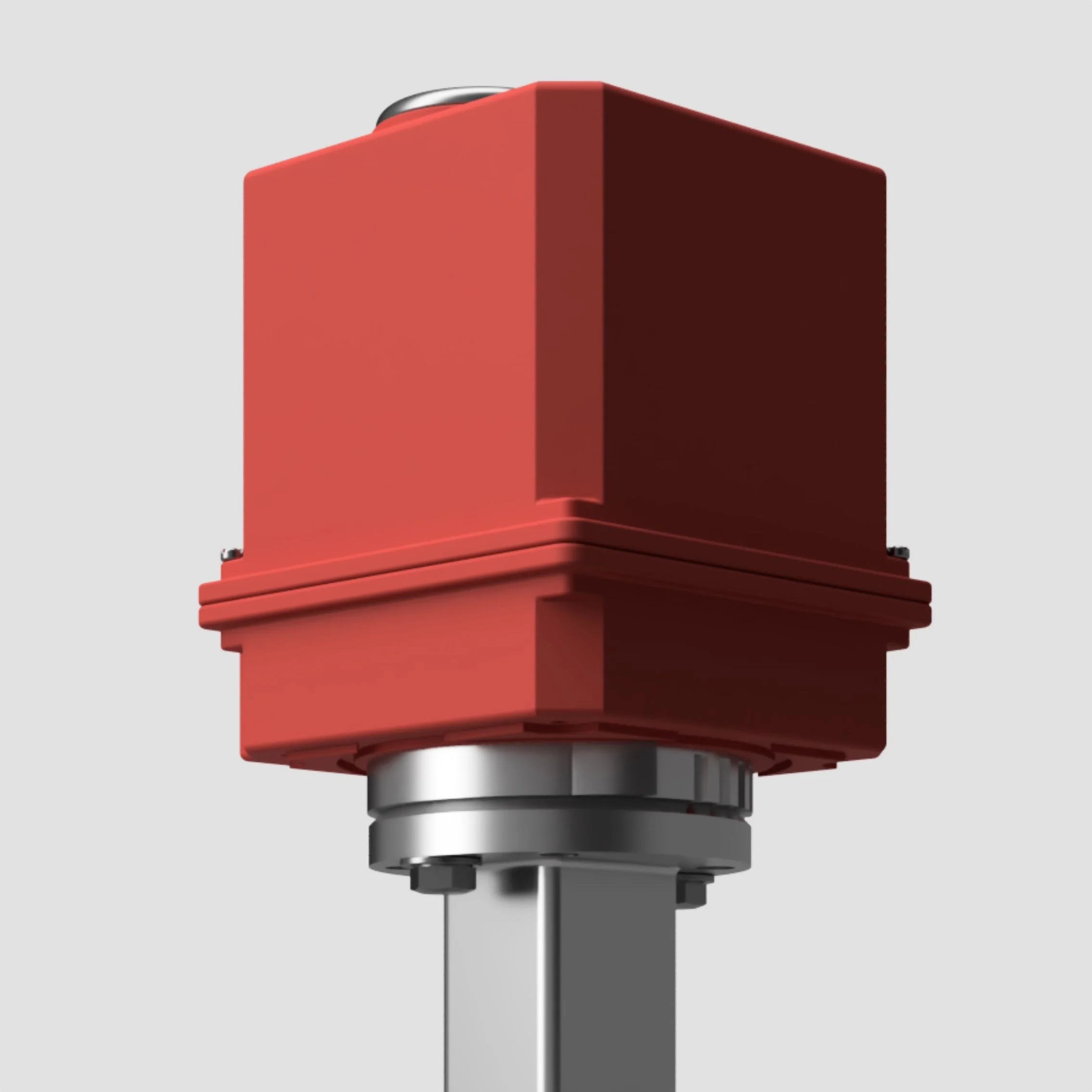

AV LITE Economy Electric Quarter Turn Actuator

Available with Torque Outputs up to 40NM the AV-LITE Electric Actuators are available as stand alone units and come complete with Direct Mount capabilities for your ISO 5211 Valves in 110VAC, 230VAC & 24VDC. The AV-LITE Nylon housing is rated both Waterproof & Dustproof to IP67 and is resistance to heat, acid and alkali. The compact motor offers low power consumption and is suitbale for the majority of small bore ball valves C/W with an internal overheating protection device. All models offer constant mechanical and visual position indication at the top of the Actuator cover and can also be wired to a control box for signal feedback.

Function: On/Off
Body Material: Nylon
Rotation: 90°
Torque Levels: 40NM Maximum
Temperature Rating: 55ºC Maximum (150ºF)
Voltages: 110VAC, 230VAC, 24VDC
Standard Options: Manual Override, Visual Position Indication, Feedback Switches

AV ARES Compact Electric Multi Voltage Actuator

The AV ARES electric valve actuator has been developed over many years of research and development with the aim of solving many installation issues that arise today with valves and actuation. The ARES is an extrmely compact unit having an overall footprint equivalent to that of a regular soft drinks can allowing installation in almost any confined site environment whilst maintaining standard features such as manual override and position indication. A plug and play design accepts voltages ranging from 12VDC, 24VDC & 85-220VAC all from the same unit.

Function: On/Off
Body Material: Aluminium Alloy, Polyethylene Coating
Rotation: 90°
Torque Levels: 40NM
Temperature Rating: -20 to +60ºC Maximum
Voltages: 110VAC, 230VAC, 12VDC, 24VDC, 24VAC
Standard Options: Manual Override, Visual Position Indication, Feedback Switches

J&J Multi Voltage Battery Backup Fail Safe Electric Valve Actuators

The J4C electric valve actuator for J&J delivers on the manufacturers philosophy of a true multi voltage actuator that works first time every time. The new J4 series features a brushless motor offering a more efficient performance along with high capable torque outputs than the original J3C. Advances in technology and R&D now enable to the J4C to be capable of intelligent communication with both MODBUS and Bluetooth settings. Additioanl options include full battery backup fail safe modules and digital positioner systems for modulation and control.

Function: On/Off, Modulating, Battery Backup
Body Material: Aluminium Alloy, Polyethylene Coating
Rotation: 45°, 90°, 180°
Torque Levels: 20-300NM
Temperature Rating: -20 to +70ºC Maximum
Voltages: 110VAC, 230VAC, 12VDC, 12VAC, 24VDC, 24VAC
Standard Options: Manual Override, Visual Position Indication, Feedback Switches, LED Indicator

Rotork ROM Electric Quarter Turn Valve Actuators

The Rotork ROM Electric Actuator is an electric actuator that provides a reliable solution for a wide range of applications and environments. It's designed with proven reliability in mind so you can be confident in its performance when things matter most. The Rotork ROM electric actuator uses proven technology that has been used for decades to ensure long-term reliability with minimal maintenance requirements. This means you can focus on profitability rather downtime due to mechanical failures or electrical problems. The Rotork ROM is available as both an analogue stand alone unit or as part of a network fully networked site system integration. This provides the end user with options for complete site standardisation.

Function: On/Off
Body Material: Aluminium Alloy, Dry Powder Coated
Rotation: 90°
Torque Levels: 35-800NM
Temperature Rating: -30 to +70ºC Maximum
Voltages: 110VAC, 230VAC, 12VDC, 24VDC, 24VAC, 380 VAC, 440VAC, 3-Phase
Standard Options: Manual Override, Visual Position Indication, Feedback Switches
