3-Way PN16-PN40 Full Bore AV-ARES Actuator Ball Valves

The AV-A5K00 & 5N00 Flanged 3-Way Stainless Steel Ball Valve is a versatile, economical and durable valve which has been developed specifically to provide long service life for applications where reliability is key. The AV-ARES electric actuators are built with rugged construction, high quality components and advanced technology to ensure maximum performance and durability over time. The AV-ARES electric actuator is an affordable alternative that reduces downtime and maintenance costs. The AR-ARES Electric Actuator is capable of operating at temperatures of -25 to 60 Deg C without sacrificing speed or power consumption. With its ability to operate in multiple environments this electric actuator is sure to deliver on all fronts when you need it most.

Key Features

Key features and benefits of AV-A5K00AR & AV-A5N00AR Actuated Ball Valves.
1

Key Features

Low Torque requirements from the AV-A5K00 & 5N00 3-Way Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.
2

Key Features

Low Torque requirements from the AV-A5K00 & 5N00 3-Way Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.
3

Key Features

AV-ARES Electric Actuators offers a digital positioner that allows for precise control of your valves, with operation torques up to 40NM. The instrumentation signals accepted include 4-20mA and 0-10VDC for intelligent control.

Screwed/Socket Weld Technical Stuff

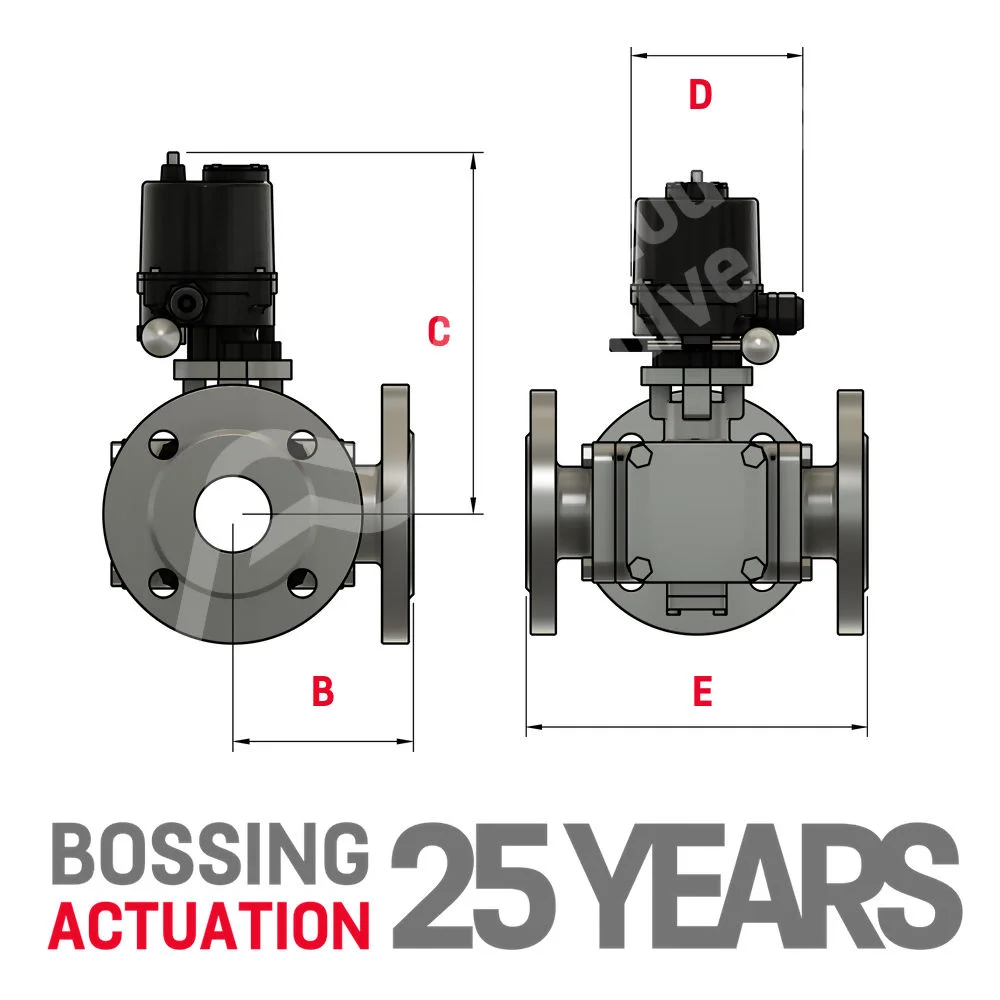

B C D E Model
TBA TBA TBA TBA TBA TBA
TBA TBA TBA TBA TBA TBA
1/2" TBA 186.00 115.00 150.00 AV-A1
3/4" TBA 190.00 115.00 165.00 AV-A1
1" TBA 201.00 115.00 181.00 AV-A1
1 1/4" TBA TBA TBA TBA TBA
1 1/2" TBA TBA TBA TBA TBA
2" TBA TBA TBA TBA TBA
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
