Hygienic Tri Clamp-Weld OD AV-ARES Actuator Ball Valves

The AV-A91B0AR & AV-A9CB0AR form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a free flow path that does not allow debris or contaminants to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals include FDA & WRAS approved seats with a bovine free supply. AV-ARES Electric Valve Actuators are made with a durable aluminium alloy housing that is polyethylene coated. Our actuators also have ingress protection of IP67, meaning they are completely weatherproof and can be used in indoor or outdoor settings.

Key Features

Key features and benefits of AV-L91B0AR & AV-L9CB0AR Actuated Ball Valves.
1

Key Features

AV-ARES electric valve actuators provide a reliable solution that will last up to 50000 operations without disruption. With components that meet or exceed strict quality requirements, you can rest assured that your application will run smoothly.
2

Key Features

AV-ARES electric actuator offers a manual override feature that allows the operator to control the process movement when power is not available or has failed. This safety feature is key for critical equipment in case of an emergency without having to wait until power is restored.
3

Key Features

Multi voltage wiring operation allows for site standardisation without the need for changing models if local voltages change. The AV-ARES features a specially designed circuit board with the electric actuator capable of receiving being wired to operate on 24-240V AC or DC supply.

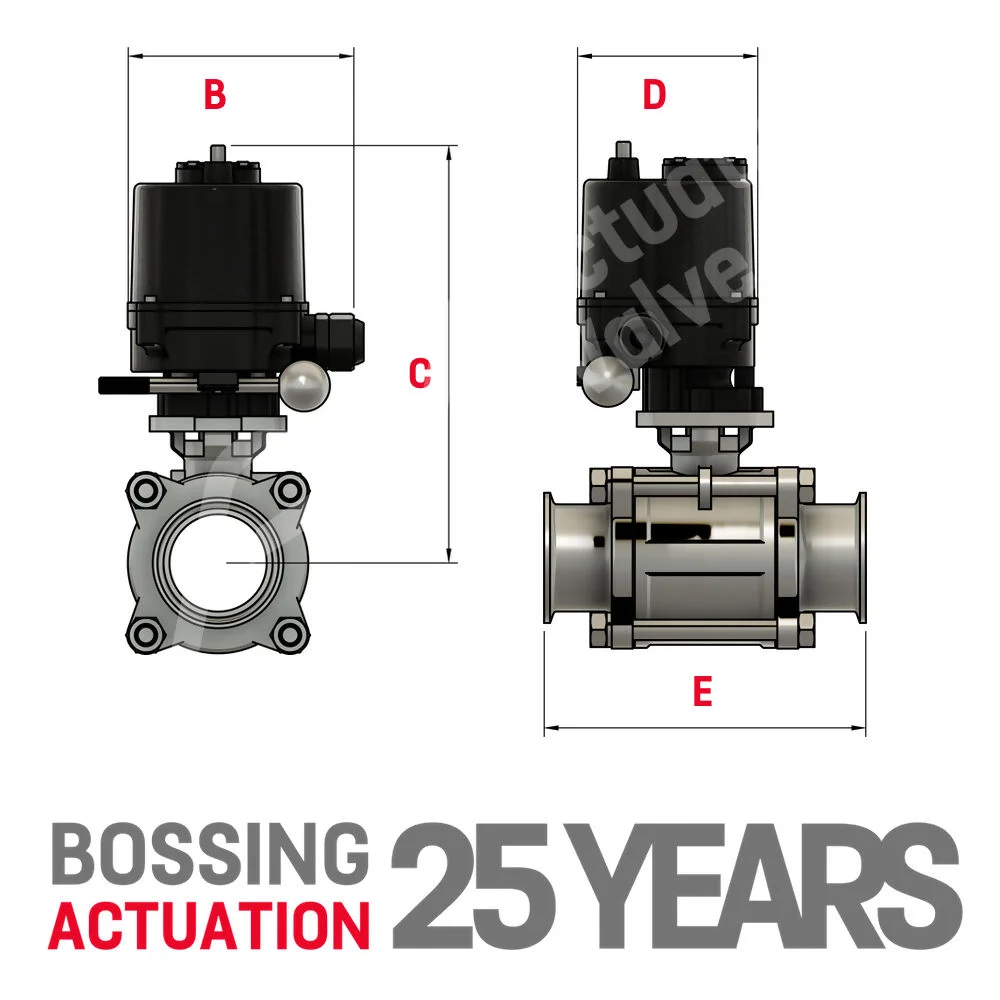

Tri Clamp Technical Stuff

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 115.00 175.00 88.00 90.00 AV-A1
3/4" 115.00 182.00 88.00 90.00 AV-A1
1" 115.00 191.00 88.00 100.00 AV-A1
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 115.00 269.00 88.00 125.00 AV-A1
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Tri Clamp 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Weld OD 3D Stuff

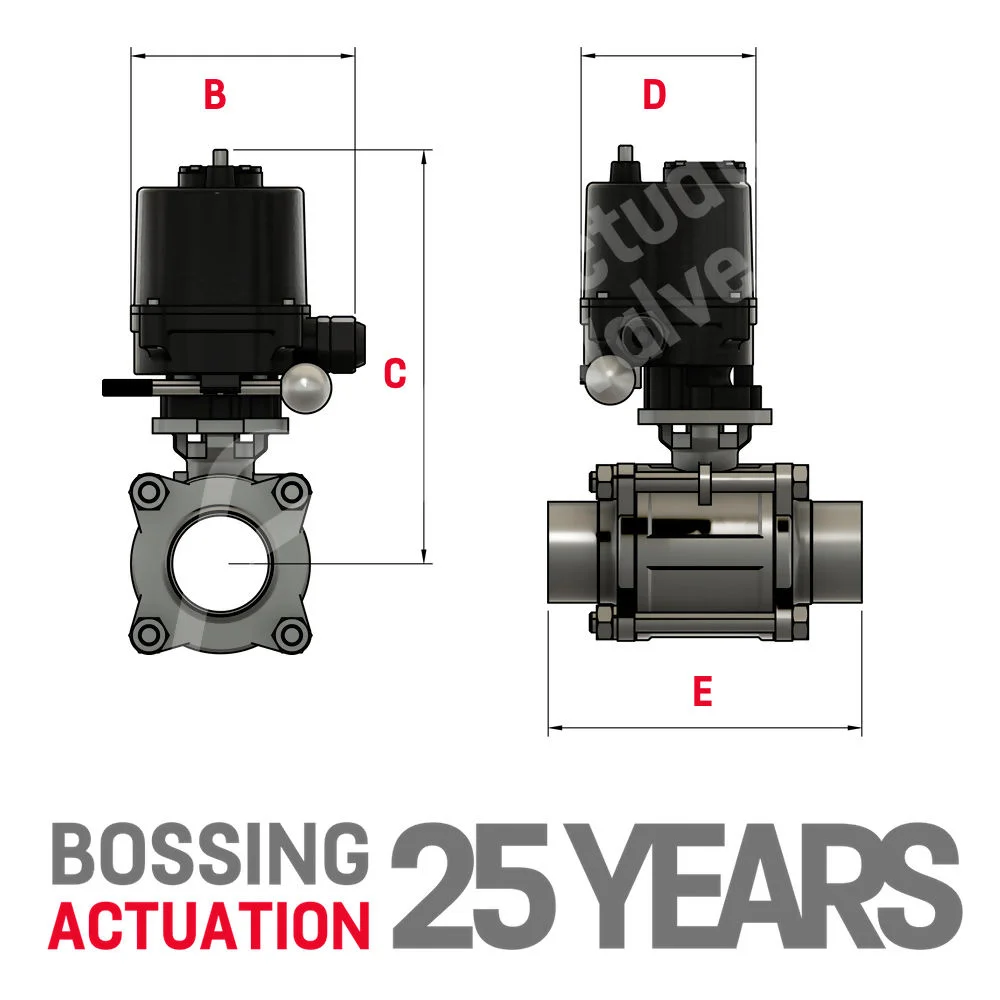

Weld OD Technical Stuff

B C D E Model
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 115.00 175.00 88.00 90.00 AV-A1
3/4" 115.00 182.00 88.00 90.00 AV-A1
1" 115.00 191.00 88.00 100.00 AV-A1
1 1/4" TBA TBA TBA TBA TBA
1 1/2" 115.00 269.00 88.00 125.00 AV-A1
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
