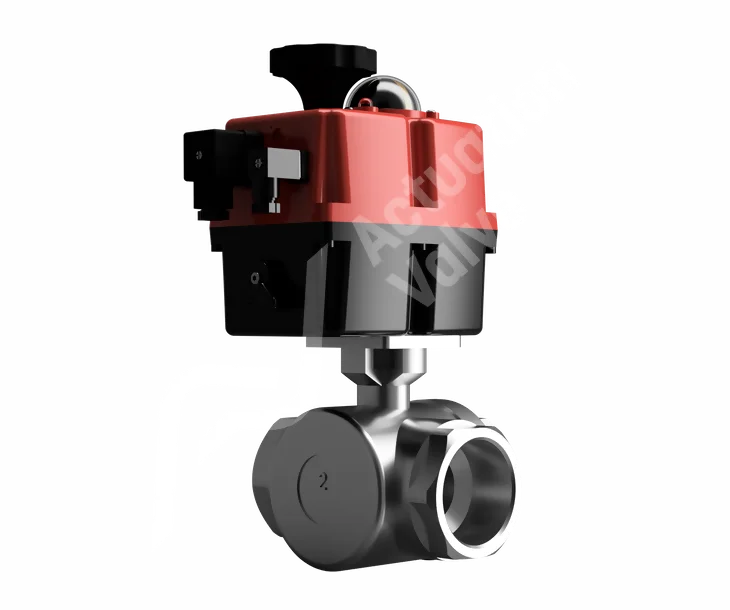

J4CS J&J Electric Actuator 3-Way Reduced Bore Valves

The JJ electric actuators are built with rugged construction, high quality components and advanced technology to ensure maximum performance and durability over time. The JJ electric actuator is an affordable alternative that reduces downtime and maintenance costs. The AV-L5000 & 5100 3-Way Ball Valve is suited to Screwed connections and the stainless steel body houses either an L or T drilled ball configuration. The L port valve is drilled at 90 degrees from two different sides to resemble an L whereas the T also features one hole straight through. Bluetooth communication system technology is included with the J4S electric actuator allowing the user to directly link with any IOS or Android device. Control will feature opening and closing of the actuator or valve as well as stop in current position.

Key Features

Key features and benefits of AV-L5000JJ & AV-L5100JJ Actuated Ball Valves.
1

Key Features

The AV-L5000 & 5100 3-Way Ball Valve is available with two configurations. L Port & T Port. The difference between the two is that the L Port version can offer complete shutoff depending on actuator type where as the T Port offers diversion only or constant flow form one port to another.
2

Key Features

Three way ball valves are commonly used to control the direction of fluids. They can be configured as diverter or selector valves, depending on you application requirements. L or T Port Configurations are available with 90 Degree or 180 Degree Actuators.
3

Key Features

J&J Electric Actuators offers a Modbus connection that enables on site plug and play with existing units up to a maximum of 32 actuators or valve assemblies. This is performed through a local ethernet connection or through WIFI of up to 1600 meters without signal boosting.

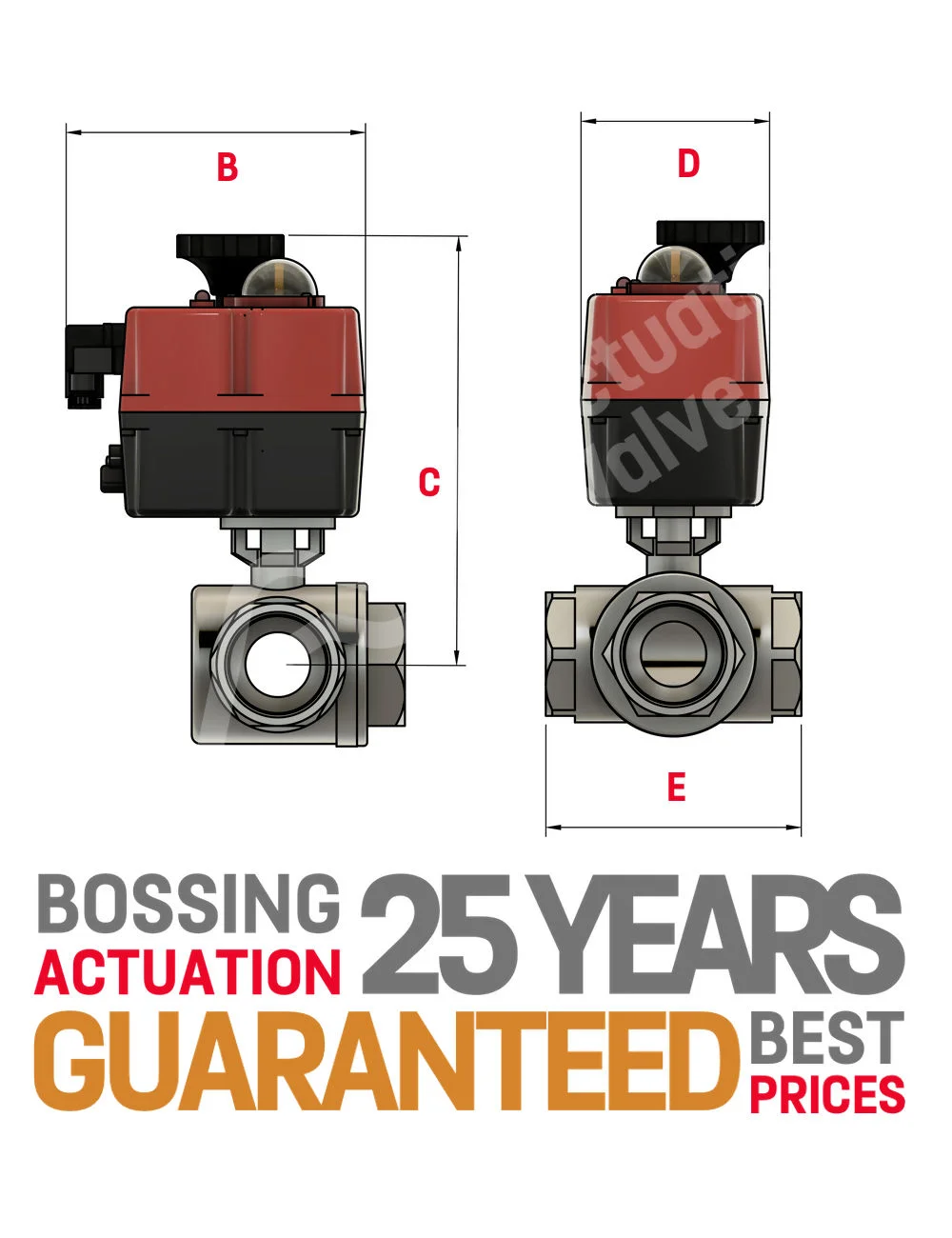

RB 3-Way Ball Valve Technical Stuff

B C D E Model
1/4" 100.00 153.50 145.00 79.00 J4CS20
3/8" 100.00 153.50 145.00 79.00 J4CS20
1/2" 100.00 153.50 145.00 79.00 J4CS20
3/4" 100.00 159.50 145.00 88.00 J4CS20
1" 100.00 170.00 145.00 108.00 J4CS20
1 1/4" 100.00 173.50 145.00 124.00 J4CS20
1 1/2" 121.90 215.00 117.00 135.00 J4CS35
2" TBA TBA TBA TBA TBA
2.5" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
