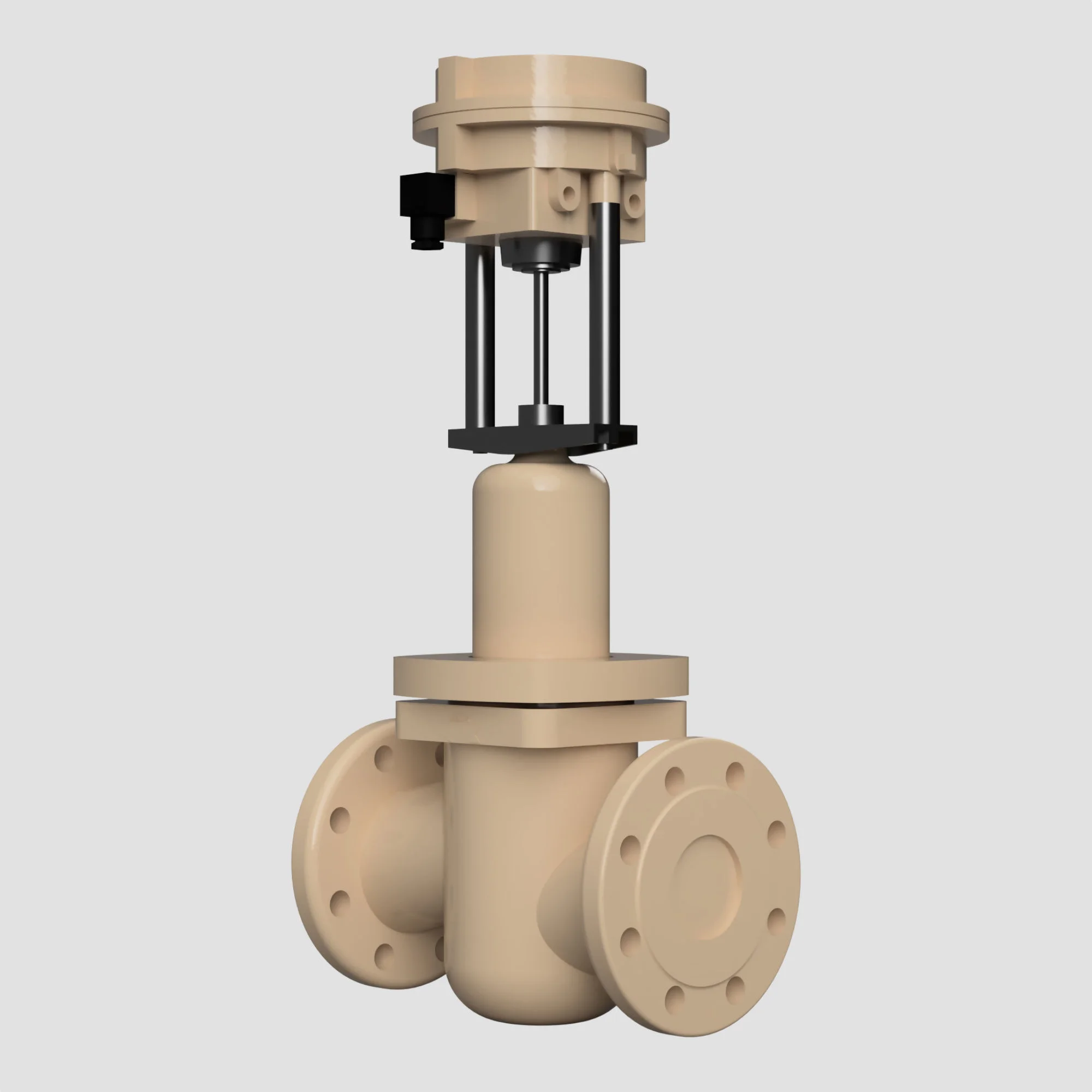

The Globe Control Valves Type 3241 are designed with a modular concept that minimizes the necessity for numerous components, enhancing compatibility across different dimensions. These valves boast a selection of Cv values, offering 11 distinct options increasing by 1.6 each, and simplify maintenance with just four essential components for overhaul: the seat, plug, body gasket, and packing. Equipped with TA-Luft/EPA Low Emissions certified self-adjusting PTFE V-ring packing, they are constructed from uniform materials for the bonnets, yokes, and bodies to meet diverse process requirements. Available sizes span from 1/2 inch to 12 inches and are rated for ANSI Classes ranging from 150 to 2500. The material options for these globe control valves include Cast Iron, Carbon Steel, Stainless Steel, Monel, and Hastelloy, accommodating a broad temperature spectrum from -325 to 842°F (-196 to 450°C), making them a versatile choice for various industrial applications.

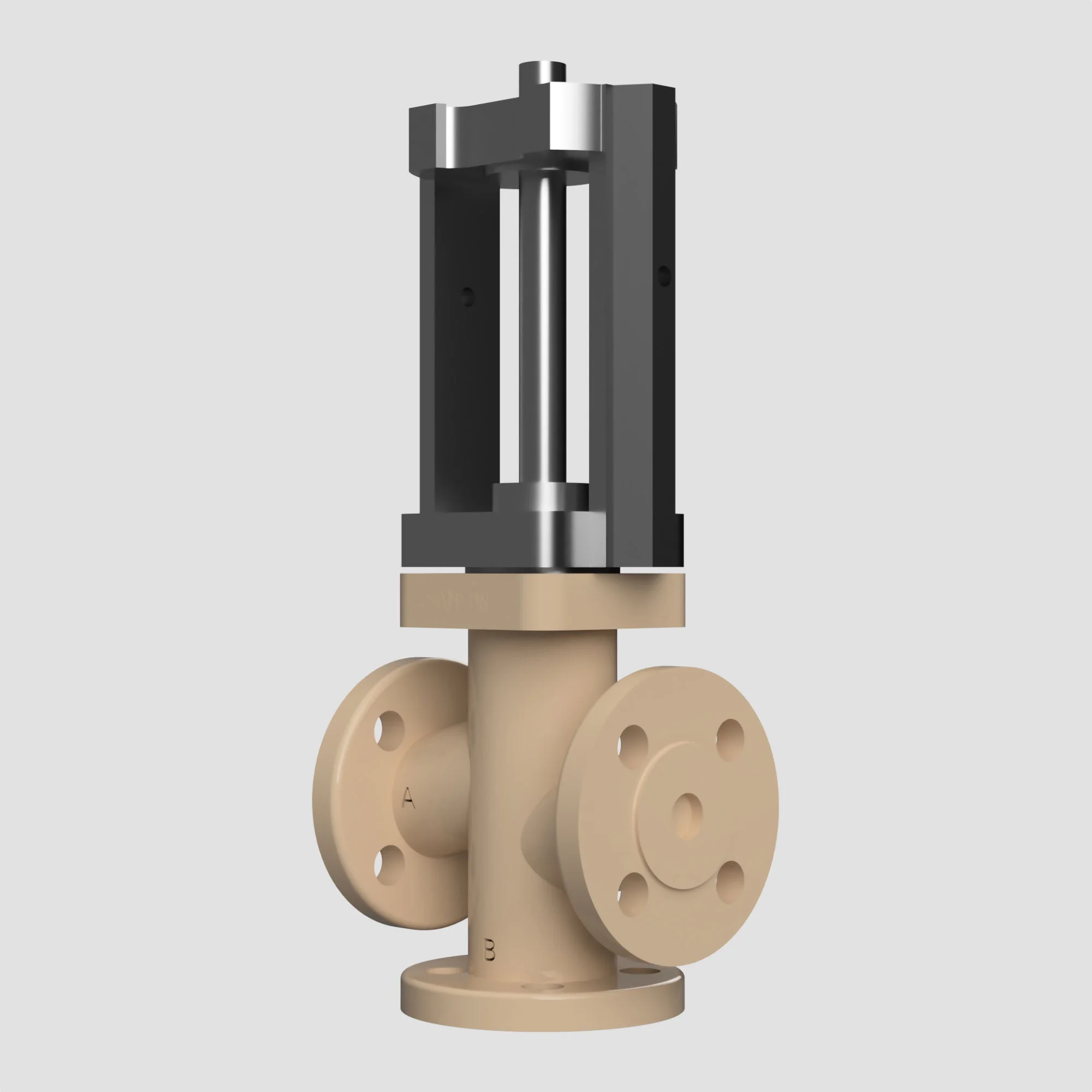

The 3244 Type 3-Way Globe Control Valves feature a modular build, simplifying upkeep with fewer parts and ensuring uniformity across various sizes. They offer 13 precise Cv coefficients in 1.6 steps, needing only four parts for a rebuild: seat, plug, body gasket, and packing. Both the bonnet and body are made from the same material, improving process compatibility. Sizes range from 1/2" to 6", meeting ANSI Classes 150 to 300 standards, and are available in carbon or stainless steel, suitable for temperatures between -325 to 842°F (-196 to 450°C).

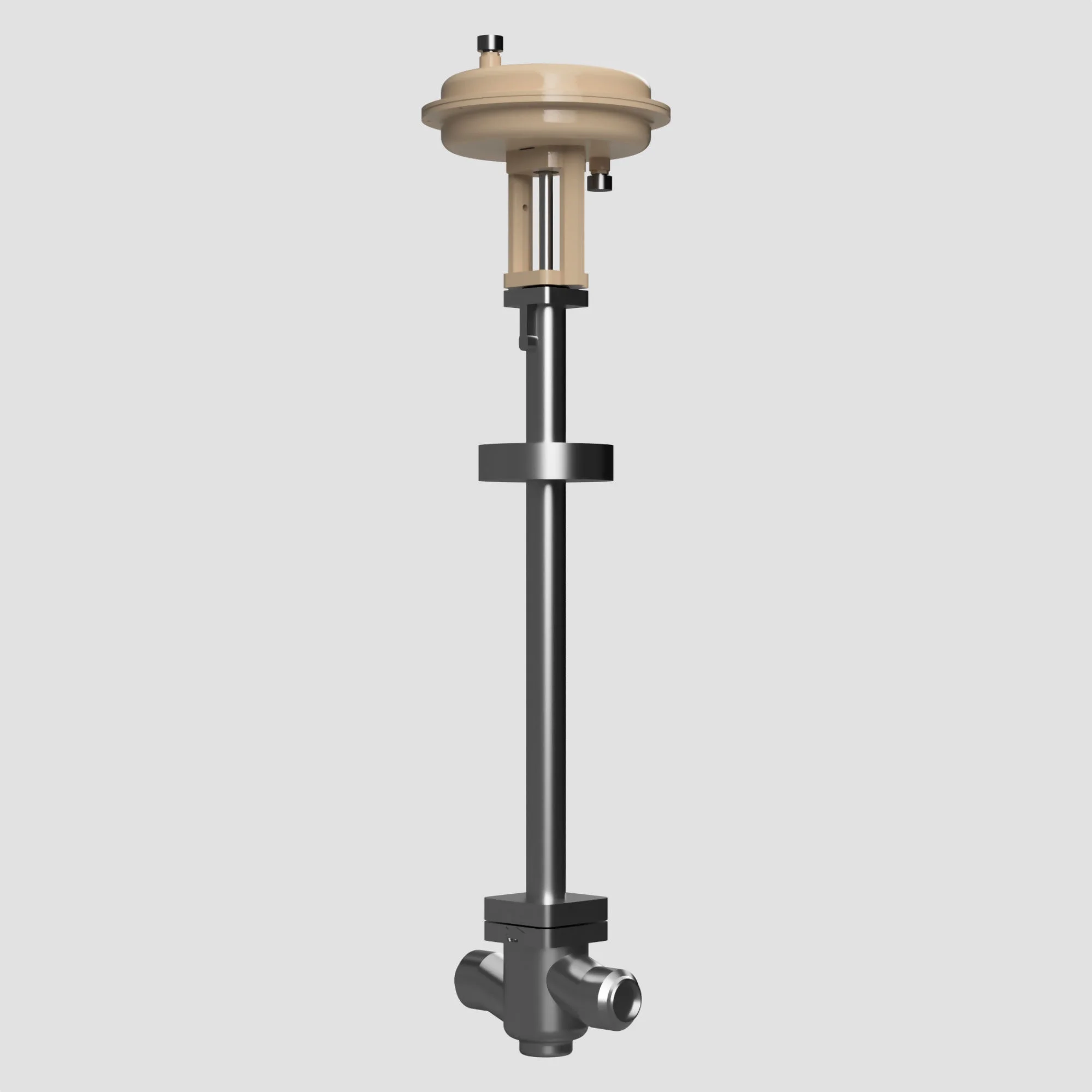

The 3246 Type Cryogenic Globe Control Valves, available in cold-resistant stainless steel or aluminium, feature a bellows seal to reduce heat conduction and avert stem freezing. These valves, offering replaceable seat-plug trim without needing disassembly, come in sizes from 1/2" to 10", ANSI Class 150-900, in cast stainless steel (A351 CF8), suitable for temperatures from -325 to 149°F (-196 to 65°C), with customisable mounting for specific height and end connections.

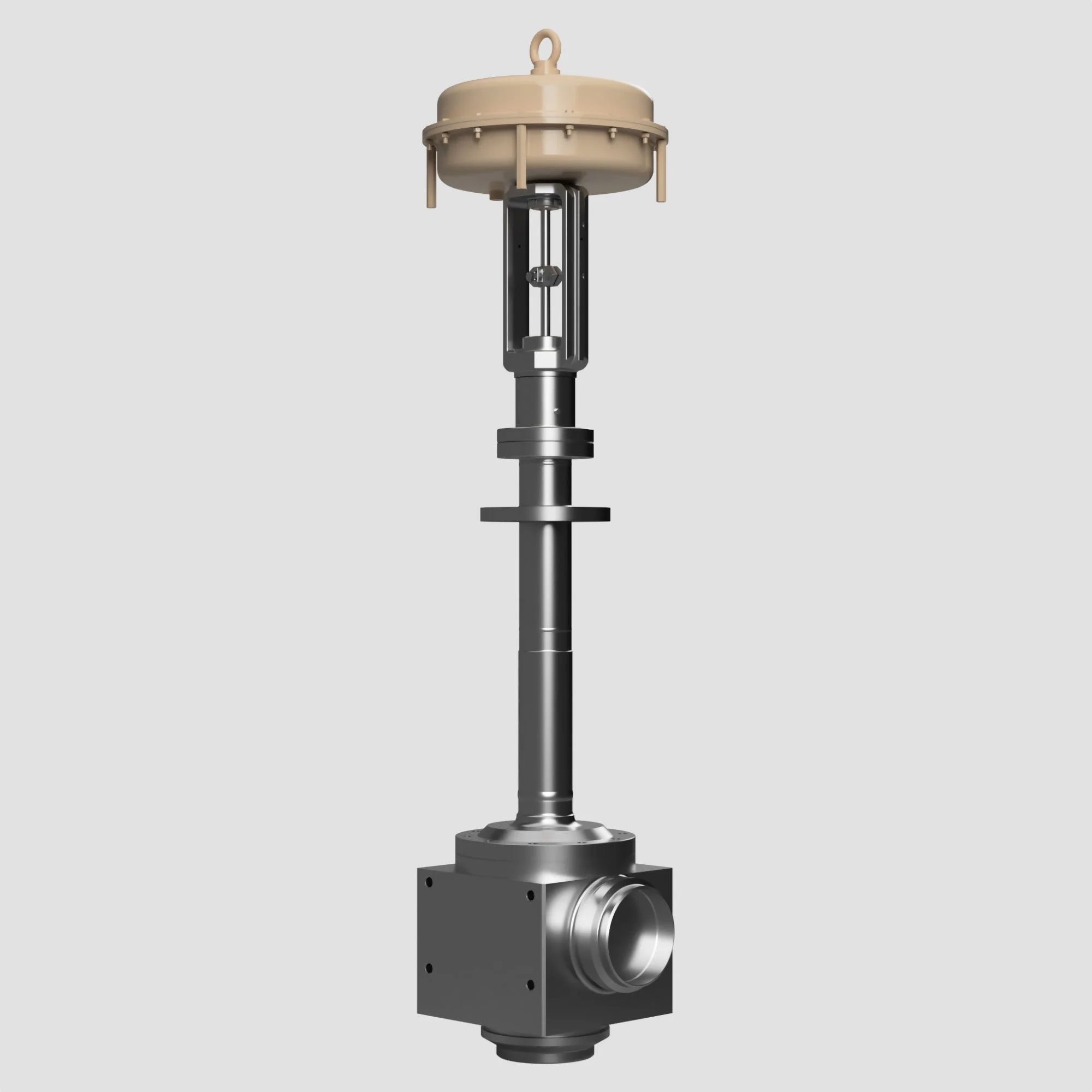

The GV-3248 Cryogenic Globe Control Valves, sizes 1" to 6" and ANSI Class 150-600, offer a flexible top-entry design suitable for any installation. Made from cast stainless steel (A351 CF8), with alternatives for cold-resistant stainless steel or aluminium, these valves function efficiently from -425 to 149°F (-254 to 65°C). Their bellows seal reduces heat conduction, preventing stem freeze-up. The seat-plug trim is easily replaceable, and customisable dimensions and connections cater to specific needs.

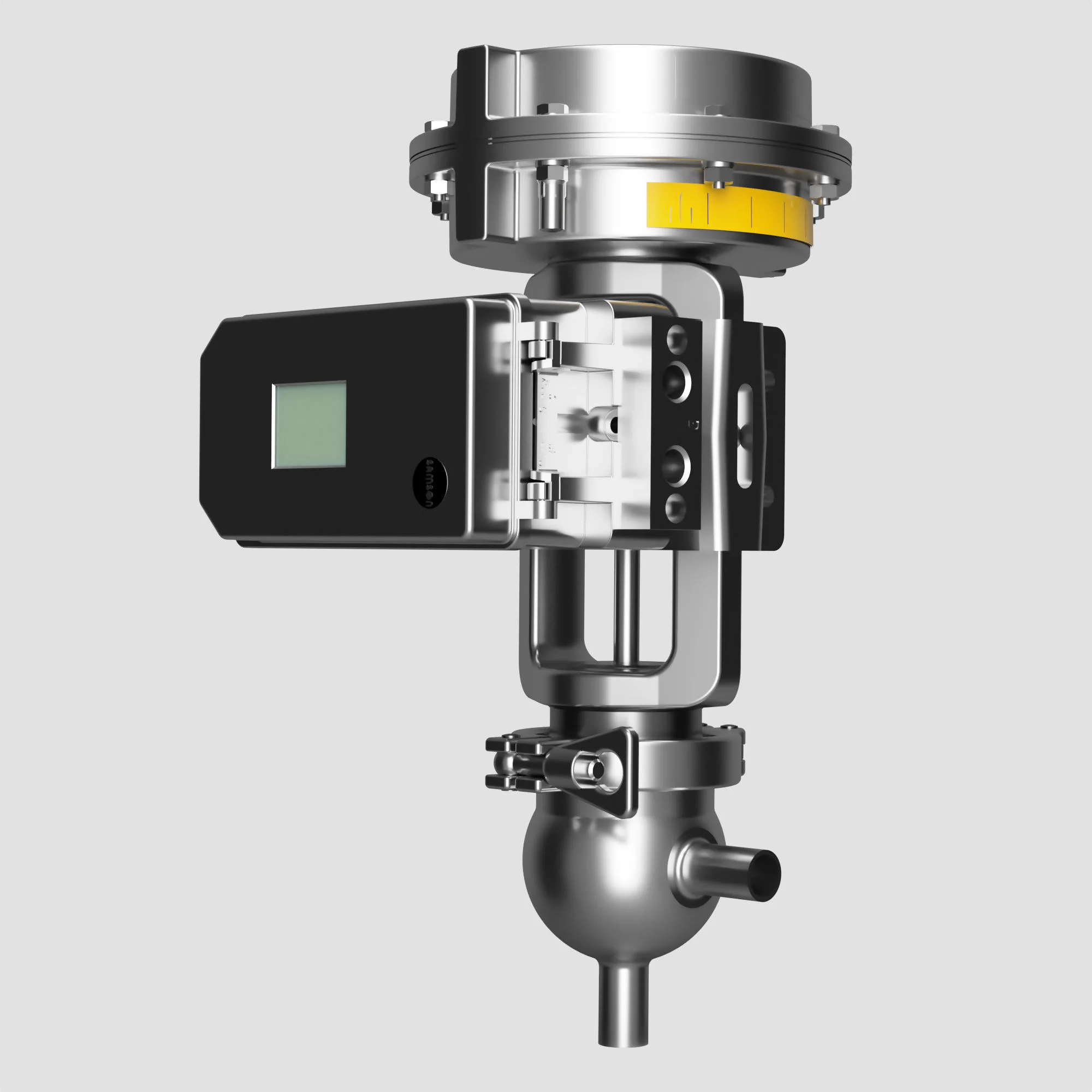

The 3249 Type Aseptic Globe Control Valves are designed with a cast stainless steel structure, ensuring no dead spaces and self-draining capabilities for effective SIP/CIP/DIP cleansing. Compliant with FDA/USDA sealing standards, these valves provide superior stem guidance and have fewer components to minimise micro-organism accumulation. Features include diaphragm leak detection and a gap for inspection between the valve and actuator. Available in sizes from 1/2" to 4", they are made from Forged Stainless Steel A182 F316 and can operate in temperatures from 32 to 320°F.

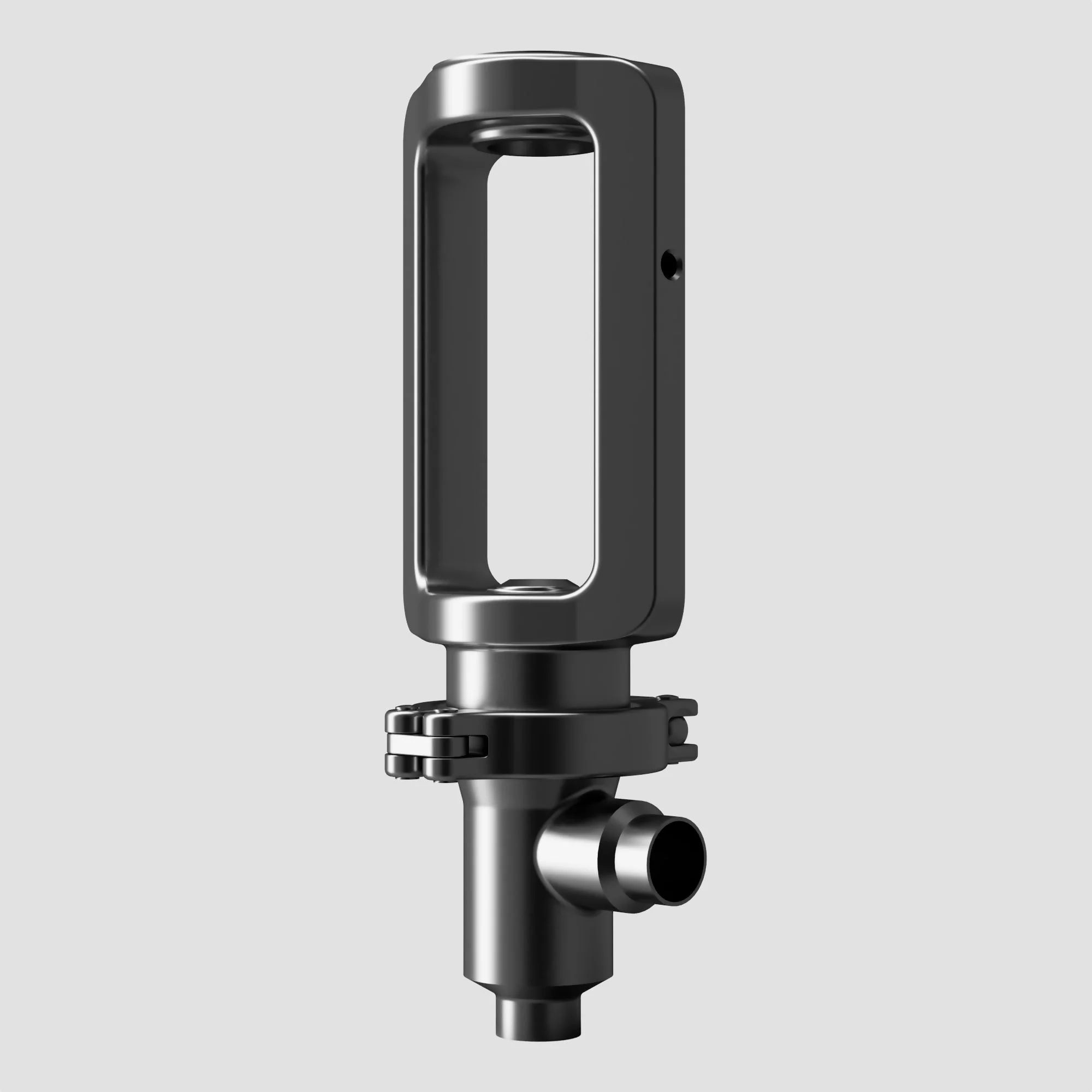

The 3347 Hygienic Angle Globe Control Valves, with a cast stainless steel body, ensure self-draining and are suitable for SIP/CIP/DIP processes. Featuring FDA/USDA approved sealing materials, these valves provide superior stem guidance and minimal micro-organism retention. Their design allows for easy inspection and quick maintenance with detachable actuators and clamps. EHEDG-certified, they come in sizes from 1/2" to 4", ANSI Class 150, and operate within 32 to 300°F (0 to 150°C).

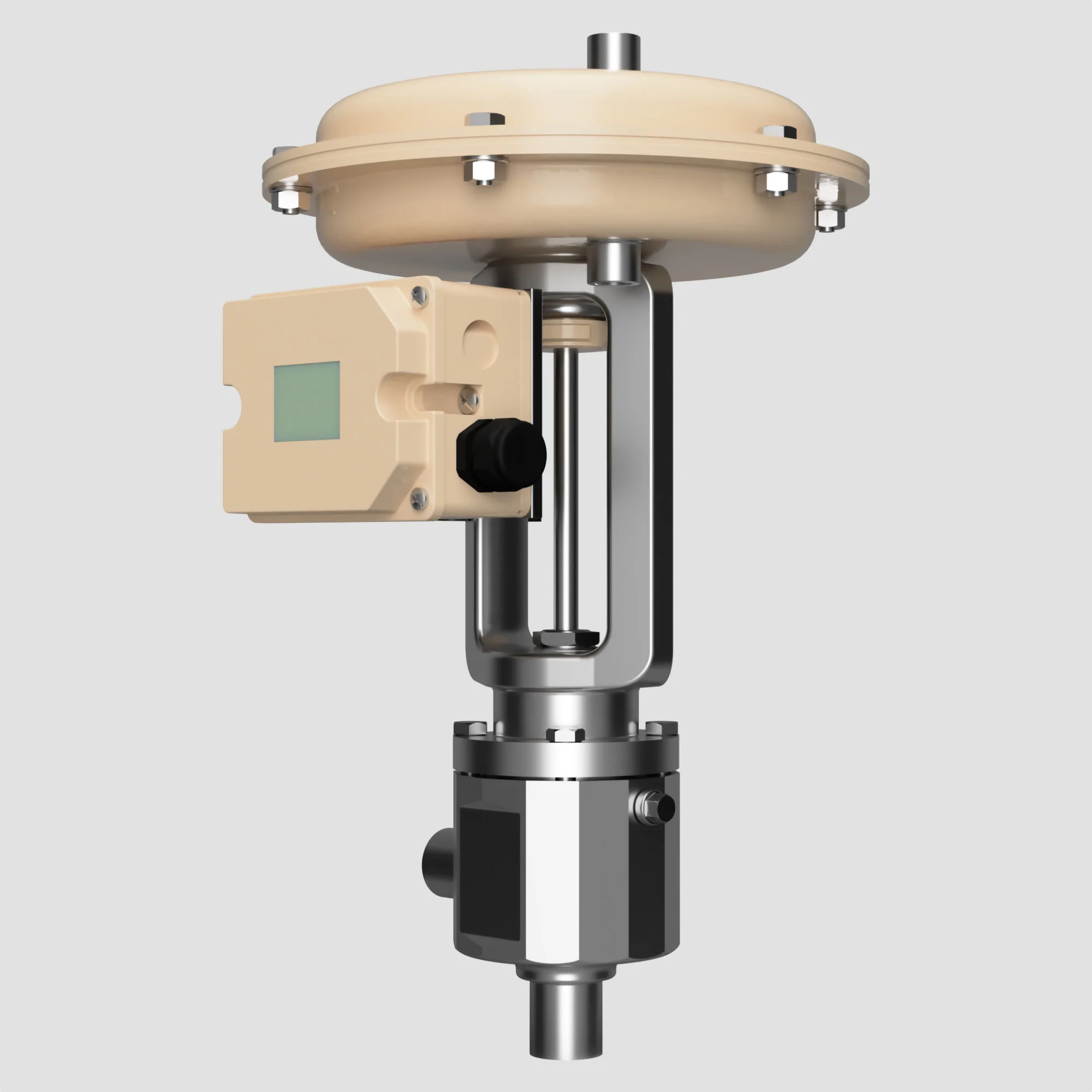

The 3349 Type Aseptic Angle Globe Control Valves feature a cast stainless steel body ideal for SIP, CIP, and DIP processes, ensuring self-draining with FDA/USDA-compliant materials. Designed for superior stem guidance, they minimise micro-organism accumulation and include diaphragm leak detection, simple actuator detachment, and EHEDG-certified cleaning. Available in sizes 1/2" to 2", ANSI Class 150, and temperatures from 32 to 320°F (0 to 160°C).

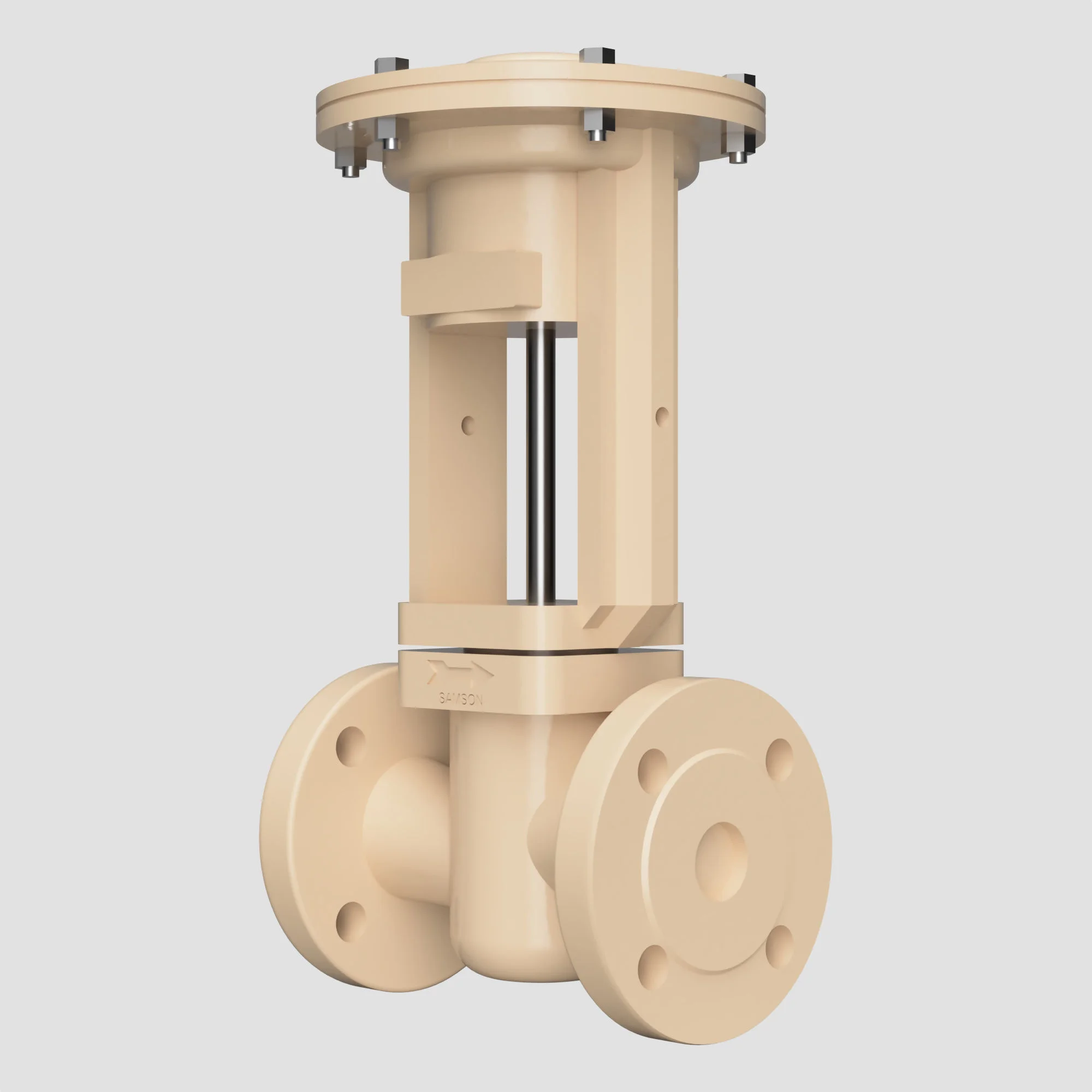

The 3351 Series ON/OFF Globe Control Valves, with a streamlined pneumatic build, easily accommodate additions like a handwheel, metal bellows seal, and thermal extenders. Matching materials for the bonnet and body ensure compatibility with processes. These valves deliver Class VI closure, featuring a PTFE insert in the plug, and are available for diameters of 1/2" to 4", with ANSI Classes 150 to 300. Offered in carbon and stainless steel, they function between -58 to 482°F (-50 to 250°C).
