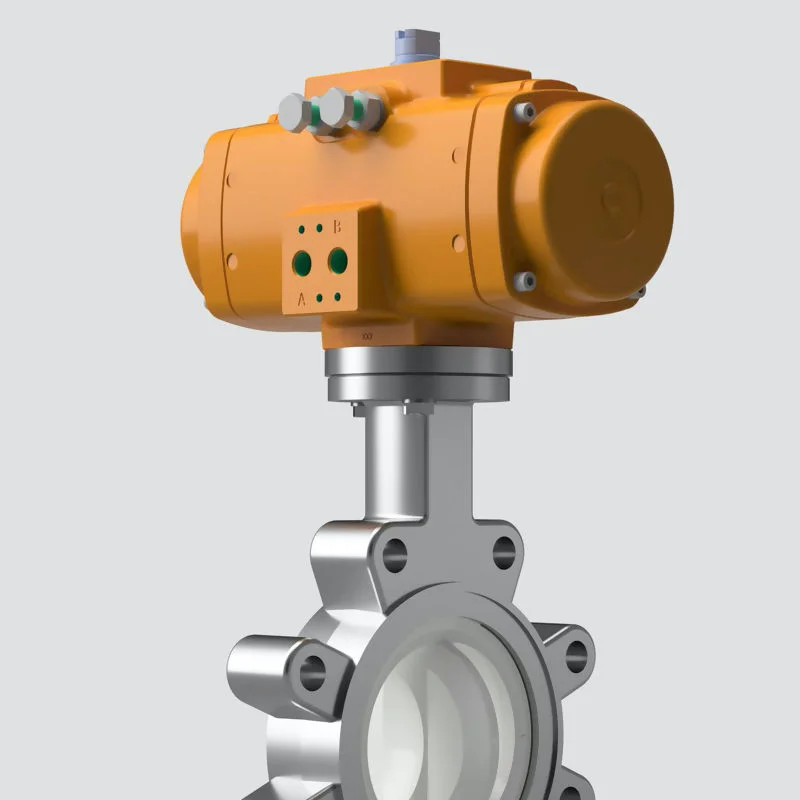

Stainless Steel Lugged PTFE Actuated Butterfly Valves

Lugged Stainless Steel Actuated PTFE Lined Butterfly Valves are used in piping systems as a dead end service Valve or where regular/predicted disconnecting of the pipe on either side may need to be removed for maintenance and installation without disruption to both sides of the line. The TTV PTFE Lined Stainless Steel Butterfly Valves offer both external and internal protection to extreme corrosive environments and pipeline shut off applications as well as Food, Beverage or Pharma that require regular wash down.

40LP4040F0TVT - Fully Lugged Stainless Steel Actuated V-Tork PTFE Lined Valves

The 40LP4040F0TVT is a fully lugged stainless steel actuated valve featuring a V-Tork PTFE lining, ideal for a wide range of industrial applications. This high-performance valve offers excellent corrosion resistance, durability, and reliable operation in demanding environments. Its PTFE lining ensures smooth flow and reduced friction, enhancing efficiency and longevity. Perfect for industries requiring stringent hygiene standards, the 40LP4040F0TVT provides exceptional control and performance.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

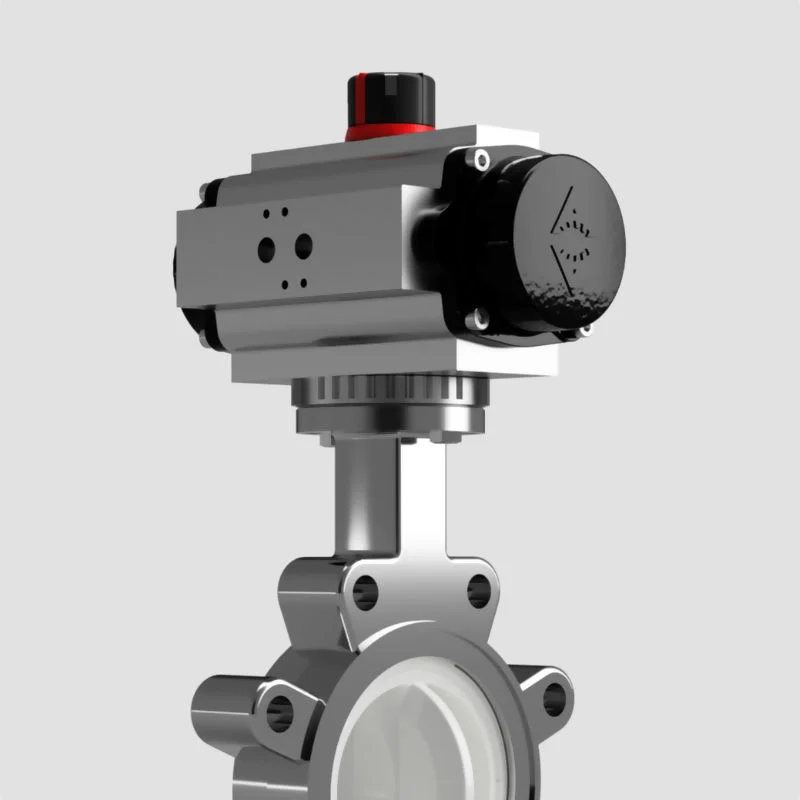

40LP4040F0TAC - Fully Lugged Stainless Steel Actuated Actreg PTFE Lined Valves

The PTFE Seat or Lined Butterfly Valves are designed to shut off liquids, slurries and bulk solids with excellent reliability in highly aggressive environments. They're suitable for use on a wide range of processes from pharmaceuticals manufacturing through to petrochemical. The pre-stressed springs in the actuator offers more torque and different options for their positioning. This system allows us to easily fit the necessary torque to close or open the valve, offering a total safety replacement and manipulation.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

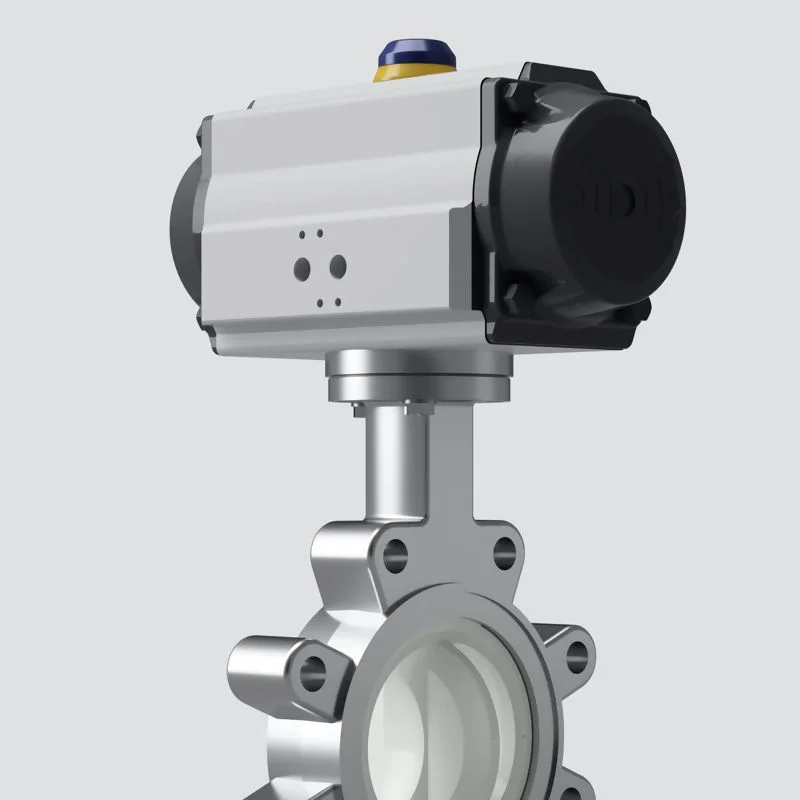

40LP4040F0TAT - Lugged SS Actuated Air Torque PTFE Lined Valves

The TTV PTFE Stainless Steel Butterfly Valves offer both external and internal protection to extreme corrosive environments and pipeline shut off applications as well as Food, Beverage or Pharma that require regular wash down. Air Torque have created a pneumatic actuator which allows for reverse operation without returning it back to the manufacturer or using any additional hardware. This can be done in field by the end user with also the option to convert from spring return to double acting and vice versa. We offer both the fail safe close/open position as well as several features that can be specified at time of order including manual overrides.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

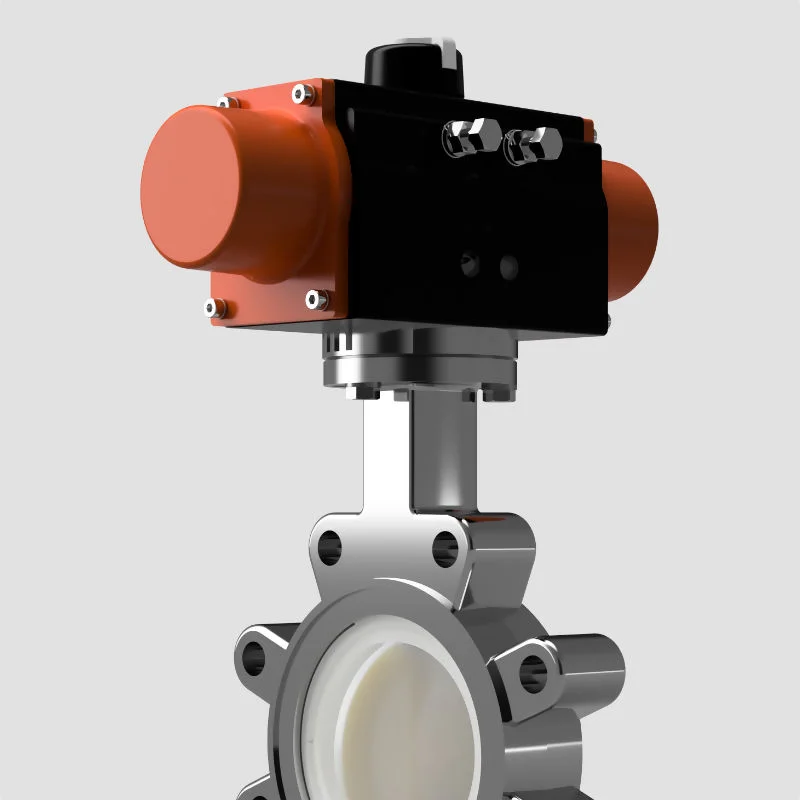

40LP4040F0TBE - Lugged Bettis SS PTFE Lined Butterfly Valves

The 40LP4040F0TBE combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality concentric PTFE Lined butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

40LP4040F0TEL - Lugged SS Actuated Elomatic PTFE Butterlfy Valves

The TTV Stainless Steel Actuated PTFE Butterfly Valves provide a very similar corrosion resistance to that of the standard valve, while also providing external protection where chemicals may be present or there's potential for them in your wash down requirements. The EL-O-Matic F Series are available with a SIL 3 rating approval from TÜV, which means that this actuator can be used in safety critical systems without having to consider the consequences if it fails. The “Dry Shaft” feature ensures fluid is again isolated from both the shaft and the body of the butterfly valve.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

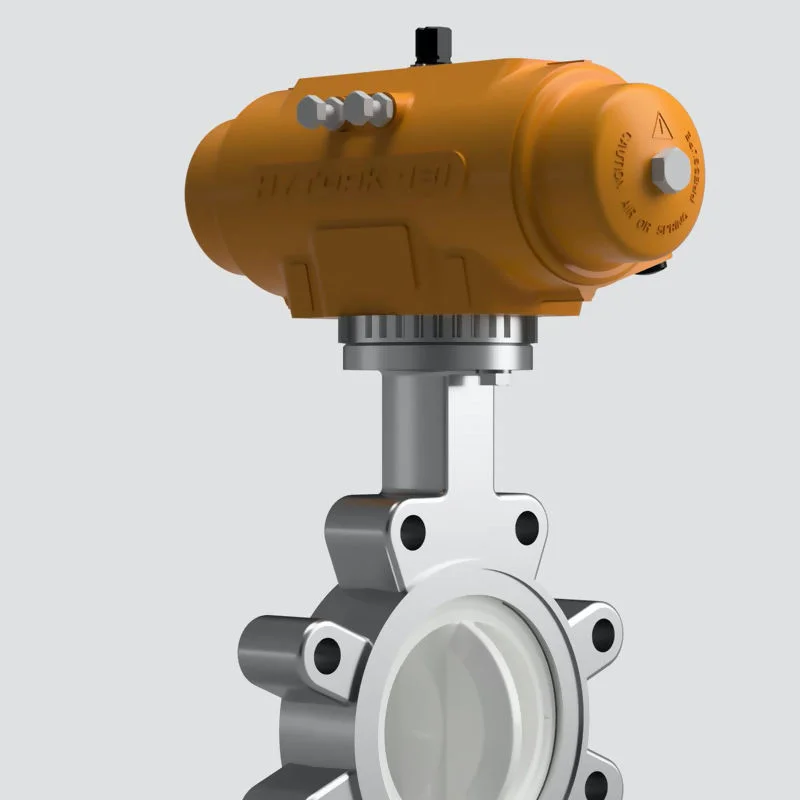

40LP4040F0TXL - Lugged SS Actuated Hytork PTFE Butterfly Valves

Actuated Butterfly Valves are an innovative solution for any company looking for a more efficient way to control fluid flow in their industrial processes. These TTV Butterfly Valves have been designed with two components that work together to provide perfect sealing capabilities. Hytork’s Pneumatic Actuator is designed with larger rack teeth than competitors' products, which provides superior strength and durability when compared to other brands on the market today. This innovative design allows our customers to have confidence in their equipment. The split body design on of the PTFE Seat and PTFE Lined Butterfly Valves allow for quick and easy future maintenance requirements. Two body bolts allow the construction to be split into two components with the solid seat design interchangeable within minutes.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

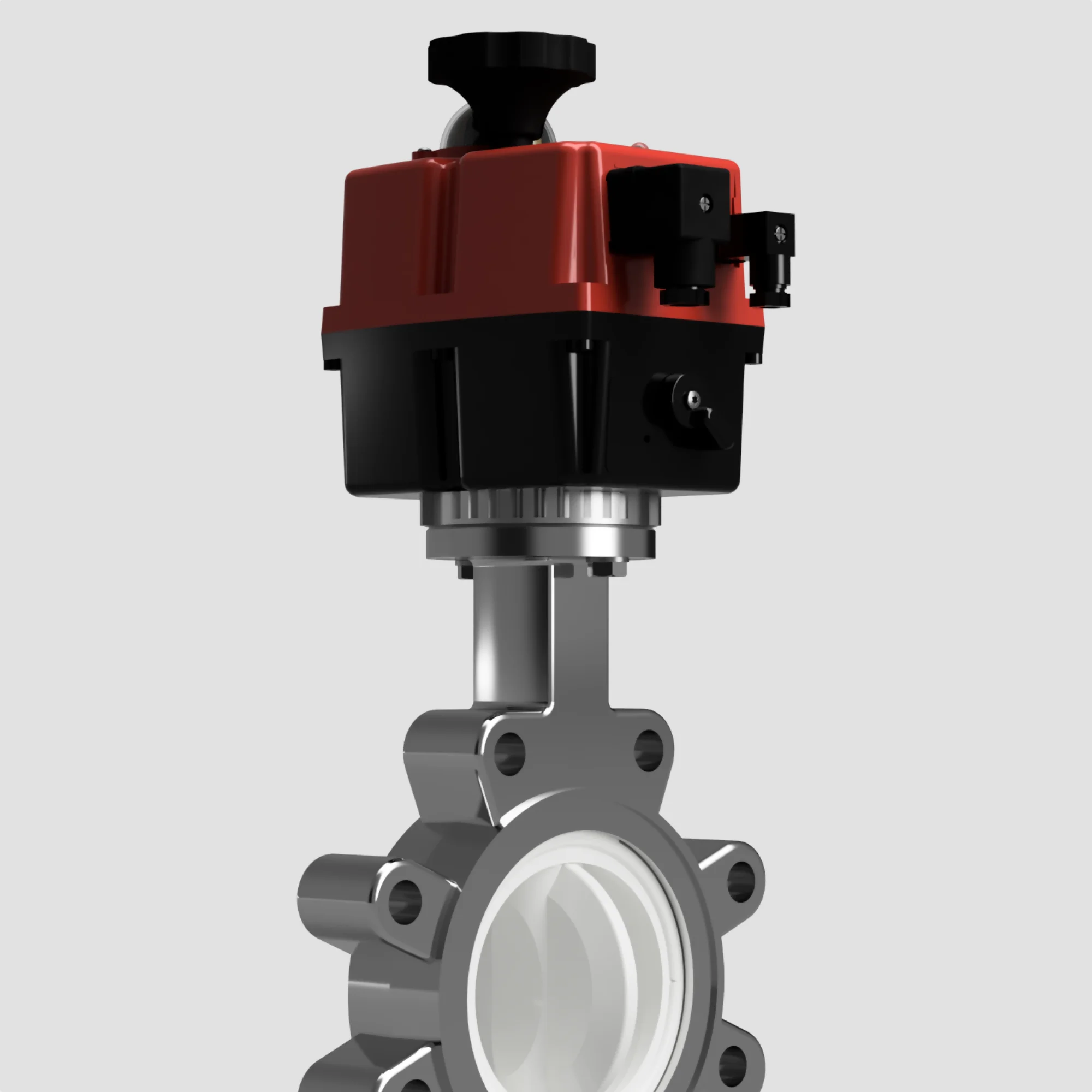

40LP4040F0TJJ - Fully Lugged Stainless Steel Actuated JJ PTFE Lined Valves

For over 25 years, Actuation Valve has been providing J&J Electric Actuators for sale online as well as local support through our network of distributors worldwide so that we can meet all your needs no matter where you may be located around the world.With the J&J Electric Actuators uses patented technology to get more out of your equipment while saving money on maintenance and energy costs with its brushless motor design. Products are easy-to-install and come complete with general operations and maintenance manuals. All of our actuated butterfly valves can be set up in either the Fail Safe Close/Open Position with several manual override features across the range. Control and Indication add-ons can be specified at the time of order.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

Be Happy. Best Prices Guaranteed

Best pricing or we will donate some cash to a local dog charity. We like dogs, sorry cats. Loads of terms apply. Ask us for details. No fake rubbish Valves considered.

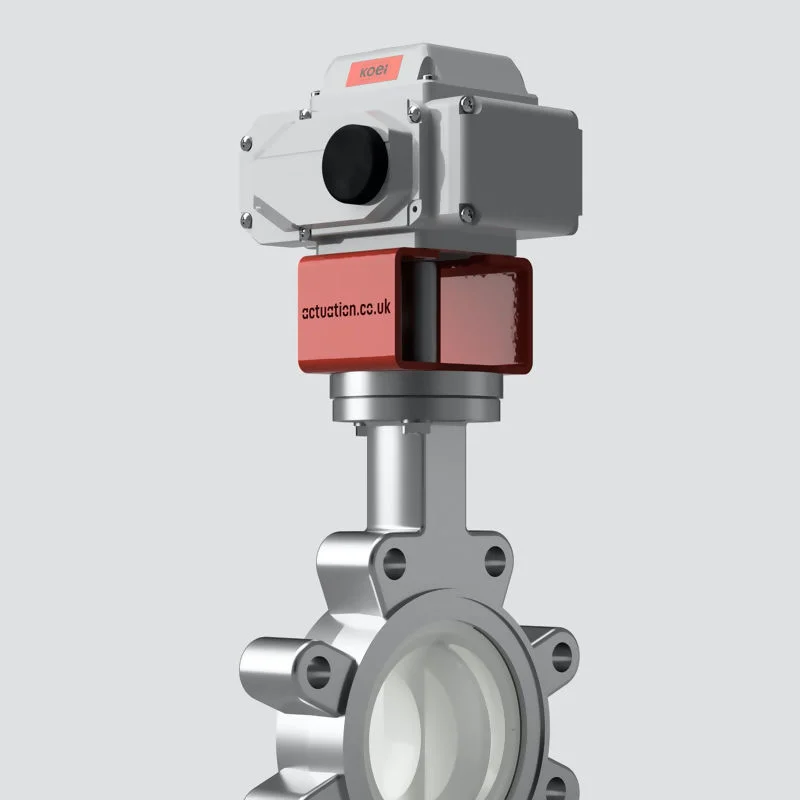

40LP4040F0TEK - Lugged SS Koei UNIC PTFE Actuated Butterfly Valves

The TTV Stainless Steel Actuated PTFE Butterfly Valves offer a very similar aggressive resistance and food grade option to that of the standard Valve whilst also providing external protection including corrosive environments as well as covering wash down requirements. With lugged butterfly valves If one side needs repair, you can simply disconnect it from the piping system and leave the other side connected until repairs are complete. This makes maintenance easier and faster compared to wafer pattern butterfly valves. The Koei UNIC Electric Actuator features an easy to use Allen Key Manual Override, overload protection system and end of travel electric stop. It also includes a mechanical limit/mechanical switch for open and close indication on your control panel.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

40LP4040F0TVA - Lugged SS Actuated Valpes PTFE Lined Valves

The TTV PTFE Stainless Steel Butterfly Valves offer both external and internal protection to extreme corrosive environments and pipeline shut off applications as well as Food, Beverage or Pharma that require regular wash down. Currently our most flexible and modular design offering in an Electric Actuated Butterfly Valves the Valpes Electric Actuator offers fail in position as well as battery backup failsafe return for critical applications. Modbus-RTU & bluetooth versions are also available on a short lead time with CE, DNV-GL, CSA/UL & EAC Approvals.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

Frequently Asked Questions

A PTFE Lined Actuated Butterfly Valve is a valve designed for precise flow control in industrial applications. It features a butterfly-shaped disc with a PTFE lining for chemical resistance and smooth operation.

These valves are commonly used in industries like chemical processing, pharmaceuticals, and water treatment due to their corrosion-resistant properties.

PTFE lining provides excellent chemical resistance, making the valves ideal for handling corrosive fluids without damaging the valve components.

Actuated butterfly valves use an electric or pneumatic actuator to control the valve's position, regulating the flow by turning the disc.

PTFE lined valves can handle moderately high temperatures, typically up to 260°C (500°F), depending on the design and materials.

While PTFE lining offers excellent chemical resistance, it may not be ideal for highly abrasive materials. Consult with the manufacturer for specific applications.

Regular inspection, cleaning, and lubrication of moving parts are recommended to ensure smooth operation and extend the valve's lifespan.

Yes, these valves can be installed in both horizontal and vertical pipelines. Proper installation orientation is essential for optimal performance.

Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.

Consult with the valve manufacturer or a qualified engineer to determine the correct valve size based on your flow requirements and system specifications.
