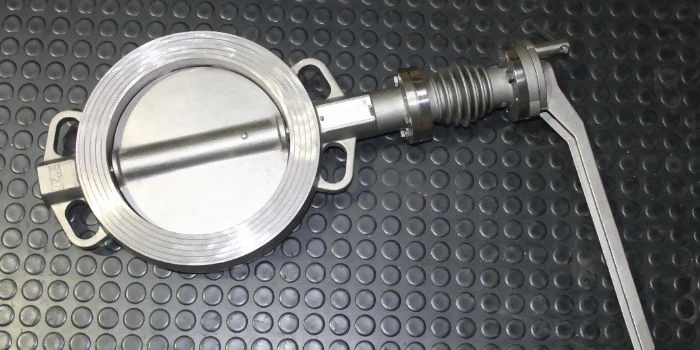

Colossus Lever-Gear Operated Butterfly Valves

The TTV High Performance Double Offset Butterfly Valves provide a reliable leak tight shut off for some of the most demanding applications. Optional seat materials include the R-PTFE which is recommended for mediums including aggressive chemicals, LPG/LNG, petroleum, ethylene and vacuum with a flexible metal seat available for higher temperature requirements and mediums such as saturated steam, gases, bitumen and thermal oil. The metal seat also complies with BS 6755 part 2 or API 6FA/607 fire safety.

Key Features

Key features and benefits of the Colossus TTV Wafer Pattern High Performance Butterfly Valves.

Key Features

The Colossus Valve is manufactured from high-quality components, giving it outstanding performance under extreme conditions. This valve will last longer than other valves on the market and has been proven by our customers as well as third party testing facilities.

Key Features

The Colossus is a high performance grade butterfly valve with superior performance characteristics that makes it ideal for use in demanding environments where most other butterfly valves would not survive and has been designed for use with both gasses and liquids.

Key Features

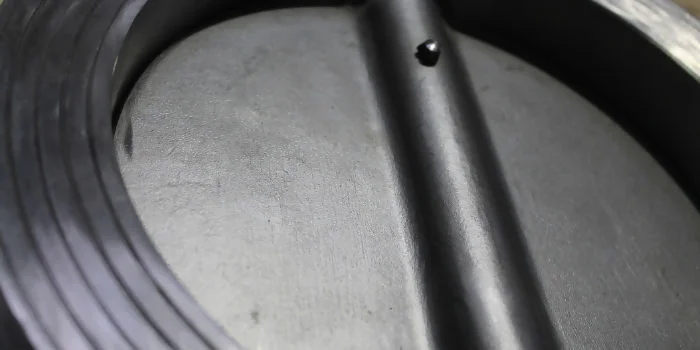

Due to the double offset movement, the rotation of the disc is eccentric over the seat. The rotational circular movement of the disc turns into an elliptical movement. So, the disc achieves just a few degrees contact with the seat before the valve is fully closed.

Valve Standards & Stuff

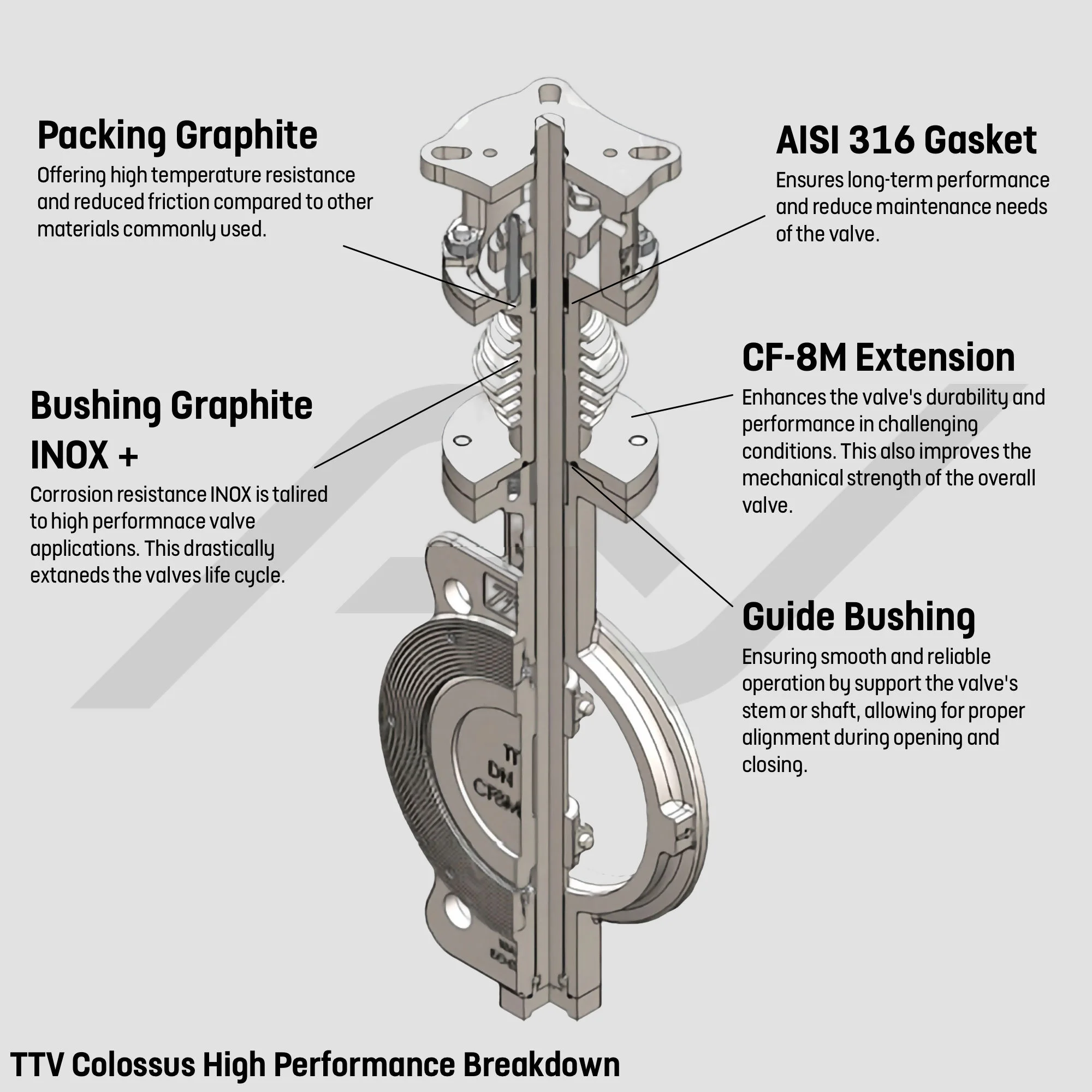

Body Material: Stainless Steel CF8M, Cast/Carbon Steel A216 WCB
Disc Materials: Stainless steel (CF-8M)
Shaft Materials: Stainless Steel F-316
Design: API 609, ASME B16.34, MSS SP-67, EN 593, Nace MR 0175
Inspection & Testing: ISO 5208 / API 598
Connections: ISO 5752 series 20, BS 5155 series 4, DIN PN 10/16/25, ANSI 150/300

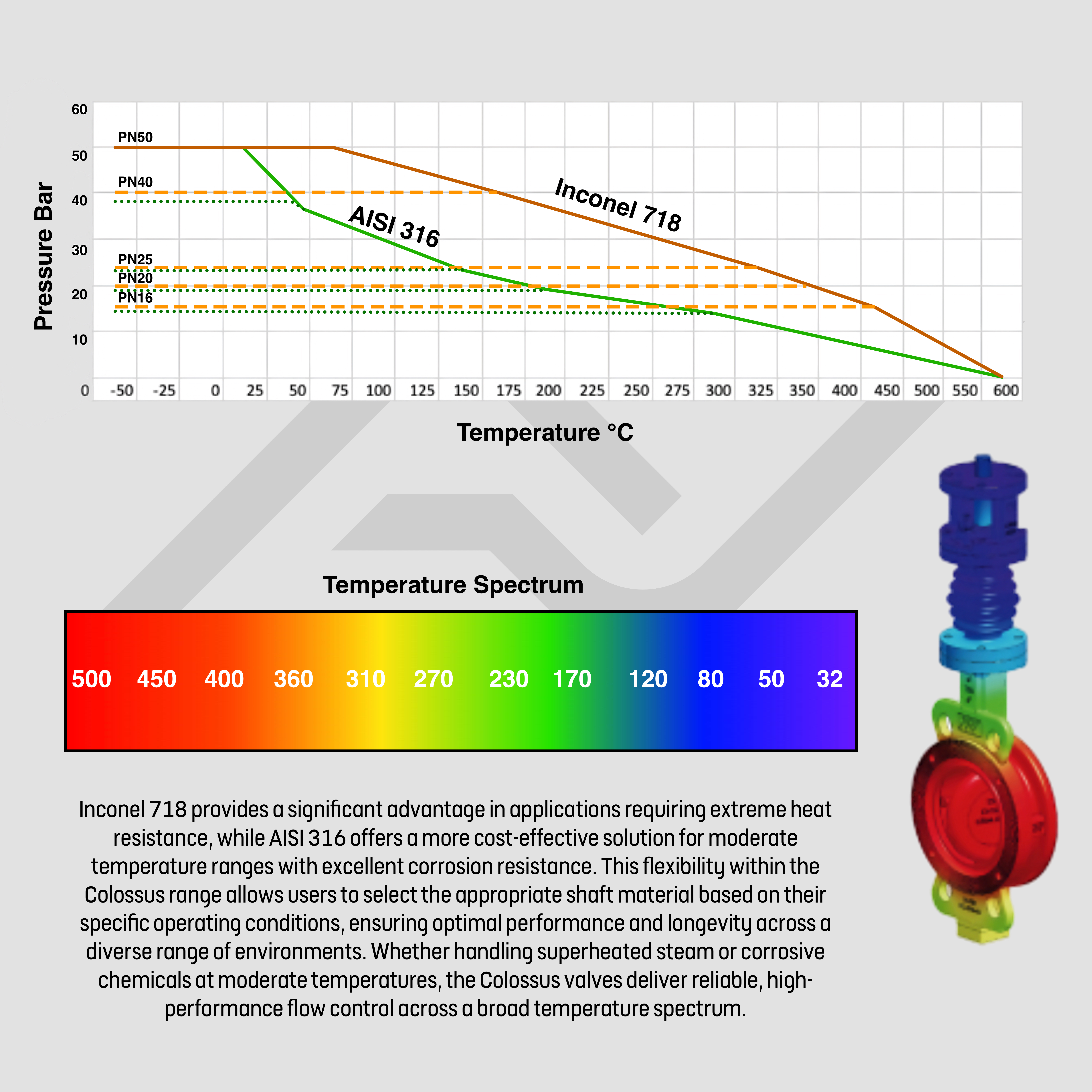

Seat Materials: Soft seat: R-PTFE (-50ºC / +220ºC), Hard seat: F-316L (-100ºC / +500ºC)
Applications: Chemical, Vacuum, LPG/LNG, Hydrocarbons, Steam, Gas, Bitumen, Thermal Oil

Frequent Interrogation

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

We can. The final is product customizable at the bottom of the page! Have a look down there or get us on 0151 547 1221. We have everything from Safe Area to ATEX in multiple voltages.

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boxes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

Metal - Metal Seat complies with BS 6755 Part 2 or API 6FA/607 (Fire Safety). Valve only.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

TopWorx Limit Switch Box

TopWorx Valve Limit Switch Box available for this product. Enable remote Valve monitoring of your High Performance Butterfly Valves with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.
