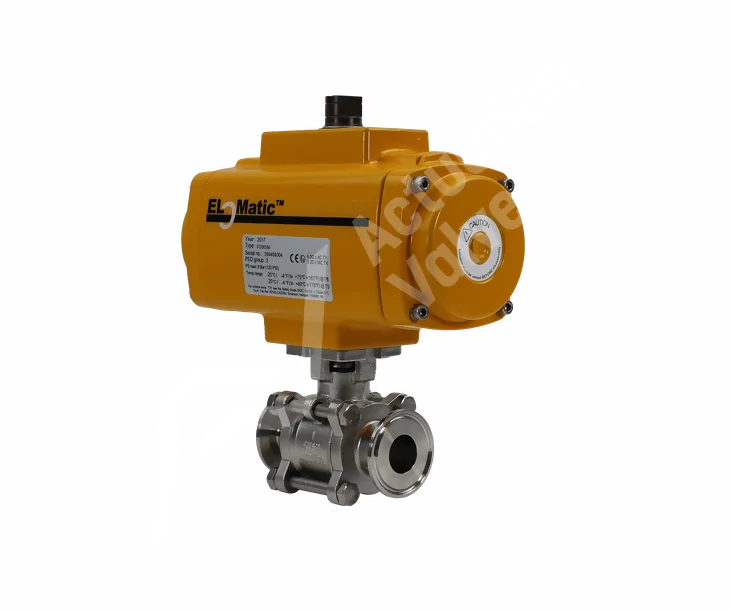

Hygienic Tri Clamp-Weld OD Elomatic Actuator Valve

The AV-L91B0EL & AV-L9CB0EL form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a free flow path that does not allow debris or contaminants to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals include FDA & WRAS approved seats with a bovine free supply.

Key Features

Key features and benefits of AV-L91B0EL & AV-L9CB0EL Actuated Ball Valves.
1

Key Features

EL-O-Matic offers an affordable solution with their F Series line of pneumatic actuators which can run continuously without failure for over 1 million cycles. The F Series has been tested by independent laboratories and proven reliable in continuous duty applications
2

Key Features

EL-O-Matic’s pneumatic actuation technology complies with NAMUR and ISO interface standards so they can be integrated into existing systems without having to change any existing hardware. The actuator can packaged with accessories such as limit switches or proximity sensors.
3

Key Features

Our actuators have long life springs, precision engineering and a fail safe mechanism that will ensure reliable operation of your equipment over time. When looking for a Pneumatic Actuator that has been engineered to exceed industry standards choose EL-O-Matic!

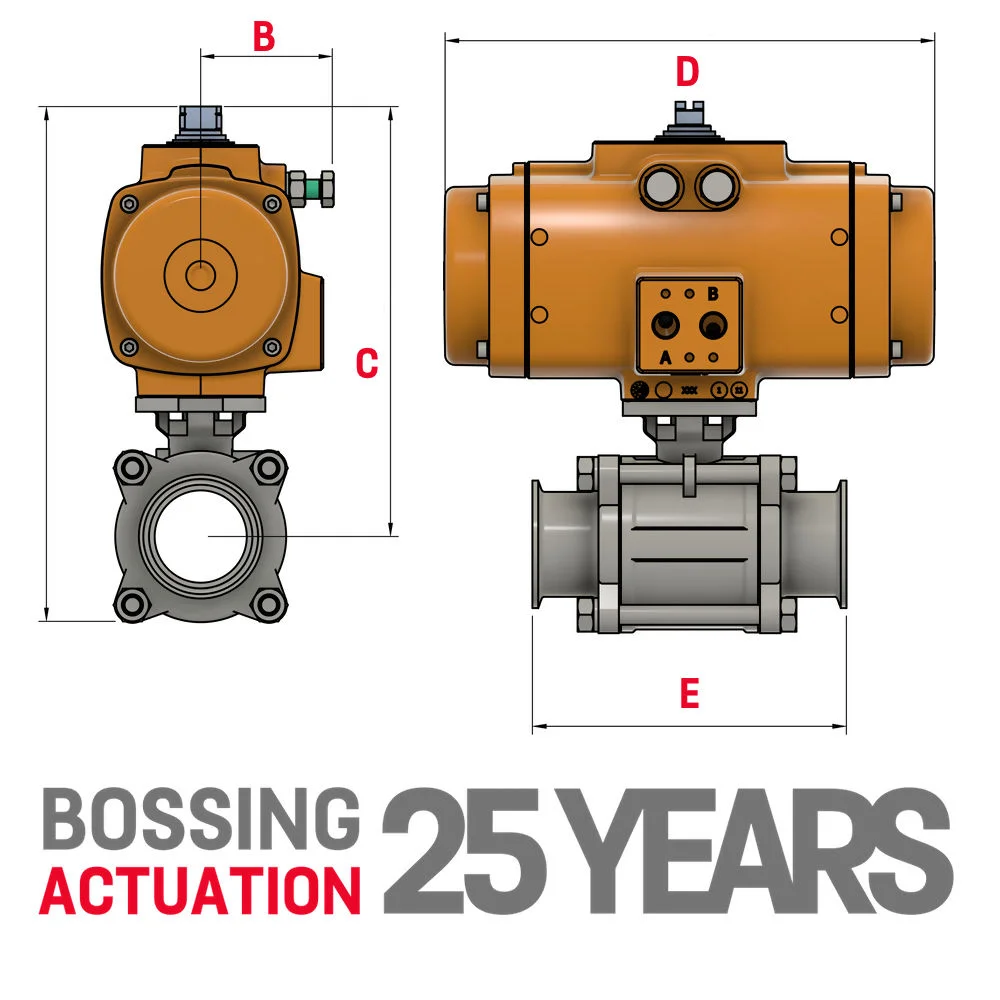

Tri Clamp Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 48.00 153.00 166.00 90.00 33.00 122.00 103.00 90.00
3/4" 48.00 160.00 166.00 90.00 48.00 160.00 166.00 90.00
1" 58.00 190.00 192.00 100.00 48.00 169.00 166.00 100.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA TBA
1 1/2" 69.00 215.00 217.00 125.00 58.00 203.00 192.00 125.00
2" 69.00 229.00 247.00 150.00 69.00 222.00 217.00 150.00
2 1/2" 75.00 277.00 304.00 190.00 69.00 251.00 247.00 190.00
3" 87.00 292.00 362.00 220.00 75.00 286.00 235.00 220.00
4" 109.00 361.00 385.00 270.00 87.00 323.00 265.00 270.00

Tri Clamp 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Weld OD 3D Stuff

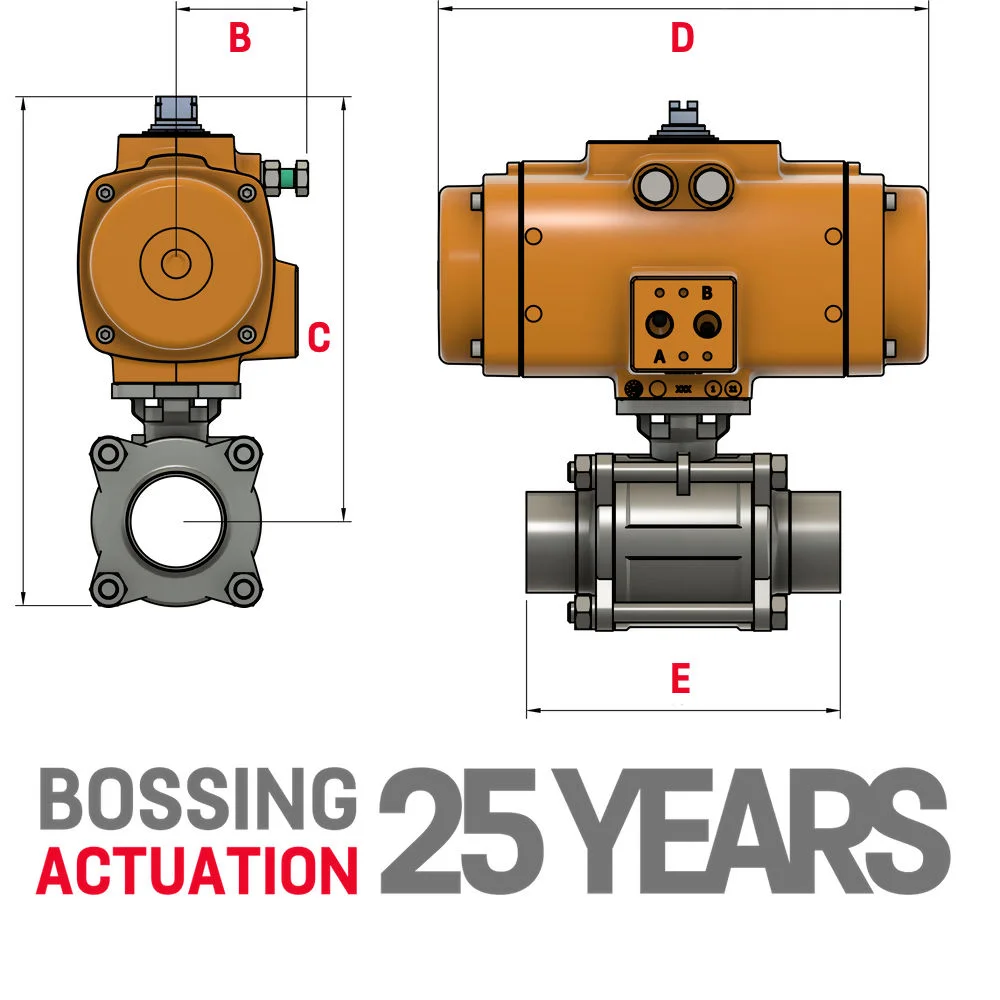

Weld OD Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 48.00 153.00 166.00 90.00 33.00 122.00 103.00 90.00
3/4" 48.00 160.00 166.00 90.00 48.00 160.00 166.00 90.00
1" 58.00 190.00 192.00 100.00 48.00 169.00 166.00 100.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA TBA
1 1/2" 69.00 215.00 217.00 125.00 58.00 203.00 192.00 125.00
2" 69.00 229.00 247.00 150.00 69.00 222.00 217.00 150.00
2 1/2" 75.00 277.00 304.00 190.00 69.00 251.00 247.00 190.00
3" 87.00 292.00 362.00 220.00 75.00 286.00 235.00 220.00
4" 109.00 361.00 385.00 270.00 87.00 323.00 265.00 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
