Fully stainless steel materials. This ball valve package is designed to be used in harsh, external environments and mediums that are aggressive towards the material itself. It can be used for a variety of applications ranging from food & beverage to chemicals & petrochemicals. Our Actreg pneumatic actuators combine quality materials that have been designed and engineered for many years of reliable valve operation service. Optional coatings and material combinations include epoxy painting, SS 304/316 stem adaptors and hard anodised ENP body and end caps. The Actreg pneumatic is actuator available in double acting and spring return models with torque capabilities of up to 6500NM for for their rack and pinion design. All actuators come complete with manual adjustment stops for accurate valve actuation up to 5º in open and closed positions.

Shop Help Me

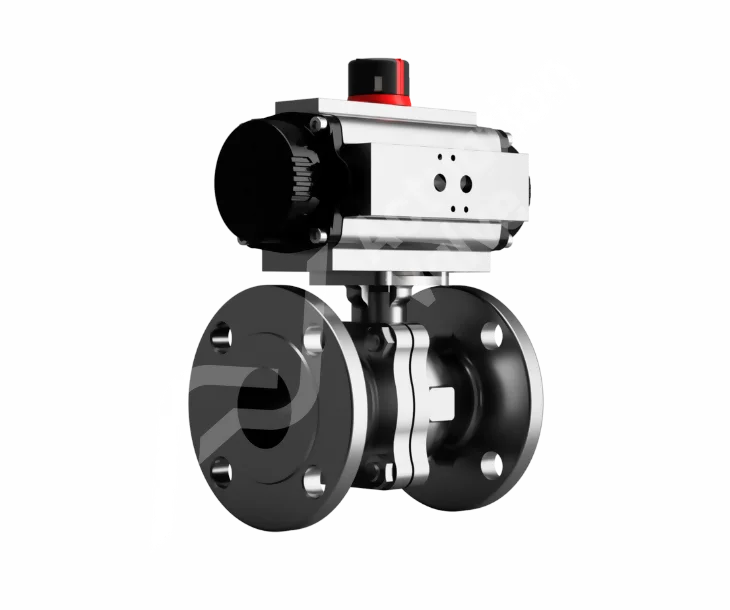

Key features and benefits of AV-L6K00AC Actuated Ball Valves.

Key Features

If you’re looking for an alternative solution then look no further than our AV-L6K00 Series Actuated Ball Valves. These products offer improved sealing capabilities while also reducing operating costs thanks to their low torque requirements.

Key Features

Compact and simple yet effective design the Actreg range of pneumatic actuators offer easy integration of both new and existing systems. Direct Mount capabilities and simple mounting kit assemblies which can be provided to suit your valve.

Key Features

The industry-leading AV-L6K00 Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves.

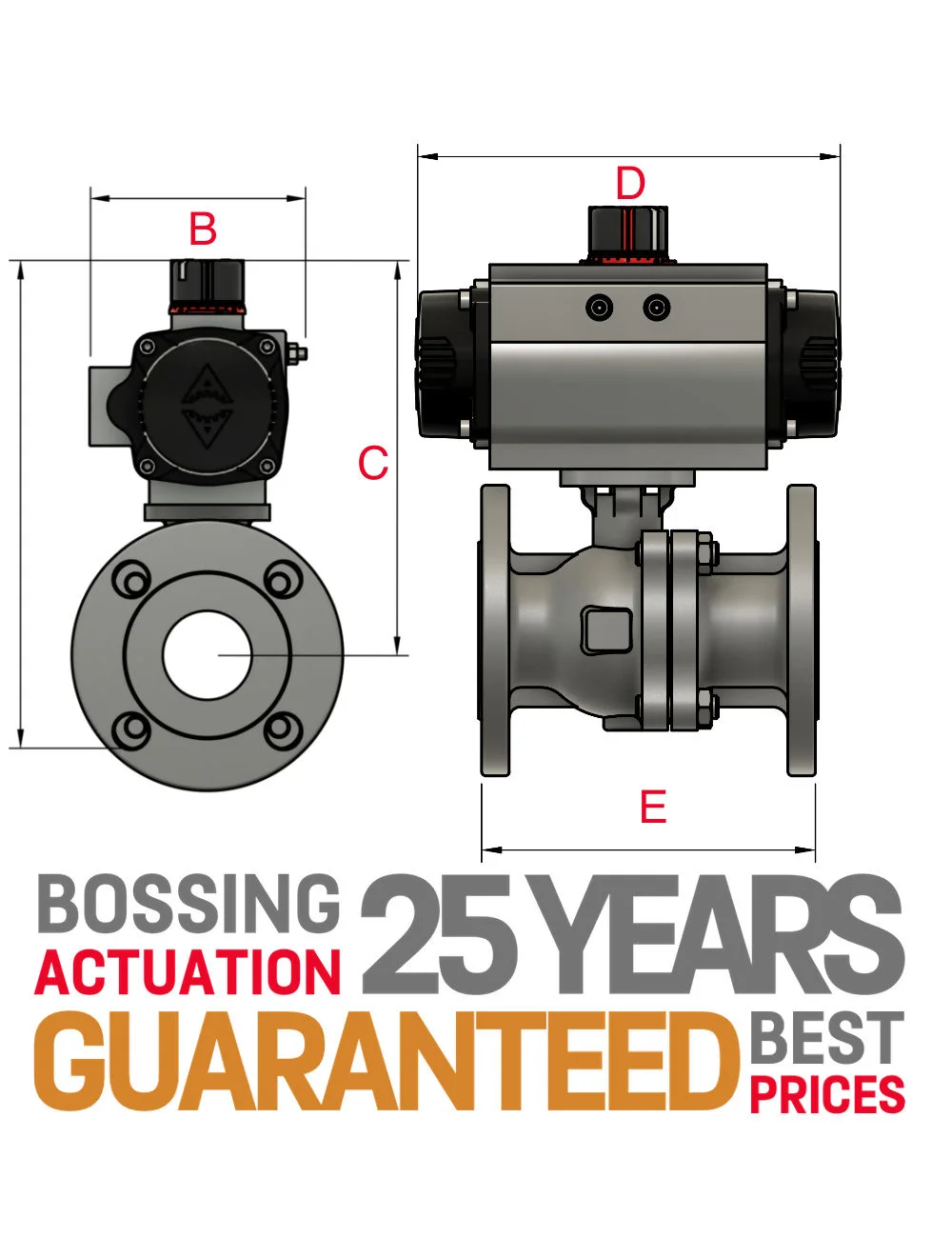

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/2"	81.00	145.00	163.00	108.00	72.00	138.00	145.00	108.00
3/4"	81.00	149.00	163.00	117.00	72.00	142.00	145.00	117.00
1"	96.00	174.00	195.50	127.00	72.00	148.00	158.00	127.00
1 1/4"	96.00	186.00	195.50	140.00	72.00	160.00	158.00	140.00
1 1/2"	116.00	213.00	217.00	165.00	93.00	198.00	177.00	165.00
2"	116.00	219.00	217.00	178.00	93.00	204.00	177.00	178.00
2 1/2"	127.00	249.00	258.00	190.00	93.00	224.00	196.00	190.00
3"	140.00	277.00	299.00	203.00	106.00	247.00	225.00	203.00
4"	157.00	322.00	348.50	229.00	136.00	315.00	273.00	229.00
5"	197.00	404.00	473.50	356.00	166.00	390.00	372.00	356.00
6"	218.00	453.00	560.00	394.00	166.00	411.00	439.00	394.00
8"	248.00	533.00	601.00	457.00	181.00	479.00	461.00	457.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	DIN3357 1,2, EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
