All of our Actuated Valve Assemblies are manufactured in house with the help from automation experts. Every completed unit comes equipped to meet high standards and can be traced back via two page test report detailing opening/closing times. AV-ARES Valve Actuator comes with a robust manual override lever that provides a reliable mechanical backup in the event of a power failure. This safety feature allows you to switch between open and closed positions until systems or power is restored. Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.

Shop Help Me

Key features and benefits of AV-A8000FCAR & AV-A8200FCAR Actuated Ball Valves.

Key Features

The AV-A8000FC Heavy Duty Carbon Steel Ball Valve is designed for use on heavy duty industrial applications where higher pressure ranges or temperatures may be required. This ball valve features PTFE TFM 4215 ball seats with grafoil stem sealing and carbon steel body.

Key Features

These heavy duty carbon steel ball valve is ideal for use in process industries such as chemical processing plants, oil refineries and water treatment facilities. With its rugged carbon steel body you can be sure your equipment will perform reliably no matter the environment.

Key Features

The AR-ARES Electric Actuator is capable of operating at temperatures of -25 to 60 Deg C without sacrificing speed or power consumption. With its ability to operate in multiple environments this electric actuator is sure to deliver on all fronts when you need it most.

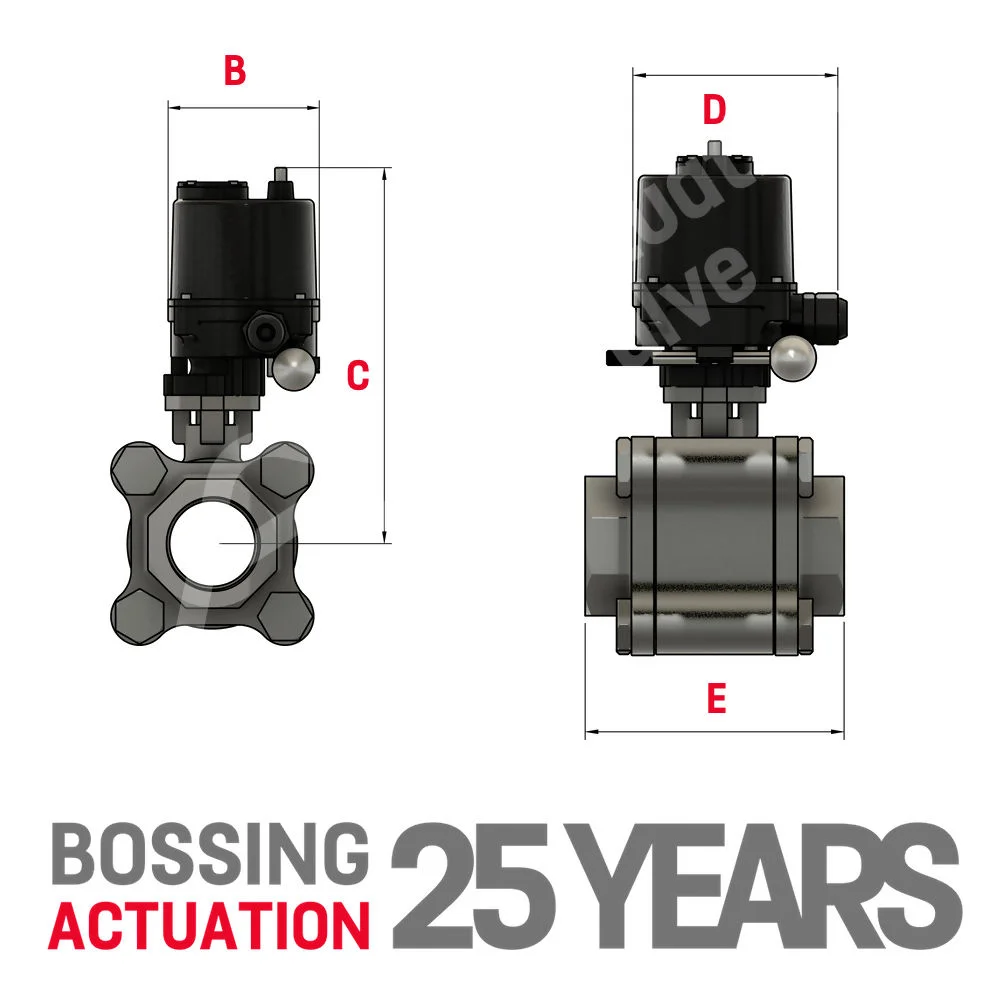

	B	C	D	E	Model

1/4"	88.00	176.00	115.00	75.00	AV-A1
3/8"	88.00	176.00	115.00	75.00	AV-A1
1/2"	88.00	176.00	115.00	75.00	AV-A1
3/4"	88.00	184.00	115.00	80.00	AV-A1
1"	88.00	191.00	115.00	90.00	AV-A1
1 1/4"	88.00	261.00	115.00	110.00	AV-A1
1 1/2"	88.00	273.00	115.00	120.00	AV-A1
2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material:	TFM 4215® (25% Carbon Filled TFM)
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 228/1
Socket Weld Ends:	ASME B16.11
Silicone Free:	Suitable For Oil Based Paints
Anti Static Device:	Ball, Shaft & Valve Body

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, position feedback is included as standard on the AV-A8000FC/AV-A8200FC range, with switches confirming open and closed positions.

Yes, discounts are usually available on multi-unit or bulk orders of the AV-A8000FC/AV-A8200FC range. Get in touch with your required quantity and specification and our sales team will confirm the best pricing for your order.

Yes, the AV-A8000FC/AV-A8200FC range can be supplied with ATEX certification for use in potentially explosive atmospheres. Please confirm this requirement when ordering so the correct documentation is issued with your valve.

Yes, we can advise on larger sizes outside the standard AV-A8000FC/AV-A8200FC range. Send us your line size and process details by email or give us a call and we will confirm availability and lead time.

Yes, we can deliver directly to your customer on a plain, unbranded label. Send us a copy of your delivery note and we will include it with the shipment so your customer receives it under your company name.

Yes, we offer credit accounts for trade and repeat customers, subject to a credit check. Apply on the product page at checkout or contact our sales team directly and we will guide you through the application process.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
