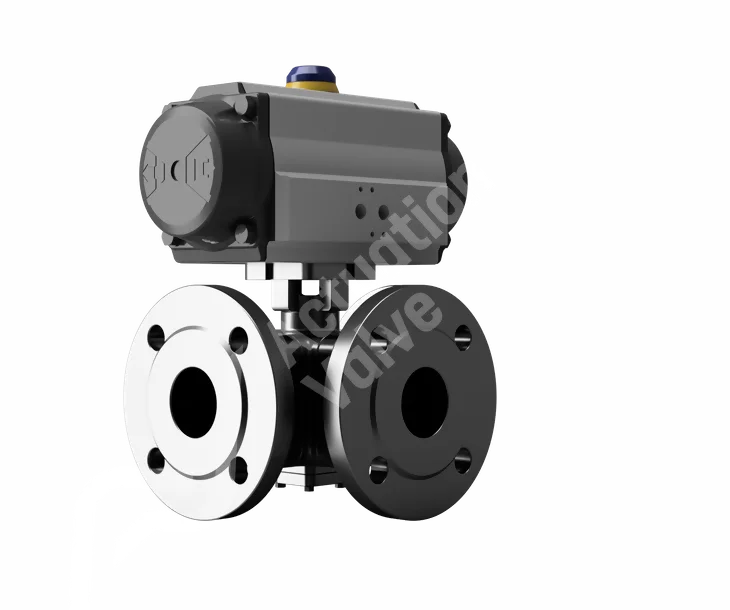

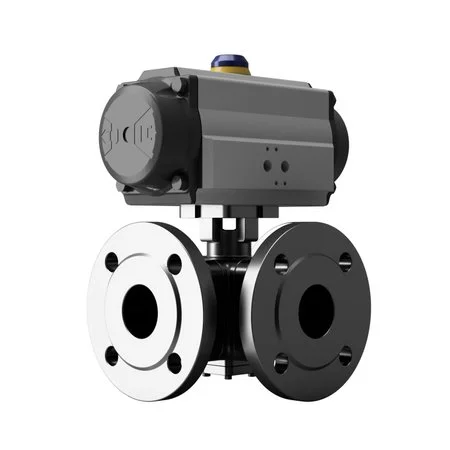

3-Way PN16-PN40 Full Bore Air Torque Actuator Valves

Our AV-L5K00AT/5N00AT 3-Way actuated multiport ball valves provide various process diverting capabilities with L & T port ball designs. The flanged PN16 & PN40 pressure rated valves provide both medium and high pressure options depending on your application requirements with easy installtion. With pneumatic actuation both fail safe and fail in position setups are available with double acting and spring return units. This can be specified at point of order. Air Torque Pneumatic Actuators provide the same functionality as hydraulic actuators at a fraction of the cost while also providing increased reliability and reduced maintenance costs. This lightweight and compact device has been designed specifically with valves in mind.

Key Features

Key features and benefits of AV-L5K00AT & AV-L5N00AT Actuated Ball Valves.

Key Features

The Air Torque range of pneumatic actuators is extremely versatile and easy to install. Their lightweight design means they don't require heavy duty mounting points, so you can fit them anywhere on your production line without affecting product flow or increasing costs unnecessarily.

Key Features

Certificate of conformities can be supplied by Air Torque along with your actuator or actuated valve package and each individual actuator is factory tested and inspected prior to packing and despatch to us in the UK form their Italian factory.

Key Features

If you’re looking for an alternative solution then look no further than our AV-L5K00 & 5N00 Series 3-Way Actuated Ball Valves. These products offer improved sealing capabilities while also reducing operating costs thanks to their low torque requirements.

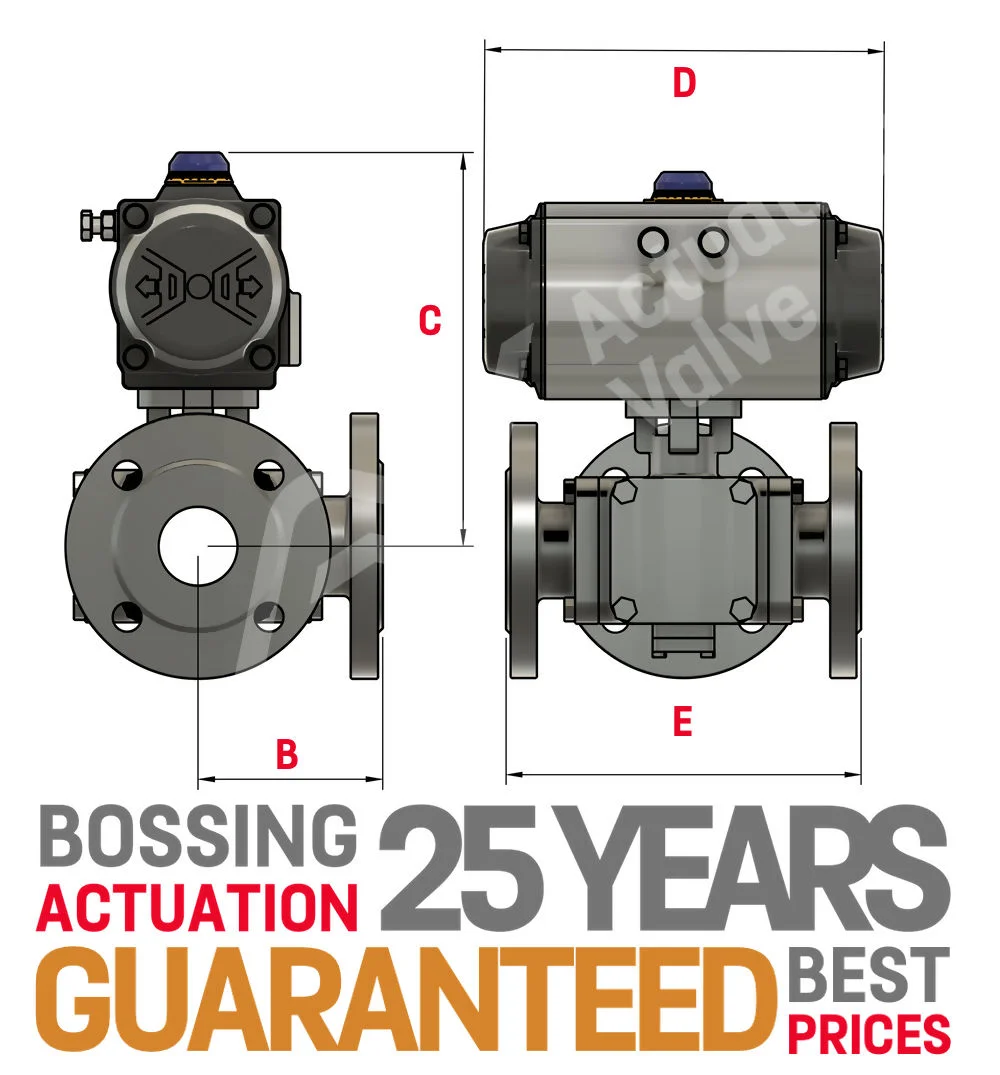

3-Way PN16 PN40 Technical Stuff

1/2" TBA 158.00 153.50 TBA 142.00 137.00 150.00
3/4" TBA 179.00 203.50 TBA 146.00 137.00 165.00
1" TBA 190.00 203.50 TBA 190.00 203.50 181.00
1 1/2" TBA 232.00 259.00 TBA 207.00 203.50 190.00
2" TBA 239.00 259.00 TBA 214.00 203.50 212.00
2 1/2" TBA 282.00 304.00 TBA 242.00 241.00 230.00
3" TBA 326.00 394.50 TBA 294.00 304.00 310.00 / 340.00
4" TBA 376.00 422.50 TBA 357.00 357.00 352.00 / 386.00

3-Way PN16 PN40 Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Why Air Torque

We have stock!

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Superior Durability and Reliability

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

3D Step Files Available

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

Expert Customer Support

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.

Air Torque Actuator Videos

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
