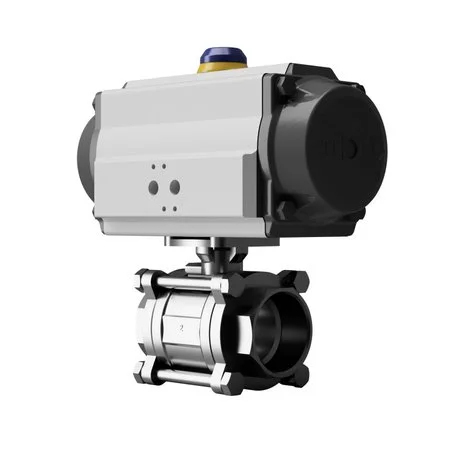

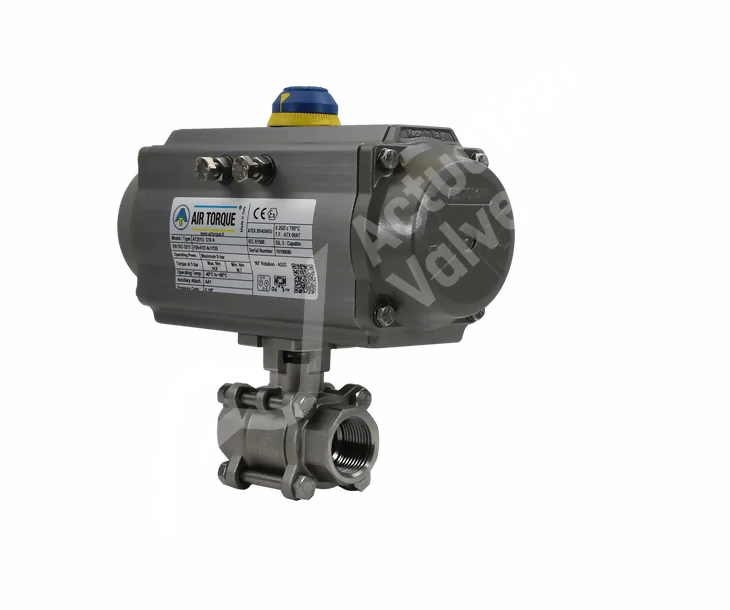

Air Torque Actuated 3 Piece Full Bore Ball Valves

The Air Torque Actuator is a new generation of pneumatic actuators that can be used in the most demanding environments, while meeting the highest performance standards. It’s perfect for applications requiring high reliability and long life at low cost. The 3-piece body design of the isolation ball valve isolates maintenance work to where it needs to be, making preventive care easy and efficient. Drop out section allows for quick seal replacements without compromising your production schedule. Utilising both the same body designs and end caps for spring return and double acting units allows for not only mass production but reduced inventory with in field conversion available by removing or adding the modular spring cartridge. A simple yet effective option when desired.

Key Features

Key features and benefits of the AV-L3000AT, AV-L3100AT & AV-L3200AT Actuated Ball Valves.

Key Features

Air Torque actuators have been designed to provide years of use with minimal maintenance required when compared to similar products on the market today. We offer a wide range of models so you can find one that fits your needs perfectly.

Key Features

Our air torque actuators are made of high quality materials and have been designed for years of reliable service. However, it doesn't stop there - we also offer our customers with the option to choose from multiple materials including stainless steel or epoxy coated options.

Key Features

The industry-leading AV-L3000 Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves.

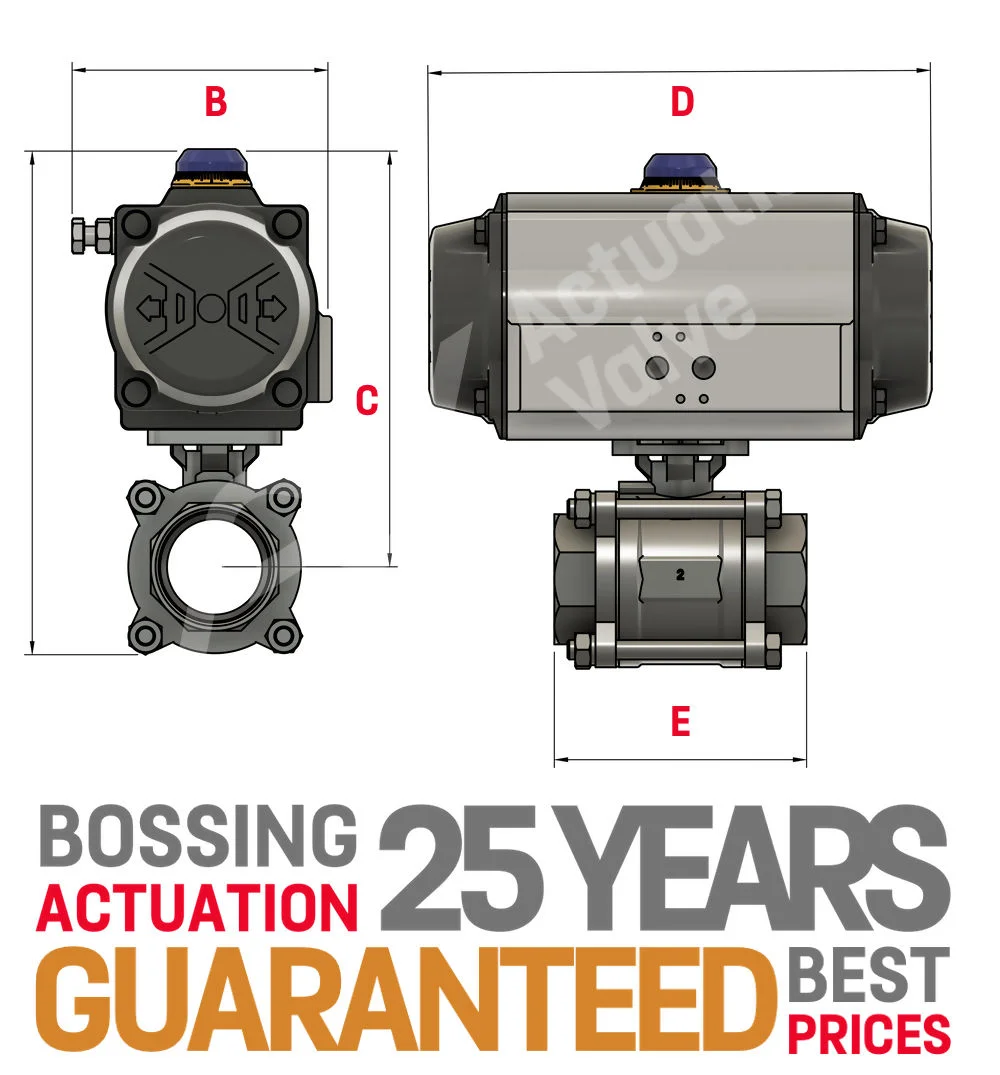

Screwed/Socket Weld Technical Stuff

1/4" 72.00 131.00 137.00 75.00 72.00 131.00 137.00 75.00
3/8" 72.00 131.00 137.00 75.00 72.00 131.00 137.00 75.00
1/2" 72.00 131.00 137.00 75.00 72.00 131.00 137.00 75.00
3/4" 72.00 137.50 137.00 80.00 72.00 137.50 137.00 80.00
1" 84.50 163.50 153.50 90.00 72.00 147.50 137.00 90.00
1 1/4" 93.00 185.00 203.50 110.00 72.00 152.00 137.00 110.00
1 1/2" 93.00 193.30 203.50 120.00 84.50 176.30 153.50 120.00
2" 106.00 213.20 241.00 140.00 93.00 200.20 203.50 140.00
2 1/2" 118.50 247.00 259.00 185.00 93.00 222.00 203.50 185.00
3" 136.00 283.50 304.00 205.00 106.00 243.50 241.00 205.00
4" 166.00 347.00 394.50 240.00 136.00 315.00 304.00 240.00

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Why Air Torque

We have stock!

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Superior Durability and Reliability

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

3D Step Files Available

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

Expert Customer Support

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (AV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000) ASME B1.20.1
Socket Weld Ends: (AV-L3100) ASME B16.11
Butt Weld Ends: (AV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

Frequent Interrogation

A 3 Piece Premium Ball Valve is a type of ball valve consisting of three main components: a central ball with a hole through it, and two end caps. It is known for its durability and ease of maintenance.

These valves are commonly used in various industries for controlling the flow of fluids, including water, oil, gas, and chemicals. They are ideal for isolation and throttling applications.

Premium ball valves often feature high-quality materials, precision machining, and better sealing capabilities, making them more reliable and suitable for critical applications.

Yes, many premium ball valves are available in materials resistant to corrosion, such as stainless steel, making them suitable for handling corrosive substances.

Yes, 3 Piece Premium Ball Valves are often designed to withstand high-pressure environments, making them suitable for industrial and process control systems.

Maintenance typically involves periodic cleaning, lubrication, and replacement of seals or gaskets when necessary. Refer to the manufacturer's guidelines for specific maintenance instructions.

They provide excellent flow control, tight shut-off, and minimal pressure drop, making them a preferred choice for many applications. Their disassembly for maintenance without cutting into the pipeline is another advantage.

Yes, many of these valves can be automated by adding actuators, making them suitable for remote or automated control systems.

The temperature range depends on the materials used, but many premium ball valves can handle temperatures from -20°C to 200°C or higher, depending on the design and materials.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
