Wras Approved Multi Voltage Electric AV-ARES Ball Valves

The Wras approved ball valve features a full bore flow which allow for maximum flow with minimal pressure drop. The quality brass body allows for operating pressures capable of meeting PN40 ratings. The AV-ARES Electric Actuator is compact, lightweight and cost effective for many industrial automation needs. It has been designed to be easy to install and use, saving you time and money on your next project. Our Wras Approved ball valves come pre-tested so you can get them up and running immediately. You will also receive a two page test report detailing all opening/closing times after your order has been completed.
Shop Help Me

Key Features

Key features and benefits of AV-A4500AR Actuated Ball Valves.
1

Key Features

Wras Ball Valves are designed specifically for use in accordance with the Water Byelaws and Water Fittings Regulations, so if you're looking for ways to help your customers comply with these regulations then our products could be exactly what you need.
2

Key Features

Wras Ball Valves have been independently tested and certified as meeting all of the strict standards set out by the Water Regulations Advisory Scheme (WRAS). They have undergone rigorous testing for leakage, pressure, material corrosion resistance and design integrity.
3

Key Features

AV-ARES Electric Actuators offers a digital positioner that allows for precise control of your valves, with operation torques up to 40NM. The instrumentation signals accepted include 4-20mA and 0-10VDC for intelligent control.

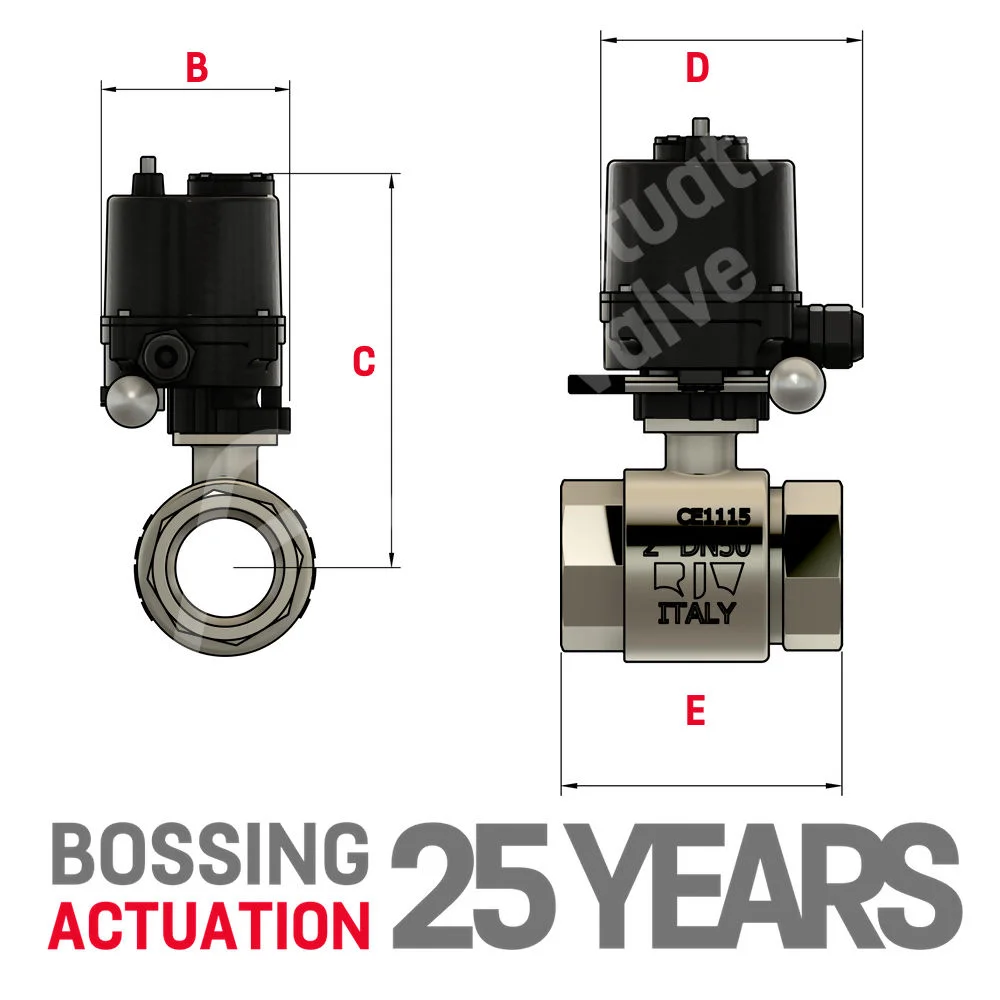

AV-A4500AR Ball Valve Technical Stuff

B C D E F2F
1/4" TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA
1/2" 115.00 164.00 88.00 AV-A1 59.00
3/4" 115.00 170.00 88.00 AV-A1 69.00
1" 115.00 174.00 88.00 AV-A1 83.00
1 1/4" 115.00 179.50 88.00 AV-A1 94.00
1 1/2" 115.00 191.00 88.00 AV-A1 102.00
2" 115.00 198.50 88.00 AV-A1 124.00
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA

AV-A4500AR Ball Valve 3D Stuff

Wras Approved Actuated Ball Valves

WRAS approval is a mandatory requirement for any product that carries or receives drinking water from the public mains in the UK. It provides proof that our products have been tested by an independent body to ensure they meet all relevant standards and requirements as set out by Government. The AV4500 is a Wras Approved Ball Valve suitable for use drinking water.

Valve Standards & Stuff
Body Material: Brass CW 617 N
Seats Material: PTFE
Shaft Material: Brass CW 614 N
O-Rings Material: Viton
Ball Material: Brass CW 617 N
Approvals: Wras approved
Mounting: ISO 5211 Connection
End Connections: BSPP
Pressure Rating: PN40

Frequent Interrogation

Yes, this Valve is suitable for drinking water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.
