The AV4500AT 2 piece full bore brass ball valve offers a compact, cost effective actuated valve solution for screwed and threaded pipelines. Also with WRAS approval suitable for potable drinking water. The ISO 5211 mounting pad allows us to actuate the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed with express shipping for delivery within 48 hours for stock components.

Shop Help Me

Key features and benefits of AV-L4500AT Actuated Ball Valves.

Key Features

Air Torque have created a pneumatic actuator which allows for reverse operation without returning it back to the manufacturer or using any additional hardware. This can be done in field by the end user with also the option to convert from spring return to double acting and vice versa.

Key Features

The Air Torque Pneumatic Actuator offers a simple yet effective solution that requires minimal maintenance making it ideal for long-term heavy duty use in any industry. Lightweight construction makes the actuator easy to install.

Key Features

We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings.

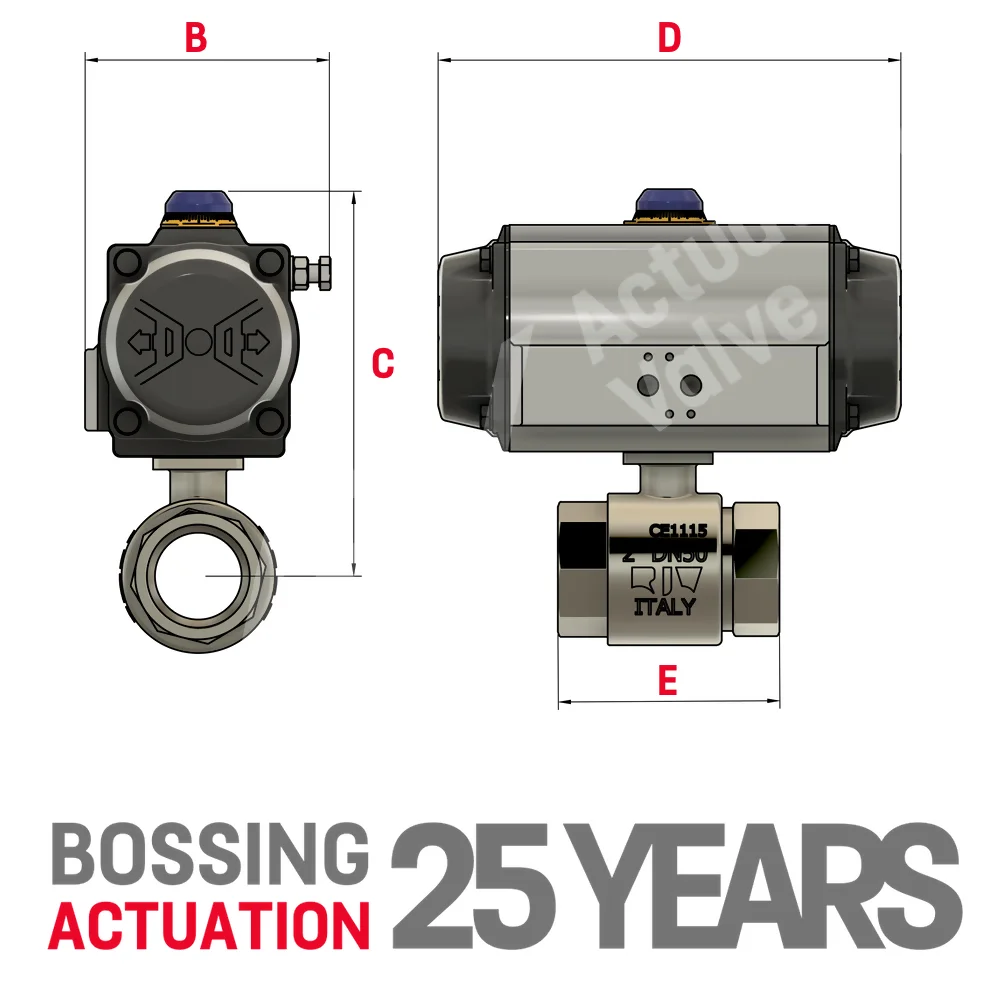

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	72.00	120.00	137.00	72.00	120.00	137.00	59.00
3/4"	72.00	126.00	137.00	72.00	126.00	137.00	69.00
1"	72.00	130.00	137.00	72.00	130.00	137.00	83.00
1 1/4"	93.00	168.50	203.50	72.00	135.50	137.00	94.00
1 1/2"	93.00	180.00	203.50	84.50	163.00	153.50	102.00
2"	106.00	200.50	153.50	84.50	170.50	153.50	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

WRAS approval is a mandatory requirement for any product that carries or receives drinking water from the public mains in the UK. It provides proof that our products have been tested by an independent body to ensure they meet all relevant standards and requirements as set out by Government. The AV4500 is a Wras Approved Ball Valve suitable for use drinking water.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	Brass CW 617 N
Seats Material:	PTFE
Shaft Material:	Brass CW 614 N
O-Rings Material:	Viton
Ball Material:	Brass CW 617 N
Approvals:	Wras approved
Mounting:	ISO 5211 Connection
End Connections:	BSPP
Pressure Rating:	PN40

WRAS (Water Regulations Advisory Scheme) approval means the valves meet regulatory standards for use in potable water systems in the UK. WRAS tests for materials, construction and performance.

Common materials are dezincification resistant brass or stainless steel. WRAS has requirements for leachable lead and other substances that could contaminate drinking water.

2-piece valves have the body and ball as one part, with the stem as the second part. This makes them more compact but non-serviceable. 3-piece valves can be disassembled for servicing.

Typical end connections are copper tube connectors, compression fittings and push-fit connectors. Threaded BSP or NPT connections are also sometimes used.

Common handles are cross type lever handles, tee handles and round knobs. Locking handles are also available to prevent tampering. Extended handles allow ease of operation in tight spaces.

Most 2-piece WRAS approved valves have pressure ratings of up to 400 psi (27 bar) and temperatures up to 230°F (110°C), with some high pressure models rated beyond this. Always confirm ratings for your application.

Many have full or near full-port openings to minimise flow restriction. Actual flow depends on valve size - 1/2” to 2" are common sizes for plumbing uses.

Typical applications are water supply lines, sinks, toilets, water heaters, washing machines, dishwashers and other household water control.

No special maintenance is required, just periodic inspection for leaks and smooth operation. Replacement is needed if a valve fails.

Most come with manufacturer warranties from 3-10 years depending on materials and brand. Some offer extended warranties against leaking.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
