The AV-ARES Electric Actuator is perfect for those applications where space may be at a premium or restrictive. With its innovative design and compact size, the AV-ARES Electric Actuator is one of the most versatile valve automation products available today. The AV-A8000FS heavy duty stainless steel ball valves are a perfect fit for any application that requires an extremely durable and full bore flow design. These valves can handle harsh conditions like those found in chemical plants and offer pressure ratings up to 2000PSI. AV-ARES Electric Actuators offers an optional digital positioner that allows for precise control of your valves, with operation torques up to 40NM. The instrumentation signals accepted include 4-20mA and 0-10VDC for intelligent control.

Shop Help Me

Key features and benefits of AV-A8000AR, AV-A8100AR & AV-A8200AR Actuated Ball Valves.

Key Features

Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.

Key Features

Reliable performance with components utilised and sourced under strict quality requirements provides life cycles with expectancy of 50000 operations for the AV-ARES electrically actuated valves.

Key Features

AV-ARES range of electric actuators offer high torque with low noise levels at an affordable price point. Our quiet technology allows you to run your actuators at full capacity while also maintaining operator comfort levels during extended periods of operation.

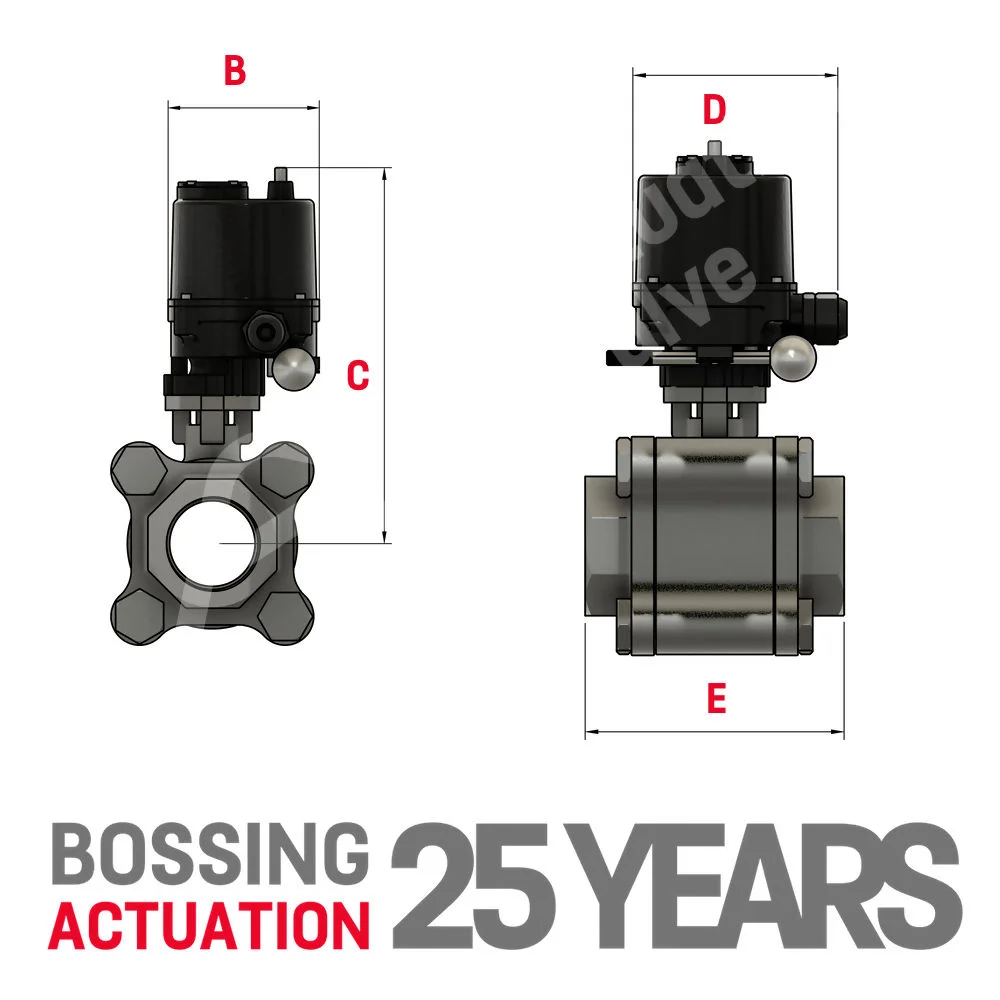

	B	C	D	E	Model

1/4"	88.00	176.00	115.00	75.00	AV-A1
3/8"	88.00	176.00	115.00	75.00	AV-A1
1/2"	88.00	176.00	115.00	75.00	AV-A1
3/4"	88.00	184.00	115.00	80.00	AV-A1
1"	88.00	191.00	115.00	90.00	AV-A1
1 1/4"	88.00	261.00	115.00	110.00	AV-A1
1 1/2"	88.00	273.00	115.00	120.00	AV-A1
2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

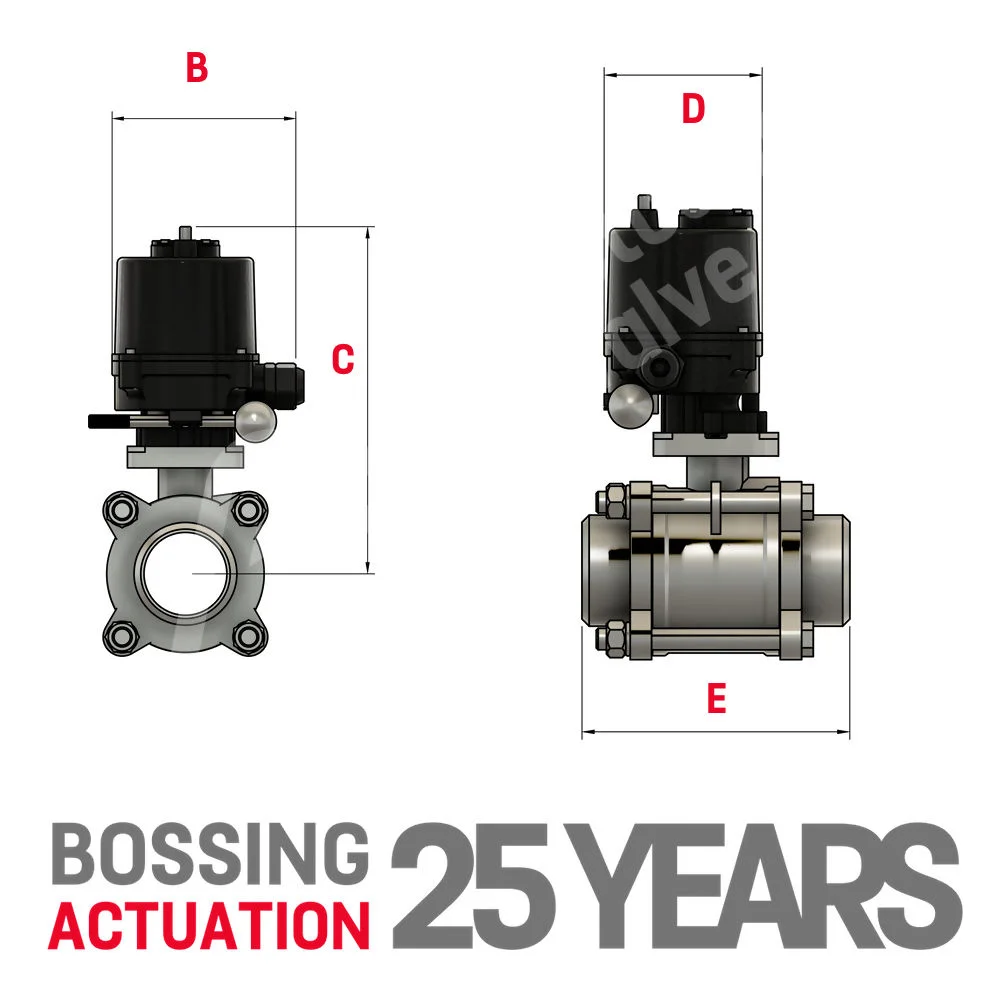

	B	C	D	E	Model

1/4"	88.00	176.00	115.00	75.00	AV-A1
3/8"	88.00	176.00	115.00	75.00	AV-A1
1/2"	88.00	176.00	115.00	75.00	AV-A1
3/4"	88.00	184.00	115.00	80.00	AV-A1
1"	88.00	191.00	115.00	90.00	AV-A1
1 1/4"	88.00	261.00	115.00	110.00	AV-A1
1 1/2"	88.00	273.00	115.00	120.00	AV-A1
2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 4215® (25% Carbon Filled TFM)
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing:	MSS SP-110
BSP Ends:	ISO 7-1 (DIN 2999)
NPT Ends:	ASME B1.20.1
Socket Weld Ends:	ASME B16.11
Butt Weld Ends:	ASME B16.25 (Sch 80)

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes. Position feedback is included as standard, with switches indicating open and closed positions. Get in touch if you need a switch box configured for a specific area classification or signal type.

Yes, in many cases. Please contact us with the valve size, actuator type and quantity required and we will provide a competitive quotation, including any volume discount available for larger orders.

Yes. The AV-ARES Heavy Duty Stainless Steel range is manufactured to MSS SP-110 and tested to API 607 5th Edition fire-safe design standard. Certificates including PED 2014/34/EU, ATEX, SIL 2 and NACE MR-0175 are also available, with Lloyd's Register approval achievable subject to specification.

Yes. This AV-ARES Heavy Duty Stainless Steel range is available across a range of valve and actuator sizes, and larger combinations can be supplied to order. Please contact us with the valve size, pressure rating and control signal required and we will confirm availability and lead time.

Yes. We can deliver directly to your customer on a plain-labelled or unbranded delivery note if required. Please let us know at the time of order and send a copy of your delivery note so we can ensure it is attached to the shipment.

Yes, subject to status. We offer credit accounts to qualifying business customers, allowing you to order now and settle on agreed terms. Please contact our sales team to apply, or complete a credit account application form and we will confirm your terms.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.
