The SAMSON PTFA/PFA lined globe control valves are designed for precise flow regulation in industrial applications. These valves feature linings of PTFE or PFA, materials known for their exceptional chemical resistance and thermal stability, ensuring reliable performance in corrosive or high-temperature environments. Their construction facilitates accurate control, enhancing system efficiency and safety. Suitable for a wide range of sectors, these valves are a testament to SAMSON's commitment to high-quality engineering solutions.

Key features and benefits of SAMSON PTFA/PFA Lined Globe Control Valves

Key Features

The PTFE/PFA lining of the SAMSON globe control valves offers superior resistance to a broad spectrum of chemicals, making them ideal for use in corrosive environments.

Key Features

These valves can withstand high temperatures without degrading, ensuring reliable operation in processes involving hot fluids or gases.

Key Features

Designed for exacting control, these valves allow for fine-tuning of flow rates, improving the efficiency and safety of industrial systems.

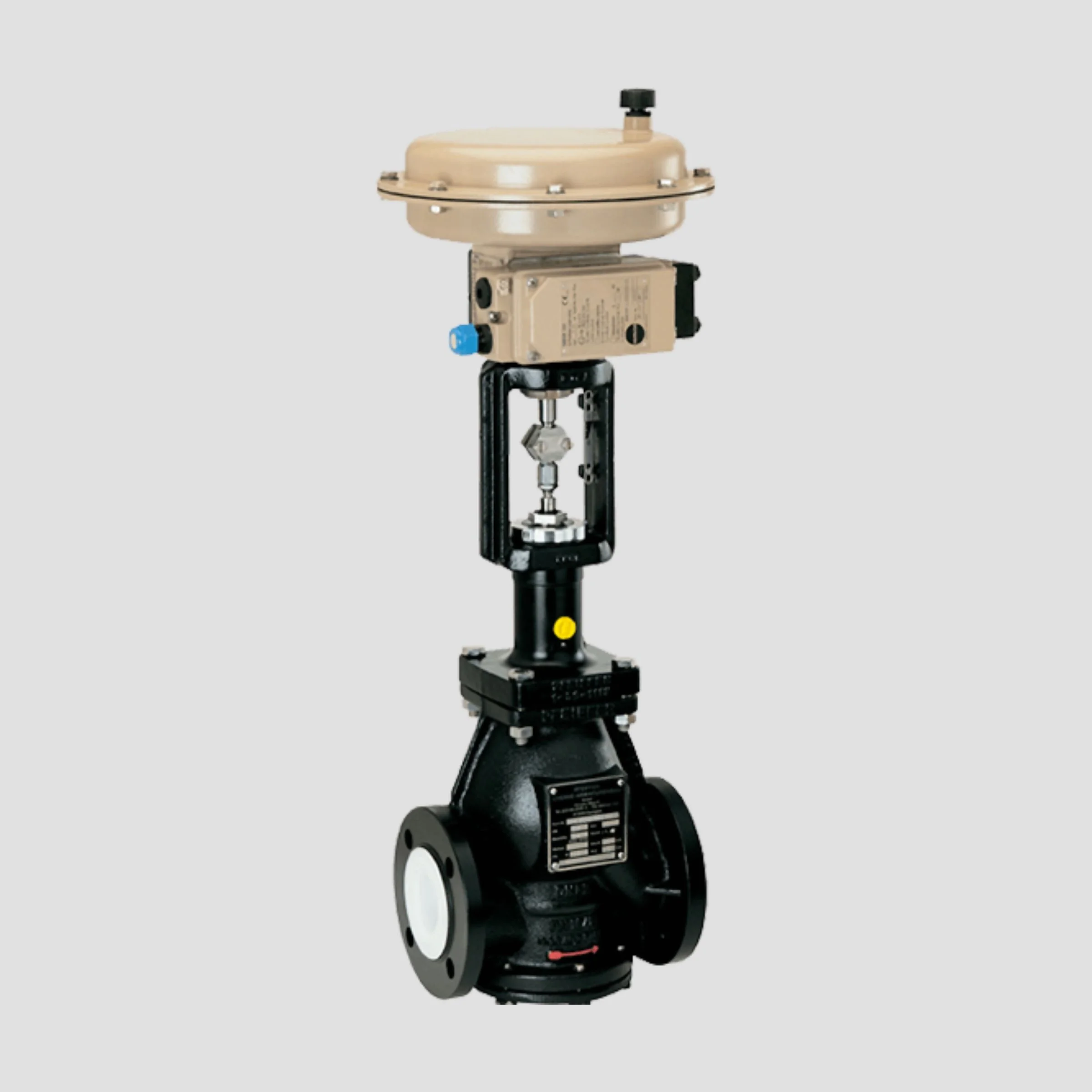

The Pfeiffer 1a PTFE lined globe control valve, suitable for general service applications up to ANSI 150 pressure class, is designed to handle extremely corrosive media in chemical processes. It can be paired with pneumatic, electric, hydraulic, or electro-hydraulic actuators from the SAMSON group, following a modular assembly principle. This enables the integration of SAMSON GROUP actuators and valve accessories like positioners, limit switches, and solenoid valves for comprehensive control valve construction.

Size Range:	1" to 6"
ANSI Class Range:	150
Materials Available:	PTFE Lined Cast Iron
Temperature Range:	14 to 392°F (-10 to 200°C)

Find Out More

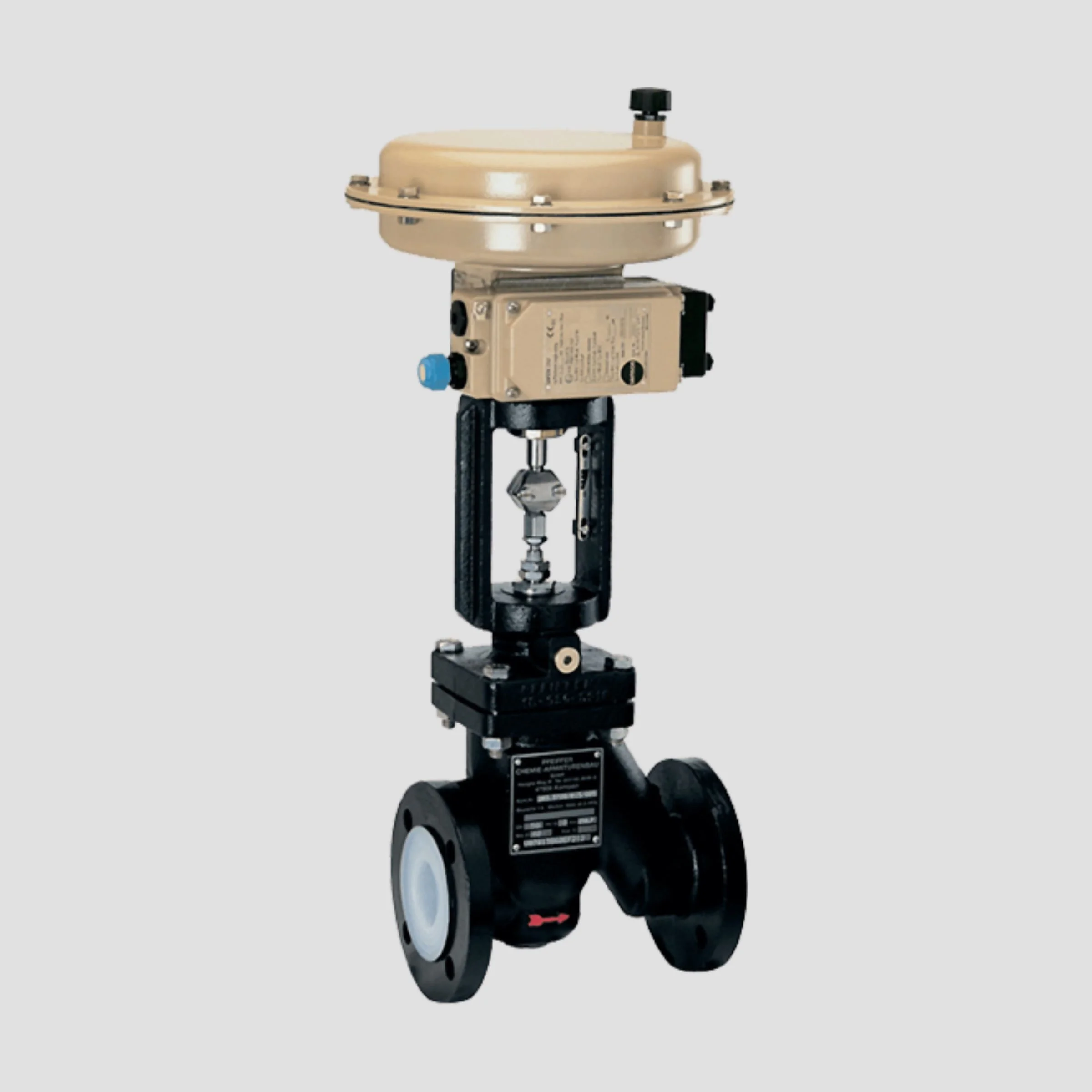

The Pfeiffer 1b PFA lined globe control valve, suitable for general service applications up to ANSI 150 pressure class, is ideal for highly corrosive media in chemical processes. It can be fitted with various actuators and accessories from the SAMSON group, offering a versatile and cost-effective solution. Features include an exchangeable PTFE seat and plug, PTFE bellow seal with a secondary safety packing, and a test connection for leak monitoring, ensuring reliable operation with its standard 3+ mm PFA liner.

Size Range:	1" to 4"
ANSI Class Range:	150
Materials Available:	PFA Lined Cast Iron
Temperature Range:	14 to 392°F (-10 to 200°C)

Find Out More

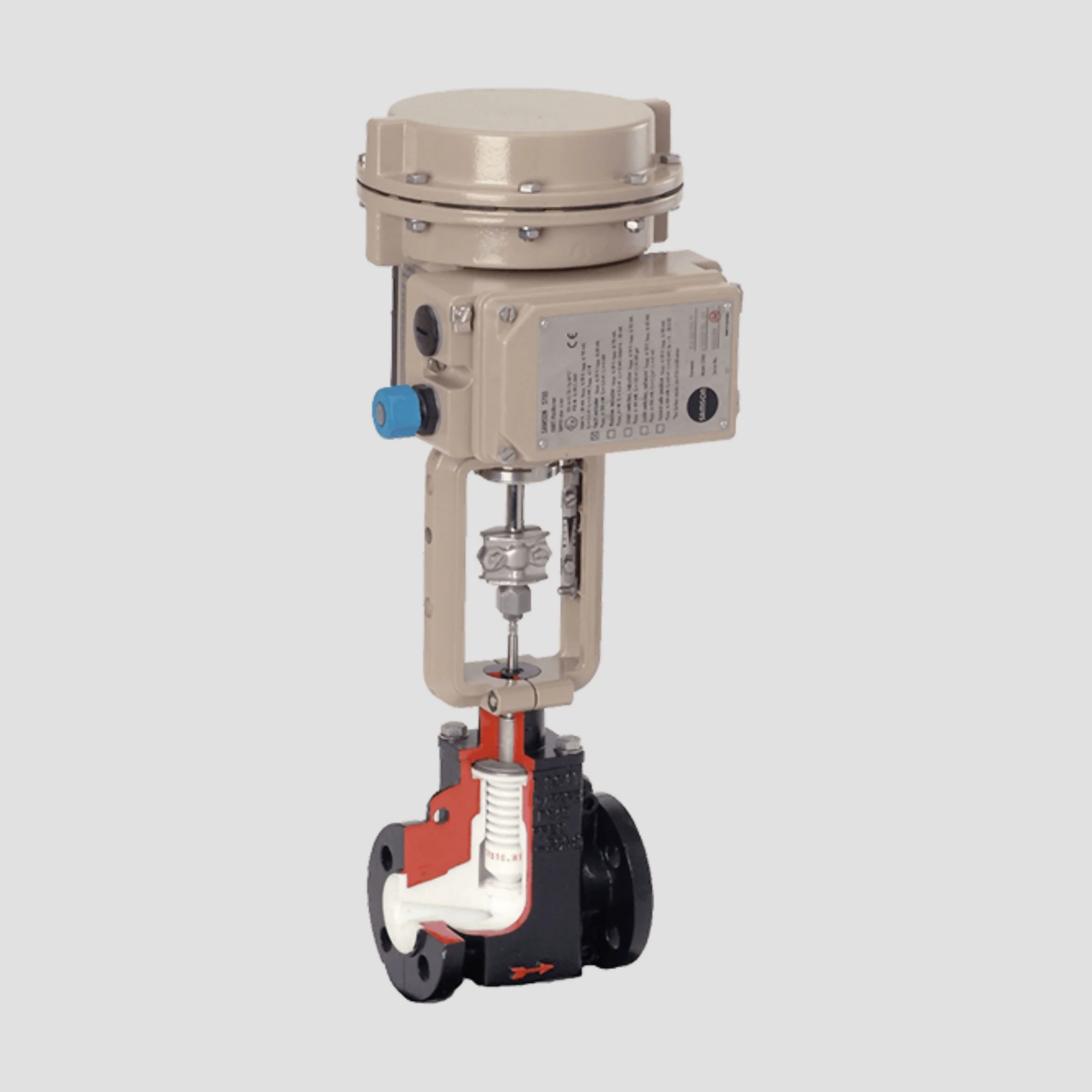

The Pfeiffer 6a PFA line micro-flow globe control valve, suitable for ANSI 150 class applications, is ideal for managing extremely corrosive media in chemical processes. It can be fitted with various actuators (pneumatic, electric, hydraulic, or electro-hydraulic) from the SAMSON group, adhering to a modular assembly principle. This valve, with exchangeable PTFE seat and plug plus a stem sealed by PTFE bellows for enhanced safety, offers a cost-effective solution for handling aggressive substances, featuring a test connection for leak monitoring.

Size Range:	1/4" to 1/2"
ANSI Class Range:	150
Materials Available:	PTFE Lined Cast Iron
Temperature Range:	14 to 302°F (-10 to 150°C)

Find Out More

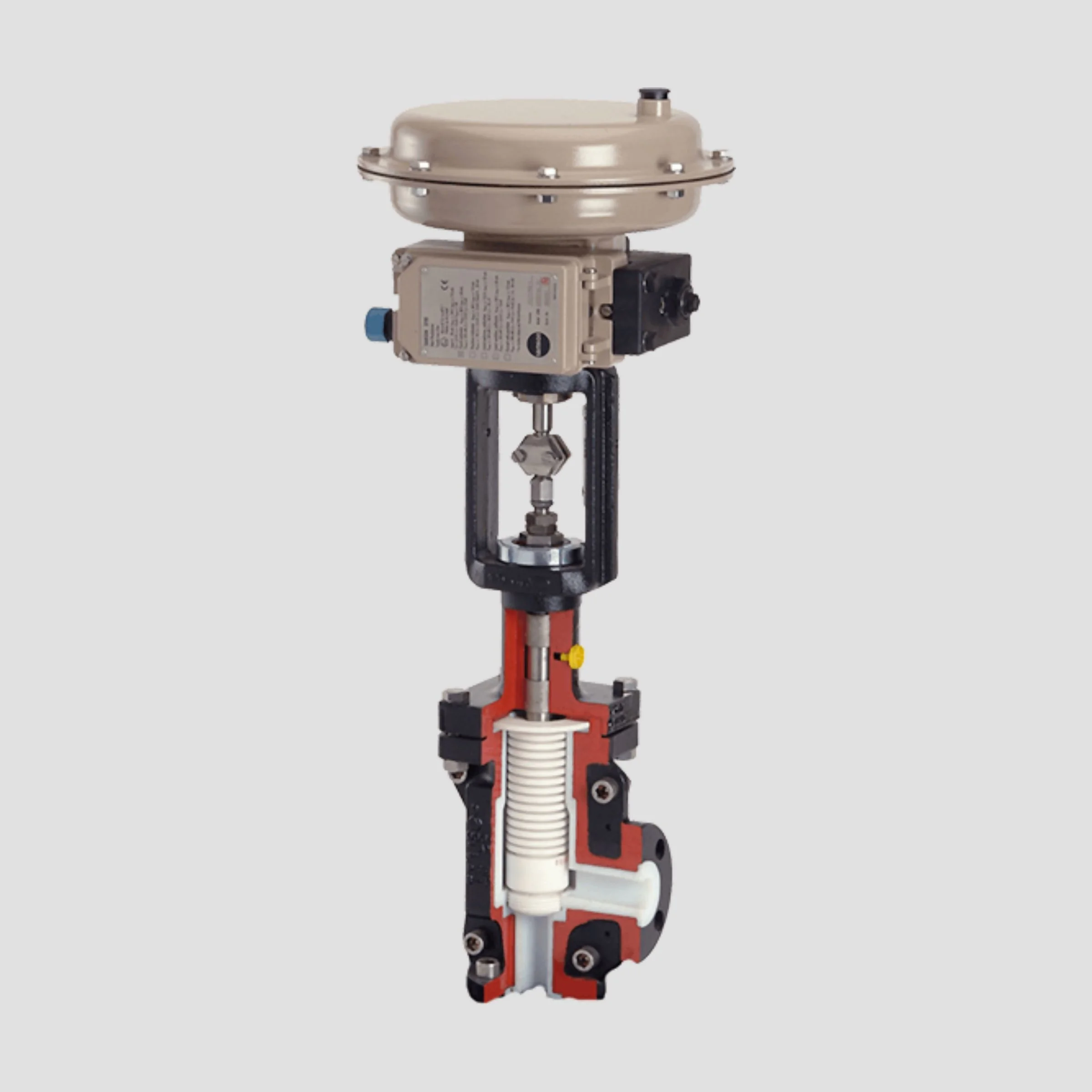

The Pfeiffer 8a Type PTFE lined angle control valve, designed for highly corrosive media in chemical processes, adheres to ANSI 150 pressure class ratings. It can be paired with pneumatic, electric, hydraulic, or electro-hydraulic actuators from the SAMSON group, supporting a modular assembly principle. This valve features an exchangeable PTFE seat and plug, a PTFE bellow stem seal with an additional safety packing, and a test connection for seal monitoring, ensuring reliability and safety in operation.

Size Range:	1/2" to 2"
ANSI Class Range:	150
Materials Available:	PTFE Lined Cast Iron
Temperature Range:	14 to 302°F (-10 to 150*C)

Find Out More

Oil and Gas, Chemical, Power Generation, Water Treatment, & Pharmaceuticals

Yes, our valves come with clear installation instructions for hassle-free setup.

No, SAMSON valves are designed for minimal maintenance, reducing downtime.

Yes, our control valves are designed to handle high-pressure systems with ease.

Our expert team can assist you in selecting the perfect size based on your specific requirements. Contact us for personalised guidance.

Yes, our control valves are compatible with automation systems for seamless operation and control.

Yes, we maintain a stock of spare parts to ensure minimal downtime in case of replacements.

Our control valves are built to last, with a typical lifespan of 10 years or more, depending on usage and maintenance.

Yes, we offer a range of control valves designed to handle corrosive fluids and extreme temperature environments. Contact us for the appropriate solution.

A globe control valve is a type of control valve used in fluid systems to regulate the flow of liquids or gases. It gets its name from its globe-shaped body and is commonly used for precise control of flow rates.

A rotary control valve is a type of control valve used in industrial applications to regulate the flow of fluids (liquids or gases) by using a rotating or swivelling mechanism.
