Actuated Stainless Steel Wafer Pattern Butterfly Valves

The 40W4040 Stainless Steel Actuated Butterfly Valves from TTV features a CF8M Stainless Steel Body & Disc with 316 Stainless Steel Shaft. This extremely versatile concentric design Butterfly Valve is suitable for harsh and corrosive conditions that may not be suitable for the standard Ductile Iron range. A one piece body concentric design features four entering lugs which allows for easy installation between two flanges at intermediate points within the process pipeline.

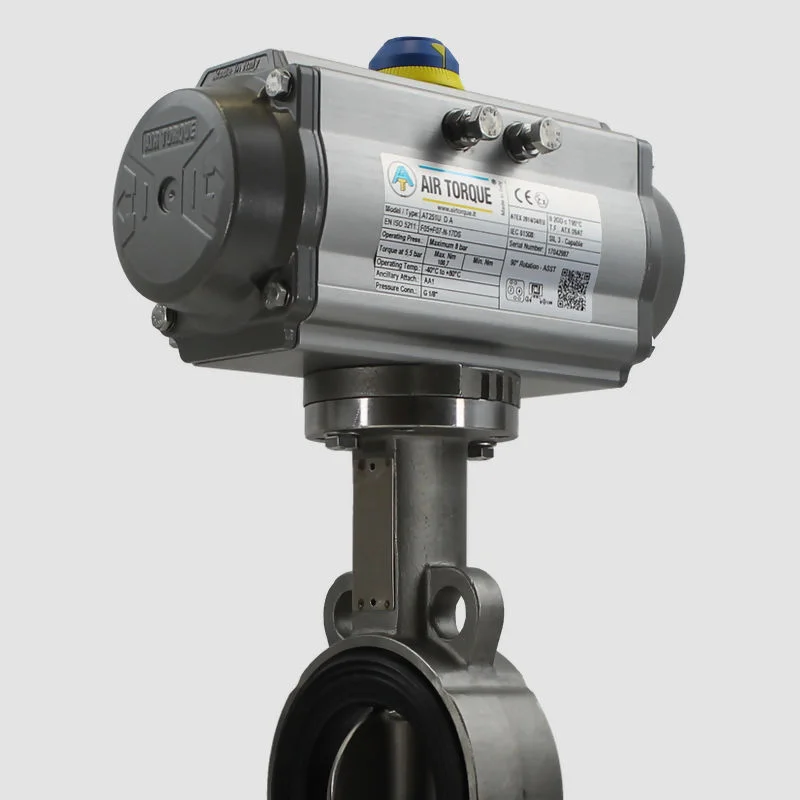

40W4040AT - Wafer Pattern Butterfly Valves - Stainless Steel

A combination of the TTV 40W4040 and Air Torque actuator. A full CF8M stainless steel material valve with 316 stainless steel shaft. This particular actuated butterfly valve package is suitable for aggressive mediums and external environments with special actuator coatings including PTFE and marine epoxy. A replaceable valve seat and actuator rated to SIL3 complete a robust general purpose package that will go the distance and provide maximum life capacity. The Air Torque actuator is in field convertible should you ever require a change from the spring return and double acting functionalities.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
Find Out More

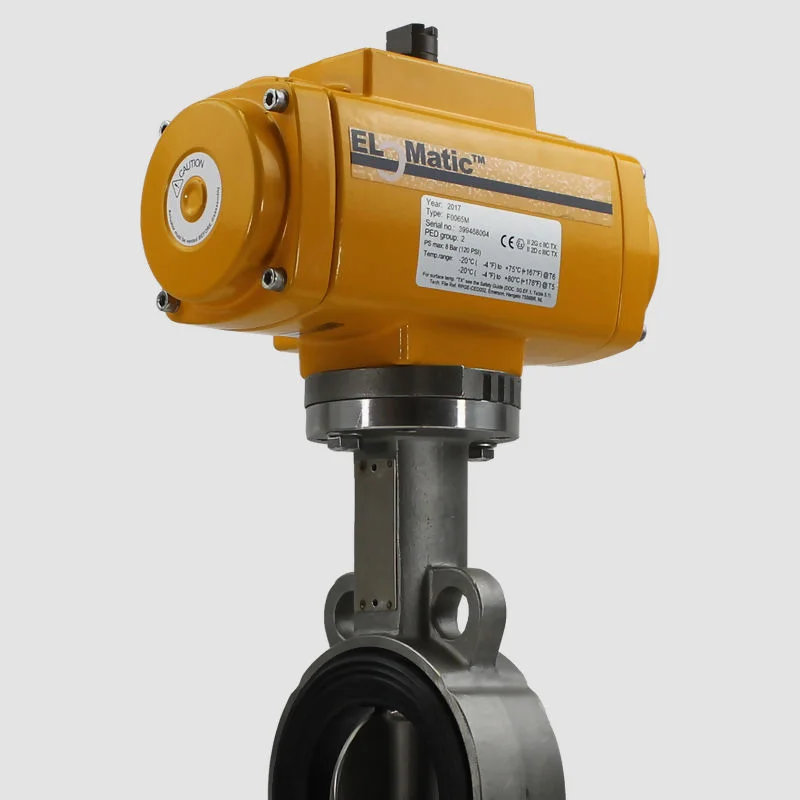

40W4040EL - Wafer Pattern Butterfly Valves - Stainless Steel

The Wafer Pattern TTV Stainless Steel Butterfly Valves offer a very similar corrosion internal fluid resistance to that of the standard Valve whilst also providing external protection which may be too aggressive for standard products. This includes corrosive and wash down requirements, so it's no surprise these valves are best suited towards those applications where durability is key. EL-O-Matic actuator features an easy to use, modular air spring system that allows for simple spring or action changes on site by the end user without returning the unit to the assembler or manufacturer. This can be useful if valves need to be moved to alternate lines as well as scheduling maintenance procedures.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
Find Out More

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

40W4040FE - Wafer Pattern Butterfly Valves - Stainless Steel

The Wafer Pattern TTV Stainless Steel Butterfly Valves offer a similar corrosion resistance to that of the standard valve, but with external protection. This includes requirements for being harsh in an environment with highly corrosive or wash down solutions needed during production processes. The DFPD series features an innovative rack and pinion design allowing smooth operation with constant torque characteristics. This unique gearing system allows the 40W4040FE Actuated Butterfly Valves to be controlled with speed and precision.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
Find Out More

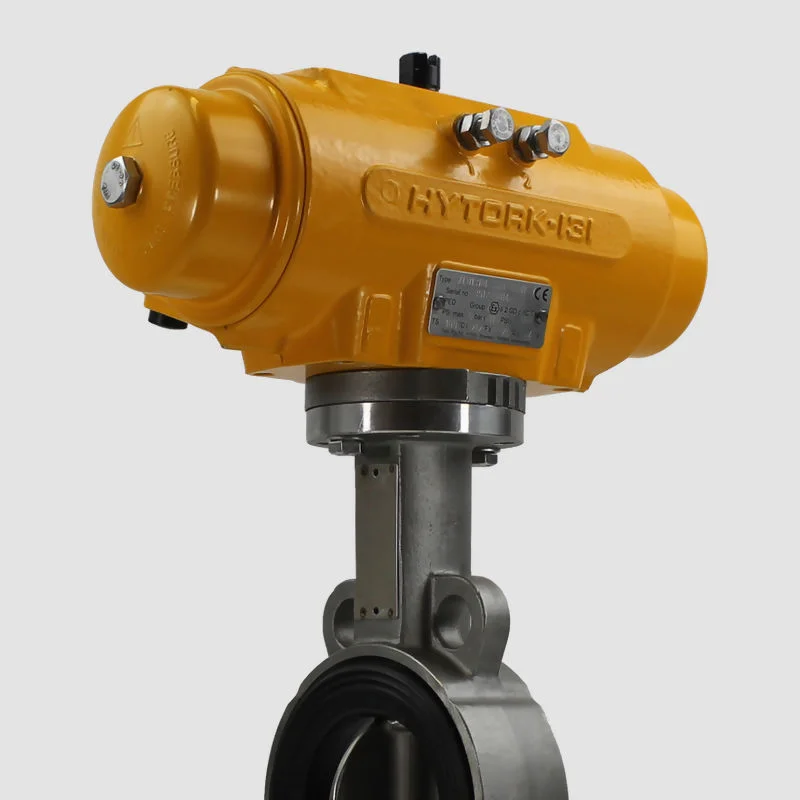

40W4040XL - Wafer Pattern Butterfly Valves - Stainless Steel

With the Hytork Pneumatic Actuator you get a reliable unit that has been tested extensively on thousands of installations worldwide. Our actuators offer an adjustable stroke length with no additional parts required. Simply adjust the travel stops as needed. The Wafer Pattern TTV Stainless Steel Butterfly Valves offer a very similar corrosion resistance to that seen in standard products, but also provide external protection for more aggressive environments such as those with harsh chemicals or wash downs from equipment employed during manufacturing processes - making them perfect additions to most plant operations.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
Find Out More

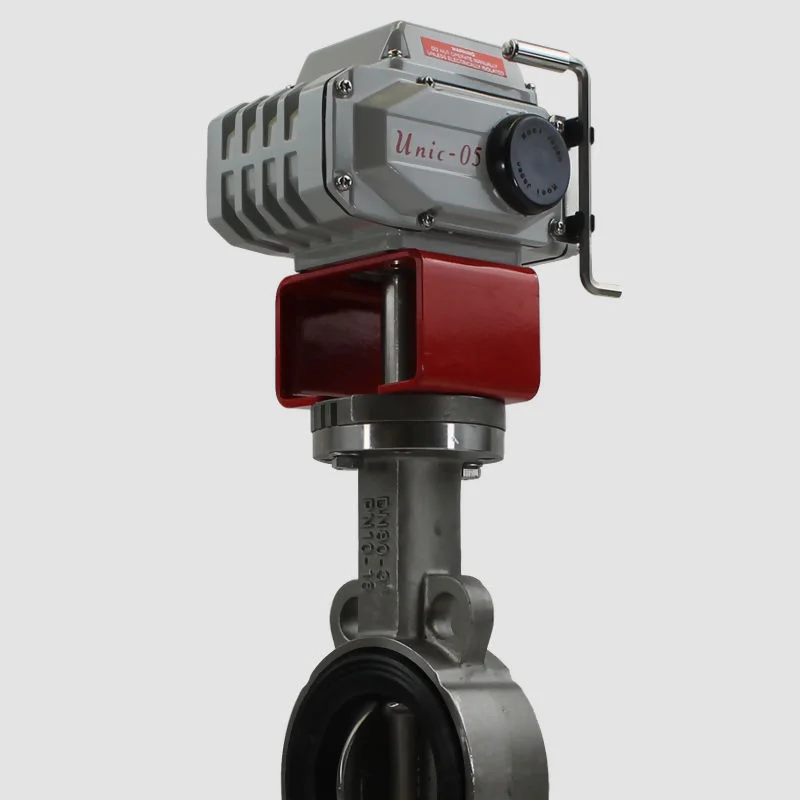

40W4040EK - Wafer Pattern Butterfly Valves - Stainless Steel

TTV corrosion resistant valves are designed to provide the most versatile and efficient solution for your application. They have an incredibly simple concentric design that can be used in harsh environments, whether you're operating at standard or high temperatures. All units come complete with general operations and maintenance manuals as standard and free after sales support. Actuation Valve supply the Koei UNIC Actuator to a global network and can provide local technical support wherever you may be located around the world.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
Find Out More

40W4040MC - Wafer Asahi Actuated SS Butterfly Valves

The Asahi electric actuator features a thermally bonded powder coated corrosion resistant housing (Series 92) rated to Nema 4X with stainless steel trim. ABS Product Type Approved for use in Marine and Offshore Applications. Asahi electric actuators are provided with gear trains pre-lubricated at the factory prior to despatch. The specially formulated lubricant offers extended life cycles whilst also covering a wide range of temperature options for various ambient and operating requirements, as well as reducing wear. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility to modulate high operation/cycle requirements, while providing sturdiness needed in harsh environments.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical

40W4040MA - Wafer Pattern Butterfly Valves - Stainless Steel

Combining the MT range of actuators from Max Air Technologies and TTV's 40W4040 butterfly valve provides an extremely cost effective automated shut off solution. The Max Air actuator utilizes the same body design and end caps for both double acting and spring return applications allowing customizable stock profiles. This allows us to offer large quantities on short lead times with all assmebly and testing performed in house. Attention to detail features special epoxy coated internal springs to increase corrosion resistance. Your perfect choice for pneumatic butterfly valves on a restricted budget.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical

Be Happy. Best Prices Guaranteed

Best pricing or we will donate some cash to a local dog charity. We like dogs, sorry cats. Loads of terms apply. Ask us for details. No fake rubbish Valves considered.

40W4040ROM - Wafer Pattern Butterfly Valves - Stainless Steel

A quality package from both Rotork (ROM) and TTV's conectric butterfly valves. Reliability when it matters for frequent or infrequent use the Rotork ROM electric actuator is there when you need it and offers worldwide customer service and support with an extremely low cost of ownership. The compact and lightweight valve package has a non clucth manual override design and can be operated without any lever upon power failure. Corrosion protection offered to C5-M (Actuator) as standard. Additional options include Profibus, Modbus & Fieldbus from the ROMpak range of actuated butterfly valves.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
Find Out More

40W4040RPX - Wafer Pattern Butterfly Valves SS Bettis RPX

The 40W4040RPX combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality concentric rubber lined butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical

40W4040VA - TTV Valpes Wafer Butterfly Valves - Stainless Steel

A combination of the TTV 40W4040 and Valpes Electric Valve Actuator. A full CF8M stainless steel material valve with 316 stainless steel shaft. This particular actuated butterfly valve package is suitable for aggressive mediums and external environments with specific marine  application coatings on request. A replaceable valve seat and actuator rated to rated to IP68 complete a robust offering that will go the distance and provide maximum life capacity. The Valpes Electric Actuator offers fail in position as well as battery backup failsafe return for critical applications. Modbus-RTU & bluetooth versions are also available on a short lead time with CE, DNV-GL, CSA/UL & EAC Approvals.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 12VDC, 24VDC/AC, 110V/230VAC, Modbus-RTU, Bluetooth
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
