Elomatic Actuator Actuated Ball Valves

Fit and forget pneumatic actuators from Elomatic combined with exceptional valves which together provide a formidable actuated valve assembly. The Elomatic range of F-Series rack and pinion quarter turn actuators are stocked in both spring return and double acting combinations for modular valve assembly according to budget and application. A powder coated finish provides superior corrosion resistance to external elements.

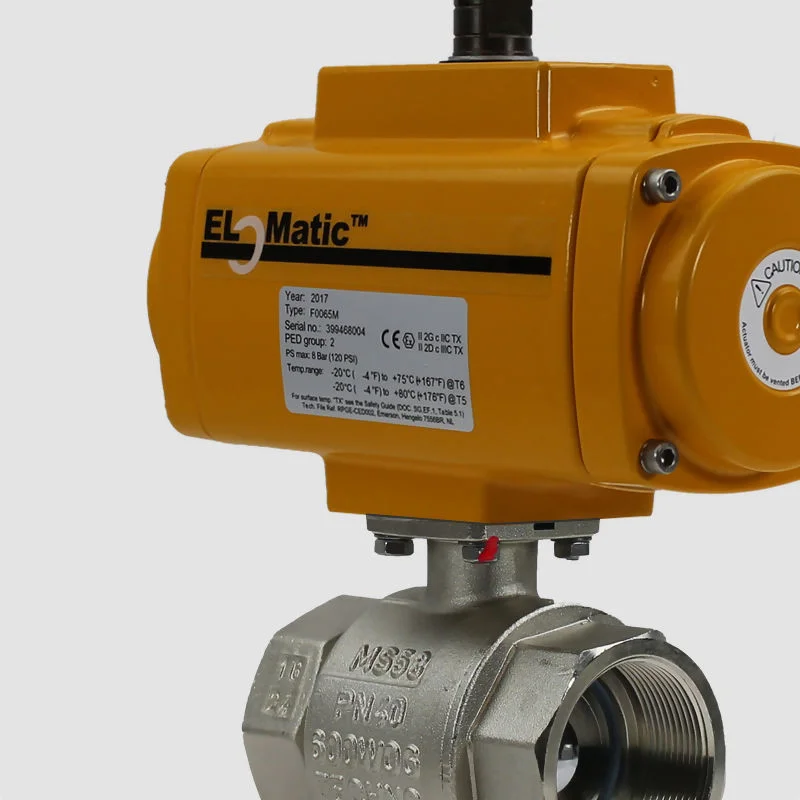

2 Piece BSP/NPT Elomatic Actuated Full Bore Brass Ball Valves

Specifically designed for industrial applications that require high levels of performance over time without sacrificing quality or price. With our patented technology you will never have to worry about your pneumatic actuator failing on you again. EL-O-Matic Pneumatic Actuators provide long life springs and precision engineering to ensure high reliability of the fail safe mechanism needed for safe plant operations. When quality & safety matter, choose EL-O-Matic. The Wras ball valve is easy to install, operates smoothly, and closes quickly with minimal effort. This industrial grade product can handle up to 40 bar working pressures when used in applications where PN40 ratings are required.

Size Range: DN15-DN100 (1/2"-4")
Body Materials: Brass CW 617 N
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Drinking Water, Waste Water (See Chart For More)
Pressure Rating: 1000 PSI
End Connections: Screwed BSPP
Find Out More

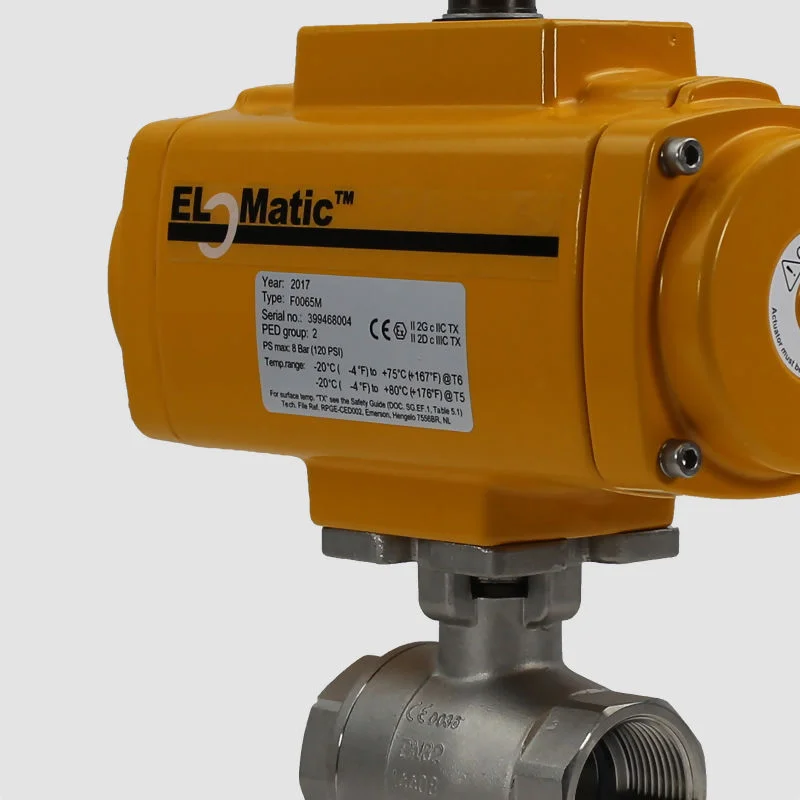

2 Piece BSP/NPT Elomatic Full Bore Stainless Steel Ball Valves

Tested to function properly after just 1,000 hours of salt spray testing (C5 Medium). This is an accelerated test that puts the product under conditions much harsher than those it would normally encounter during its average use cycle. New generation of pneumatic actuators, you don't have to worry about faulty operation anymore. The EL-O-Matic F Series are available with a SIL 3 rating approval from TÜV, making it perfect for use in safety critical applications like medical equipment or industrial machinery. With a compact body design taking up less space in the pipeline these two piece full bore stainless steel ball valves will save you time on installation by reducing the overall weight and cost of the actuated valve package when compared to 3 piece ball valves.

Size Range: DN08-DN80 (1/4"-3")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 1000 PSI
End Connections: Screwed BSPP/NPT
Find Out More

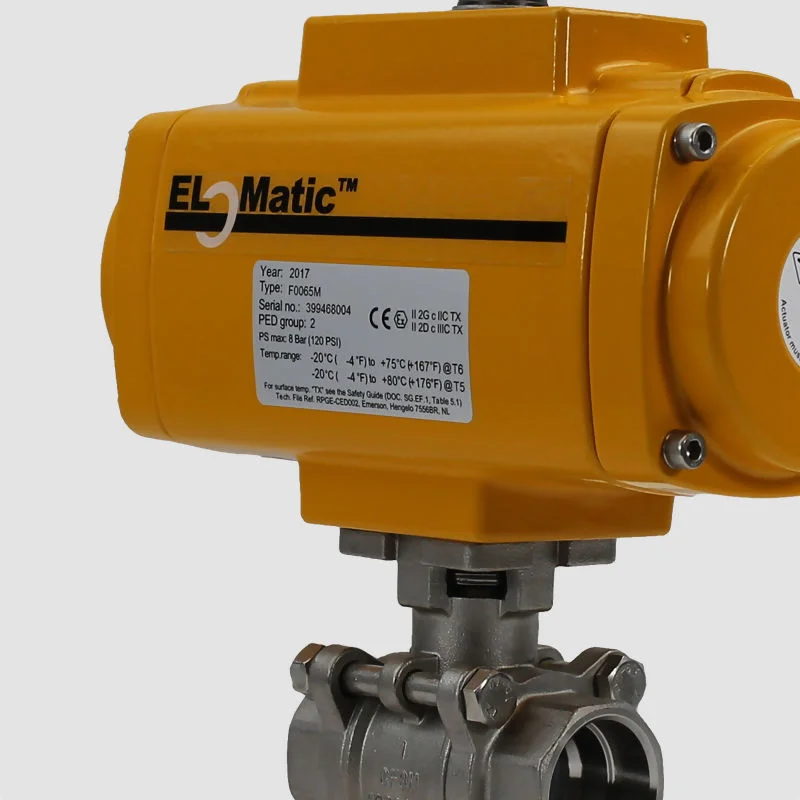

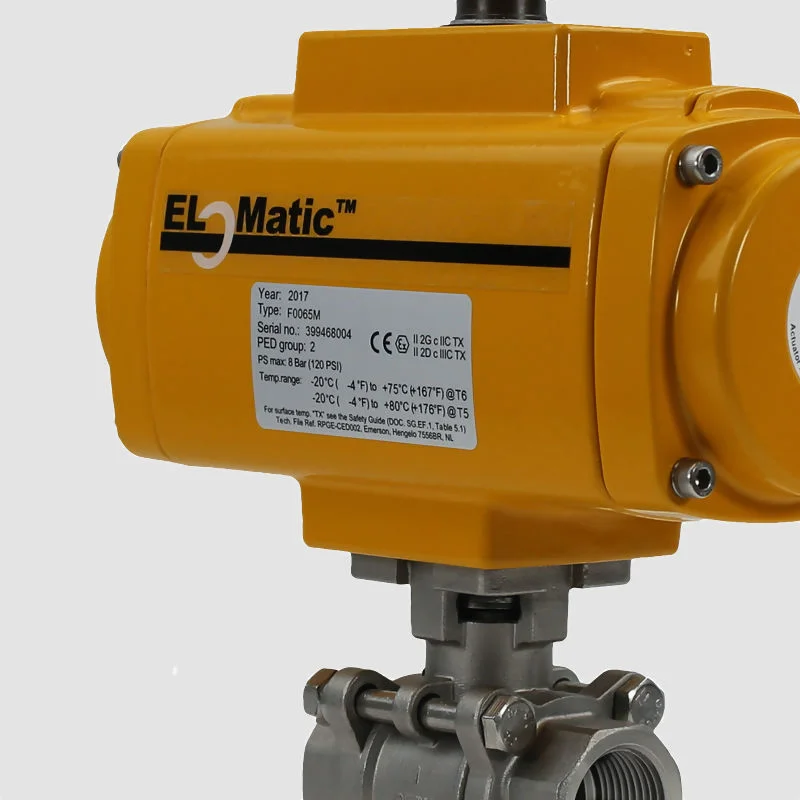

3 Piece Elomatic Actuated Full Bore Stainless Steel Ball Valves

Our actuators have long life springs, precision engineering and a fail safe mechanism that will ensure reliable operation of your equipment over time. When looking for a Pneumatic Actuator that has been engineered to exceed industry standards choose EL-O-Matic. We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings. The 3-piece body design of the isolation ball valve isolates maintenance work to where it needs to be, making preventive care easy and efficient. Drop out section allows for quick seal replacements without compromising your production schedule.

Size Range: DN08-DN100 (1/4"-4")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 3 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 1000 PSI
End Connections: Screwed BSPP/NPT, Butt Weld, Socket Weld
Find Out More

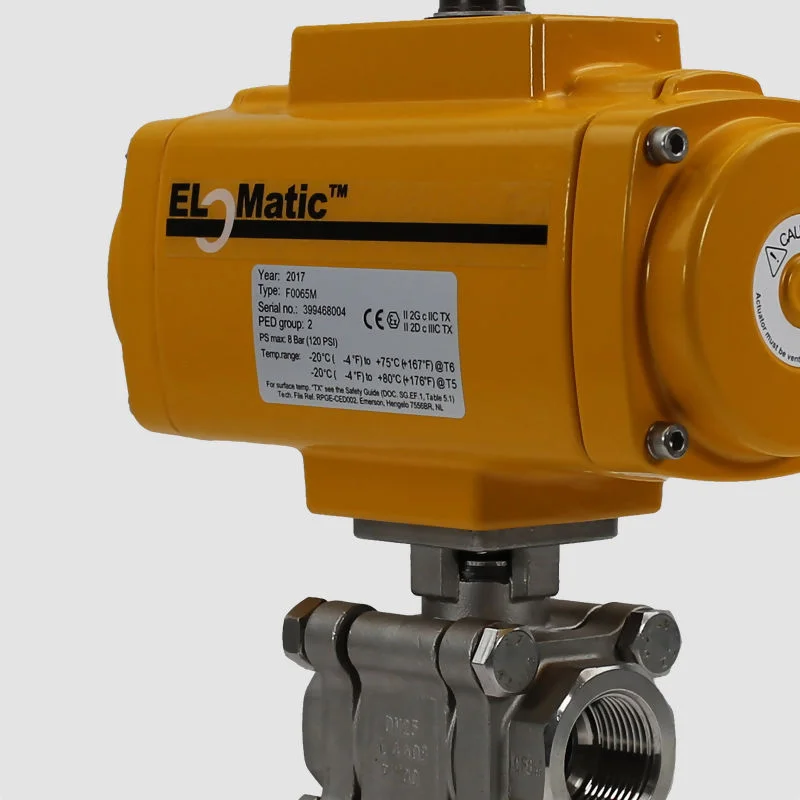

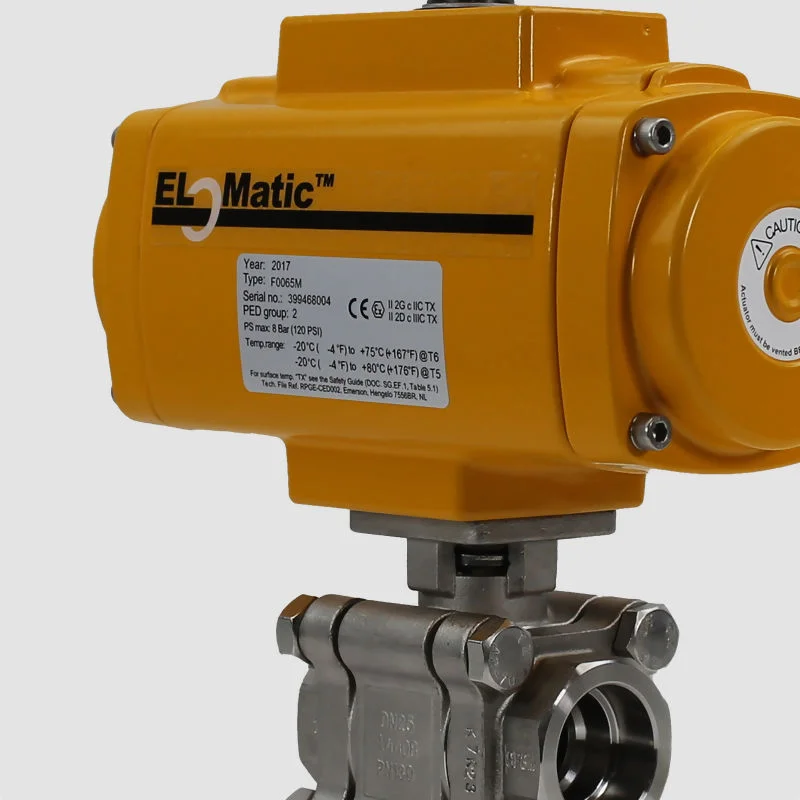

3 Piece Heavy Duty Elomatic Actuated FB Stainless Steel Ball Valves

Utilising dual flange drillings and offering multiple drive inserts the EL-O-Matic pneumatic actuator allows for greater versatility when mounting to ball valves. This eliminates the need to additional mounting kits and therefore reduces costs, weight and lead time. Low Torque requirements from the AV-L8000FSEL Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units. EL-O-Matic’s F Series pneumatic actuators offer many advantages over traditional designs including increased safety, reduced size, lighter weight, longer life span and easier installation. These benefits translate into lower cost of ownership for our customers.

Size Range: DN08-DN50 (1/4"-2")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 3 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 2000 PSI (1/4" - 1") 1500 PSI (1 1/4" - 2")
End Connections: Screwed, Butt Weld, Socket Weld
Find Out More

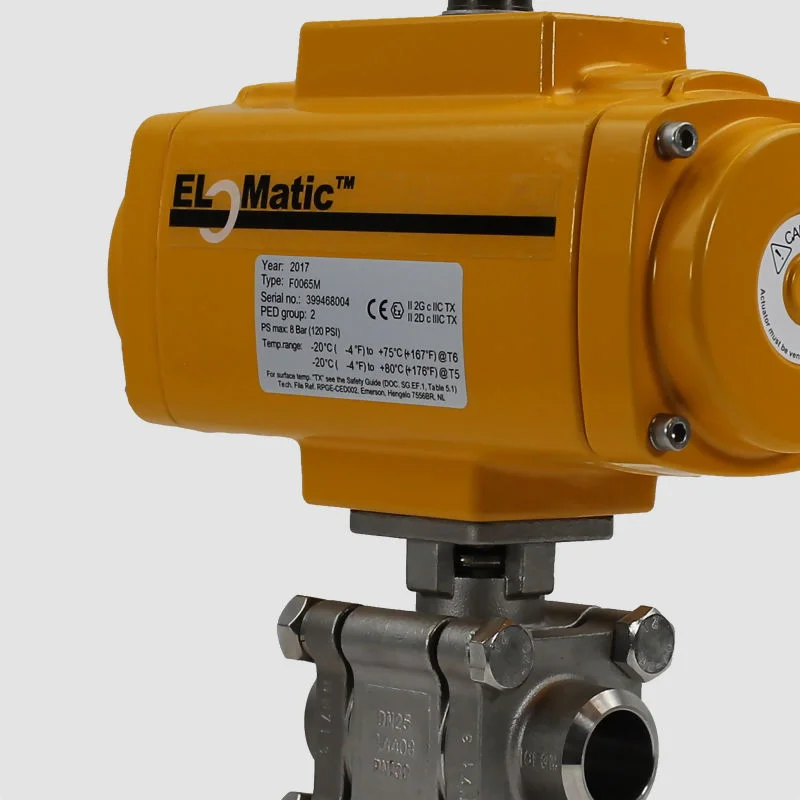

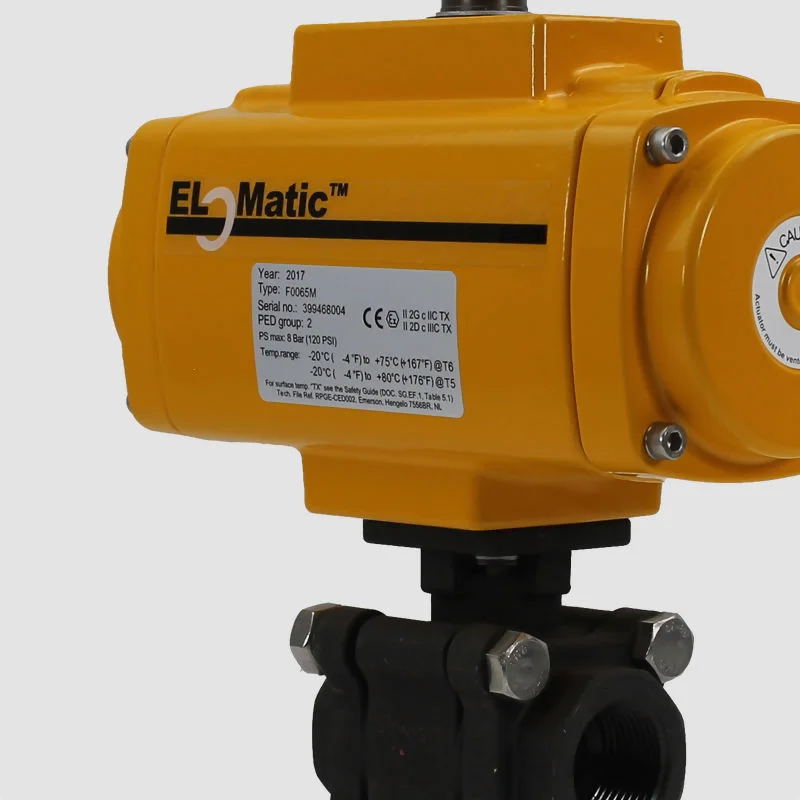

3 Piece Heavy Duty FB Elomatic Actuated Carbon Steel Ball Valves

The 3-piece body design of the isolation ball valve isolates maintenance work to where it needs to be, making preventive care easy and efficient. Drop out section allows for quick seal replacements without compromising your production schedule. The F Series EL-O-Matic pneumatic actuator is designed to operate first time very time and confirms to high reliability requirements such as IEC 61508-2. TUV approval to SIL 3 backs up Emerson statement and commitment to performance. All of our Actuated Valve Assemblies are manufactured in house with the help from automation experts. Every completed unit comes equipped to meet high standards and can be traced back via two page test report detailing opening/closing times.

Size Range: DN08-DN50 (1/4"-2")
Body Materials: ASTM A216 WCB Carbon Steel
Body Type: Full Bore, 3 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 2000 PSI (1/4" - 1") 1500 PSI (1 1/4" - 2")
End Connections: Screwed, Socket Weld
Find Out More

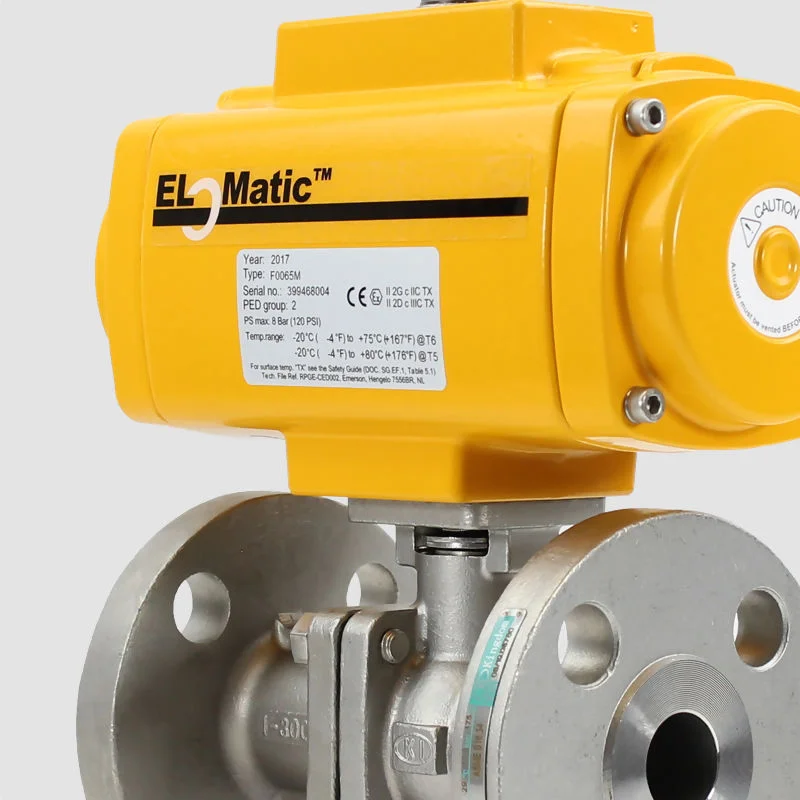

2 Piece Full Bore Stainless Steel 150 Elomatic Actuated Ball Valves

This range of stainless steel flanged ball valves have been designed to meet your needs applications with pressure requirements up to 20 bar where long life expectancy is important. We also offer our ball valves in numerous sizes so you can be sure we’ll have what you need. Whether you require an actuator to be perform several hundred cycles per day or a unit that may be open and closed only one per month the EL-O-Matic is there when you need it with the ability to instantly operate when asked or spring close on signal failure. The AV-L6100EL stainless steel ball valves can be used on oils based paints and coatings applications such as automotive refinishing. They're 100% silicone free so they won't contaminate your product or leave behind residue which can ruin your finish over time.

Size Range: DN15-DN200 (1/2"-8")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 20 Bar
End Connections: Flanged ANSI 150
Find Out More

Full Bore PN16 Elomatic Rack And Pinion Actuator Ball Valves

The industry-leading AV-L6K00 Ball Valve has been designed specifically for small to medium-large sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves. The F Series EL-O-Matic pneumatic actuator is designed to operate first time very time and confirms to high reliability requirements such as IEC 61508-2. TUV approval to SIL 3 backs up Emerson statement and commitment to performance. The AV-L6K00EL Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and disc made from high quality stainless steel, these valves can withstand even the most demanding conditions.

Size Range: DN15-DN150 (1/2"-6")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 16 Bar
End Connections: Flanged DIN PN16
Find Out More

Elomatic Actuator Videos

Full Bore High Pressure PN40 Elomatic Actuator Ball Valves

The AV-L6N00EL Ball Valve is an excellent choice for high volume pneumatic systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units. EL-O-Matic offers an affordable solution with their F Series line of pneumatic actuators which can run continuously without failure for over 1 million cycles. The F Series has been tested by independent laboratories and proven reliable in continuous duty applications. Actuation Valve provide fast turnaround times without sacrificing quality or expertise and all orders come with a two page test report detailing all opening/closing times on each valve tested. Whether you need one product or several hundred off-the-shelf parts, we can deliver.

Size Range: DN15-DN150 (1/2"-6")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 40 Bar
End Connections: Flanged DIN PN40
Find Out More

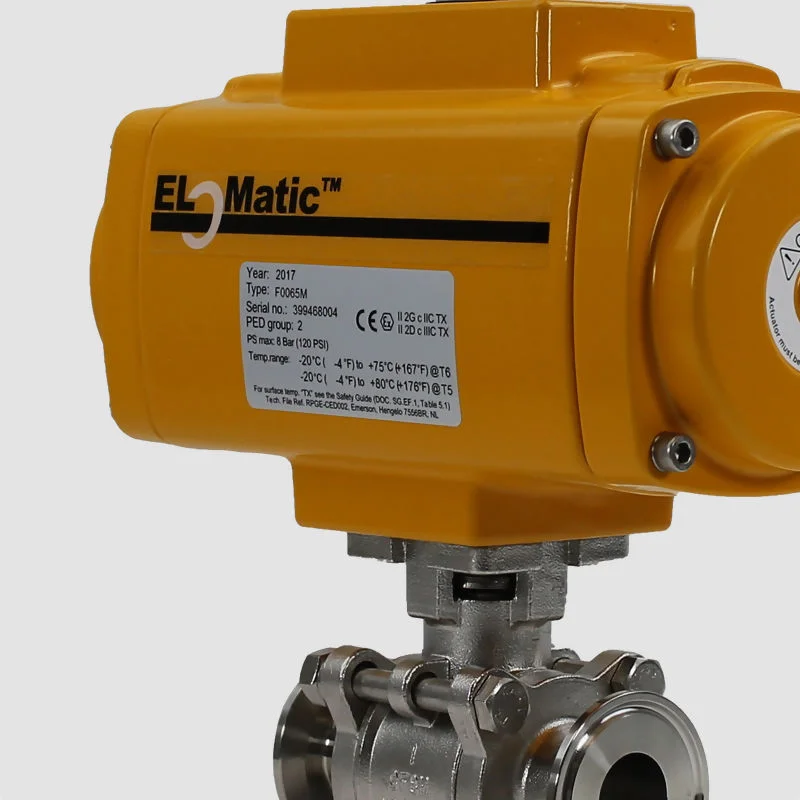

Hygienic Tri Clamp-Weld Elomatic Rack And Pinion Actuated Valve

The AV-L91B0EL & AV-L9CB0EL form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a free flow path that does not allow debris or contaminents to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals inlcude FDA & Wras approved seats with a bovine free supply. The EL-O-Matic Pneumatic Actuator features a hardened steel piston and utilise high quality materials that do not fail when when exposed to moisture, dust or dirt which makes this product ideal for outdoor use as well as harsh industrial environments where water spray may be present.

Size Range: DN15-DN100 (1/2"-4")
Body Materials: Stainless Steel A351 CF8M 316, CF3M 316L Weld Ends
Body Type: Full Bore, 3 Piece
Applications: Food & Beverage, Brewing, Dairy, Consumer Health, Pharma
Pressure Rating: 400 PSI
End Connections: Clamp & Hygienic Weld BS4825
Find Out More

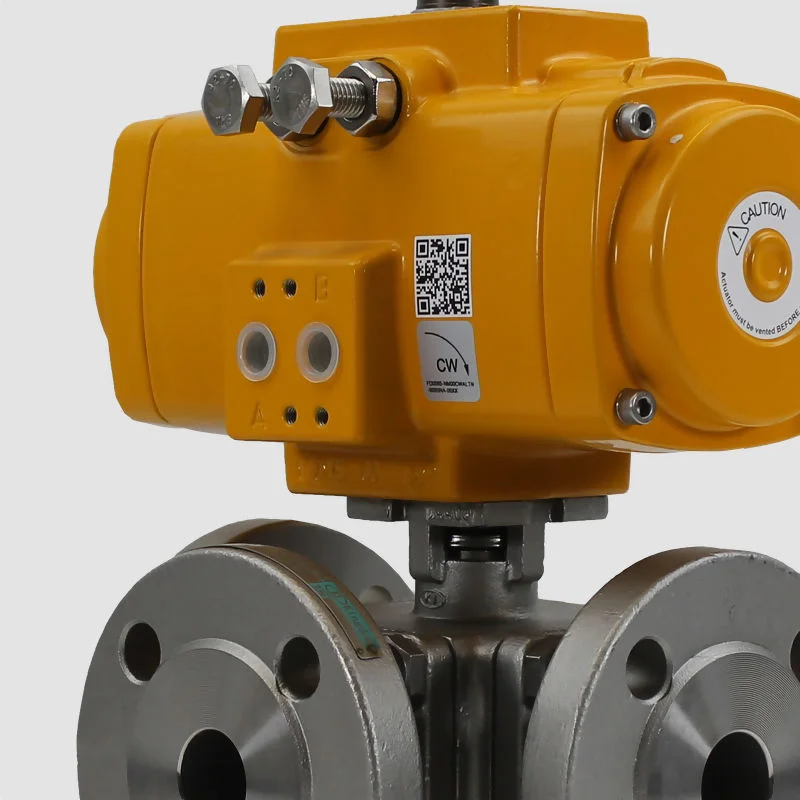

3-Way Multiport Flanged PN16-PN40 Elomatic Actuator Ball Valves

    The AV-L5K00EL & 5N00EL Flanged 3-Way Stainless Steel Ball Valve is a versatile, economical and durable valve which has been developed specifically to provide long service life for applications where reliability is key. Available with two configurations, L Port & T Port. The difference between the two is that the L Port version can offer complete shutoff depending on actuator type where as the T Port offers diversion only or constant flow form one port to another. With its long life springs and precision engineering, the EL-O-Matic Pneumatic Actuator offers safe & secure plant operations. Features include high durability, low maintenance and simple operation. These qualities make it an ideal choice for your application.

    Size Range: DN15-DN100 (1/2"-4")
    Body Materials: Stainless Steel A351 CF8M 316
    Body Type: Full Bore, 3-Way, Diverting, L Port, T Port
    Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
    Pressure Rating: 16-40 Bar
    End connections: Flanged PN16/PN40
    Find Out More

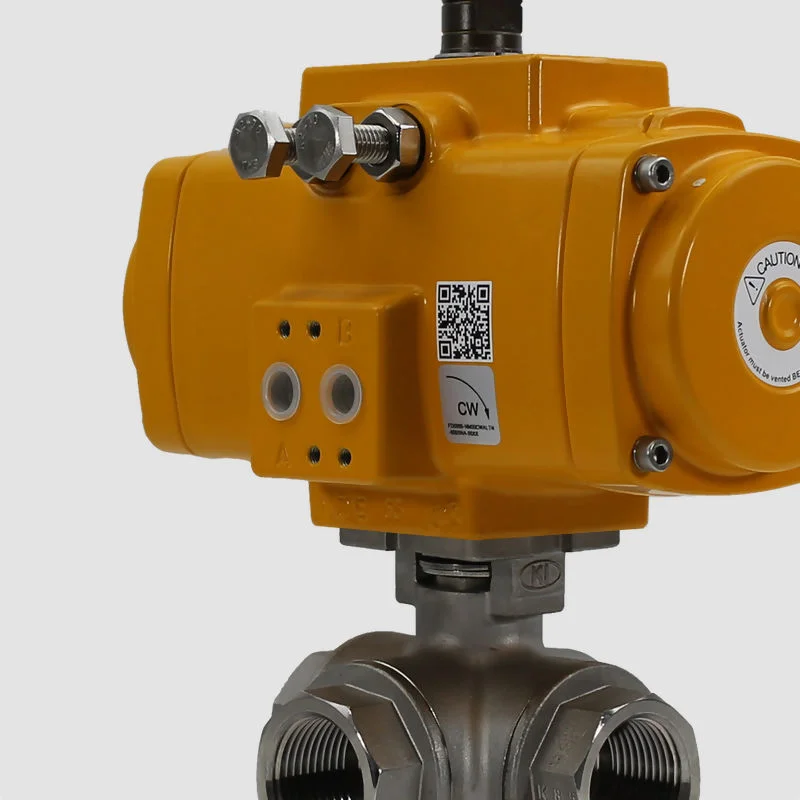

    3-Way BSPP Rack And Pinion Elomatic Actuated Ball Valves

    The AV-L5000EL & AV-L5100EL L & T port ball valves offer a cost effective process diverting operation. Whether you are looking for a spring return or double acting pneuamatically actuated 3-way ball valve that requires gradual or rapid opening and closing times actuation valve can offer a easy fit solution for screwed pipelines. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed. All actuated valve assemblies can be supplied with operations and maintenance manuals.

    Size Range: DN08-DN100 (1/4"-4")
    Body Materials: Stainless Steel A351 CF8M 316
    Body Type: Reduced Bore, 3-Way, Diverting, L Port, T Port
    Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
    Pressure Rating: 1000 PSI
    End Connections: Screwed BSPP/NPT
    Find Out More

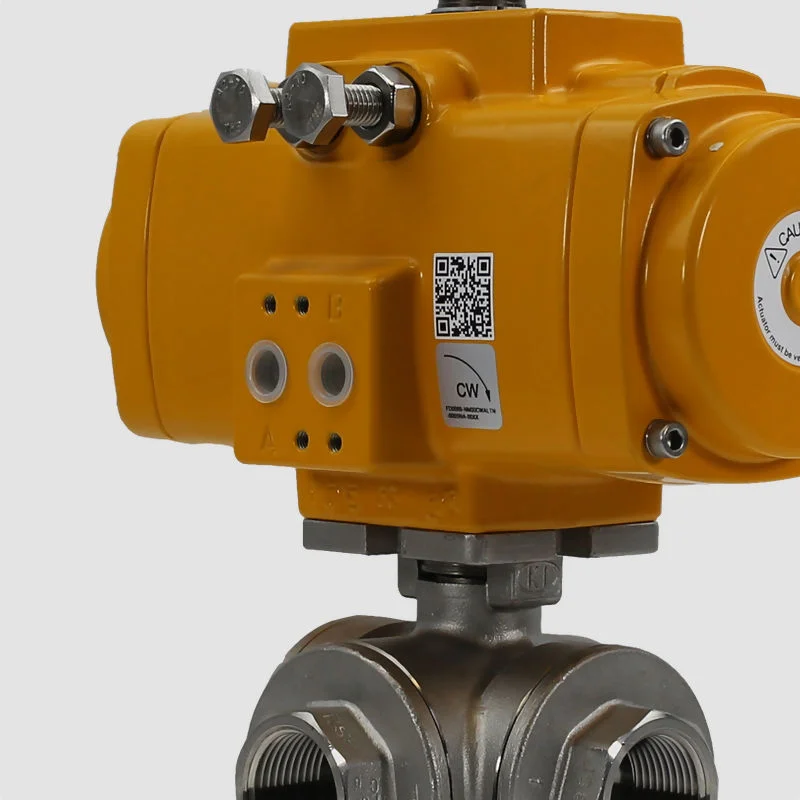

    3-Way Full Bore Stainless Steel Elomatic Air Actuated Ball Valves

    The AV-L5300EL & AV-L5400EL L & T port full bore actuated ball valves offer a full flow diverting solution for 90 and 180 degree operation. 1000 PSI of pressure enable this valve to be used in almost all process and industrial applcations with a casting approved by TUV. Additional options include pilot operated solenoid valves and limit position feedback covering safe area and full ATEX zones. Gearbox manual overrides are also optional on all air actuated ball valves.

    Size Range: DN08-DN100 (1/4"-4")
    Body Materials: Stainless Steel A351 CF8M 316
    Body Type: Full Bore, 3-Way, Diverting, L Port, T Port
    Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
    Pressure Rating: 1000 PSI
    End Connections: Screwed BSPP/NPT
    Find Out More
