Our AV-L5K00XL/5N00XL 3-Way actuated multiport ball valves provide various process diverting capabilities with L & T port ball designs. The flanged PN16 & PN40 pressure rated valves provide both medium and high pressure options depending on your application requirements with easy installation. With pneumatic actuation both fail safe and fail in position setups are available with double acting and spring return units. This can be specified at point of order. Ideal for applications where frequent On/Off cycles are required such as material handling equipment (MHE) due to its high cycle life expectancy. Hytork actuators are SIL rated to several million cycles with a proven track record.

Shop Help Me

Key features and benefits of AV-L5K00XL & AV-L5N00XL Actuated Ball Valves.

Key Features

Products designed by engineers who understand how they work in real world environments. Shock resistant to vibrations and demeaning applications with efficient operation reducing the overall energy consumption costs to the end user.

Key Features

Our range of stainless steel 3-Way ball valves have been designed to meet your needs applications with pressure requirements up to 40 bar where long life expectancy is important. We also offer our ball valves in numerous sizes so you can be sure we’ll have what you need.

Key Features

Our pneumatically actuated rack and pinion system provides you with more precision than conventional designs while extending the life of your components by protecting against excessive wear. Contact us for more information about how we can help improve your application!

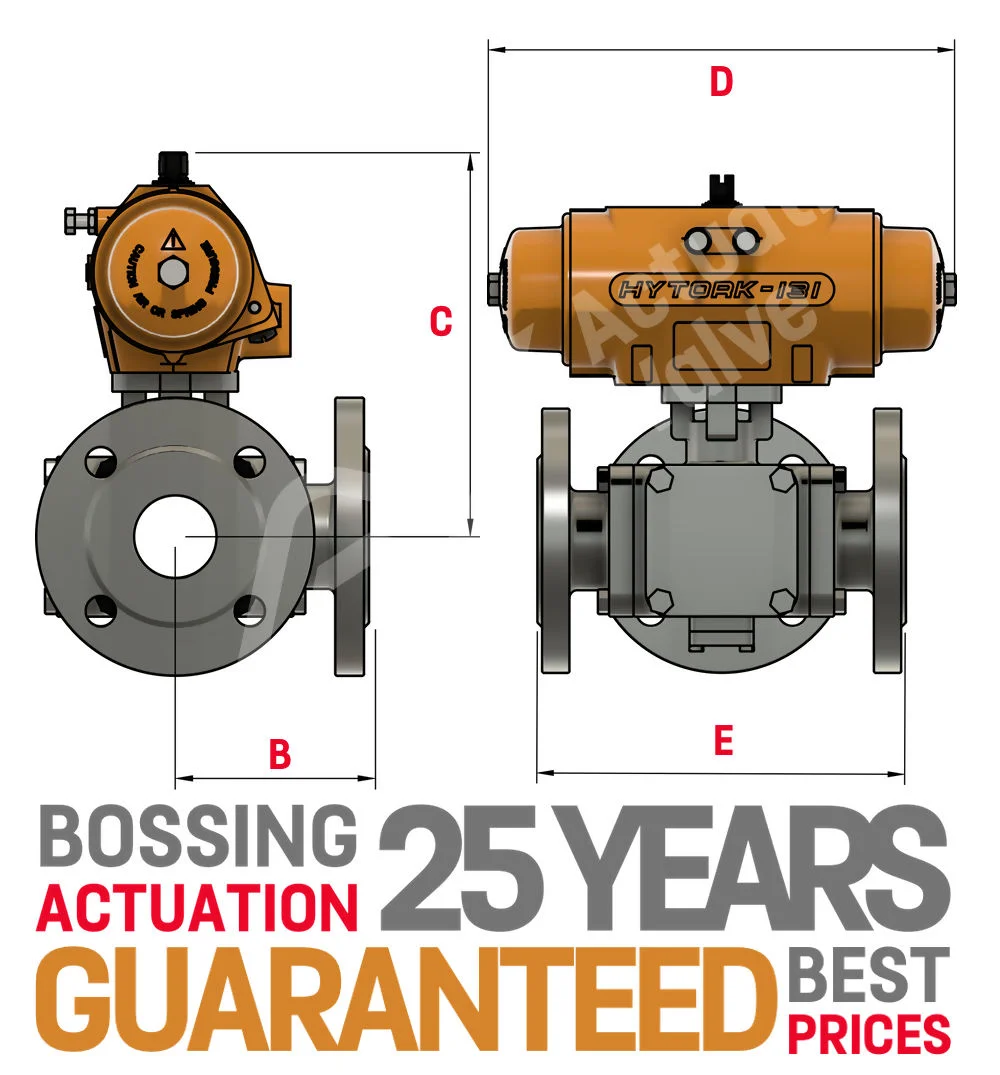

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	TBA	175.40	221.80	TBA	157.50	165.00	150.00
3/4"	TBA	179.40	221.80	TBA	179.40	221.80	165.00
1"	TBA	190.40	221.80	TBA	190.40	221.80	181.00
1 1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1 1/2"	TBA	223.40	292.00	TBA	207.40	221.80	190.00
2"	TBA	236.05	331.60	TBA	230.40	292.00	212.00
2 1/2"	TBA	266.09	349.80	TBA	251.05	331.60	230.00
3"	TBA	288.00	462.00	TBA	278.90	349.80	310.00 / 340.00
4"	TBA	354.00	582.00	TBA	319.00	292.00	352.00 / 386.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	DIN3357 1,2, EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes. Position feedback switch boxes are available for this valve, giving remote indication of the open and closed positions. Please confirm your control and signal requirements when ordering so we can specify the correct switch box for your application.

Yes, in many cases. Please contact us with the valve size, actuator type and quantity required and we will provide a competitive quotation, including any volume discount available for larger orders.

These valves are manufactured to DIN3357 1,2 and EN 12516-1 design standards, with inspection and testing carried out to DIN3230/3 and EN 12266 as standard. Depending on the specification required, certification options including PED 2014/34/EU, ATEX, SIL 2, NACE MR-0175 and Lloyd's Register approval can be provided - please confirm your requirements when ordering.

Yes. This AV-L5K00XL/L5N00XL 3-way actuated ball valve range is available across a range of valve and actuator sizes, and larger combinations can be supplied to order. Please contact us with the valve size, pressure rating and control signal required and we will confirm availability and lead time.

Yes. We can deliver directly to your customer on a plain-labelled or unbranded delivery note if required. Please let us know at the time of order and send a copy of your delivery note so we can ensure it is attached to the shipment.

Yes, subject to status. We offer credit accounts to qualifying business customers, allowing you to order now and settle on agreed terms. Please contact our sales team to apply, or complete a credit account application form and we will confirm your terms.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
