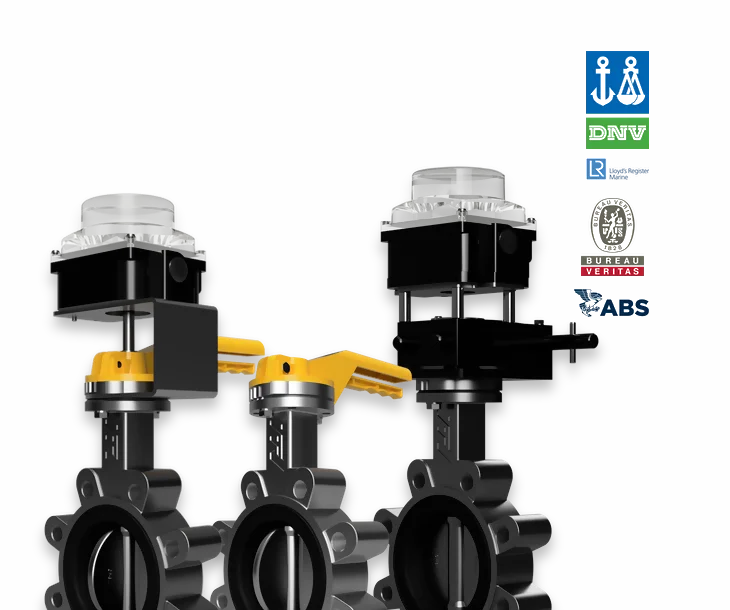

40L4040 Lugged Lever-Gear Operated Butterfly Valves SS

The TTV 40L4040 Butterfly Valve provides a combination of end of line service and external corrosion resistance with a complete CF8M/316 stainless steel material build. More commonly seen in the chemical and petrochemical industries this fully lugged type Butterfly Valve is available to suit PN10, PN16 and ANSI 150 flanged pipeline connections with threaded bolt holes for secure installation. Stainless steel valve hand levers and manual gearbox operators can also be added.

Key Features

Key features and benefits of the 40L4040 Fully Lugged Type Butterfly Valves.
1

Key Features

Lugged Butterfly Valves are commonly used in piping systems as a dead end service Valve or where regular/predicted disconnecting of the pipe on either side may need to be removed for maintenance and installation without disruption to both sides of the line.
2

Key Features

Lug valves are a great way to make repairs in the field easy. They have threaded inserts at both sides of their body, which means you can install them with no nuts. If one side needs servicing all you need do is detach whichever suits best.
3

Key Features

The streamlined design allows for very low pressure drops making them ideal for commercial applications where energy costs need to be kept as low as possible. Their compact size makes them perfect for situations where space is limited.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat

Stainless Steel Valve Gear Box

316 Stainless Steel Butterfly Valve Gear Box. Sealed to IP67 with single piece input shaft and worm gear with axial needle bearings. Additional options for RAL powder coatings and offshore paint specifications. Your perfect corrosive environment Butterfly Valve Gear Operator.

Valve Standards & Stuff

Body Material: CF8M 316 Stainless Steel
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Yes. We have a number of options including chain wheel operators. They come as standard with a quick link chain connection and safety cable kit.

It certainly does. All of our TTV butterfly valves come complete with a full set of operations and maintenance manuals. We can also send this electronically in advance.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

YES! How hilarious would that be. For an extra cost obviously. Get in touch.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
