The AV-L5K00 & 5N00 is an affordable line of high-quality stainless steel ball valves that won't break your budget. These durable products will give you years of trouble-free service at a fraction of the price that other companies charge for similar products. Our stainless 3-Way stainless steel ball valves come pre-tested so you can get them up and running immediately. You will also receive a two page test report detailing all opening/closing times after your order has been completed. The Actreg Pneumatic Actuator is easy to install, compact in size, and incredibly powerful at the same time. It's ideal for applications where space is tight but automation needs are still high from applications such as material handling systems and packaging machines.

Shop Help Me

Key features and benefits of AV-L5K00AC & AV-L5N00AC Actuated Ball Valves.

Key Features

Configurable as an L or T Port Operation the AV-L5N00 3-Way Multi Port Ball Valves will handle the widest variety of applications with minimal pressure drop, minimal cavitation and excellent flow characteristics.

Key Features

The bi-directional travel stops allow easy setting of the valve stroke which prevents premature valve failures. Our Pneumatic Actuators can be used with other common ancillary components such as solenoid valves, position switches, gauges and pressure regulators.

Key Features

Three way ball valves offer a variety of uses. They can be used as diverter valves where flow is diverted to either one or two other ports. They also serve well with input selectors that have an outlet fed by the supply coming out from just one side.

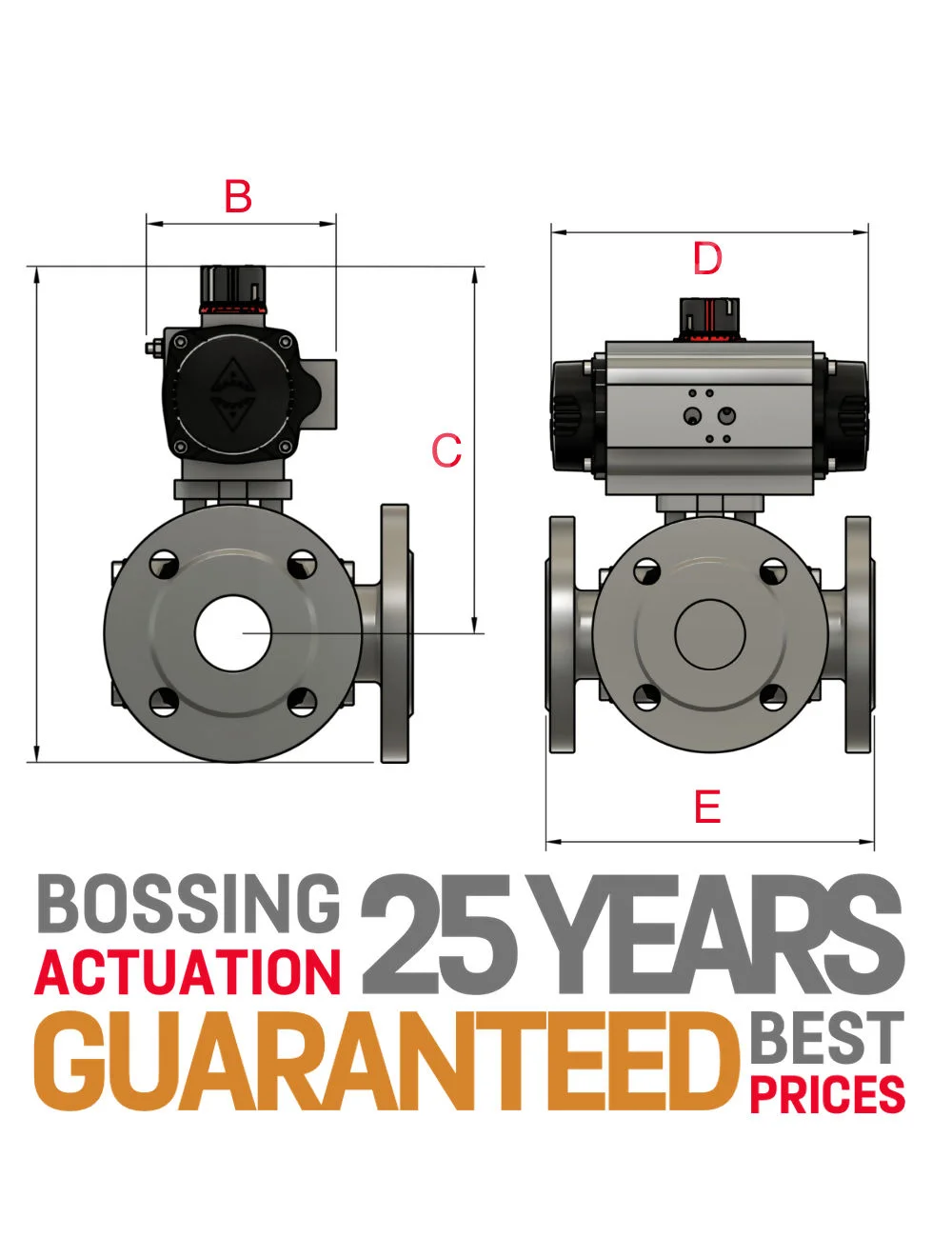

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	81.00	149.00	100.00	150.00	81.00	149.00	100.00	150.00
3/8"	96.00	172.00	163.00	165.00	96.00	172.00	145.00	165.00
1/2"	116.00	205.00	195.00	181.00	116.00	205.00	158.00	181.00
3/4"	116.00	222.00	195.00	190.00	116.00	222.00	158.00	190.00
1"	127.00	239.00	217.00	212.00	127.00	239.00	177.00	212.00
1 1/4"	140.00	272.00	258.00	230.00	140.00	272.00	196.00	230.00
1 1/2"	157.00	301.00	299.00	310-340	157.00	301.00	225.00	310-340
2"	197.00	371.00	348.50	352-385	197.00	371.00	273.00	352-385

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	DIN3357 1,2, EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
