High Performance Butterfly Valves

High Performance Butterfly Valves, encompassing High Performance Wafer, Lugged, and Triple Offset variants, are designed for superior efficiency in controlling flow in industrial settings. The Wafer and Lugged types ensure tight shut-off and ease of installation, while Triple Offset models offer precise flow regulation, even under extreme temperatures and pressures, making them ideal for a wide range of applications.

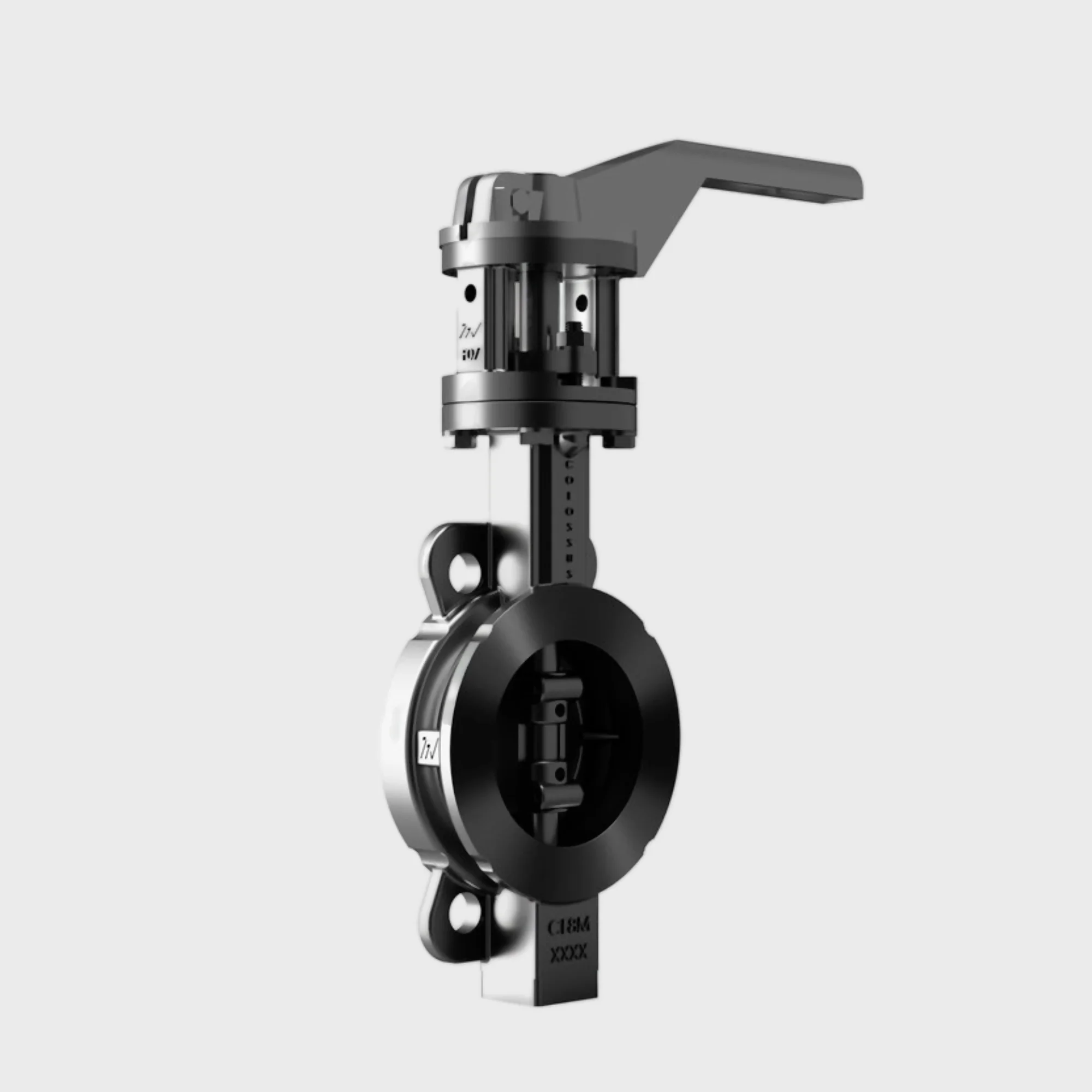

40WX4040 Colossus Lever-Gear Operated Butterfly Valves

The TTV High-Performance Double Offset Butterfly Valves ensure a dependable, leak-proof closure for challenging applications. They offer optional seating materials like R-PTFE, suitable for aggressive chemicals, LPG/LNG, petroleum, ethylene, and vacuum environments. For elevated temperature conditions and mediums like saturated steam, gases, bitumen, and thermal oil, a flexible metal seat is available. This metal seat meets the standards of BS 6755 Part 2 or API 6FA/607 for fire safety.

Size Range: 2" to 12"
Pressure Range: ANSI 150/300, JIS 10K, JIS 16L, PN10, PN16, & PN40
Seat Types: F-316L Stainless Steel & RPTFE
Actuator Types: Gear Box Hand Wheel & Lever
Find Out More

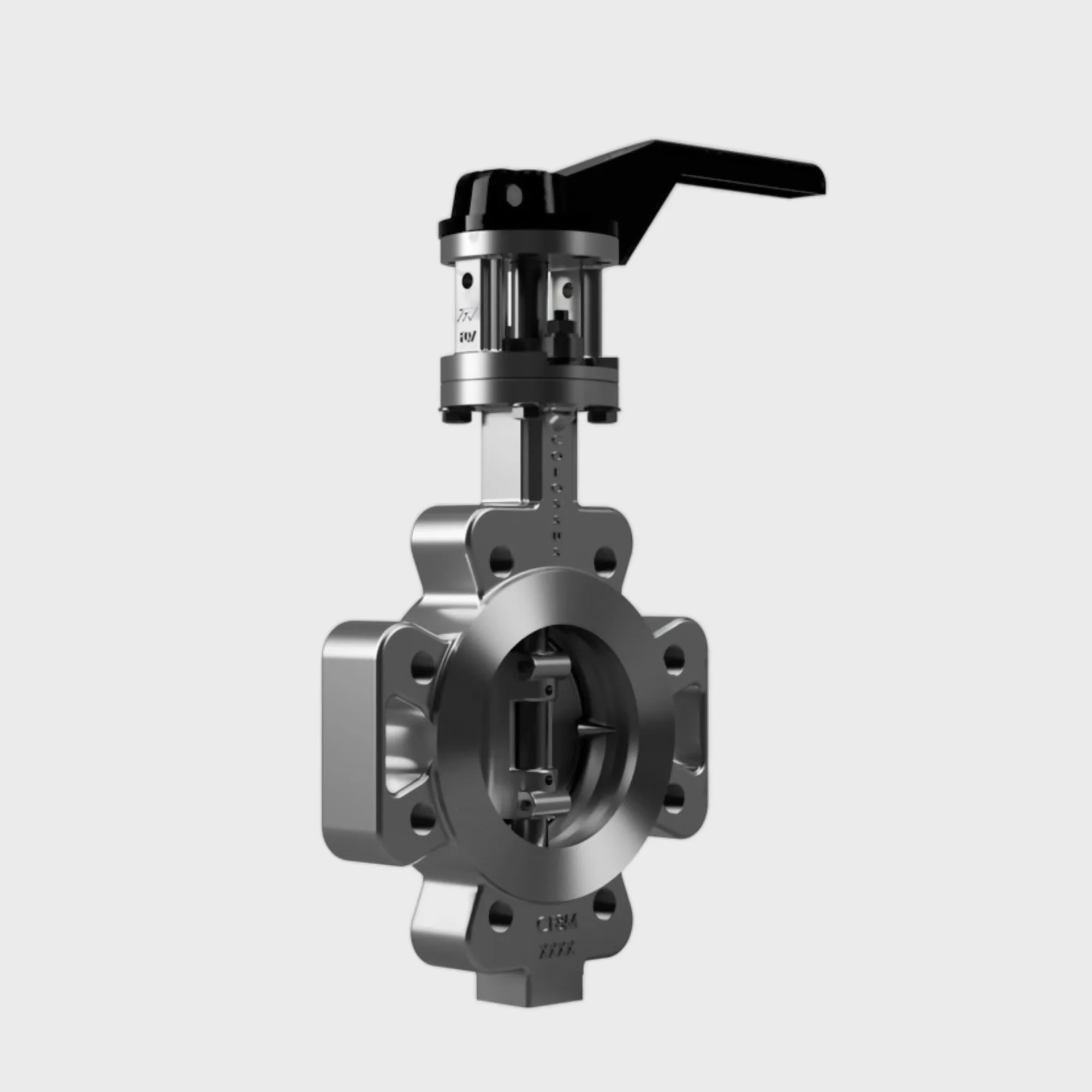

40LX4040 Colossus Fully Lugged And Tapped Butterfly Valves

Designed for harsh environments, our High-performance Double Offset Butterfly Valves ensure critical shutoff isolation and throttling control. The Colossus, available in Metal Seated or PTFE designs, guarantees reliability due to its superior materials, offering long-lasting performance with minimal maintenance. Our lugged butterfly valves, ideal for applications requiring disconnection flexibility, feature alignment guides via bolt holes for easy installation.

Size Range: 2" to 12"
Pressure Range: ANSI 150/300, JIS 10K, JIS 16K, PN10, PN16, & PN40
Seat Types: F-316L Stainless Steel & RPTFE
Actuator Types: Gear Box Hand Wheel & Lever
Find Out More

TTV Triple Offset Valves

TTV's Triple Offset Butterfly Valves, featuring an advanced triple shaft displacement, deliver superior performance and durability. With minimal disk-to-seat friction, these valves ensure a long life, meeting Class VI - ISO 5208 standards. Their self-sealing design offers secure, low-torque operation for perfect airtightness. Easy seat and disk replacement without special tools make them ideal for efficient maintenance in diverse industrial settings.

Find Out More

TopWorx Limit Switch Box

TopWorx Valve Limit Switch Box available for this product. Enable remote Valve monitoring of your High Performance Butterfly Valves with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.

Frequently Asked Questions

Actuated butterfly valves offer advantages such as synchronisation of multiple line valves, remote isolation, torque required for opening larger butterfly valves, and security measures to prevent misuse.
The body materials can be GJS500-7 Ductile Iron Rilsan Coated or CF8M Stainless Steel. The disc materials are CF8M Stainless Steel, and the seat materials include EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, and Epichloridine.
The actuated functions include pneumatic, electric, de-clutchable gear, fail-safe, spring return, battery backup, and double-acting.
Actuated butterfly valves can be used for potable/waste water, cooling systems, oil, gases, air, corrosive chemicals, pharmaceuticals, petrochemicals, food and beverage, and various industrial processes.
Wafer pattern valves are designed for installation between two flanges at intermediate points within the process pipeline, while lugged pattern valves use threaded lugs for precise self-centering capabilities and are commonly used as dead-end service valves or for maintenance purposes.
PTFE lining is used in valves intended for highly corrosive environments or high-service temperatures. It provides excellent chemical resistance and a clean, FDA-approved contact surface.
Yes, Actuation Valve offers actuated butterfly valves suitable for marine applications, featuring materials like B148 C9500 Aluminium Bronze and EPDM seats suitable for seawater, cooling systems, desalination, and other marine environments. The 80WM580 & 80LM580 in particular are the most common.
The size ranges vary depending on the valve type, but they generally span from DN32 (1 1/4") to DN1600 (64").
Yes, Actuation Valve can provide various certifications, including witness testing, 3.1 certification, and standard pressure tests. Additional certifications can be arranged upon request.
Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.
Depending on the valve, actuator and process type pressure ratings range from PN10, PN16, PN40., ANSI 150 and ANSI 300.
