Three way ball valves offer a variety of uses. They can be used as diverter valves where flow is diverted to either one or two other ports. They also serve well with input selectors that have an outlet fed by the supply coming out from just one side. Elomatic Actuators have passed salt spray test for 1,000 hours without any damage to its functions. This means that our products can be used in harsh environments for a longer period of time than other manufacturers products. The AV-L5300 & 5400 Full Bore 3-Way Ball Valves are silicone free and suitable for use on oils based paint products and applications. This allows complete assurance that the Valve will not apply any contamination to the medium that could effect the end finish.

Shop Help Me

Key features and benefits of AV-L5300EL & AV-L5400EL Actuated Ball Valves.

Key Features

New generation of pneumatic actuators, you don't have to worry about faulty operation anymore. The EL-O-Matic F Series are available with a SIL 3 rating approval from TÜV, making it perfect for use in safety critical applications like medical equipment or industrial machinery.

Key Features

3-Way Ball Valves are available as an L Port or T Port can be used in heating and hot water applications to regulate temperature. The valves control the flow of liquid passing through them to either allow flow in one direction or another, or divert flow from one path to another.

Key Features

The EL-O-Matic Pneumatic Actuator is an affordable alternative to expensive electrically driven actuators that offer the same functionality at a fraction of the cost. They operate significantly faster than electric units of comparable size.

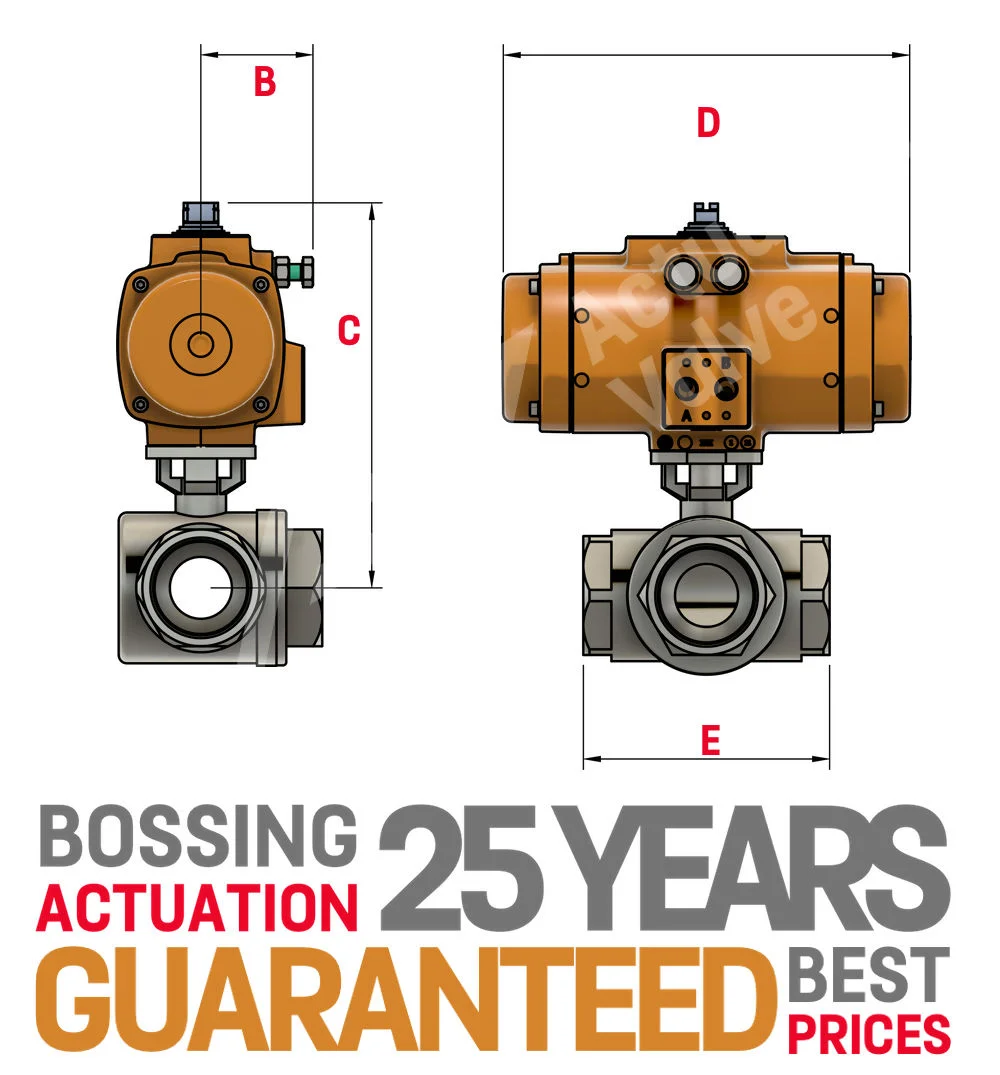

	B	C	D	B	C	D	E
	SR	SR	DA	DA	DA	DA	SR/DA

1/4"	96.00	154.00	166.00	60.00	123.00	103.00	79.00
3/8"	96.00	154.00	166.00	60.00	123.00	103.00	79.00
1/2"	96.00	181.00	192.00	83.00	160.00	166.00	88.00
3/4"	96.00	191.50	192.00	83.00	170.50	166.00	108.00
1"	96.00	195.00	192.00	83.00	174.00	166.00	124.00
1 1/4"	96.00	205.50	192.00	83.00	184.50	166.00	135.00
1 1/2"	115.50	233.80	247.00	104.00	226.80	217.00	164.00
2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
2.5"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 400
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 7-1

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Yes, in many cases. Please contact us with the valve size, actuator type and quantity required and we will provide a competitive quotation, including any volume discount available for larger orders.

These valves are manufactured to MSS SP-110, with inspection and testing carried out to the same standard. Certification options including PED 2014/34/EU, ATEX, SIL 2 and NACE MR-0175 can be provided, with Lloyd's Register approval also available depending on the specification required - please confirm your requirements when ordering.

Yes. This AV-L5300EL/AV-L5400EL 3-way ball valve range is available across a range of valve and actuator sizes, and larger combinations can be supplied to order. Please contact us with the valve size, pressure rating and control signal required and we will confirm availability and lead time.

Yes. We can deliver directly to your customer on a plain-labelled or unbranded delivery note if required. Please let us know at the time of order and send a copy of your delivery note so we can ensure it is attached to the shipment.

Yes, subject to status. We offer credit accounts to qualifying business customers, allowing you to order now and settle on agreed terms. Please contact our sales team to apply, or complete a credit account application form and we will confirm your terms.

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Brochures

CERTIFICATES & APPROVALS

Elomatic Actuator Videos

Elomatic Overview

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.

DRAWINGS & SCHEMATICS

TopWorx Elomatic Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Elomatic Actuator prior to shipping.

Please feel free to request information and advice using the form below or call us on 0151 547 1221
