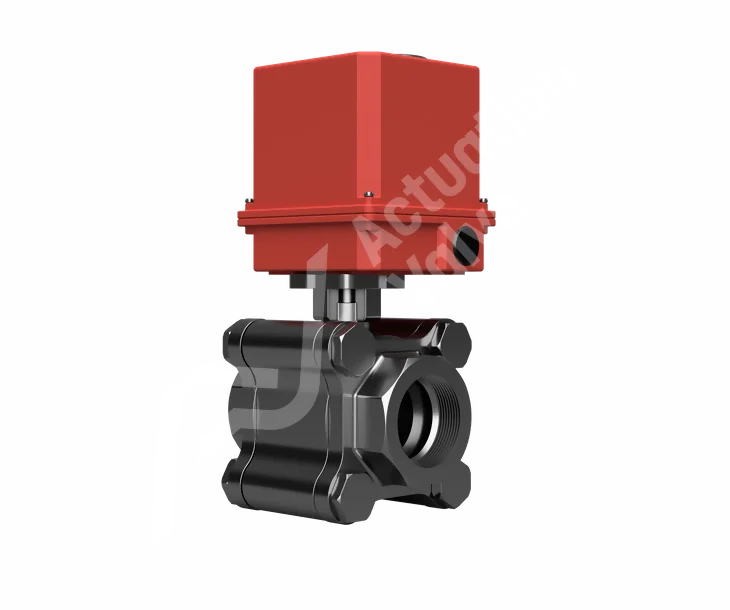

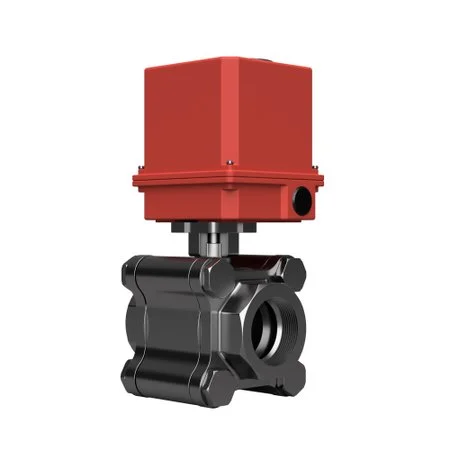

The AV-L8000FSAV heavy duty ball valves is suitable for use on heavy duty industrial applications where higher pressure ranges or temperatures may be required. The Valve features PTFE TFM 4215 ball seats with grafoil stem sealing. The industry-leading AV-L8000FSAV Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves. Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.

Shop Help Me

Key features and benefits of AV-L8000AV, AV-L8100AV & AV-L8200AV Actuated Ball Valves.

Key Features

By using a 3-piece design we can easily remove the center section for seal replacements without having to take apart the entire valve. This allows us to keep your equipment running smoothly and efficiently with minimal downtime required for maintenance work on your end.

Key Features

The industry-leading AV-L8000FS Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves.

Key Features

Low Torque requirements from the AV-L8000FS Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.

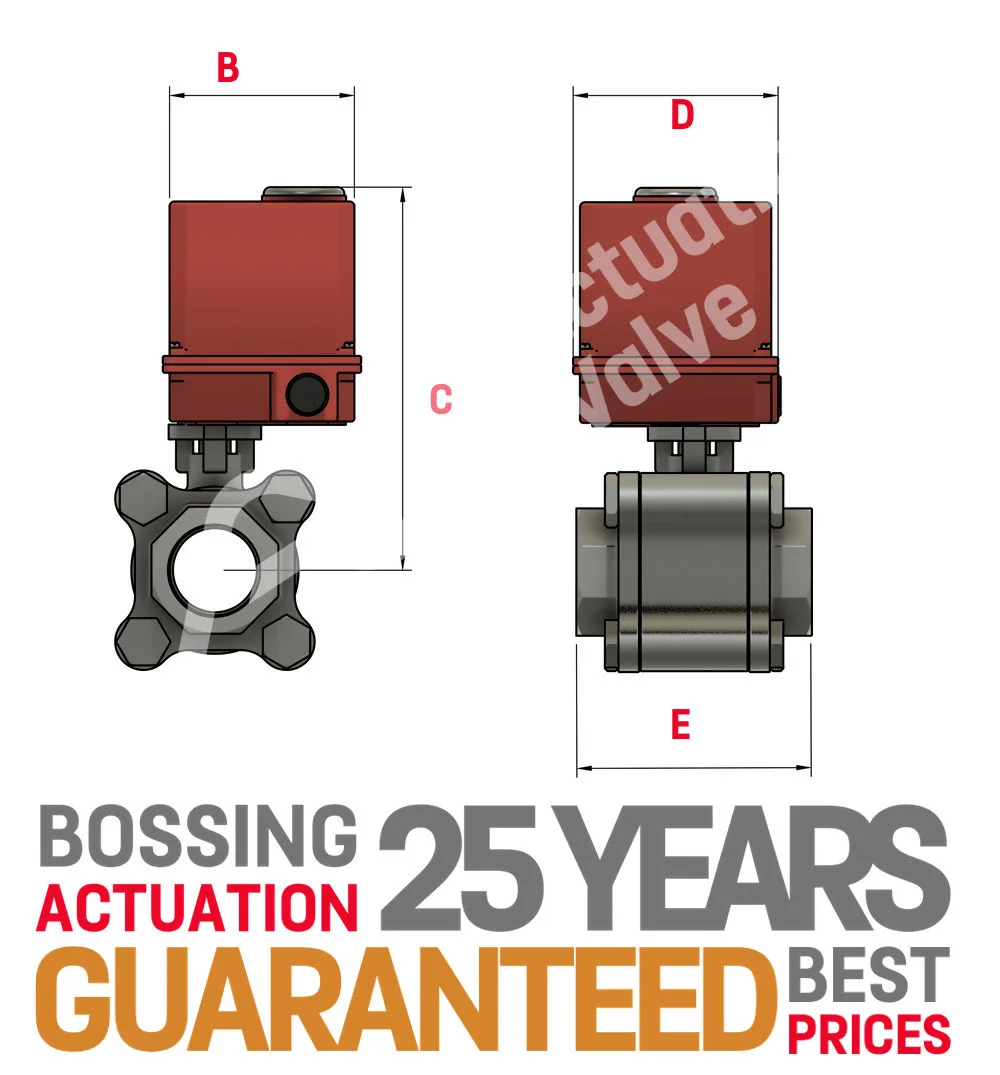

	B	C	D	E	Model

1/4"	100.00	153.50	145.00	75.00	AV-02
3/8"	100.00	153.50	145.00	75.00	AV-02
1/2"	100.00	153.50	145.00	75.00	AV-02
3/4"	100.00	161.50	145.00	80.00	AV-02
1"	100.00	168.50	145.00	90.00	AV-02
1 1/4"	100.00	173.50	145.00	110.00	AV-02
1 1/2"	121.90	216.50	117.00	120.00	AV-03
2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

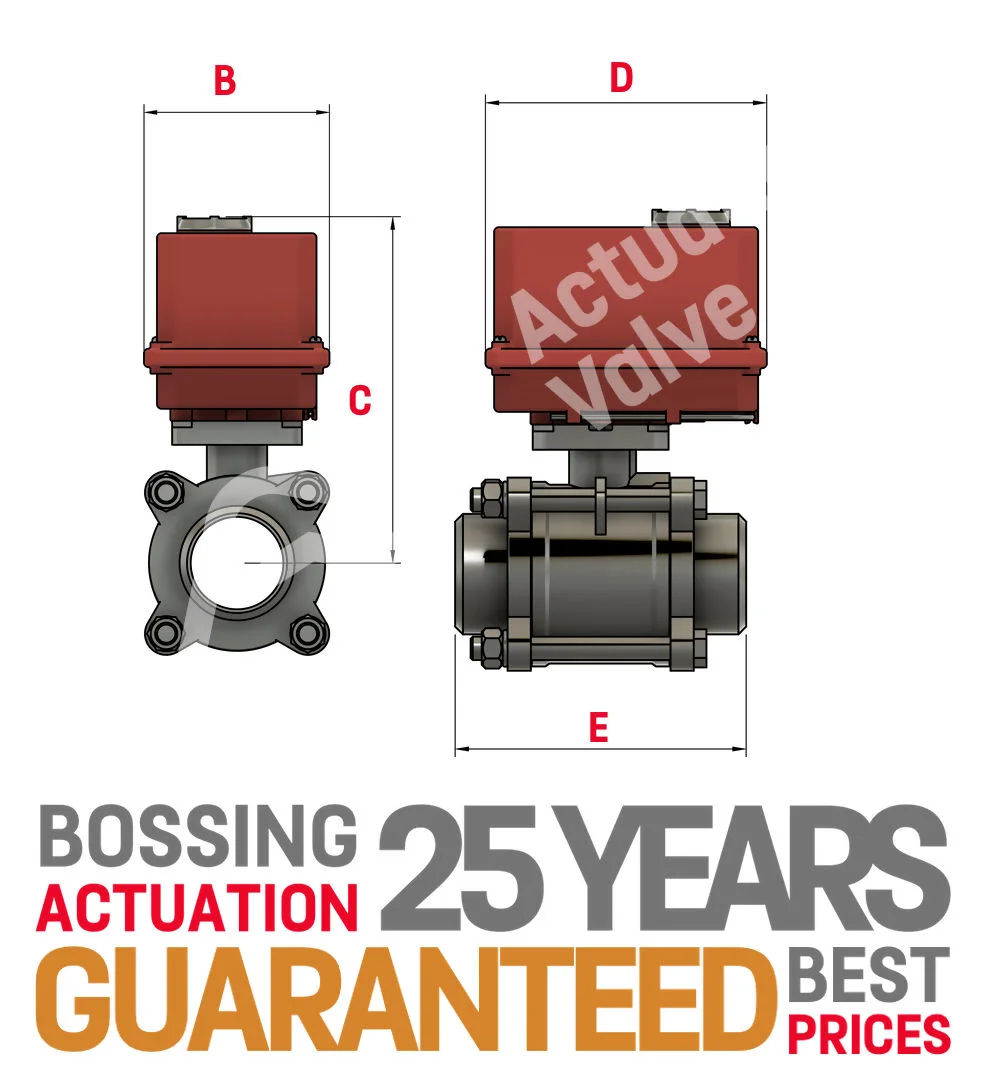

	B	C	D	E	Model

1/4"	100.00	153.50	145.00	43.00	AV-02
3/8"	100.00	153.50	145.00	43.00	AV-02
1/2"	100.00	153.50	145.00	43.00	AV-02
3/4"	100.00	161.50	145.00	51.00	AV-02
1"	100.00	168.50	145.00	58.00	AV-02
1 1/4"	100.00	173.50	145.00	63.00	AV-02
1 1/2"	121.90	216.50	117.00	75.00	AV-03
2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 4215® (25% Carbon Filled TFM)
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing:	MSS SP-110
BSP Ends:	ISO 7-1 (DIN 2999)
NPT Ends:	ASME B1.20.1
Socket Weld Ends:	ASME B16.11
Butt Weld Ends:	ASME B16.25 (Sch 80)

Yes, this Actuated Ball Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard on the AV-Lite electric actuator, with switches indicating both open and closed positions for clear status monitoring.

Yes, discounts are usually available on multi-unit or bulk orders of the AV-Lite stainless steel actuated ball valve range. Get in touch with your required quantity and specification and our sales team will confirm the best pricing for your order.

Yes, the AV-Lite heavy duty stainless steel range is available with NACE MR-0175 certification for sour service applications. Let us know if you require this certification when placing your order and we will confirm suitability for your specific configuration.

Yes, we can advise on larger sizes outside the standard AV-Lite heavy duty stainless steel range. Send us your line size and process details by email or give us a call and we will confirm availability and lead time.

Yes, we can deliver directly to your customer on a plain, unbranded label. Send us a copy of your delivery note and we will attach it to the box so the shipment appears to come from you.

Yes, we offer credit accounts for trade and repeat customers, subject to a credit check. Apply on the product page at checkout or contact our sales team directly and we will guide you through the application process.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.
