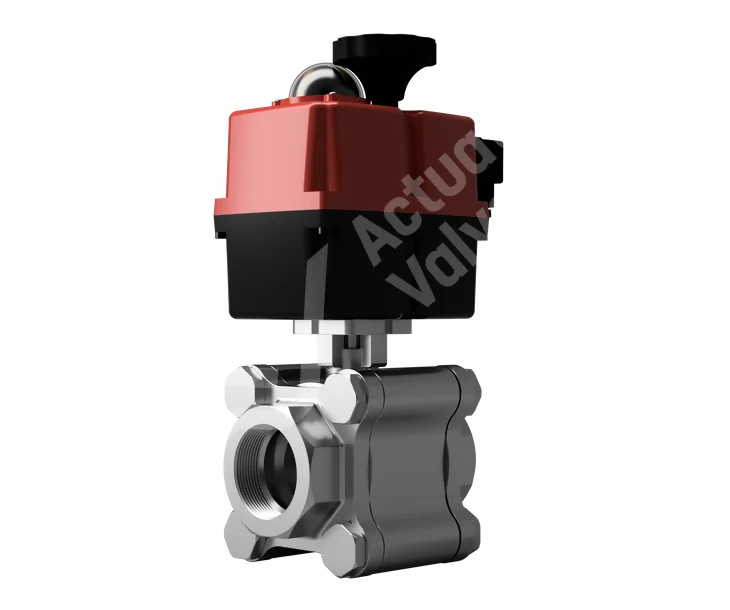

J4CS J&J Electric Actuator SS Heavy Duty Ball Valves

The isolation Ball Valve is fully maintainable and reliable. The centre section of the 3 Piece Body Design future proofs preventive maintenance schedules with a drop out section easily removed for seal replacements. Bluetooth communication system technology is included with the J4S electric actuator allowing the user to directly link with any IOS or Android device. Control will feature opening and closing of the actuator or valve as well as stop in current position. The AV-L8000FS Heavy Duty Stainless Steel Ball Valve is designed for use on heavy duty industrial applications where higher pressure ranges or temperatures may be required. This ball valve features PTFE TFM 4215 ball seats with grafoil stem sealing and stainless steel body.

Key Features

Key features and benefits of AV-L8000JJ, AV-L8100JJ & AV-L8200JJ Actuated Ball Valves.
1

Key Features

J&J Electric Actuators are designed for easy installation and long-term reliability in a wide range of applications. With a global network of technical support staff, we're here to help you get up and running quickly and easily.
2

Key Features

Reliable performance with a put up or shut up warranty offer. From date of shipment Actuation Valve and J&J offer a 3 year life cycle warranty guaranteed to 60000 cycles (Whichever is soonest). This equates to over 50 cycles per day without disruption to your application.
3

Key Features

By switching from conventional ball valves to our low torque AV-L8000FS Ball Valve, you'll save money on installation costs and maintenance while improving overall reliability. Our product is designed with the end-user in mind and we understand what works best for industrial automation.

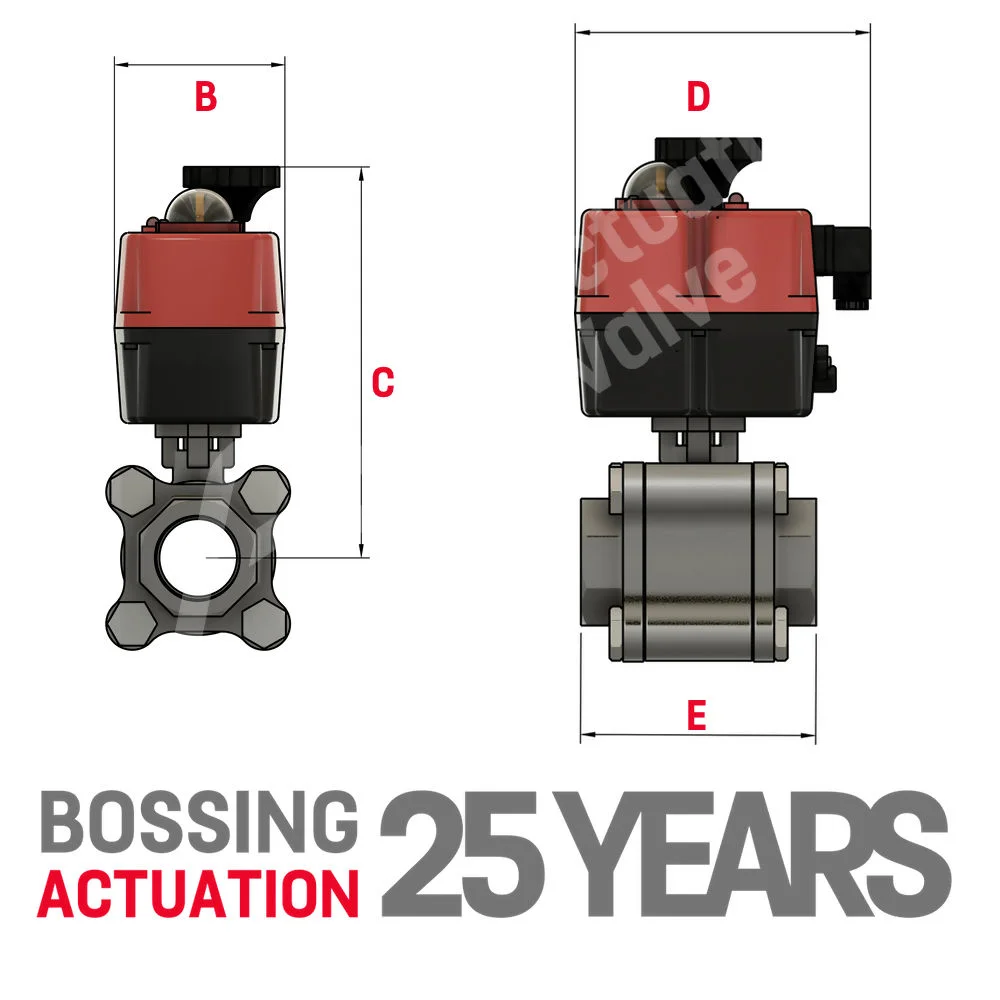

Screwed/Socket Weld Technical Stuff

B C D E Model
1/4" 110.00 214.00 179.00 75.00 J4CS20
3/8" 110.00 214.00 179.00 75.00 J4CS20
1/2" 110.00 214.00 179.00 75.00 J4CS20
3/4" 110.00 222.00 179.00 80.00 J4CS20
1" 110.00 229.00 179.00 90.00 J4CS20
1 1/4" 110.00 234.00 179.00 110.00 J4CS20
1 1/2" 110.00 246.00 179.00 120.00 J4CS35
2" 110.00 282.00 181.00 140.00 J4CS55
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Valve 3D Stuff

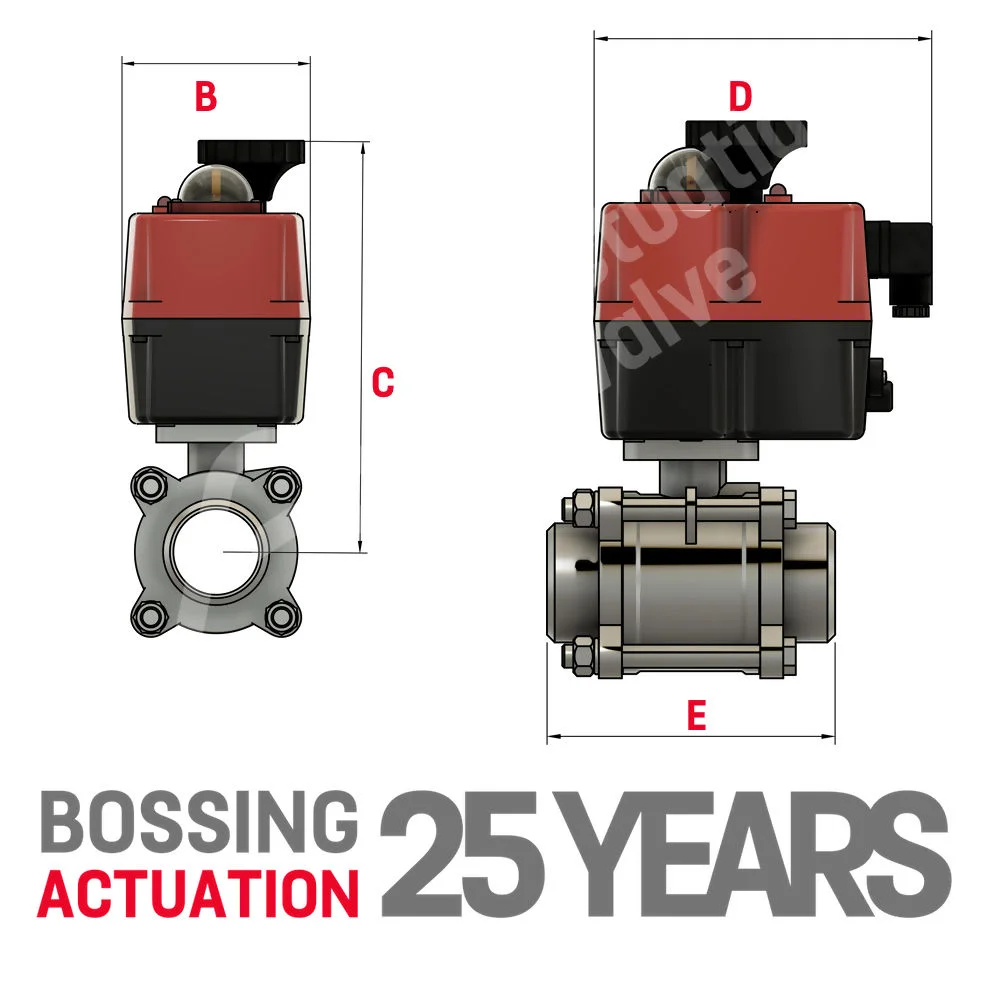

Butt Weld Valve Technical Stuff

B C D E Model
1/4" 110.00 214.00 179.00 70.00 J4CS20
3/8" 110.00 214.00 179.00 70.00 J4CS20
1/2" 110.00 214.00 179.00 75.00 J4CS20
3/4" 110.00 222.00 179.00 90.00 J4CS20
1" 110.00 229.00 179.00 100.00 J4CS20
1 1/4" 110.00 234.00 179.00 110.00 J4CS20
1 1/2" 110.00 246.00 179.00 125.00 J4CS35
2" 110.00 282.00 181.00 150.00 J4CS55
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
