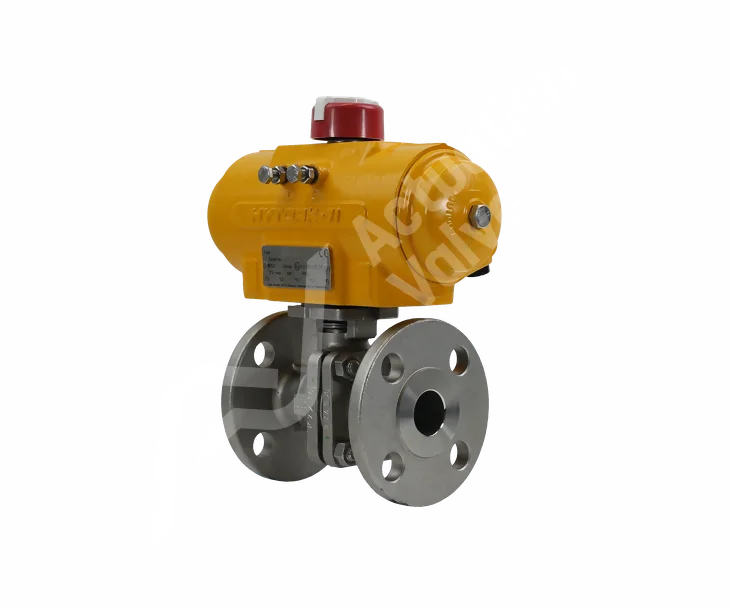

Stainless Steel ANSI 150 Hytork Actuator Ball Valves

The AV-L6100XL 2 piece full bore actuated ball valves are available in sizes ranging from 1/2" to 8" for next day delivery. This flanged valve body offers installation between two pipeline flanges and end of line service with a relaible shut off performance. The AV-L6100XL actuated ball valve offers TFM 1600 ball seats that are a WRAS & FDA certified material. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed.

Key Features

Key features and benefits of AV-L6100XL Actuated Ball Valves.
1

Key Features

The AV-L6100 Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and disc made from high quality stainless steel, these valves can withstand even the most demanding conditions.
2

Key Features

High strength aluminium design reduces overall material whilst maintaining superior performance levels over comparable pneumatic actuators on the market. This lightweight unit reduces stress on supporting structures and products.
3

Key Features

Designed to provide the highest quality at the best price in the market today. The Hytork XL product is easy to install and use with no special tools required during installation or operation. Competitive warranties offered for standard use operation.

Flanged ANSI 150 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 97.00 153.50 165.00 108.00 97.00 153.50 165.00 108.00
3/4" 97.00 157.50 165.00 117.00 97.00 157.50 165.00 117.00
1" 116.50 181.40 221.80 127.00 97.00 163.50 165.00 127.00
1 1/4" 116.50 193.40 221.80 140.00 97.00 175.50 165.00 140.00
1 1/2" 116.50 198.40 221.80 165.00 116.50 198.40 221.80 165.00
2" 133.50 220.40 292.00 178.00 116.50 204.40 221.80 178.00
2 1/2" 143.10 246.05 331.60 190.00 133.50 204.40 292.00 190.00
3" 158.50 271.09 349.80 203.00 143.10 256.05 331.60 203.00
4" 174.00 309.00 462.00 229.00 158.50 299.90 349.80 229.00
5" 190.00 387.00 582.00 356.00 170.00 359.00 243.00 356.00
6" 240.00 438.00 647.00 394.00 190.00 408.00 324.00 394.00
8" 246.00 502.00 696.00 457.00 240.00 487.00 396.00 457.00

Flanged ANSI 150 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Hytork Actuator Videos

TopWorx Limit Switch Box

TopWorx Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
