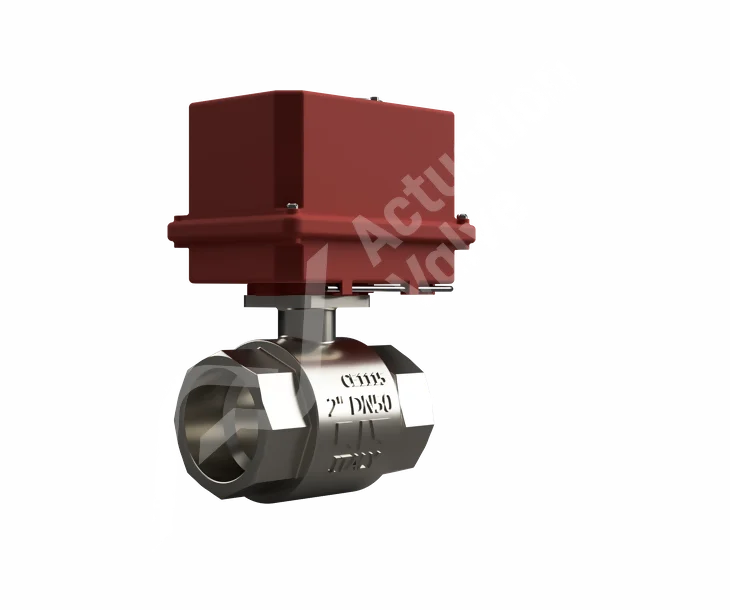

Electric Water Valves - Wras Approved Electric AV-Lite® Actuated Ball Valves

Electric Water Valves (Wras Ball Valves) are designed with The Water Regulations Advisory Scheme in mind. They have been created so that it's easier for you to comply with WRAS regulations and ensure your business or organisation is safe from fines or prosecution due to non-compliance. The Wras ball valve is easy to install, operates smoothly, and closes quickly with minimal effort. This industrial grade product can handle up to 40 bar working pressures when used in applications where PN40 ratings are required. We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings.

Key Features

Key features and benefits of AV-L4500AV Actuated Ball Valves.

Key Features

All of our Actuated Valve Assemblies are manufactured in house with the help from automation experts. Every completed unit comes equipped to meet high standards and can be traced back via two page test report detailing opening/closing times.

Key Features

Our ball valves have been independently tested by accredited test labs to ensure they meet all safety standards required by UK regulations. The AV-L4500 is designed to specifically meet all WRAS approval requirements. Perfect for commercial or industrial installations.

Key Features

By using Electric Water Valves you can make sure your drinking water application complies with current legislation so that you avoid fines from local authorities as well as keeping your customers and end users safe at all times.

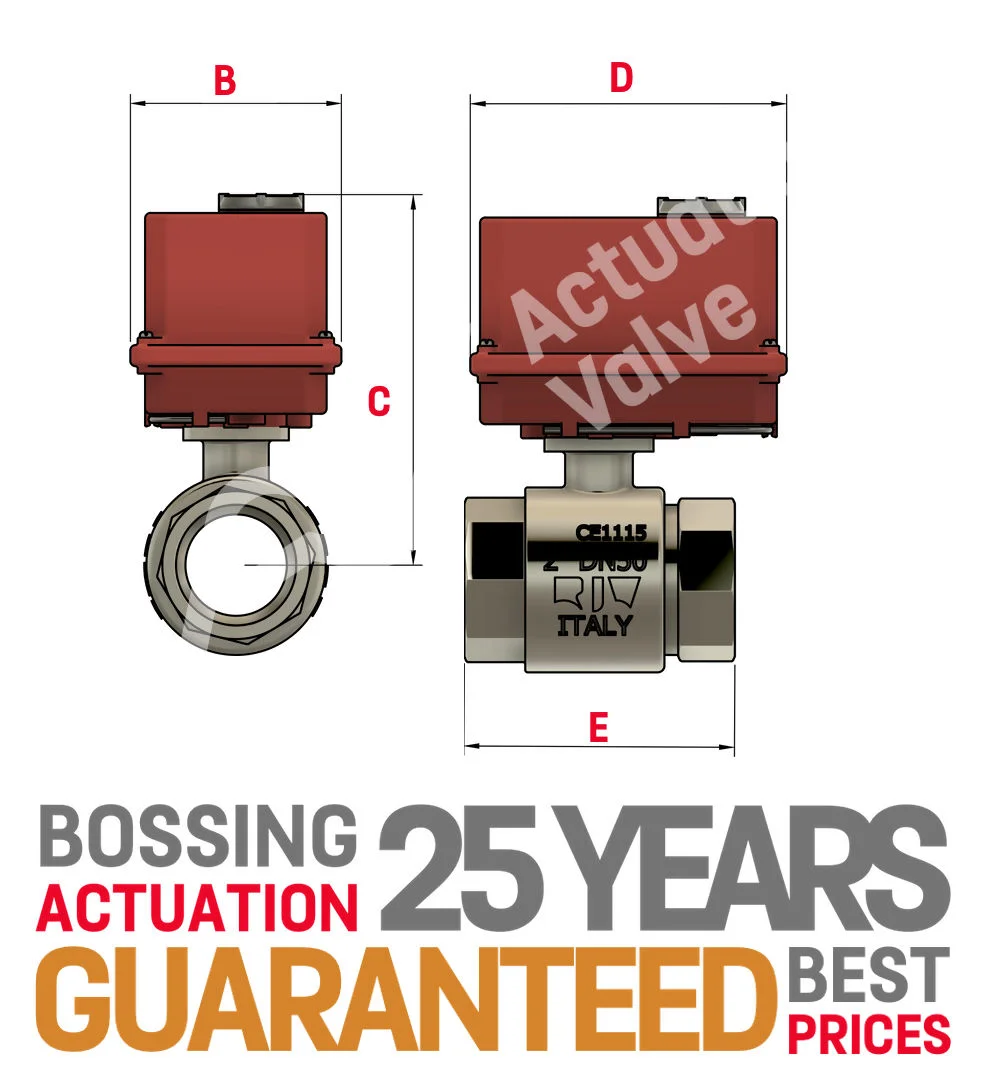

AV-L4500AV Ball Valve Technical Stuff

B C D E Model
1/2" 100.00 141.50 145.00 59.00 AV-02
3/4" 100.00 147.50 145.00 69.00 AV-02
1" 100.00 151.50 145.00 83.00 AV-02
1 1/4" 100.00 157.00 145.00 94.00 AV-02
1 1/2" 121.90 199.50 117.00 102.00 AV-03
2" 121.90 207.00 117.00 124.00 AV-03

AV-L4500AV Ball Valve 3D Stuff

Wras Approved Actuated Ball Valves

WRAS approval is a mandatory requirement for any product that carries or receives drinking water from the public mains in the UK. It provides proof that our electric water valves have been tested by an independent body to ensure they meet all relevant standards and requirements as set out by Government. The AV4500 is a Wras Approved Ball Valve suitable for use drinking water.

Valve Standards & Stuff

Body Material: Brass CW 617 N
Seats Material: PTFE
Shaft Material: Brass CW 614 N
O-Rings Material: Viton
Ball Material: Brass CW 617 N
Approvals: Wras Approved
Mounting: ISO 5211 Connection
End Connections: BSPP
Pressure Rating: PN40

Frequent Interrogation

Yes, this Valve is suitable for drinking water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
