3-Way Reduced Bore BSPP Elomatic Actuator Ball Valves

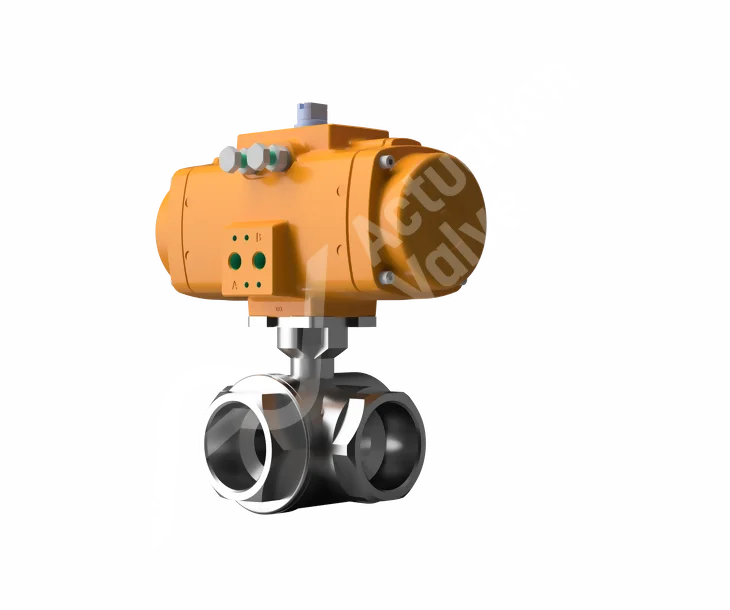

We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings. The AV-L5000 & 5100 3-Way Ball Valve is suitable for mixing, distributing or diverting water or other mediums. The stainless steel construction provides durability and corrosive resistance to chemicals and external factors. Options for L or T Port Configurations at point of order. A robust design, quick installation and easy maintenance. The compact size allows it to be used in many different applications where space is limited such as under machinery or inside enclosures. It can also be installed using mounting brackets for use in industrial environments.

Key Features

Key features and benefits of AV-L5000EL & AV-L5100EL Actuated Ball Valves.
1

Key Features

EL-O-Matic Pneumatically actuated valves are used in many different industries like the chemical, oil and gas, pharmaceuticals, water treatment and more. They provide quick response time to open or close the flow of media (gases/fluids) through them.
2

Key Features

All of our Actuated Valve Assemblies are manufactured in house with the help from automation experts. Every completed unit comes equipped to meet high standards and can be traced back via two page test report detailing opening/closing times.
3

Key Features

EL-O-Matic Pneumatic Actuators provide long life springs and precision engineering to ensure high reliability of the fail safe mechanism needed for safe plant operations. When quality & safety matter, choose EL-O-Matic.

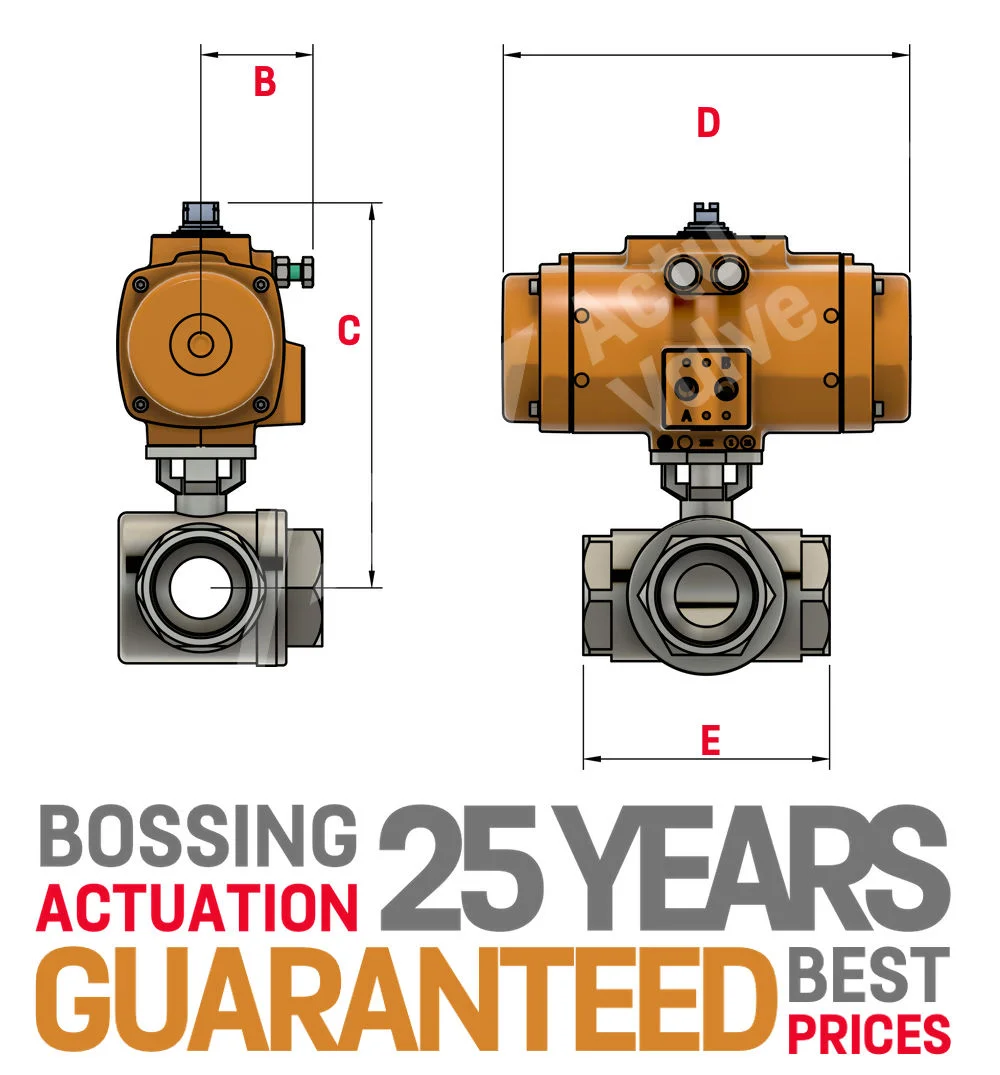

RB 3-Way Ball Valve Technical Stuff

B C D B C D E
SR SR DA DA DA DA SR/DA
1/4" 96.00 154.00 166.00 60.00 123.00 103.00 79.00
3/8" 96.00 154.00 166.00 60.00 123.00 103.00 79.00
1/2" 96.00 154.00 166.00 60.00 123.00 103.00 79.00
3/4" 96.00 160.00 166.00 83.00 160.00 166.00 88.00
1" 96.00 191.50 192.00 83.00 170.50 166.00 108.00
1 1/4" 96.00 195.00 192.00 83.00 174.00 166.00 124.00
1 1/2" 115.50 217.50 217.00 96.00 205.50 192.00 135.00
2" 115.50 233.80 247.00 104.00 226.80 217.00 164.00
2.5" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Elomatic Actuator Videos

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.

TopWorx Limit Switch Box

TopWorx Elomatic Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Elomatic Actuator prior to shipping.
