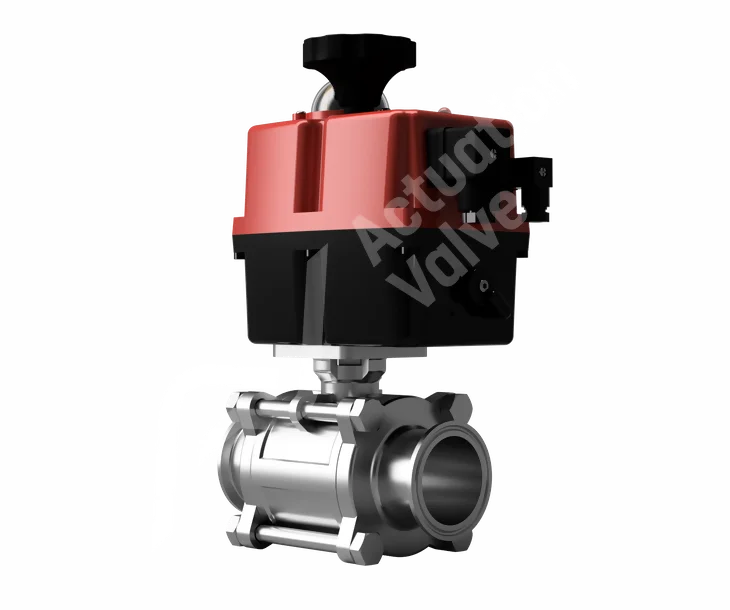

The AV-L91B0JJ & AV-L9CB0J form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a free flow path that does not allow debris or contaminants to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals include FDA & WRAS approved seats with a bovine free supply. J&J Electric Actuators provides password protected diagnostics directly available through bluetooth technology connection. This allows the end user technical information relating to the operations as well as current status, read parameters or functional errors.

Shop Help Me

Key features and benefits of AV-L91B0JJ & AV-L9CB0JJ Actuated Ball Valves.

Key Features

Fail Safe Battery Backup option eliminates the need for use of the manual override in the event of a power or system failure to the actuator. Commonly used in critical application lines where failure is not an option. The Actuator will return the Valve to either open or closed position.

Key Features

Adaptable to existing site infrastructures featuring support for Modbus communications protocol. Modbus is an open protocol that allows the connection of multiple industrial electronic devices capable of transmitting information or data over serial lines.

Key Features

J&J Electric Actuators offers a motor that is recognised as one of the most efficient in its class. The innovative brushless motor design eliminates costly maintenance requirements, saving you time and money over the lifetime of the motor.

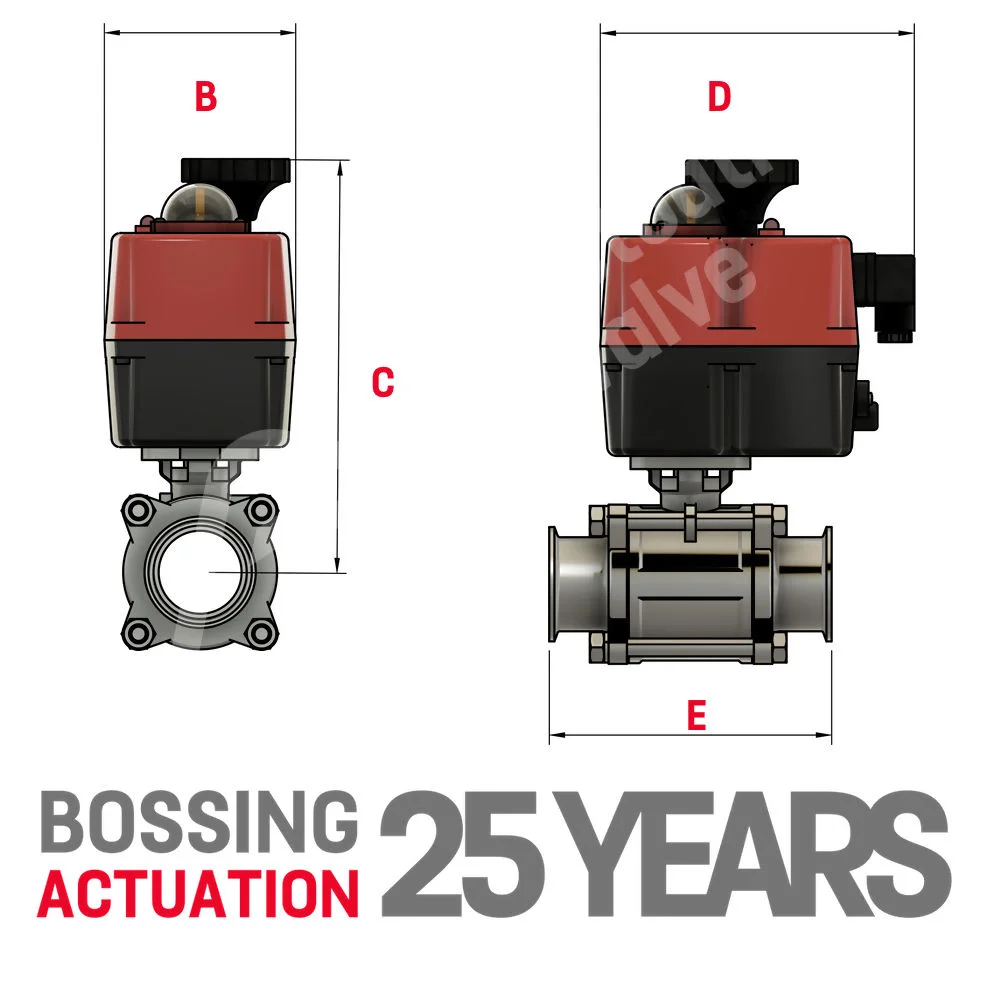

	B	C	D	E	Model

1/4"	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA
1/2"	110.00	213.00	179.00	90.00	J4CS20
3/4"	110.00	220.00	179.00	90.00	J4CS20
1"	110.00	229.00	179.00	100.00	J4CS20
1 1/2"	110.00	242.00	179.00	125.00	J4CS35
2"	110.00	274.00	181.00	150.00	J4CS55
2.5"	110.00	296.00	181.00	190.00	J4CS85
3"	214.00	363.00	235.00	220.00	J4CS140
4"	214.00	394.00	235.00	270.00	J4CS140

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

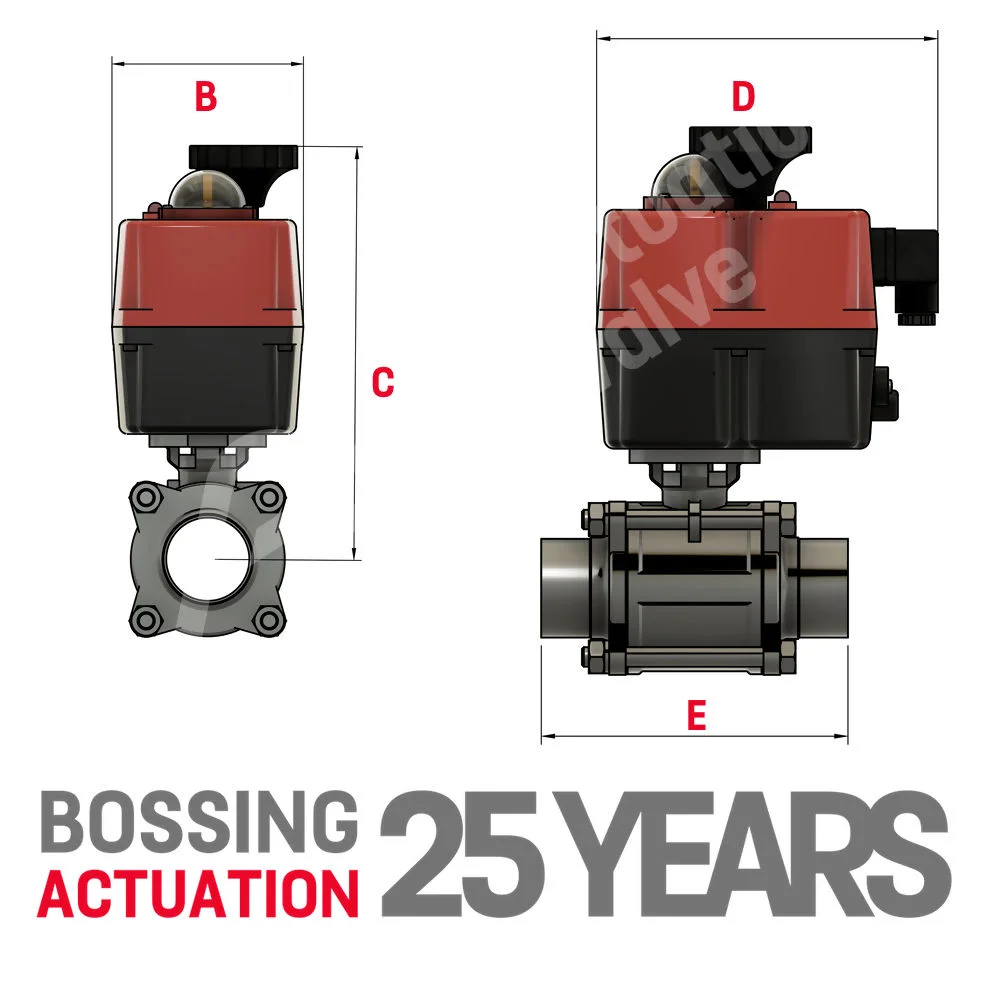

	B	C	D	E	Model

1/4"	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA
1/2"	110.00	213.00	179.00	90.00	J4CS20
3/4"	110.00	220.00	179.00	90.00	J4CS20
1"	110.00	229.00	179.00	100.00	J4CS20
1 1/4"	TBA	TBA	TBA	TBA	TBA
1 1/2"	110.00	242.00	179.00	125.00	J4CS35
2"	110.00	274.00	181.00	150.00	J4CS55
2.5"	110.00	296.00	181.00	190.00	J4CS85
3"	214.00	363.00	235.00	220.00	J4CS140
4"	214.00	394.00	235.00	270.00	J4CS140
5"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600® Cavity Filled Seats & Seals
Seat Approvals:	3A, FDA & Wras Approved
Cleaning:	Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard:	MSS SP-110, BS4825
Surface Finish:	Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing:	MSS SP-110
Face 2 Face:	ASME B16.10
Pressure Rating:	400 PSI

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
