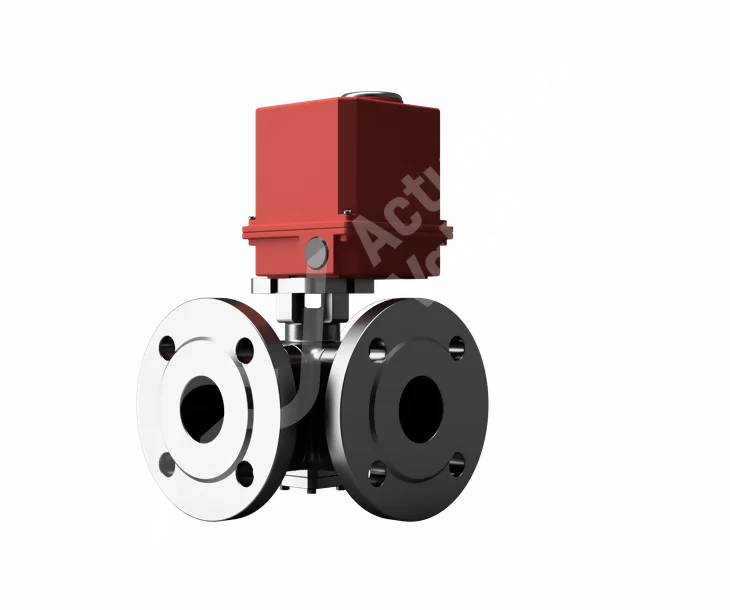

3-Way PN16-PN40 Full Bore AV-Lite Actuator Ball Valves

The AV-L5K00AV & 5N00AV 3-Way Ball Valve is suited to DIN flanged connections and the stainless steel body houses either an L or T drilled ball configuration. The L port valve is drilled at 90 degrees from two different sides to resemble an L whereas the T also features one hole straight through. 3-Way Ball Valves can be used to divert flow from one fluid flow path to another in industrial process systems. 3-Way Ball Valves are typically used in the process industry to connect, disconnect or redirect flow between two or more fluid flow paths. The industry-leading AV-L5K00AV & 5N00AV Multiport 3-Way Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves.

Key Features

Key features and benefits of AV-L5K00AV & AV-L5N00AV Actuated Ball Valves.
1

Key Features

The AV-L5K00 & 5N00 3-Way Ball Valve is available with two configurations. L Port & T Port. The difference between the two is that the L Port version can offer complete shutoff depending on actuator type where as the T Port offers diversion only or constant flow form one port to another.
2

Key Features

The AV-L5K00 & 5N00 Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and ball made from high quality stainless steel, these valves can withstand even the most demanding conditions.
3

Key Features

Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.

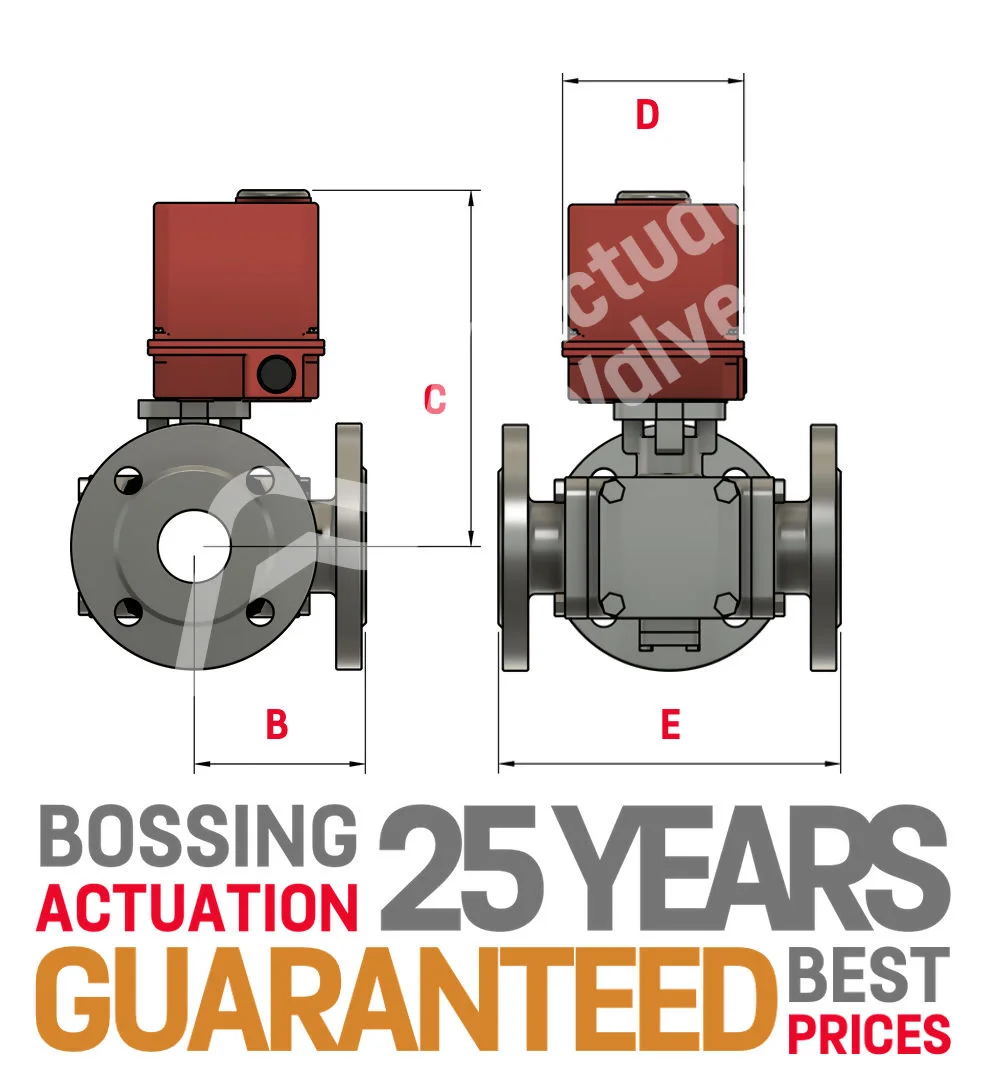

3-Way PN16 PN40 Technical Stuff

B C D E Model
TBA TBA TBA TBA TBA TBA
TBA TBA TBA TBA TBA TBA
1/2" TBA 163.50 100.00 150.00 AV-02
3/4" TBA 167.50 100.00 165.00 AV-02
1" TBA 209.50 121.90 181.00 AV-03
1 1/4" TBA TBA TBA TBA TBA
1 1/2" TBA TBA TBA TBA TBA
2" TBA TBA TBA TBA TBA
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

3-Way PN16 PN40 Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
