The Actreg Pneumatic Actuator features a specially coated steel piston and utilises high quality materials that do not fail when when exposed to moisture, dust or dirt. A 3-Way guide enables low friction between the body and pistons extending life expectancy and reliability. The Actreg actuator design incorporates features which allow for use under adverse conditions such as high and Low temperatures. This includes special FKM o’rings for high temperature (150ºC) and Silicone o’rings for ambient operation conditions as low as -55Cº. Actreg actuators offer NAMUR mounting (VDE/VDI 3845) allowing for easy integration with the additional ancillary products including solenoid valves and valve position monitors that might be required for application or operational needs. Actuation Valve can also supply a range of accessories for you actuator.

Shop Help Me

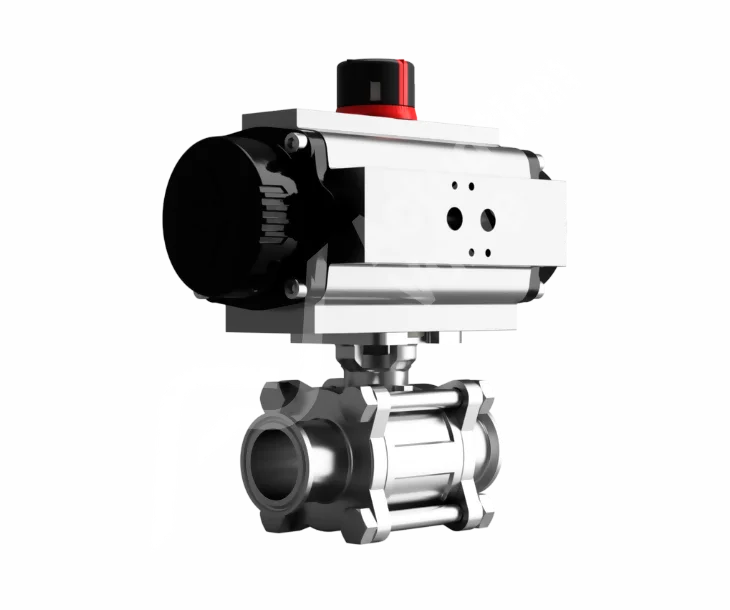

Key features and benefits of AV-L91B0AC & AV-L9CB0AC Actuated Ball Valves.

Key Features

Easily integrated into existing systems using industry standard NAMUR mountings (VDE/VDI 3845). This standardisation allow users to integrate the unit with future upgrades or replacements without having to redesign entire systems.

Key Features

The Actreg Pneumatic Actuator is manufactured according to ISO 5211 standards with a star drive that provides extra flexibility and simplicity for direct mounting to valve spindles or output shafts. This makes it easy to convert electric system to pneumatic if required.

Key Features

Our pneumatically actuated rack and pinion system provides you with more precision than conventional designs while extending the life of your components by protecting against excessive wear. Contact us today for more information about how we can help improve your application!

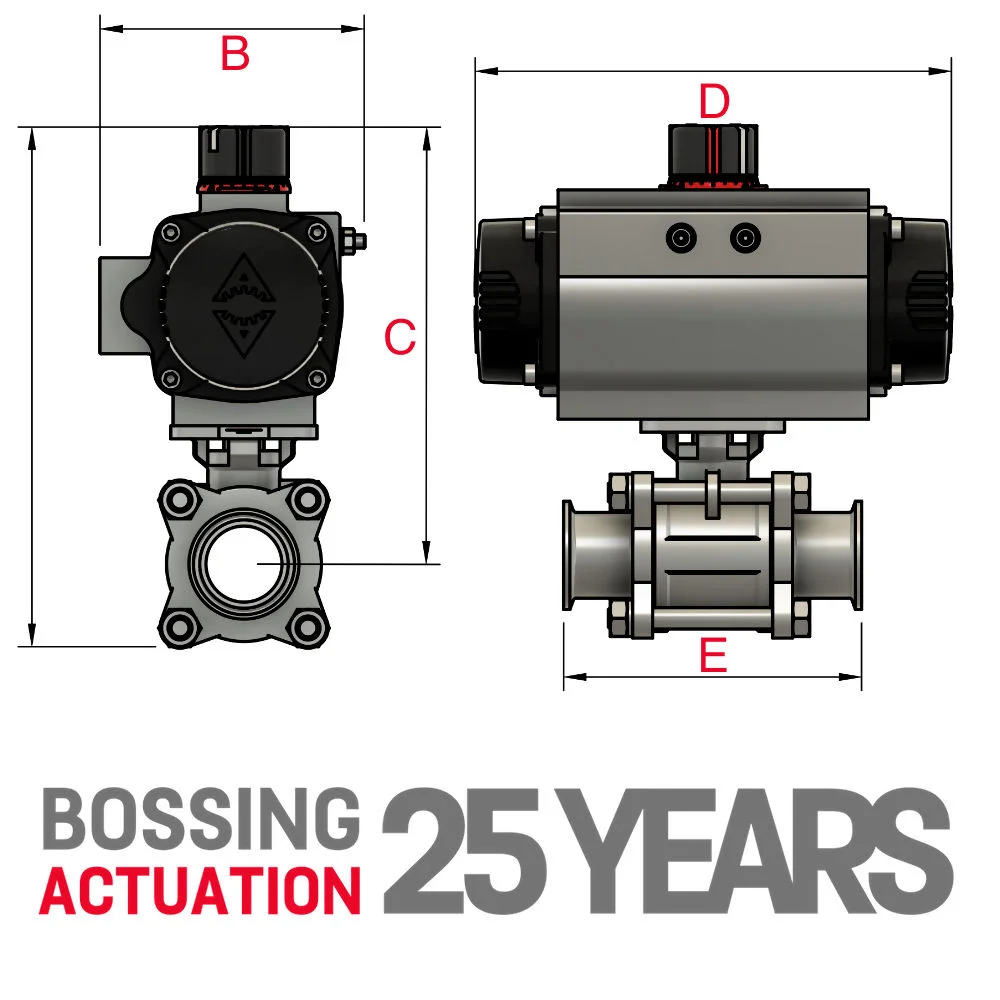

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/2"	81.00	138.00	163.00	90.00	81.00	138.00	145.00	90.00
3/4"	81.00	145.00	163.00	90.00	81.00	145.00	145.00	90.00
1"	96.00	173.00	195.00	100.00	96.00	173.00	158.00	100.00
1 1/4"	116.00	208.00	217.00	125.00	116.00	208.00	177.00	125.00
1 1/2"	116.00	215.00	217.00	150.00	116.00	215.00	177.00	150.00
2"	127.00	247.00	258.00	190.00	127.00	247.00	196.00	190.00
2 1/2"	140.00	274.00	299.00	220.00	140.00	274.00	225.00	220.00
3"	157.00	322.00	348.50	270.00	157.00	322.00	273.00	270.00

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600® Cavity Filled Seats & Seals
Seat Approvals:	3A, FDA & Wras Approved
Cleaning:	Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard:	MSS SP-110, BS4825
Surface Finish:	Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing:	MSS SP-110
Face 2 Face:	ASME B16.10
Pressure Rating:	400 PSI

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes. Position feedback switch boxes are available for this valve, giving remote indication of the open and closed positions. Please confirm your control and signal requirements when ordering so we can specify the correct switch box for your application.

Yes, in many cases. Please contact us with the valve size, actuator type and quantity required and we will provide a competitive quotation, including any volume discount available for larger orders.

These valves are manufactured to MSS SP-110 design standard and BS4825, with inspection and testing carried out to MSS SP-110 as standard. Depending on the specification required, certification options including PED 2014/34/EU, ATEX, Firesafe API 607 5th Edition, SIL 2, NACE MR-0175 and Lloyd's Register approval can be provided - please confirm your requirements when ordering.

Yes. This Actreg pneumatic actuated ball valve range is available across a wide range of actuator sizes, and larger valve and actuator combinations can also be supplied to order. Please contact us with the valve size and pressure rating you require and we will confirm availability and lead time.

Yes. We can deliver directly to your customer on a plain-labelled or unbranded delivery note if required. Please let us know at the time of order and send a copy of your delivery note so we can ensure it is attached to the shipment.

Yes, subject to status. We offer credit accounts to qualifying business customers, allowing you to order now and settle on agreed terms. Please contact our sales team to apply, or complete a credit account application form and we will confirm your terms.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS
