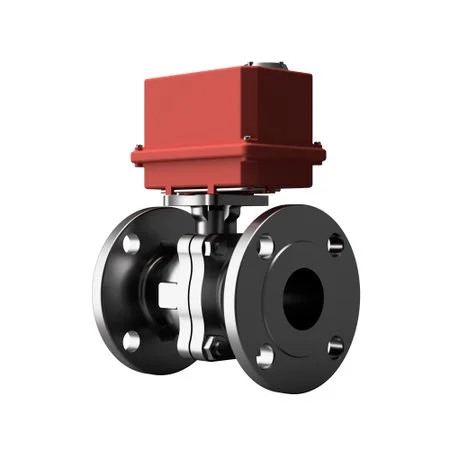

Electric PN40 Stainless Steel AV-Lite Actuator Ball Valves

Our range of stainless steel ball valves have been designed to meet your needs applications with pressure requirements up to 40 bar where long life expectancy is important. We also offer our ball valves in numerous sizes so you can be sure we’ll have what you need. Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else. This package is a perfect choice for those who need to deal with medium aggressive water conditions and harsh external environments. It has been designed using only high quality materials from the manufacturer Kingdom Controls.

Key Features

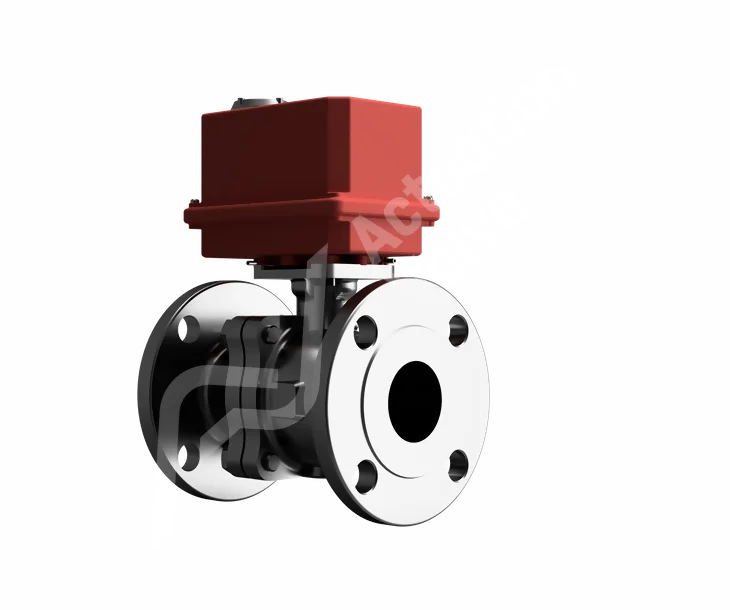

Key features and benefits of AV-L6N00AV Actuated Ball Valves.
1

Key Features

The AV-L6N00 stainless steel ball valves can be used on oils based paints and coatings applications such as automotive refinishing. They're 100% silicone free so they won't contaminate your product or leave behind residue which can ruin your finish over time.
2

Key Features

Fully stainless steel materials. This ball valve package is designed to be used in harsh, external environments and mediums that are aggressive towards the material itself. It can be used for a variety of applications ranging from food & beverage to chemicals & petrochemicals.
3

Key Features

We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings.

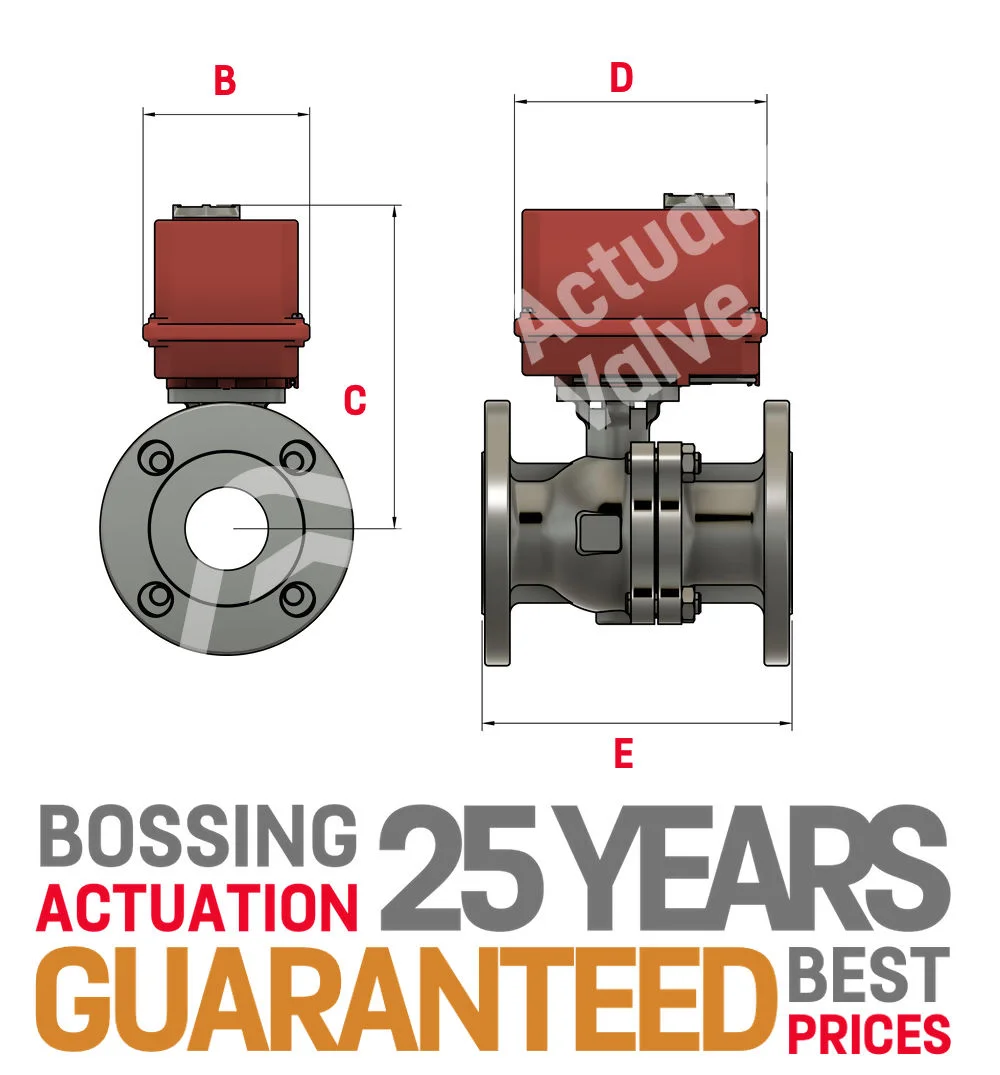

Flanged PN40 Technical Stuff

B C D E Model
1/2" 100.00 158.50 145.00 115.00 AV-02
3/4" 100.00 163.50 145.00 120.00 AV-02
1" 100.00 169.50 145.00 125.00 AV-02
1 1/4" 100.00 181.50 145.00 130.00 AV-02
1 1/2" 121.90 217.50 117.00 140.00 AV-03
2" 121.90 226.50 117.00 150.00 AV-03
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

Flanged PN40 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
