Actreg Pneumatic Actuators are the perfect solution for installations that require frequent on/off cycles. Designed specifically to work in applications where material handling is required, these devices can be rated up safely and securely with a high safety integrity level (SIL 3). Our pneumatically actuated rack and pinion system provides you with more precision than conventional designs while extending the life of your components by protecting against excessive wear. Contact us today for more information about how we can help improve your application! Low Torque requirements from the AV-L3000 Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.

Shop Help Me

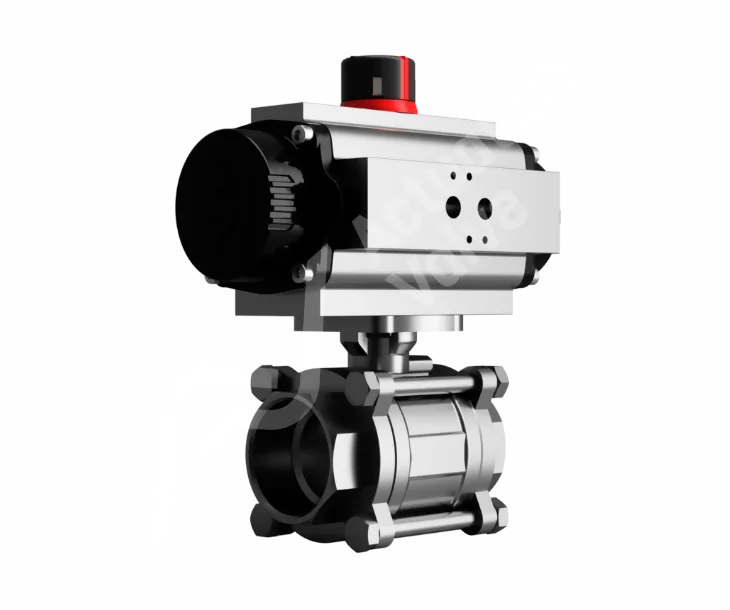

Key features and benefits of the AV-L3000AC, AV-L3100AC & AV-L3200AC Actuated Ball Valves

Key Features

The AV-L3000 Ball Valve is an excellent choice for high volume pneumatic systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units.

Key Features

Whether your application requires an actuator to be perform hundred or cycles per day or a unit that may be operations several per month the Actreg actuator is there when you need it with the ability to instantly respond when tasked or spring fail closed upon air or signal failure.

Key Features

We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings.

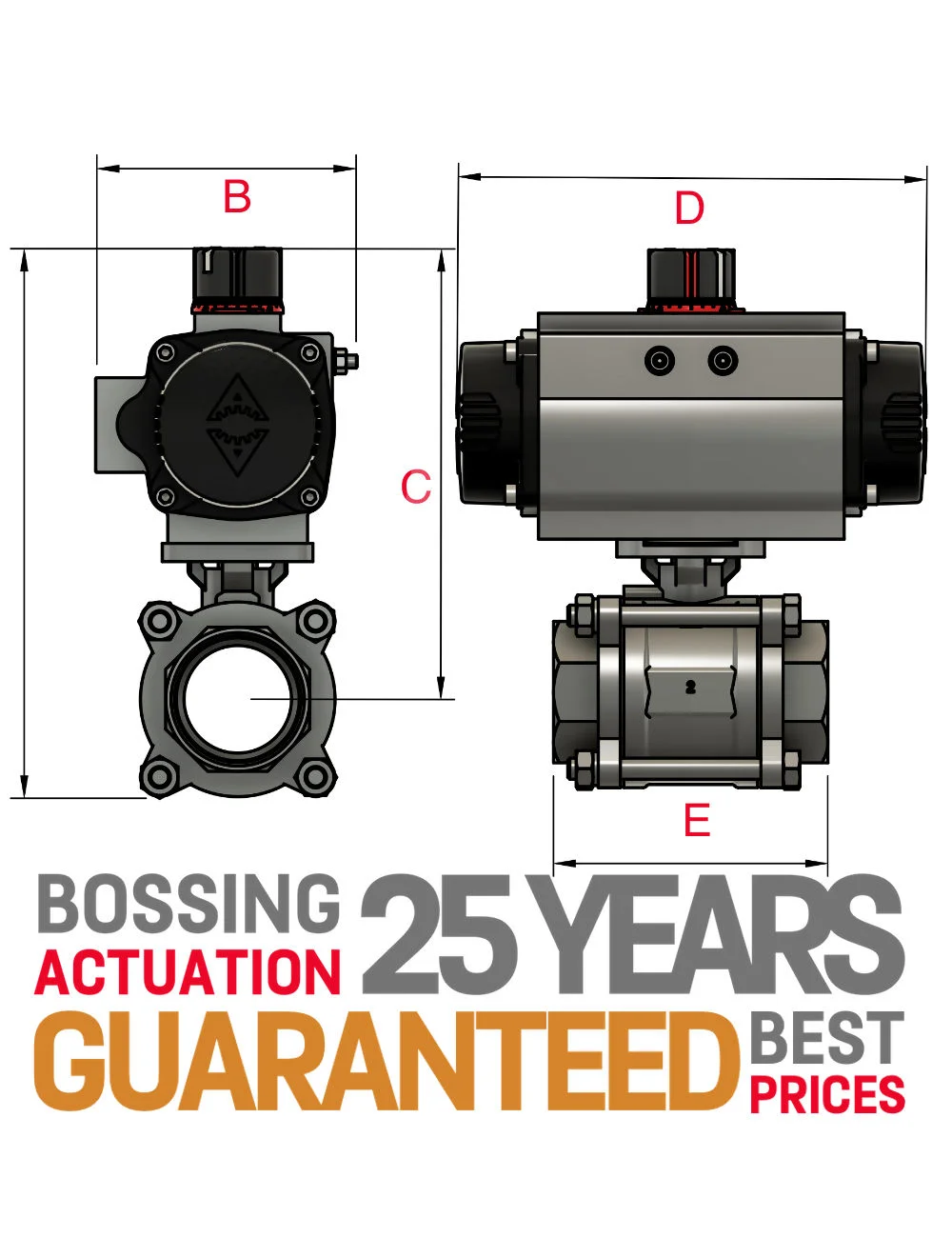

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	81.00	138.00	163.00	75.00	72.00	131.00	145.00	75.00
3/8"	81.00	138.00	163.00	75.00	72.00	131.00	145.00	75.00
1/2"	81.00	138.00	163.00	75.00	72.00	131.00	145.00	75.00
3/4"	81.00	144.50	163.00	80.00	72.00	137.50	145.00	80.00
1"	96.00	173.50	195.00	90.00	72.00	147.50	158.00	90.00
1 1/4"	96.00	178.00	195.00	110.00	72.00	152.00	158.00	110.00
1 1/2"	116.00	208.30	217.00	120.00	84.50	176.30	177.00	120.00
2"	116.00	215.20	217.00	140.00	93.00	200.20	177.00	140.00
2 1/2"	127.00	247.00	258.00	185.00	93.00	222.00	196.00	185.00
3"	140.00	273.50	299.00	205.00	106.00	243.50	225.00	205.00
4"	157.00	322.00	348.50	240.00	136.00	315.00	273.00	240.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Design Standard:	MSS SP-110
Wall Thickness:	EN 12516-3
Inspection & Testing:	MSS SP-110
BSP Ends: (AV-L3000)	BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000)	ASME B1.20.1
Socket Weld Ends: (AV-L3100)	ASME B16.11
Butt Weld Ends: (AV-L3200)	ASME B16.25 (Sch 40)
Pressure Rating:	1000 PSI

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
