Actuated Ductile Iron Double Flanged TTV Butterfly Valves

Double Flanged Butterfly Valves offer a single piece body design with flanges at either end to provide greater resistance for dead-end service. This particular TTV Butterfly Valves’ main strength is its face to face interchangeability and has been designed to meet international standards for not only Butterfly Valves but even some Gate Valves giving the End User far more options when it comes to replacing existing valves in the line. Replacing some antiquated Gate Valves with Butterfly Valves in certain applications is now common practice.

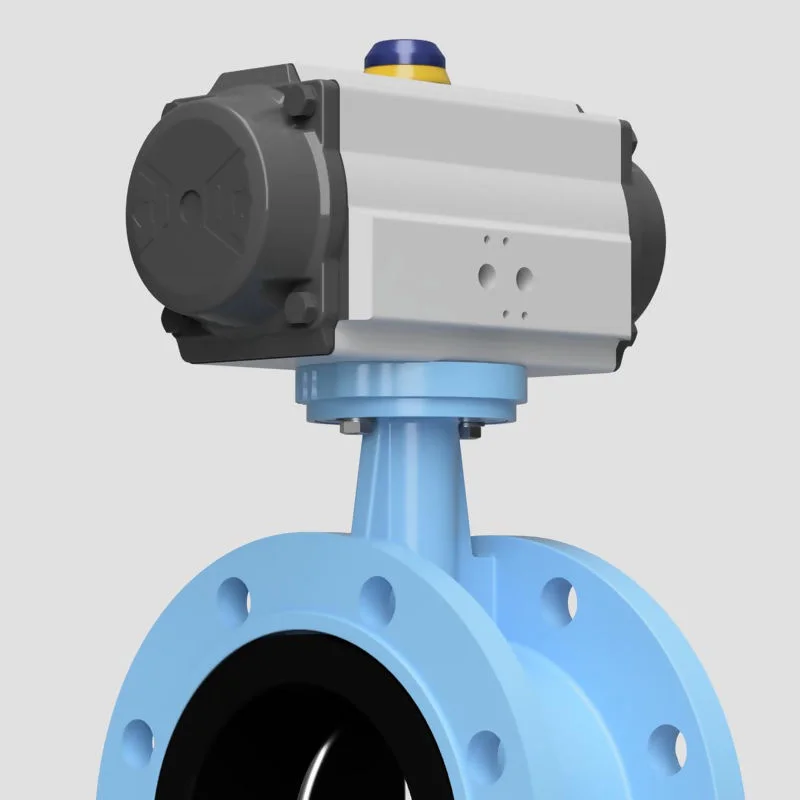

20HV3040AT - Double Flanged Air Torque Actuated Butterfly Valves

A combination of the TTV 20HV3040 and Air Torque actuator. Currently our most popular actuated butterfly valve assembly that outperforms most others on the market. A rilsan coated body butterfly valve and anodised aluminium actuator provide external protection for most non aggressive external application factors. A replaceable valve seat and actuator rated to SIL3 complete a robust general purpose package that will go the distance and provide maximum life capacity. The Air Torque actuator is in field convertible should you ever require a change from the spring return and double acting functionalities.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air

20HV3040IQ - Double Flanged Rotork Actuated Butterfly Valves

Double Flanged Butterfly Valves offer a single piece body design with flanges at either end to provide greater resistance for dead-end service. This particular TTV Butterfly Valves’ main strength is its face to face interchangeability and has been designed to meet international standards for not only Butterfly Valves but even some Gate Valves giving the End User far more options when it comes to replacing existing valves in the line. Replacing some antiquated Gate Valves with Butterfly Valves in certain applications is now common practice.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air

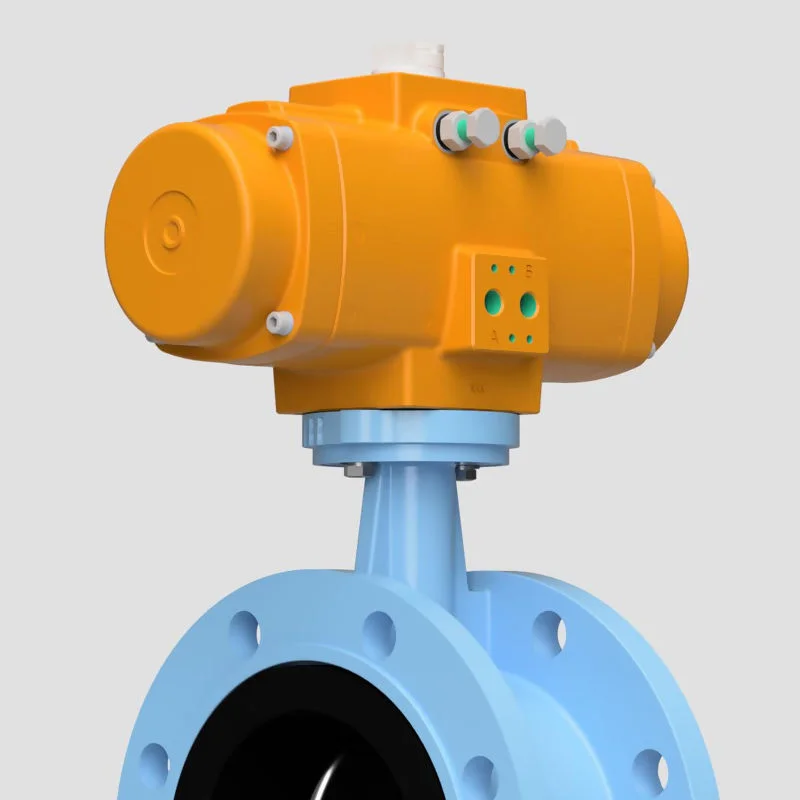

20HV3040EL - Double Flanged Elomatic Actuated Butterfly Valves

The El-O-Matic range of actuators and TTV actuated butterfly valves offer a premium branded package for the 20HV3040 concentric design. With over 3 million units sold worldwide El-O-Matic has quite quickly established itself amongst the leading global manufacturers. Their fit and forget principle ensures the total cost of ownership is reduced to a minimum. A hard anodized, high grade aluminium housing make this the choice of many for heavy duty applications. Dual stroke adjustments prevent premature failure and allows for easy on site calibration.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air

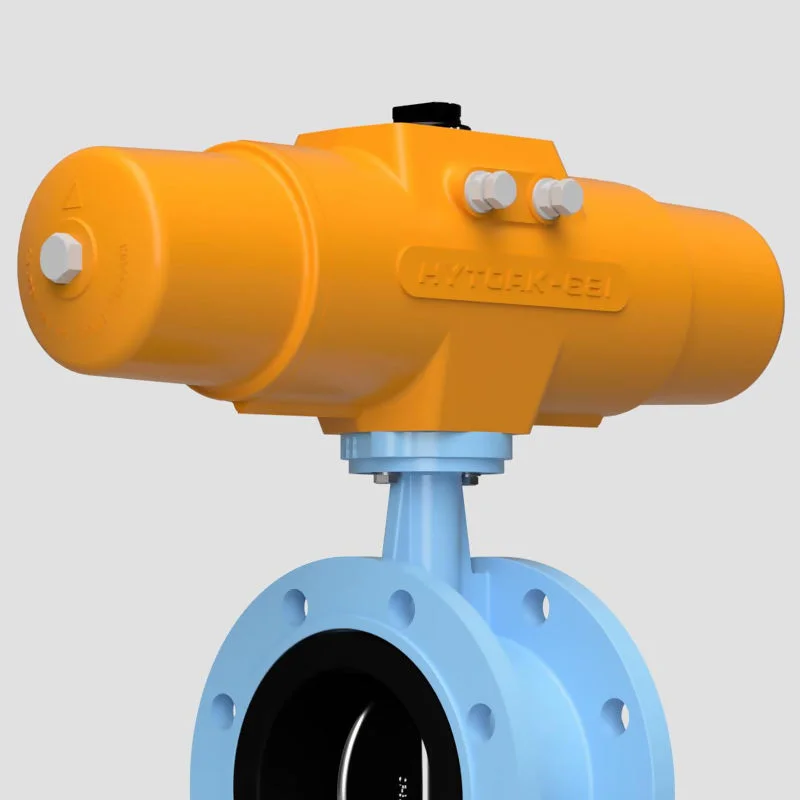

20HV3040XL - Double Flanged Hytork Actuated Butterfly Valves

The Hytork XL series of pneumatic actuators combines quality, reliability and economy into a single actuated butterfly valve pacakage. Suitable for On/Off and modulating applications the TTV/Hytork combination is assembled with Atex compliant components. As part of the Emerson portfolio (Hytork) we can also offer the Asco range of Pilot Solenoid Valves & TopWorx Valve Limit Switch Box, keeping all actuation components under the one brand. This includes Ex d, Ex-ia and Safe Area. All moving actuator parts are protected by a long lasting DURASTRIP lubrication which significantly reduces friction.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
