3- Way PN16-PN40 Full Bore Elomatic Actuator Ball Valves

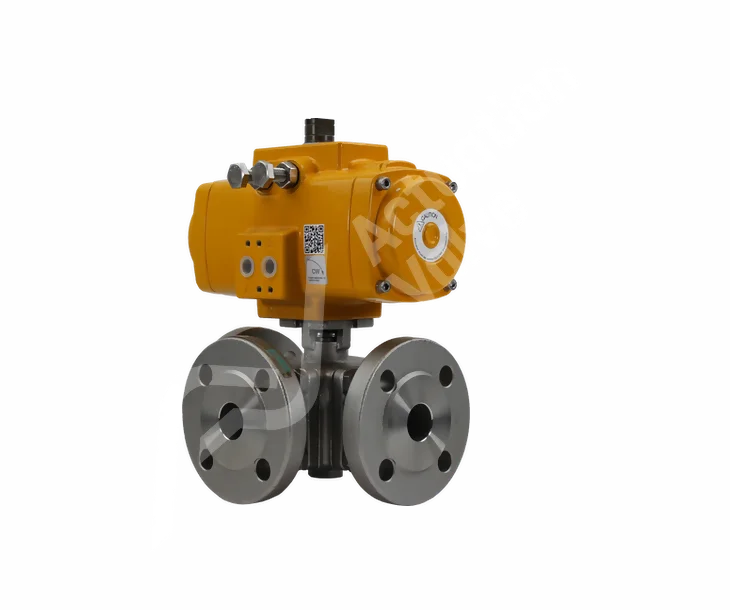

The AV-L5K00 & 5N00 Flanged 3-Way Stainless Steel Ball Valve is a versatile, economical and durable valve which has been developed specifically to provide long service life for applications where reliability is key. Available with two configurations, L Port & T Port. The difference between the two is that the L Port version can offer complete shutoff depending on actuator type where as the T Port offers diversion only or constant flow form one port to another. With its long life springs and precision engineering, the EL-O-Matic Pneumatic Actuator offers safe & secure plant operations. Features include high durability, low maintenance and simple operation. These qualities make it an ideal choice for your application.

Key Features

Key features and benefits of AV-L5K00EL & AV-L5N00EL Actuated Ball Valves.
1

Key Features

The EL-O-Matic Pneumatic Actuator uses an innovative design that combines proven technology with state of art engineering techniques to deliver reliable results without increasing complexity or adding additional components into your system.
2

Key Features

Our actuators have long life springs, precision engineering and a fail safe mechanism that will ensure reliable operation of your equipment over time. When looking for a Pneumatic Actuator that has been engineered to exceed industry standards choose EL-O-Matic.
3

Key Features

The AV-L5K00 & 5N00 is an affordable line of high-quality stainless steel ball valves that won't break your budget. These durable products will give you years of trouble-free service at a fraction of the price that other companies charge for similar products.

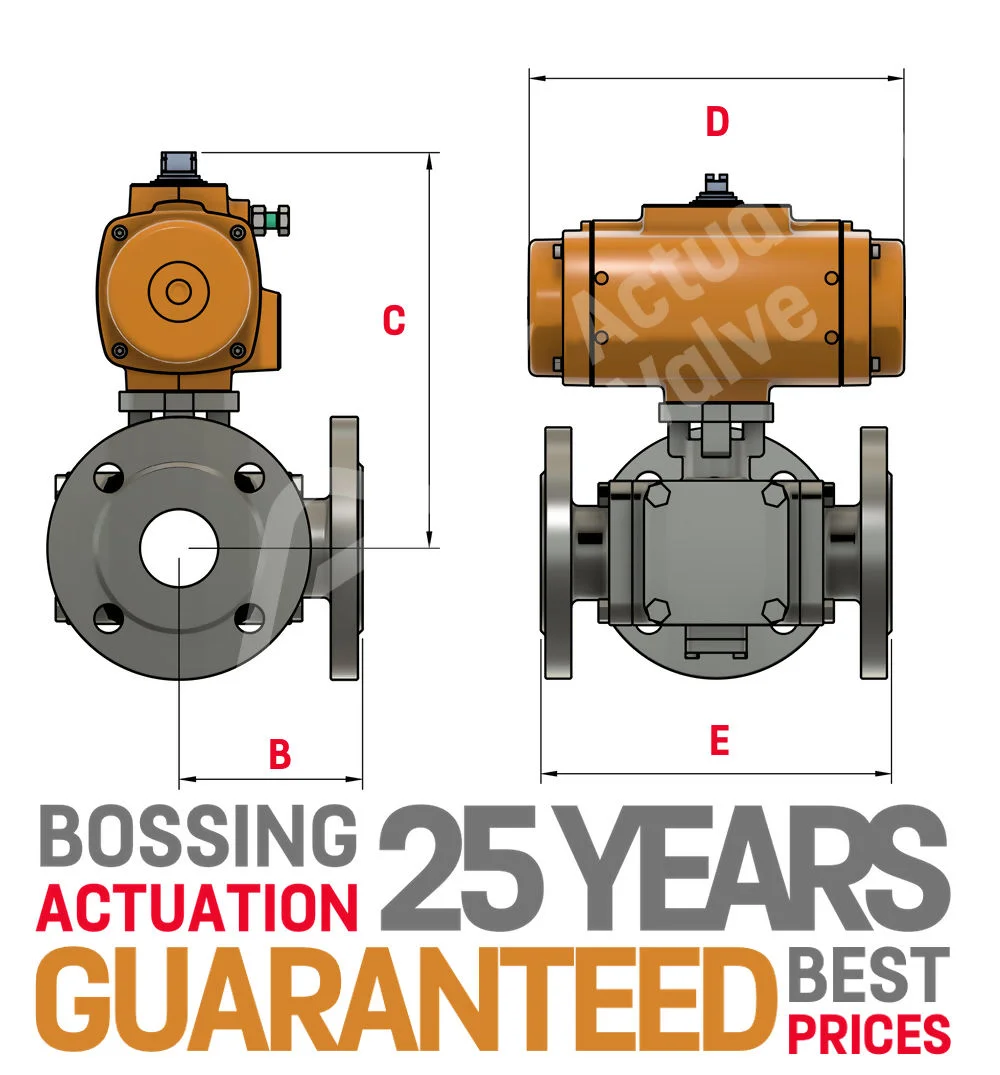

3-Way PN16 PN40 Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" TBA 164.00 166.00 TBA 133.00 103.00 150.00
3/4" TBA 189.00 192.00 TBA 168.00 166.00 165.00
1" TBA 212.00 217.00 TBA 200.00 192.00 181.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA
1 1/2" TBA 236.00 247.00 TBA 229.00 217.00 190.00
2" TBA 269.00 304.00 TBA 243.00 247.00 212.00
2 1/2" TBA 290.00 362.00 TBA 284.00 235.00 230.00
3" TBA 340.00 385.00 TBA 302.00 265.00 310.00 / 340.00
4" TBA 428.00 476.00 TBA 371.00 284.00 352.00 / 386.00

3-Way PN16 PN40 Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Elomatic Actuator Videos

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.

TopWorx Limit Switch Box

TopWorx Elomatic Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Elomatic Actuator prior to shipping.
