Bettis Pneumatic Rack And Pinion Valve Actuators

Bettis represents a pinnacle of reliability and performance in pneumatic valve actuation, specifically engineered to meet the diverse demands of industrial applications. The pneumatic Bettis range, offers both spring return and double-acting models to cater to various working requirements. Manufactured with a focus on durability and longevity, Bettis actuators feature a high-quality extruded aluminium body, coupled with cast aluminium end caps. This design is strong and durable, with great protection against rust and environmental damage. It works well in many different conditions.

Key Features

Key features and benefits of Bettis Pneumatic Rack And Pinion Valve Actuators.
1

Key Features

Bettis Actuators are designed to automate a wide range of quarter-turn valves, including ball, butterfly, and plug valves, providing versatile solutions for various industrial applications.
2

Key Features

Constructed with a high-quality extruded aluminium body and cast aluminium end caps, Bettis actuators offers exceptional durability and corrosion resistance, ensuring reliable performance even in harsh operating environments.
3

Key Features

With a powder-coated finish that provides a unique satin appearance, the Bettis actuators not only offers superior protection against wear and tear but also adds an aesthetic touch to industrial settings, enhancing overall visual appeal.

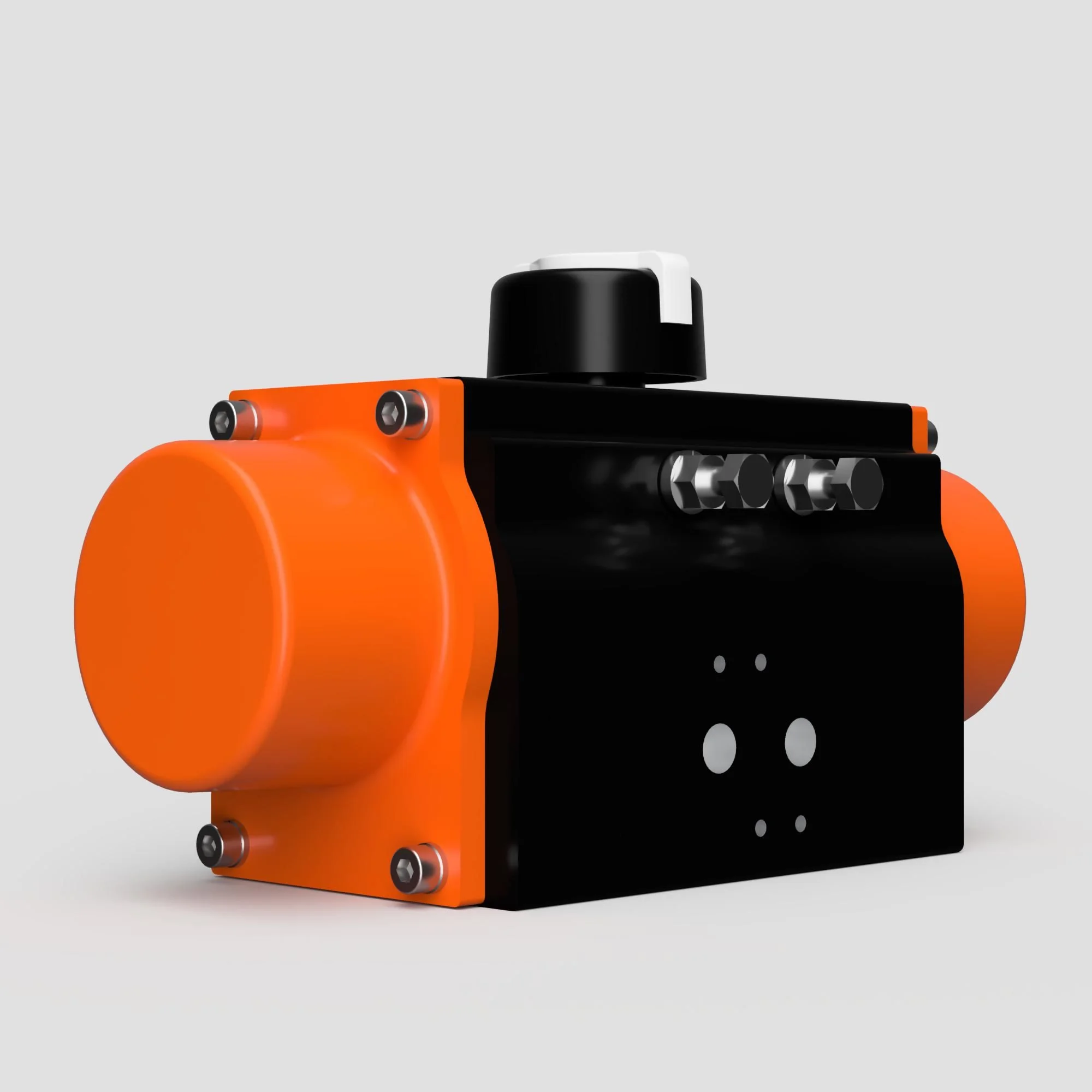

Bettis RPX Series

The Bettis RPX-Series sets a benchmark in pneumatic valve actuation with its robust design and versatile functionality. Engineered as a rack & pinion actuator, it offers reliability and precision across various industrial applications. With a range encompassing 13 sizes, it caters to diverse valve automation needs, whether as spring return or double-acting models. Designed to streamline the operation of quarter-turn valves such as ball, butterfly, and plug valves, the RPX-Series ensures seamless control and enhanced efficiency. Its adaptable nature makes it an ideal choice for a spectrum of industries, from oil and gas to water treatment and beyond.

Product Type: Pneumatic Rack and Pinion Actuator
Actuation: Quarter Turn Spring Return or Double acting applications
Certifications: ATEX, PED and Machinery Directives
Control Type: On/Off, Positioning, Modulating, ESD
Operating Temperature: Standard -20°C to +80°C (-4°F to +176°F). Optional high and low temperature options
Torque: 11 sizes: 11 to 4173 Nm (197 to 36,955 lbf.in)
Operating Pressure: Upto 8.3 bar / 120 psi
Find Out More

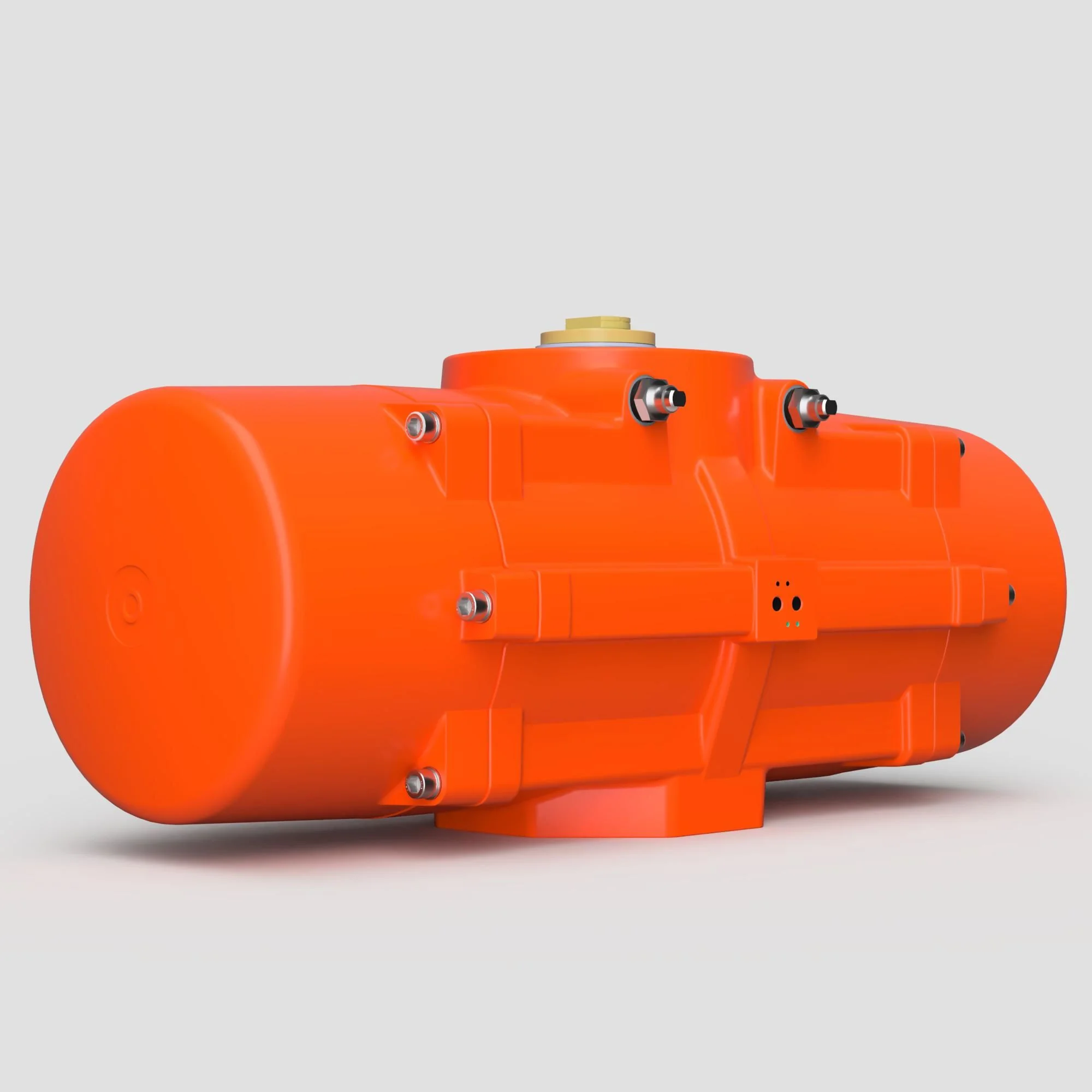

Bettis RPE Series

The Bettis RPE-Series stands as a pinnacle of reliability and performance in the realm of pneumatic rack and pinion valve actuators. Crafted with precision and engineered for durability, this series epitomizes excellence in valve automation. With a comprehensive range of 12 sizes available, each meticulously designed as either spring return or double-acting models, the Bettis RPE-Series caters to diverse industrial needs with unparalleled versatility. At the core of its design lies a robust rack and pinion mechanism, meticulously crafted to deliver seamless operation in quarter-turn valve applications. Whether tasked with controlling critical processes or facilitating routine operations, these actuators excel with unwavering performance and precision.

Product Type: Pneumatic Rack and Pinion Actuator
Actuation: Double-acting, Spring-return, Quarter-turn
Certifications: ROHS3, REACH, ATEX, PED and Machinery Directives, SIL3, IP66/67
Control Type: On/Off, Positioning, Modulating, ESD
Operating Temperature: Standard -20°C to +80°C (-4°F to +176°F). Optional high and low temperature options
Torque: 12 sizes: 12 to 4100 Nm (106 to 36,474 lbf.in)
Operating Pressure: Up to 8.3 bar / 120 psi
Find Out More

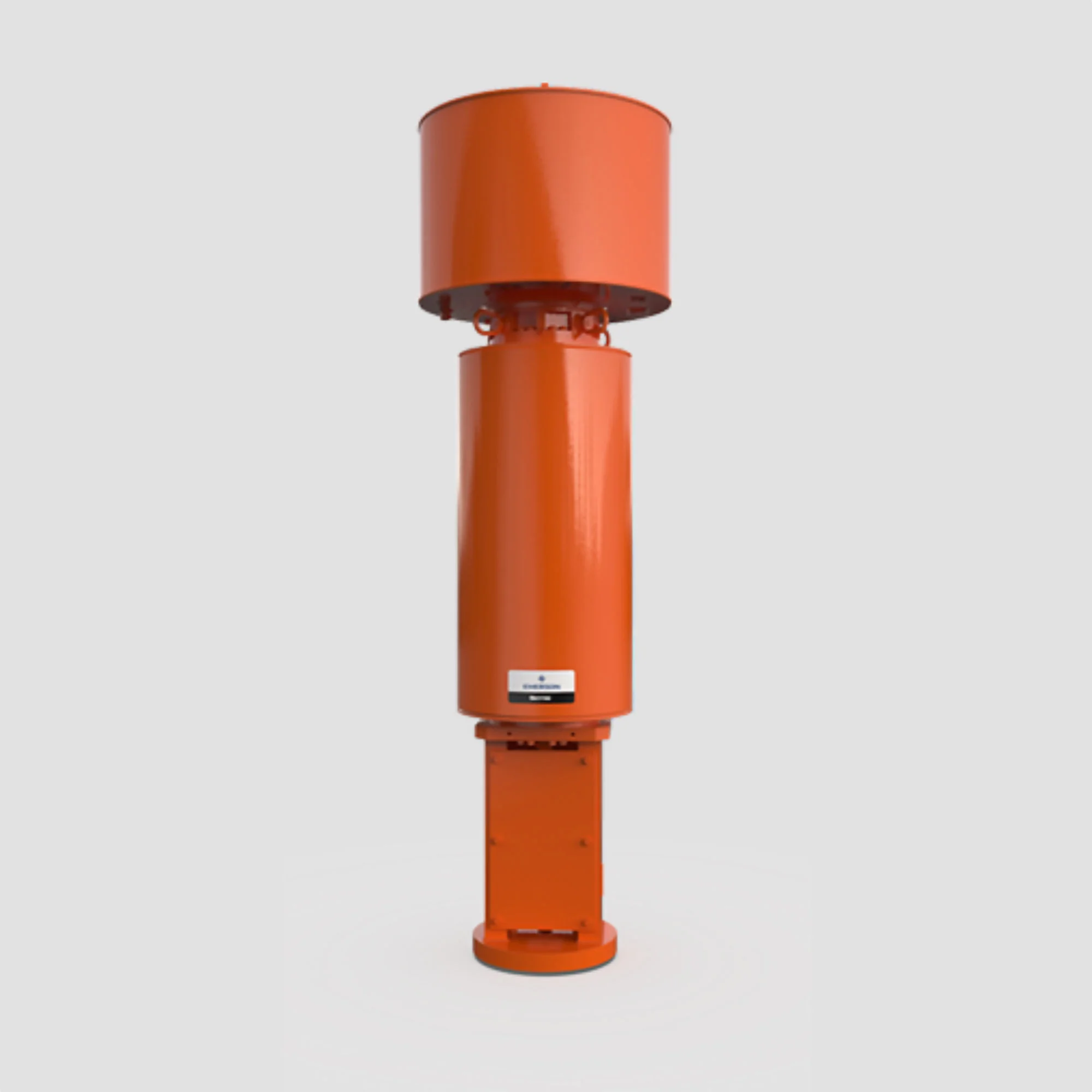

Bettis GVO Series

The Bettis GVO Linear Pneumatic Valve Actuator stands as a pinnacle of efficiency and reliability, tailored to meet the demands of various industrial applications requiring precise control over rising stem valves. Whether it's slab, wedge, knife, or expanding gate valves, along with globe valves, rising stem ball valves, or dampers, the GVO Actuator effortlessly automates their operation, ensuring seamless functionality and enhanced process efficiency.

Product Type: Pneumatic Actuator
Actuation: Linear, Double-Acting
Certifications: ATEX, PED, SIL capable (CE)
Control Type: On/off
Operating Temperature: From -60 °C to 100 °C (From -76 °F to 212 °F)
Thrust: Double-acting thrust up to 1600000 N (360000 lb), Spring ending thrust up to 450000 N (101000 lb), Spring starting thrust 540000 N (121000 lb)
Operating Pressure: 12 barg (174 psi)
Find Out More

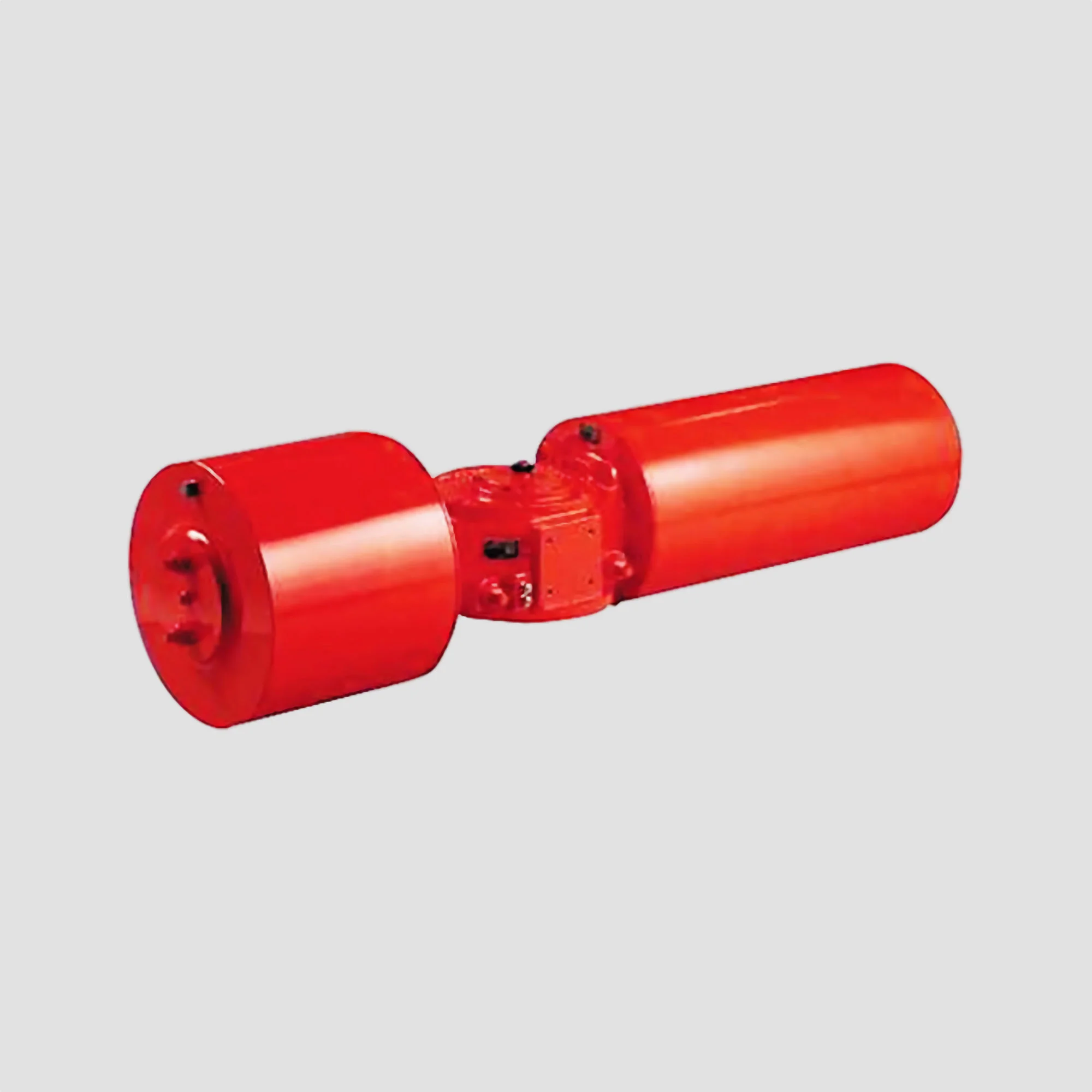

Bettis NG Series

The Bettis NG-Series stands as a pinnacle of reliability and performance in pneumatic valve actuation, specifically engineered to meet the stringent demands of nuclear and other critical applications. Independently tested to ensure compliance with rigorous standards such as LOCA (Loss of Cooling Accident) and IEEE 382, seismic requirements, and various aging processes, the NG-Series offers unmatched reliability and safety assurance in critical environments.

Product Type: Pneumatic Actuator
Actuation: Fail-Safe, Quarter-turn, Spring-Return, Double-Acting
Certifications: Nuclear/Seismic
Control Type: On/off
Operating Temperature: Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C)
Torque/Thrust: Spring-return models in excess of 3,000,000 in-lbs (339,000 Nm)
Operating Pressure: 40-220 psig (3-14 Bar)
Find Out More

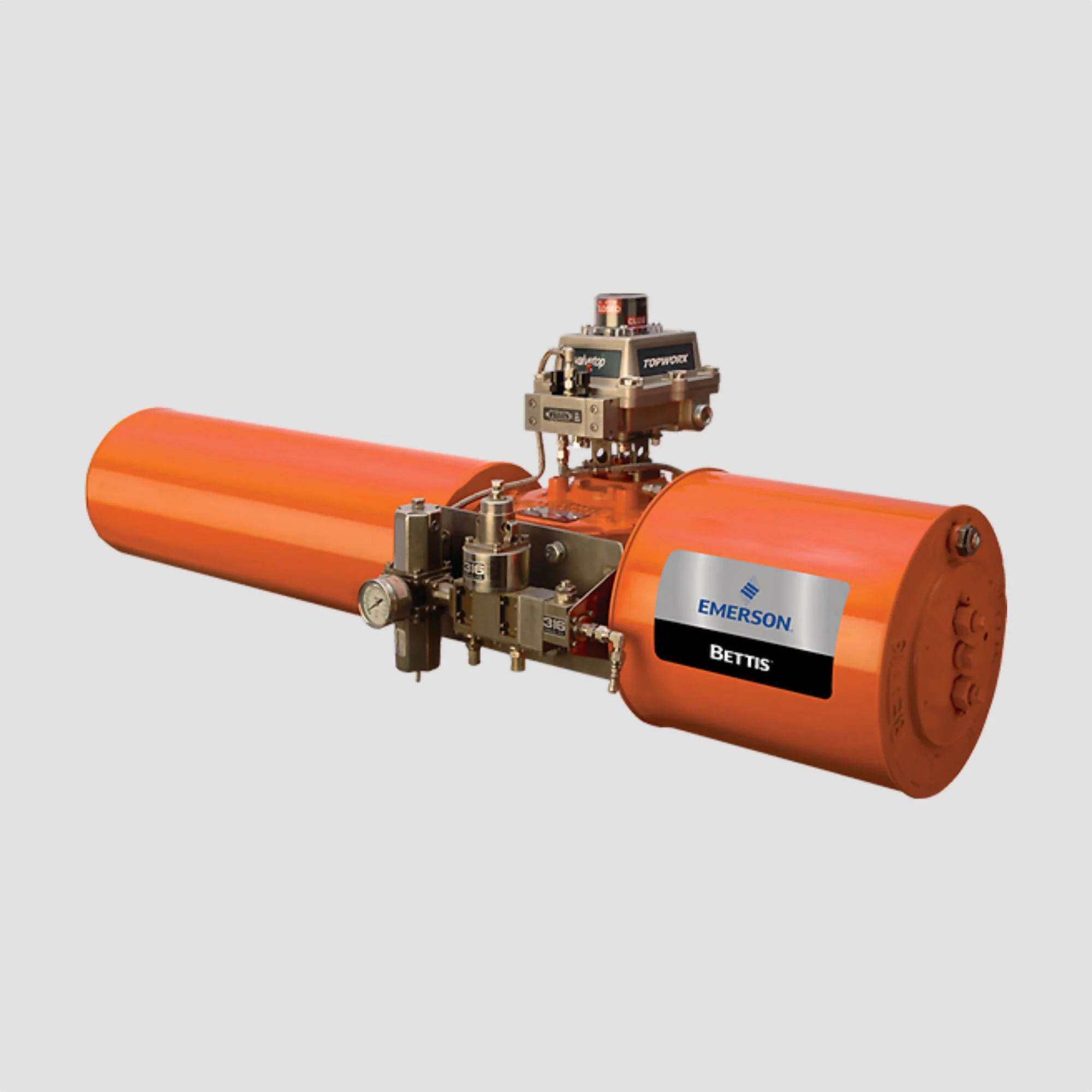

Bettis VOS-PAC Series

The Bettis VOS-PAC Actuation Package, a groundbreaking turnkey solution that revolutionises the procurement process for valve automation. Engineered with efficiency in mind, this pre-engineered and pre-specified package streamlines the entire acquisition process, enabling instant quotes, transparent pricing, and expedited deliveries. The VOS-PAC Actuation Package sets a new standard for convenience and accessibility, offering swift access to comprehensive documentation, ensuring seamless integration into your existing systems. Gone are the days of prolonged lead times and cumbersome procurement procedures. With the VOS-PAC, you gain immediate access to all necessary information, facilitating informed decision-making and rapid deployment.

Product Type: Pneumatic Actuator
Actuation: Fail-Safe, Quarter-turn, Spring-Return, Double-Acting
Certifications: ATEX, PED
Control Type: On/off
Operating Temperature: Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C)
Torque/Thrust: Up to 1,200,000 lbf-in (135,000 Nm)
Operating Pressure: 60 or 80 psig (4 or 5.5 Bar)
Find Out More

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Frequently Asked Questions

The Bettis range is designed to handle pneumatic media for optimal performance.

Pneumatic actuators in the Bettis range typically operate within a supply pressure range suitable for pneumatic actuation.

The Bettis range offers fail-safe, quarter-turn, spring-return, and double-acting actuation options to suit various application requirements.

The Bettis range is certified with ATEX and PED certifications, ensuring compliance with European safety standards.

Bettis actuators support on/off control for efficient and straightforward operation.

Bettis actuators are compatible with various valve types, including ball valves, butterfly valves, plug valves, triple offset valves, and other quarter-turn devices.

The standard operating temperature range for Bettis actuators is from -20°F to +200°F (-29°C to +93°C), with optional ranges available to -40°F (-40°C) or up to +350°F (+177°C).

Bettis actuators boast a torque/thrust capacity of up to 1,200,000 lbf-in (135,000 Nm), ensuring robust performance across a range of applications.

The standard operating pressure for Bettis actuators is either 60 or 80 psig (4 or 5.5 Bar), providing optimal performance within specified parameters.

Yes, Bettis actuators offer optional temperature ranges to accommodate extreme temperature environments, ensuring reliable operation in diverse conditions.

Yes, Bettis actuators offer fail-safe actuation options, providing added reliability and safety for critical applications.

Yes, Bettis actuators are designed for straightforward integration with various valve types and control systems, facilitating seamless automation of industrial processes
