The Stainless Steel Ball Valves are economical, reliable and easy to use. They come with an FDA approved TFM seat that's also WRAS certified so they're perfect for some sanitary applications (Please check). These valves are ideal for both commercial and residential use. These ball valves are available in screwed connections NPT & BSP and they work great in any application where a flow control device is needed. They're fully compliant with safety standards so they'll keep your workplace safe while being easy on your budget at the same time. The Actreg actuator design incorporates features which allow for use under adverse conditions such as high and Low temperatures. This includes special FKM o’rings for high temperature (150ºC) and Silicone o’rings for ambient operation conditions as low as -55Cº.

Shop Help Me

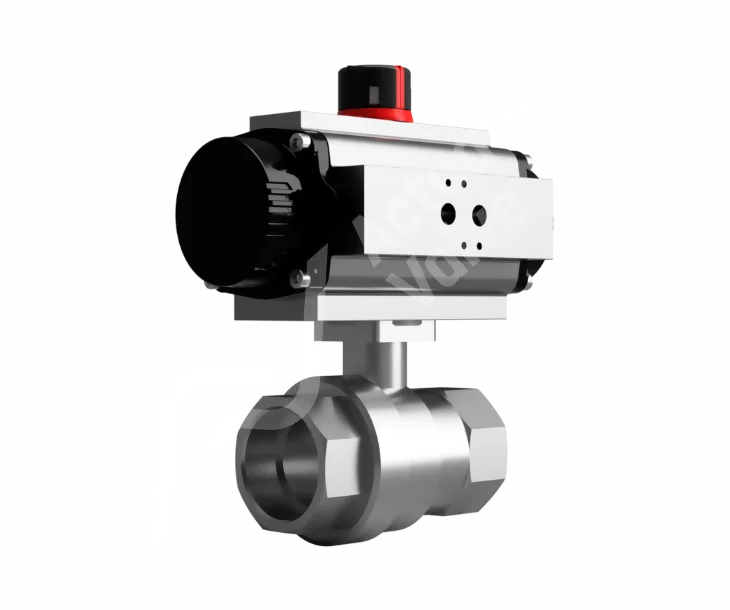

Key features and benefits of AV-L2000AC Actuated Ball Valves.

Key Features

Actreg actuators offer NAMUR mounting (VDE/VDI 3845) allowing for easy integration with the additional ancillary products including solenoid valves and valve position monitors that might be required for application or operational needs. Actuation Valve can also supply a range of accessories for you actuator.

Key Features

The AV-L2000 two piece full bore stainless steel ball valves feature a compact body design taking up less space in the pipeline. This also reduces overall weight and cost of the actuated valve package when compared to the 3 piece ball valves.

Key Features

Utilising dual flange drillings and offering multiple drive inserts the Actreg pneumatic actuator allows for greater versatility when mounting to ball and butterfly valves. In particular our TTV Butterfly Valve. This eliminates requirements for additional mounting brackets reducing costs, weight and lead time.

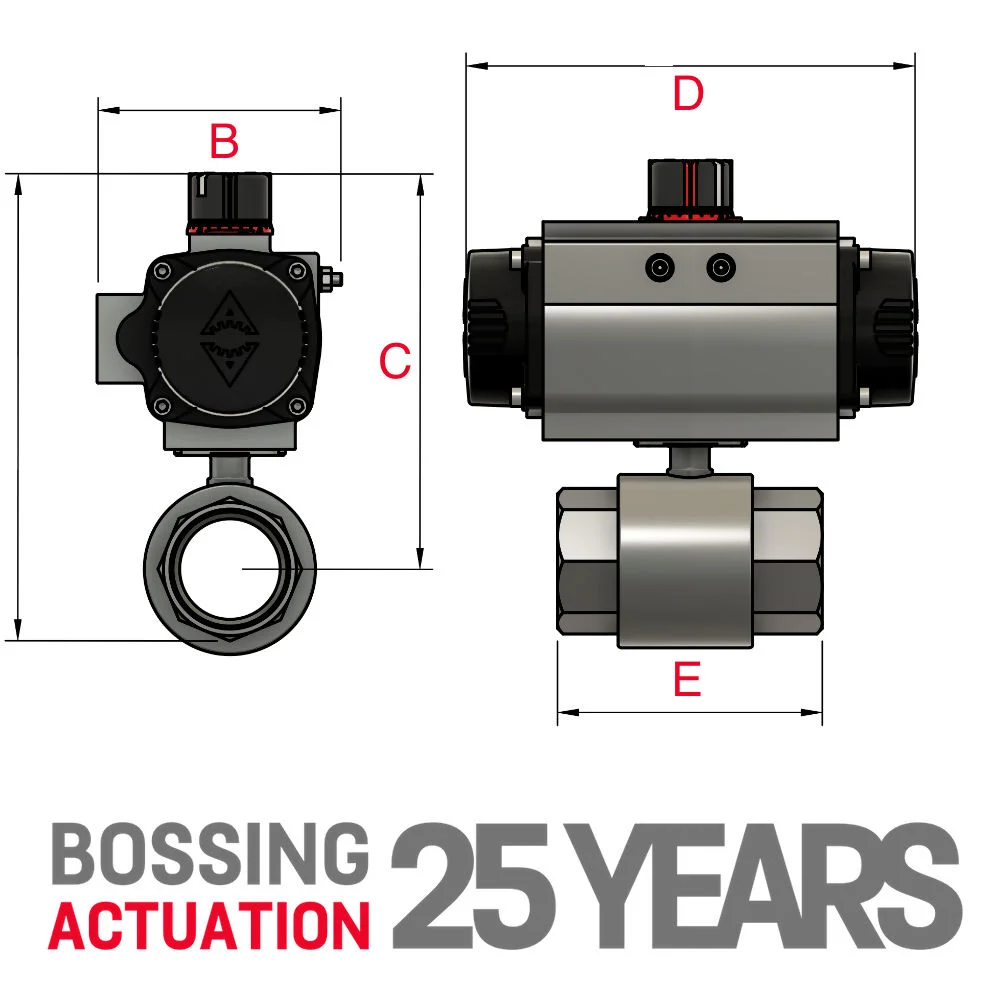

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	81.00	138.50	163.00	67.00	81.00	138.50	145.00	67.00
3/8"	81.00	138.50	163.00	67.00	81.00	138.50	145.00	67.00
1/2"	81.00	138.50	163.00	67.00	81.00	138.50	145.00	67.00
3/4"	81.00	145.00	163.00	70.40	81.00	145.00	145.00	70.40
1"	96.00	173.00	195.00	85.00	96.00	173.00	158.00	85.00
1 1/4"	96.00	177.50	195.00	94.00	96.00	177.50	158.00	94.00
1 1/2"	116.00	208.50	217.00	105.00	116.00	208.50	177.00	105.00
2"	116.00	215.50	217.00	125.00	116.00	215.50	177.00	125.00
2 1/2"	127.00	247.00	258.00	155.00	127.00	247.00	196.00	155.00
3"	140.00	274.00	299.00	173.00	140.00	274.00	225.00	173.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10
Pressure Rating:	1000 PSI

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS
