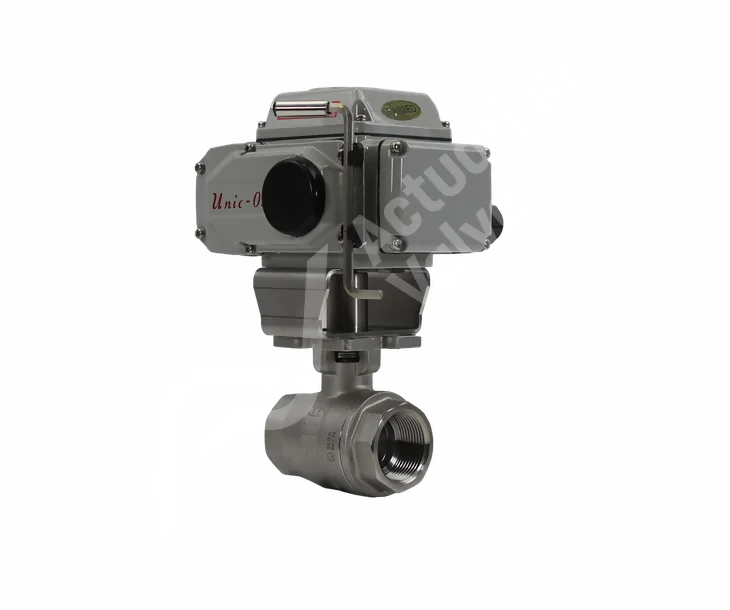

The AV-L2000EK stainless steel actuated ball valve delivers full bore process flow in a compact 2 piece body design. This threaded end connection valve is lightweight and easy to install with SIL approval (Valve only) for peace of mind that you will have reliable shut off performance for many years to come. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed. Express shipping for delivery within 24-48 hours for stock components.

Key features and benefits of AV-L2000EK Actuated Ball Valves.

Key Features

This advanced new product is easy to install and maintain while providing superior reliability over traditional hydraulic solutions. Its small size makes it perfect for use in tight spaces or where space is limited.

Key Features

The AV-L2000 is a heavy duty ball valve designed for use in harsh environments with oils based paints and coatings. This valve features stainless steel construction, silicone free seals, self aligning seats and minimal maintenance design.

Key Features

The Koei UNIC electric actuator is the ideal actuation solution for end users looking for a low-cost alternative that offers zero maintenance and easy operation. The overall cost of ownership can be up to 50% less than compared to other actuators on the market.

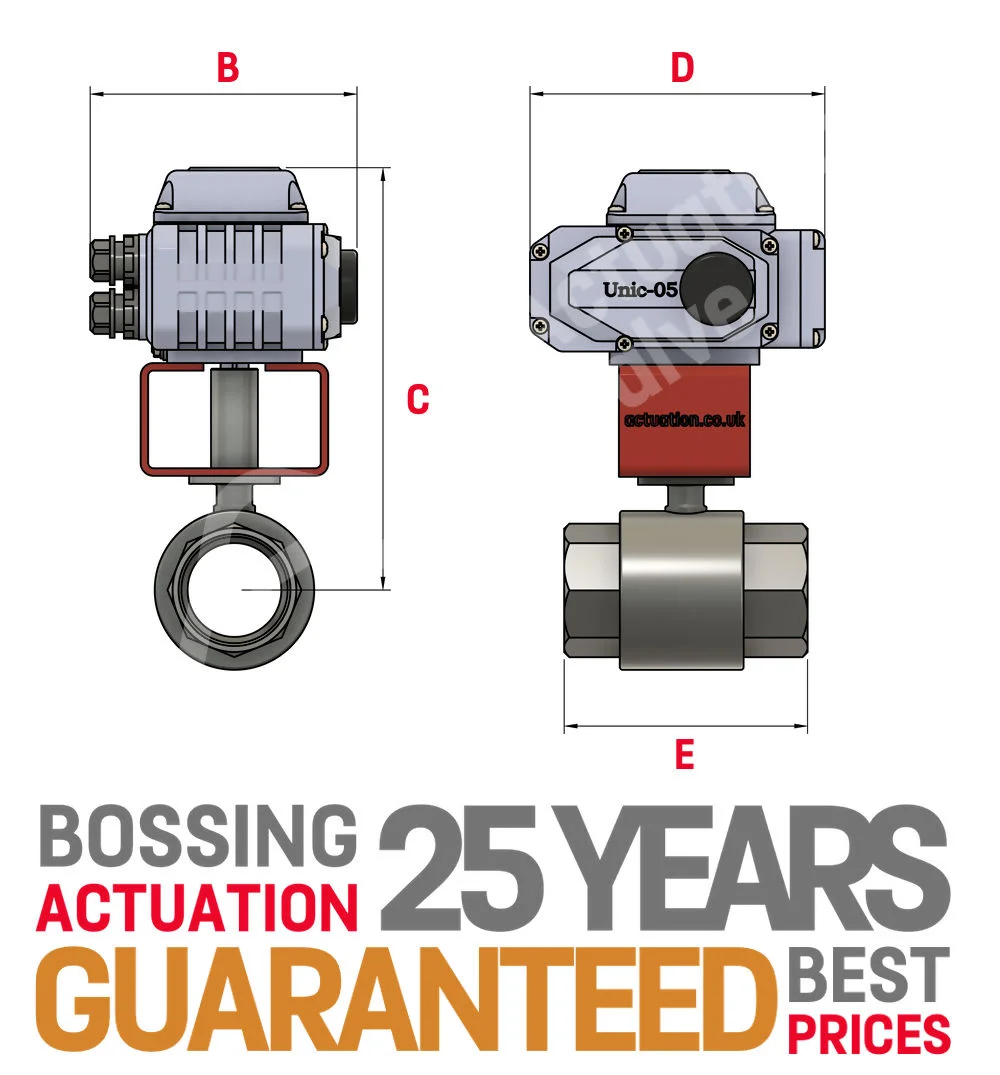

	B	C	D	E	Model

1/4"	145.00	218.50	159.00	67.00	UNIC 05
3/8"	145.00	218.50	159.00	67.00	UNIC 05
1/2"	145.00	218.50	159.00	67.00	UNIC 05
3/4"	145.00	225.00	159.00	70.40	UNIC 05
1"	145.00	234.00	159.00	85.00	UNIC 05
1 1/4"	145.00	238.50	159.00	94.00	UNIC 05
1 1/2"	145.00	247.50	159.00	105.00	UNIC 05
2"	145.00	254.50	159.00	125.00	UNIC 05
2 1/2"	155.00	302.00	208.00	155.00	UNIC 10
3"	155.00	311.00	208.00	173.00	UNIC 10
4"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10
Pressure Rating:	1000 PSI

They are used for automated on/off control of flow in pipelines across industries like water treatment, HVAC, oil & gas, and general industrial applications.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Koei UNIC actuators are manufactured in Japan and are known for being over-specified, offering high torque output, long service life, and reliable operation in demanding environments.

A 2 piece ball valve consists of two main body sections, allowing easier maintenance compared to one-piece designs while maintaining strong sealing and durability.

Yes, Koei UNIC actuators come with a durable stove enamel finish and are designed to handle outdoor conditions with temperature ranges typically from -25°C to +55°C.

They are primarily designed for on/off operation, but modulating versions can be supplied depending on actuator configuration.

They are commonly available in stainless steel (e.g. CF8M) and carbon steel, making them suitable for a wide range of media including water, steam, and chemicals.

Yes, Koei UNIC electric actuators are supplied with a reliable manual override as standard, allowing operation during power failure or maintenance.

Typical voltage options include 24V, 110V, and 230V, depending on the application requirements.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

CERTIFICATES & APPROVALS
