Cast Iron Check Valves

Cast Iron Check Valves are mechanical devices used to control the flow of fluids, typically in pipelines and plumbing systems. They are constructed from durable cast iron, making them well-suited for applications that require strength and resistance to corrosion. These valves operate based on the principle of allowing fluid to flow in one direction while preventing back-flow in the opposite direction. Cast iron check valves are commonly used in water supply, wastewater, and industrial systems to prevent the reversal of fluid flow, ensuring efficient and reliable operation while minimising the risk of contamination or damage to the system. Their robust construction and dependable performance make them a popular choice for various fluid control applications.

Key Features

Key features and benefits of Cast Iron Check valves
1

Key Features

Cast iron check valves are known for their robust and long-lasting construction, making them highly resistant to wear, corrosion, and damage from harsh operating conditions. This durability ensures a longer service life.
2

Key Features

These valves are designed to allow fluid to flow in one direction while preventing reverse flow. This critical function safeguards pipelines and systems from potential contamination or damage caused by back-flow.
3

Key Features

Cast iron check valves typically require minimal maintenance, which reduces the overall cost of ownership. Their design simplifies operation, and they are often self-actuating, eliminating the need for external power sources.
4

Key Features

These valves are versatile and find applications in a wide range of industries, including water supply, wastewater treatment, HVAC systems, and industrial processes, thanks to their adaptability and reliability.
5

Key Features

Cast iron check valves are often more cost-effective than other materials while still providing excellent performance. Their long lifespan and minimal maintenance needs contribute to cost savings over time.
6

Key Features

Cast iron check valves are available in various types, including swing check, lift check, and dual-plate check valves, as well as different sizes to accommodate diverse system requirements. This variety allows for tailored solutions in different applications.

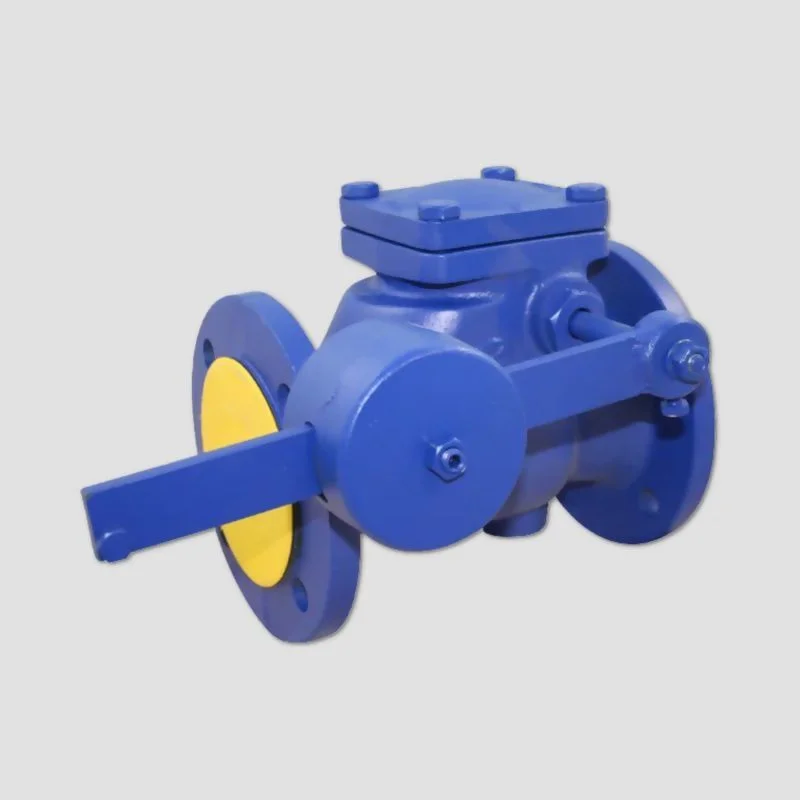

AV-5170 / AV-5170LP Cast Iron Check Valve - Flanged PN16 - EPDM Seat

The AV-5170 / 5170LP are robust and versatile valves designed for controlling fluid flow in pipelines and systems. Constructed from durable cast iron, they offer exceptional strength and resistance to corrosion, making them suitable for a wide range of applications. The PN16 flanged connection ensures compatibility with pipelines operating at pressures up to 16 bar. The EPDM seat, known for its excellent sealing properties and resistance to a variety of fluids, enhances the valves' performance and reliability. This combination of materials and design features makes these valves a dependable choice for preventing backflow and ensuring the smooth and efficient operation of fluid systems.

Size Range: 1 1/2" to 12"
Temperature Range: -10°C to 120°C
Pressure Rating: PN16
End Connection: Flanged PN16
Body Materials: Cast Iron Body & Swing, EPDM Seat
Applications:
Contact Us

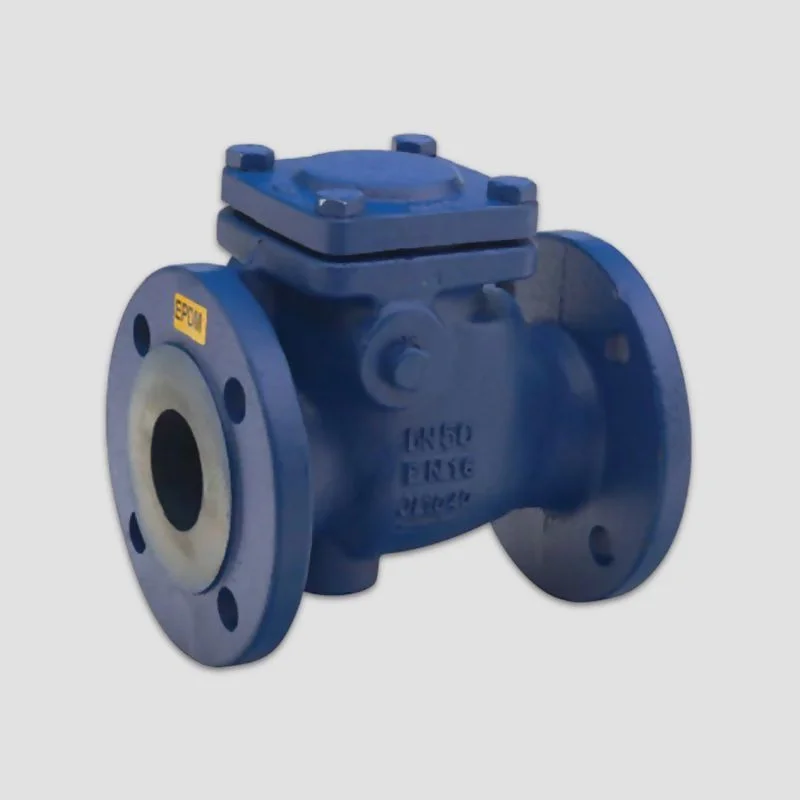

AV-5172 / 5172LP Cast Iron Check Valve - Flanged PN16 - Stainless Steel Seat

The AV-5172 / 5172LP is a vigorous and versatile fluid control device specifically designed for applications requiring a secure, tight seal. The cast iron construction provides exceptional durability and resistance to wear and corrosion, making it suitable for a wide range of industries. The PN16 flanged connection ensures compatibility with pipelines and systems designed for this pressure rating. The stainless steel seat enhances the valve's sealing capabilities, preventing backflow effectively while providing longevity and reliability. This valve is an ideal choice for applications where a strong, corrosion-resistant, and dependable check valve with PN16 flanged connections and stainless steel seating is essential.

Size Range: 1 1/2" to 12"
Temperature Range: -10°C to 300°C
Pressure Rating: PN16
End Connection: Flanged PN16
Body Materials: Cast Iron Body & Swing, Stainless Steel Seat
Application:
Contact Us

Frequently Asked Questions

Actuated butterfly valves offer advantages such as synchronisation of multiple line valves, remote isolation, torque required for opening larger butterfly valves, and security measures to prevent misuse.
The body materials can be GJS500-7 Ductile Iron Rilsan Coated or CF8M Stainless Steel. The disc materials are CF8M Stainless Steel, and the seat materials include EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, and Epichloridine.
The actuated functions include pneumatic, electric, de-clutchable gear, fail-safe, spring return, battery backup, and double-acting.
Actuated butterfly valves can be used for potable/waste water, cooling systems, oil, gases, air, corrosive chemicals, pharmaceuticals, petrochemicals, food and beverage, and various industrial processes.
Wafer pattern valves are designed for installation between two flanges at intermediate points within the process pipeline, while lugged pattern valves use threaded lugs for precise self-centering capabilities and are commonly used as dead-end service valves or for maintenance purposes.
PTFE lining is used in valves intended for highly corrosive environments or high-service temperatures. It provides excellent chemical resistance and a clean, FDA-approved contact surface.
Yes, Actuation Valve offers actuated butterfly valves suitable for marine applications, featuring materials like B148 C9500 Aluminium Bronze and EPDM seats suitable for seawater, cooling systems, desalination, and other marine environments. The 80WM580 & 80LM580 in particular are the most common.
The size ranges vary depending on the valve type, but they generally span from DN32 (1 1/4") to DN1600 (64").
Yes, Actuation Valve can provide various certifications, including witness testing, 3.1 certification, and standard pressure tests. Additional certifications can be arranged upon request.
Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.
Depending on the valve, actuator and process type pressure ratings range from PN10, PN16, PN40., ANSI 150 and ANSI 300.
