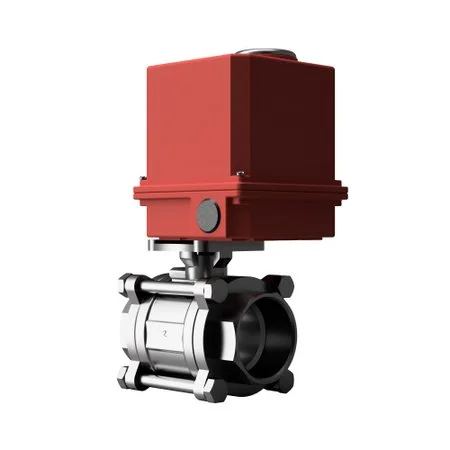

3 Piece Economy AV-Lite Electric Actuated Ball Valves

The industry-leading AV-L3000AV Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves. Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else. By using a 3-piece design we can easily remove the center section for seal replacements without having to take apart the entire valve. This allows us to keep your equipment running smoothly and efficiently with minimal downtime required for maintenance work on your end.

Key Features

Key features and benefits of the AV-L3000AV, AV-L3100AV & AV-L3200AV.
1

Key Features

This isolation Ball Valve features an innovative 3 piece body design that allows for future proof preventive maintenance schedules by easily removing one section of the body at a time for seal replacements instead of having to take apart the entire valve each time your schedule requires.
2

Key Features

WRAS approved TFM 1600 PTFE seats ensure safe operation while our FDA-approved materials provide peace of mind knowing your products will be handled safely without compromising quality or performance when used correctly.
3

Key Features

The AV-L3000 is a heavy duty ball valve designed for use in harsh environments with oils based paints and coatings. This valve features stainless steel construction, silicone free seals, self aligning seats and minimal maintenance design.

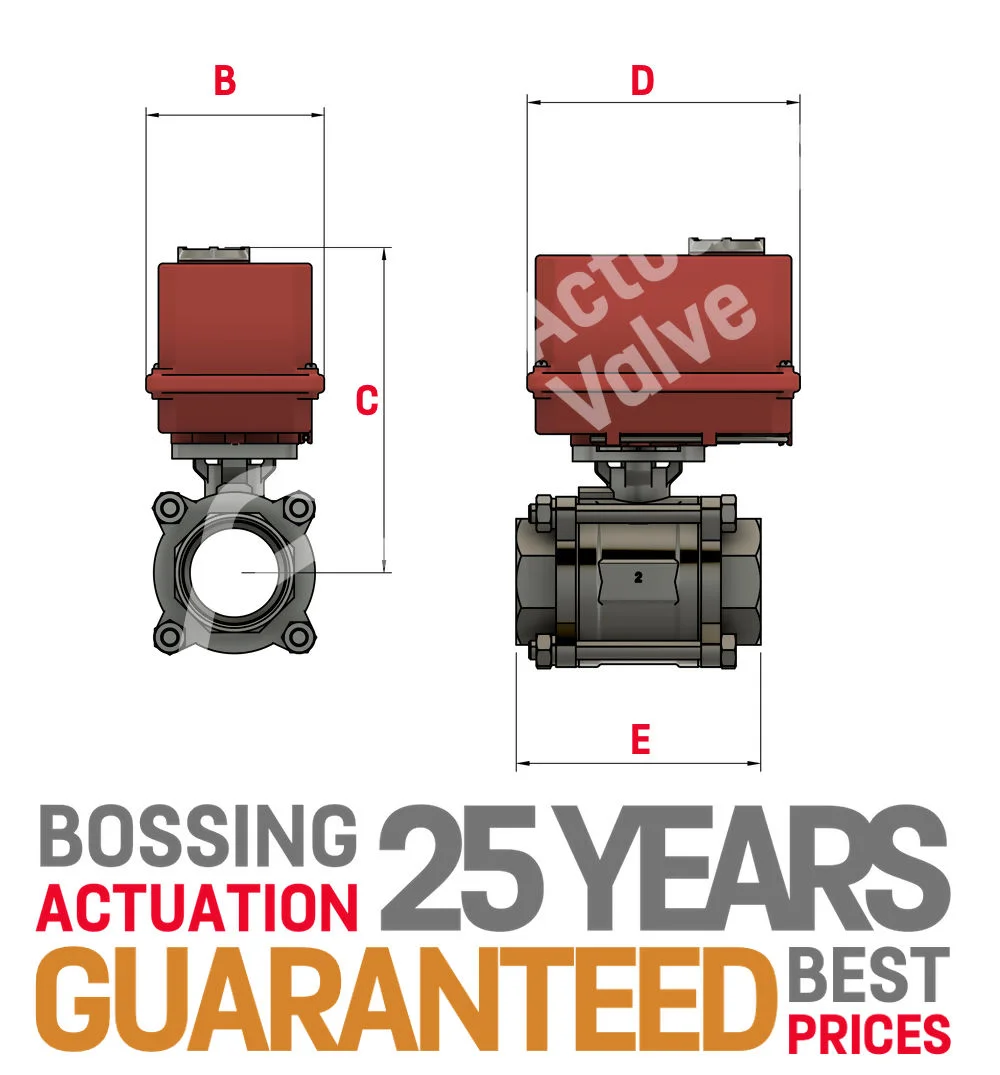

Screwed/Socket Weld Technical Stuff

B C D E Model
1/4" 100.00 152.50 145.00 75.00 AV-02
3/8" 100.00 152.50 145.00 75.00 AV-02
1/2" 100.00 152.50 145.00 75.00 AV-02
3/4" 100.00 159.00 145.00 80.00 AV-02
1" 100.00 169.00 145.00 90.00 AV-02
1 1/4" 100.00 173.50 145.00 110.00 AV-02
1 1/2" 121.90 212.80 117.00 120.00 AV-03
2" 121.90 219.70 117.00 140.00 AV-03
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Valve 3D Stuff

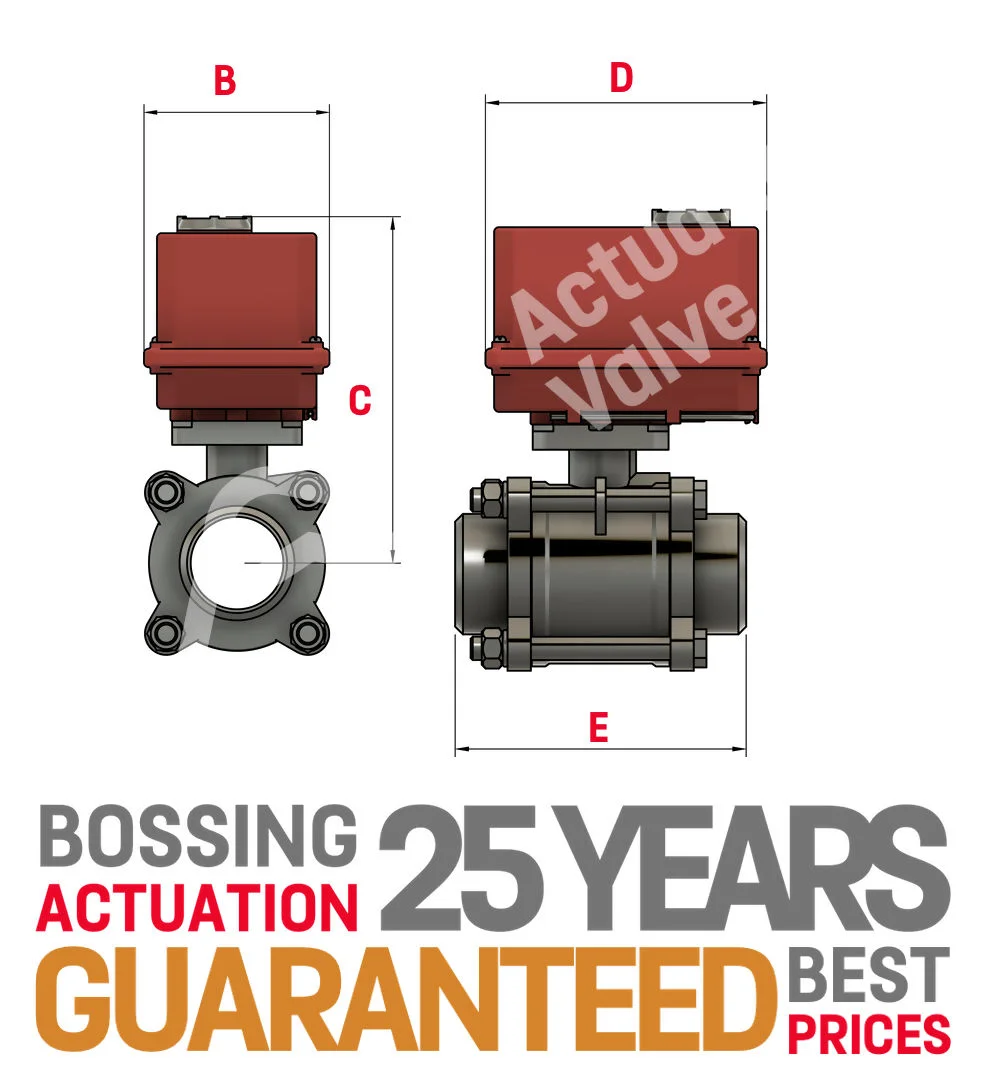

Butt Weld Valve Technical Stuff

B C D E Model
1/4" 100.00 152.50 145.00 70.00 AV-02
3/8" 100.00 152.50 145.00 70.00 AV-02
1/2" 100.00 152.50 145.00 75.00 AV-02
3/4" 100.00 159.00 145.00 90.00 AV-02
1" 100.00 169.00 145.00 100.00 AV-02
1 1/4" 100.00 173.50 145.00 110.00 AV-02
1 1/2" 121.90 212.80 117.00 125.00 AV-03
2" 121.90 219.70 117.00 150.00 AV-03
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (AV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000) ASME B1.20.1
Socket Weld Ends: (AV-L3100) ASME B16.11
Butt Weld Ends: (AV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
