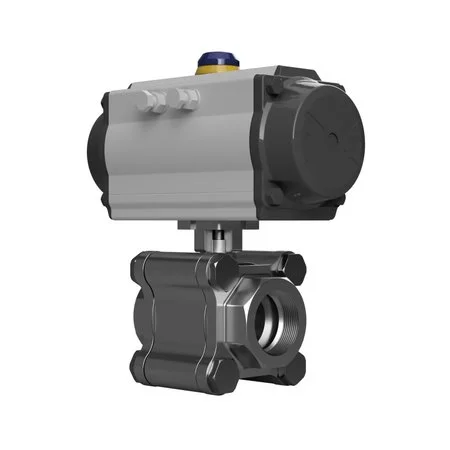

Heavy Duty Stainless Steel Air Torque Actuated Valves

These heavy duty stainless steel ball valve is ideal for use in process industries such as chemical processing plants, oil refineries and water treatment facilities. With its rugged stainless steel body you can be sure your equipment will perform reliably no matter the environment. Air Torque actuators have been designed to provide years of use with minimal maintenance required when compared to similar products on the market today. We offer a wide range of models so you can find one that fits your needs perfectly. Top visual indicator forms part of a patented design from the Italian manufacturer which allows the user to easily position the top cap at various angles. Avoiding the un-necessary requirements of having to disassemble and reassemble the actuated valve unit should the setup need changing.

Key Features

Key features and benefits of AV-L8000AT, AV-L8100AT & AV-L8200AT Actuated Ball Valves.
1

Key Features

We've made it easy for anyone to maintain the valve by replacing individual parts if necessary (Seats & Seals). This makes preventive maintenance much cheaper and easier than traditional ball valves, which require complete disassembly every time something needs to be fixed or replaced.
2

Key Features

Air Torque offer a full range of pneumatic actuators that will meet your requirements exactly. Our actuators come at competitive prices so you can get the most value when it comes to our products. They’re perfect for all kinds of industrial automation projects.
3

Key Features

Air Torque Pneumatic Actuators provide the same functionality as hydraulic actuators at a fraction of the cost while also providing increased reliability and reduced maintenance costs. This lightweight and compact device has been designed specifically with valves in mind.

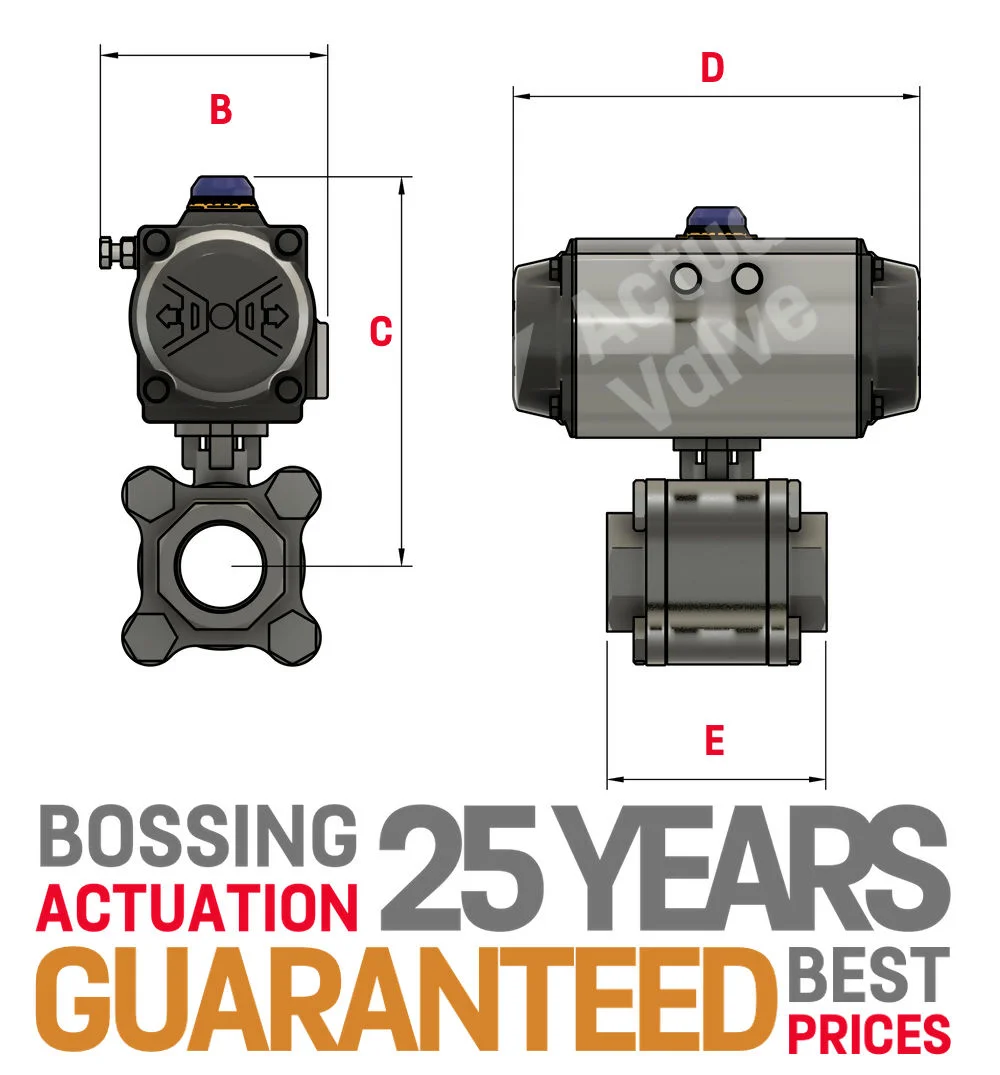

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
3/8" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
1/2" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
3/4" 84.50 156.00 153.50 80.00 72.00 140.00 137.00 80.00
1" 93.00 180.00 203.50 90.00 72.00 147.00 137.00 90.00
1 1/4" 93.00 185.00 203.50 110.00 84.50 168.00 153.50 110.00
1 1/2" 106.00 210.00 241.00 120.00 84.50 180.00 153.50 120.00
2" 118.50 233.00 259.00 140.00 93.00 208.00 203.50 140.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Screwed/Socket Weld 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

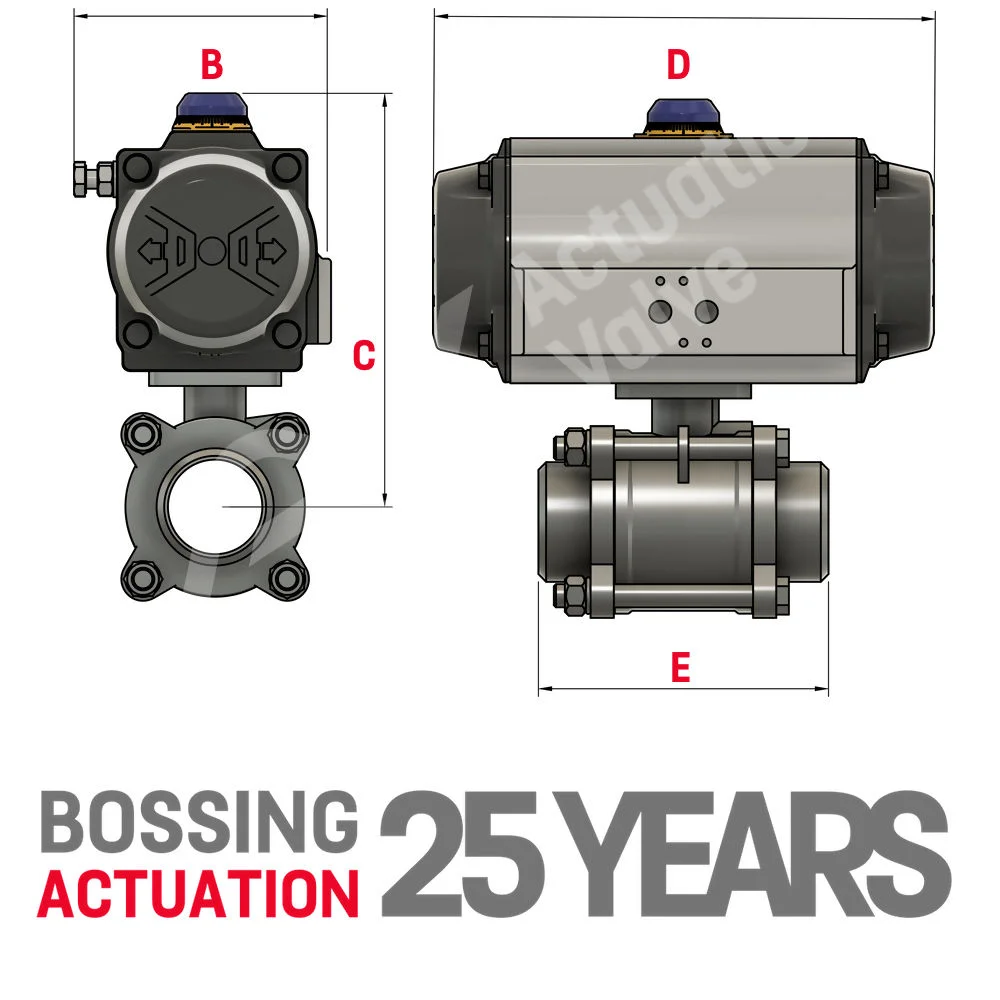

Butt Weld Technical Stuff

Butt Weld Valve 3D Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 72.00 132.00 137.00 70.00 72.00 132.00 137.00 70.00
3/8" 72.00 132.00 137.00 70.00 72.00 132.00 137.00 70.00
1/2" 72.00 132.00 137.00 75.00 72.00 132.00 137.00 75.00
3/4" 84.50 156.00 153.50 90.00 72.00 140.00 137.00 90.00
1" 93.00 180.00 203.50 100.00 72.00 147.00 137.00 100.00
1 1/4" 93.00 185.00 203.50 110.00 84.50 168.00 153.50 110.00
1 1/2" 106.00 210.00 241.00 125.00 84.50 180.00 153.50 125.00
2" 233.00 233.00 259.00 150.00 93.00 208.00 203.50 150.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Air Torque Actuator Videos

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
